No. of sale: 261223M
Starting date

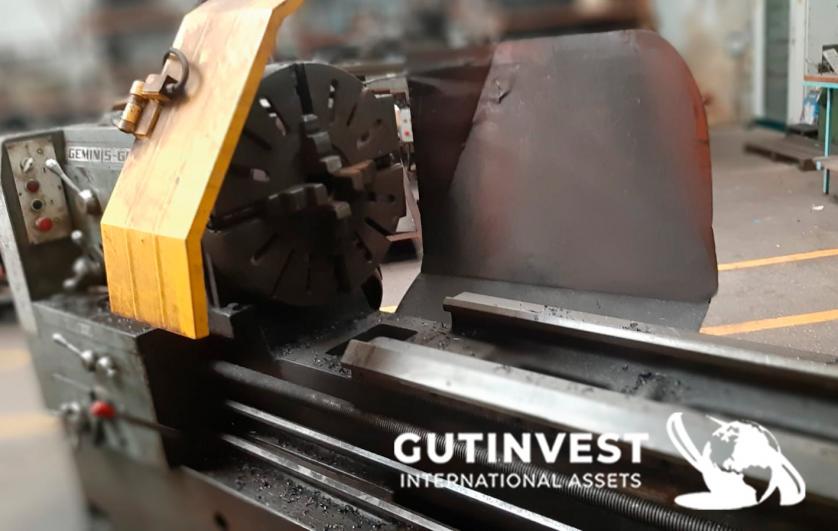

ManufacturerGeminis ModelGE-650 ObservationsLathe. Distance Between Points: 3.000 mm Diameter on Bed: 680 mm Diameter on Carriage: 410 mm. Diameter over neckline: 850 mm Longitudinal Bed Width: 450 mm Revolutions: 13 - 1,000 rpm. Nº of Speeds: 18 Speeds/ Speeds Tailstock shaft diameter : 85 mm. Main engine power: 15 H.P. Dimensions: 5.100×1.450×1.600 mm Approx. machine weight: 5.800 Kg
ManufacturerGeminis ModelGE-650 ObservationsLathe. Distance Between Points: 3.000 mm Diameter on Bed: 680 mm Diameter on Carriage: 410 mm. Diameter over neckline: 850 mm Longitudinal Bed Width: 450 mm Revolutions: 13 - 1,000 rpm. Nº of Speeds: 18 Speeds/ Speeds Tailstock shaft diameter : 85 mm. Main engine power: 15 H.P. Dimensions: 5.100×1.450×1.600 mm Approx. machine weight: 5.800 Kg

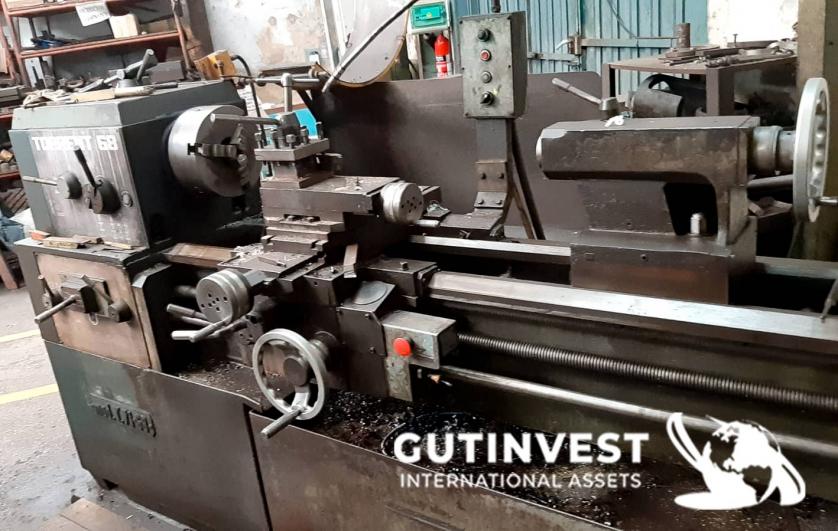

ManufacturerTorrent 68 ObservationsLathe. Distance between points: 1500 mm. Bed width: 350 mm. Flock turning: 500 mm. Diameter allowed above neckline: 760 mm. Diameter allowed on transverse carriage: 300 mm. Main spindle hole: 68 mm. Number of speeds: 12. Speed range: 24-1300 rpm. Transverse carriage travel: 380 mm. Tailstock shank diameter: 72 mm. Main motor power: 5.5 kW.
ManufacturerTorrent 68 ObservationsLathe. Distance between points: 1500 mm. Bed width: 350 mm. Flock turning: 500 mm. Diameter allowed above neckline: 760 mm. Diameter allowed on transverse carriage: 300 mm. Main spindle hole: 68 mm. Number of speeds: 12. Speed range: 24-1300 rpm. Transverse carriage travel: 380 mm. Tailstock shank diameter: 72 mm. Main motor power: 5.5 kW.

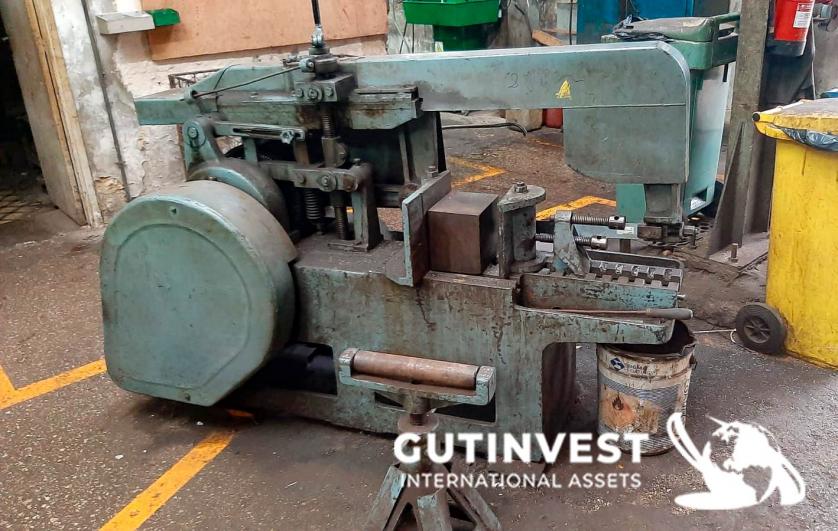

ManufacturerUniz ObservationsSawing machine. Cutting capacity: 400mm
ManufacturerUniz ObservationsSawing machine. Cutting capacity: 400mm
Start price 800 €

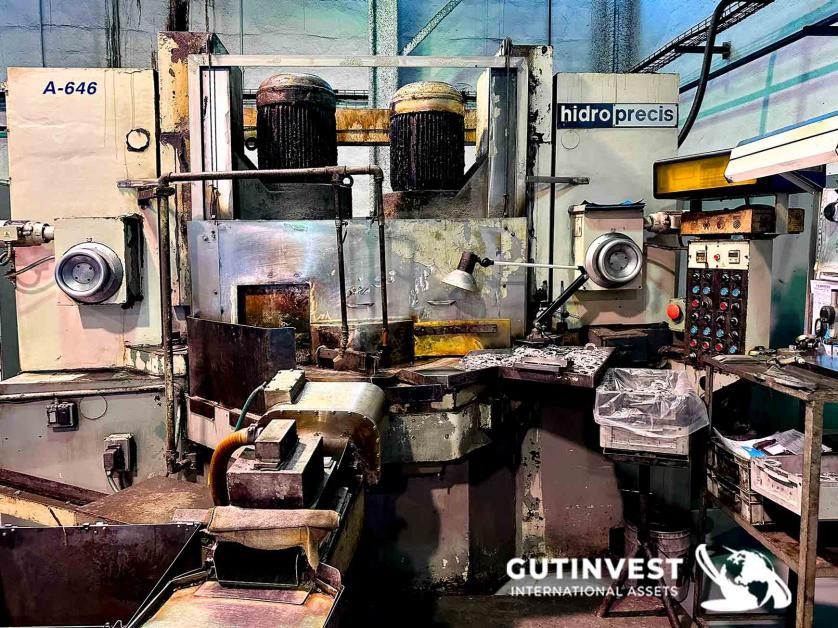

ManufacturerHIDRO-PRECIS ModelRC-2 Year1979 ObservationsFlat grinding machine with 2 continuous grinding wheels with circular magnetic plate. The machine is equipped with a circular magnetic plate with a diameter of approximately 1000 mm. Each wheel head is 22.38 kW. The machine has a 600-litre cooling tank with a cooling pump with a flow rate of 16 m3/hour. At the exit of the machine there is a demagnetizing tunnel for parts. Machine dimensions: 5.000x4.000x2.700mm
ManufacturerHIDRO-PRECIS ModelRC-2 Year1979 ObservationsFlat grinding machine with 2 continuous grinding wheels with circular magnetic plate. The machine is equipped with a circular magnetic plate with a diameter of approximately 1000 mm. Each wheel head is 22.38 kW. The machine has a 600-litre cooling tank with a cooling pump with a flow rate of 16 m3/hour. At the exit of the machine there is a demagnetizing tunnel for parts. Machine dimensions: 5.000x4.000x2.700mm
Start price 4.200 €
ManufacturerERLO ModelTCA-50 ObservationsColumn drilling machine. Table: 550x550 mm. Drill bit diameter: 50 mm. Spindle Lead Clutch: Mechanical. Speeds: 9, from 45 to 1115rpm. Power: 3 kW.
ManufacturerERLO ModelTCA-50 ObservationsColumn drilling machine. Table: 550x550 mm. Drill bit diameter: 50 mm. Spindle Lead Clutch: Mechanical. Speeds: 9, from 45 to 1115rpm. Power: 3 kW.

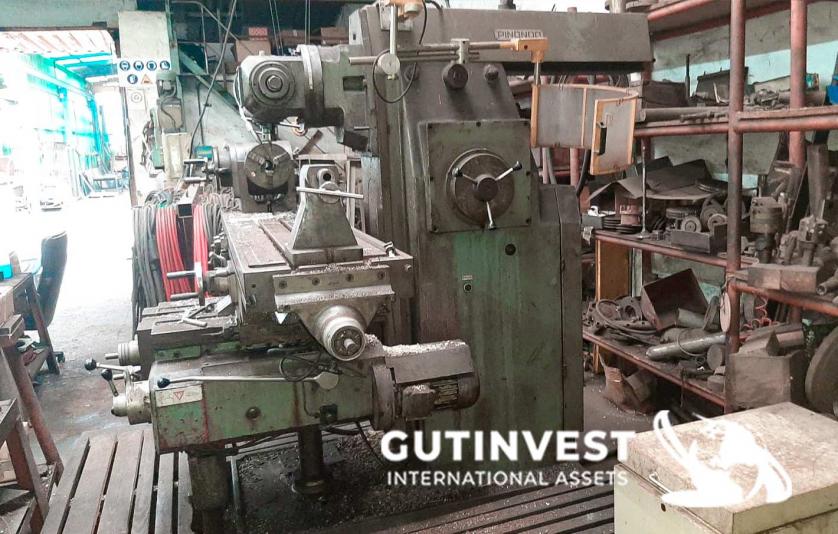

ManufacturerPinondo ModelFU - P-5 ObservationsUniversal milling machine, table dimensions: 1,600 x 400mm
ManufacturerPinondo ModelFU - P-5 ObservationsUniversal milling machine, table dimensions: 1,600 x 400mm
Start price 1.900 €

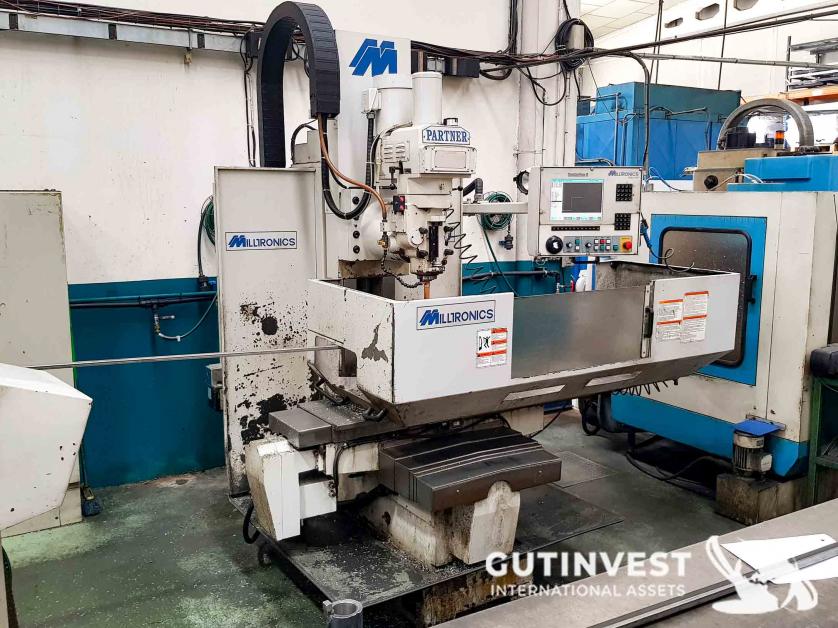

ManufacturerMILLTRONICS ModelPARTNER MB20 H-SERIES Year2000 Observations3-axis CNC milling machine. Axle travel: X-axis: 1.018,50mm, Y-axis: 510,50mm, Z-axis: 612mm. Control: Centurion 6. Tool holder: BT40. Approx. machine weight: 3.200Kg.
ManufacturerMILLTRONICS ModelPARTNER MB20 H-SERIES Year2000 Observations3-axis CNC milling machine. Axle travel: X-axis: 1.018,50mm, Y-axis: 510,50mm, Z-axis: 612mm. Control: Centurion 6. Tool holder: BT40. Approx. machine weight: 3.200Kg.
Start price 9.000 €

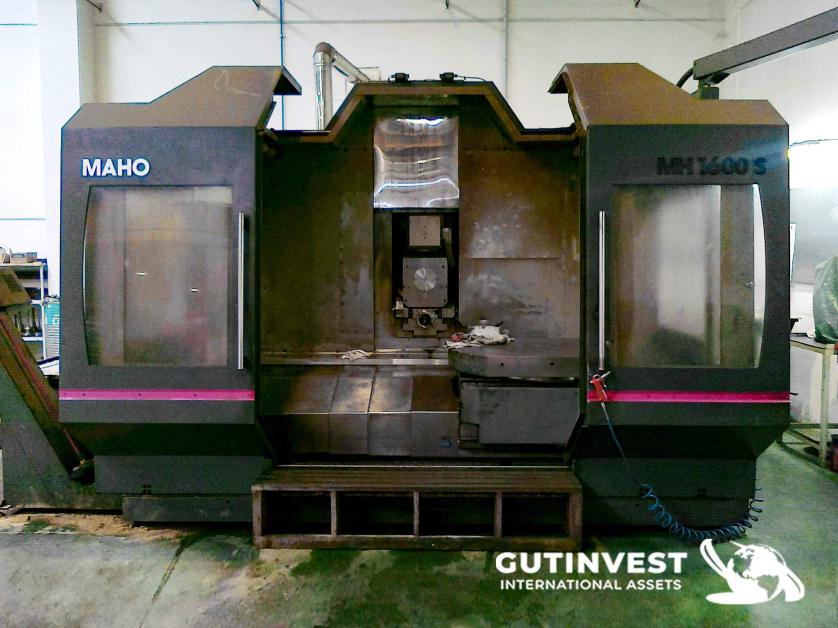

ManufacturerMaho ModelMH 1600 S Observations CNC machining center. Working area: 1600 x 800 x 800 mm. Working hours: 58.900hrs, ISO-50 spindle Speed range 4000 min-1 Motive power: 15 kW Machine dimensions (length x width x height): 4500 × 3700 × 2800mm. Approx. machine weight: 17,500 kg. Tool changer to be repaired.
ManufacturerMaho ModelMH 1600 S Observations CNC machining center. Working area: 1600 x 800 x 800 mm. Working hours: 58.900hrs, ISO-50 spindle Speed range 4000 min-1 Motive power: 15 kW Machine dimensions (length x width x height): 4500 × 3700 × 2800mm. Approx. machine weight: 17,500 kg. Tool changer to be repaired.
Start price 9.000 €

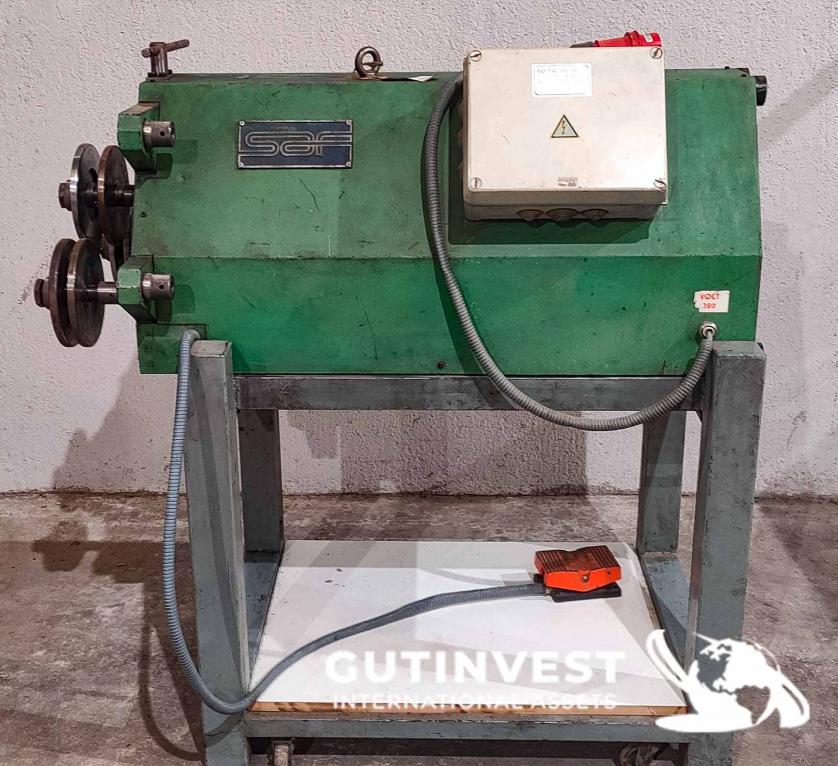

ManufacturerSAF ModelDS-35 ObservationsProfile bending machine for aluminum, with three-axis traction, axle diameter: 35mm, 2 Hp motor at 380V. Includes Nylon roller set for bending aluminum profile of 12x12x12x1 mm.
ManufacturerSAF ModelDS-35 ObservationsProfile bending machine for aluminum, with three-axis traction, axle diameter: 35mm, 2 Hp motor at 380V. Includes Nylon roller set for bending aluminum profile of 12x12x12x1 mm.
Start price 3.500 €

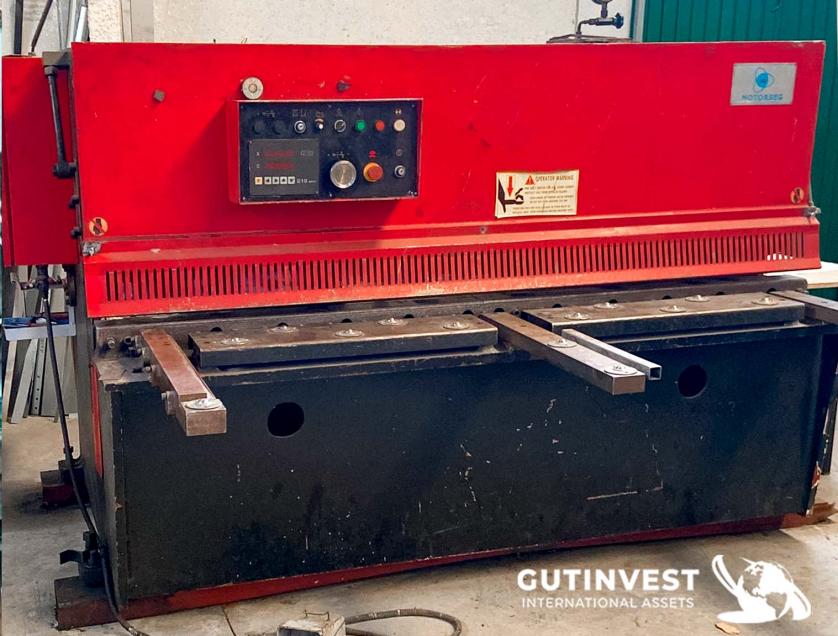

ManufacturerMotorsec Model4x2000 Year2007 Observations Shear press, maximum cutting thickness: 4mm, maximum cutting length: 2,000mm
ManufacturerMotorsec Model4x2000 Year2007 Observations Shear press, maximum cutting thickness: 4mm, maximum cutting length: 2,000mm
Start price 6.000 €

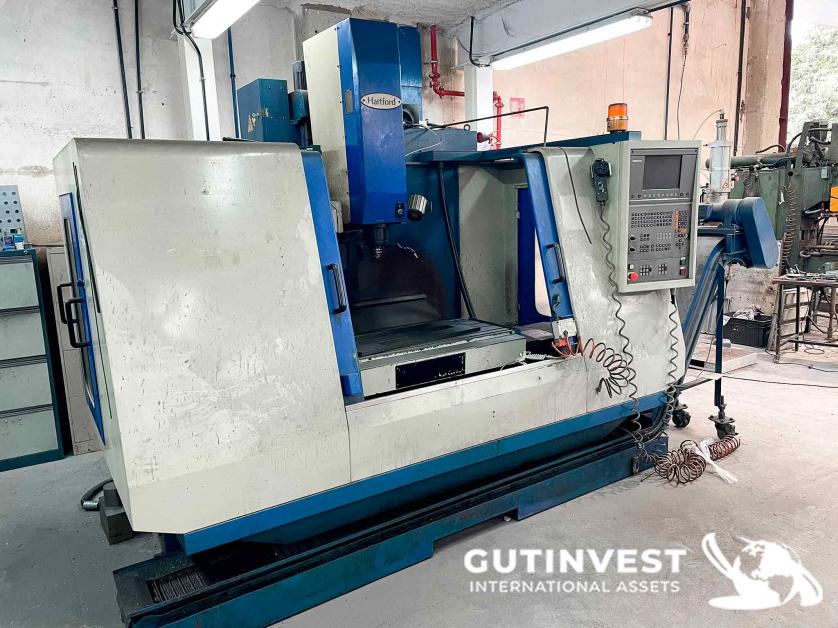

ManufacturerHartFord ModelVMC-1020S Year1999 ObservationsMachining Center. Axle travels: X-axis: 1,020mm, Y-axis: 510mm, Z-axis: 510mm. Table dimensions: 1,200 X 470 mm, Numerical control: HEIDENHAIN TNC 410. Number of tool holders: 20, cone: ISO 40, Power: 23KVA. Machine dimensions: 2,300 x 2,200 x 2,600mm. Approx. machine weight: 5.400 Kg.
ManufacturerHartFord ModelVMC-1020S Year1999 ObservationsMachining Center. Axle travels: X-axis: 1,020mm, Y-axis: 510mm, Z-axis: 510mm. Table dimensions: 1,200 X 470 mm, Numerical control: HEIDENHAIN TNC 410. Number of tool holders: 20, cone: ISO 40, Power: 23KVA. Machine dimensions: 2,300 x 2,200 x 2,600mm. Approx. machine weight: 5.400 Kg.
Start price 8.500 €

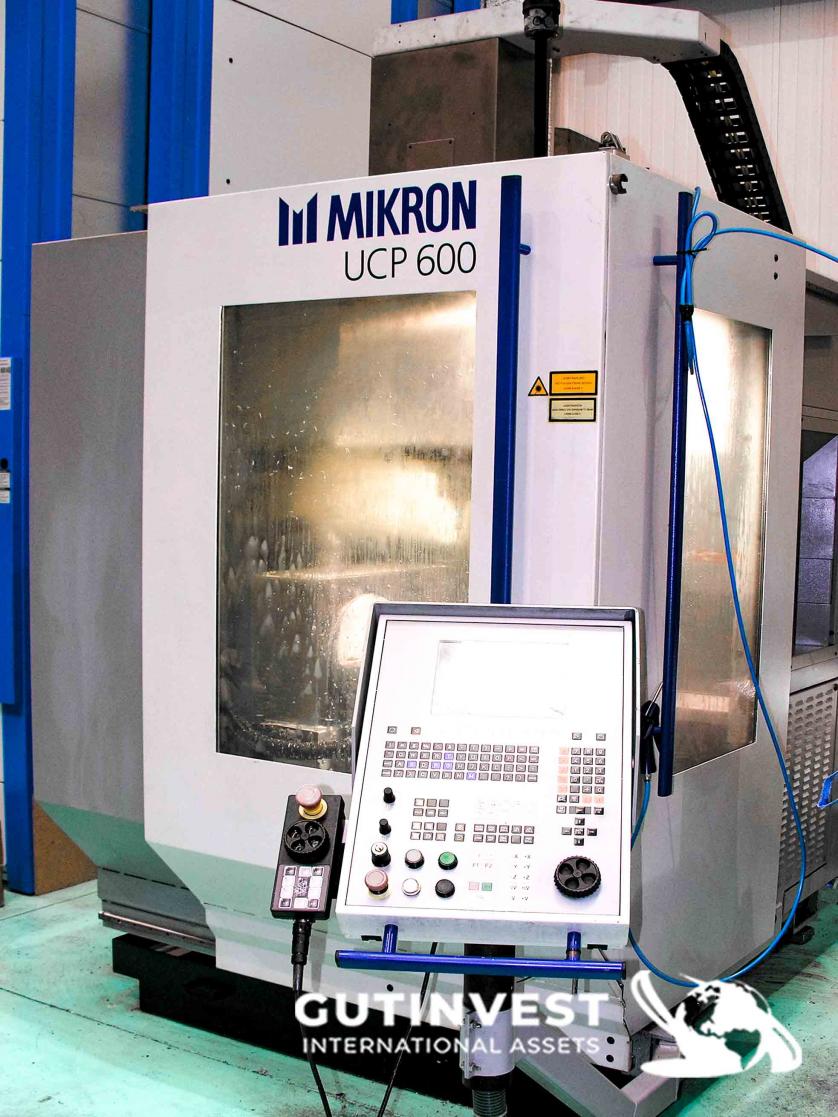

ManufacturerMikron ModelUCP 600 Year2000 Observations5-axis machining center: X-Y-Z travel: 530-450-450 mm . Fast feed: 22 m/min . Max. working feed: 15 m/min . Spindle speed: 42000 rpm . HSK E-40 cone . Spindle power: 14 kW . Max. tool diameter: 16 mm . Number of tools: 36 . Changeover time: 5 sec . Wedge turn: -15° to 122° . Plate diameter: 280 mm . Max. weight on table: 200 kg . Workpiece measuring probe: Renishaw OMP 40 . Workpiece Breakage Probe: BLUM . CNC: Heidenhain 430M . External coolant + Unilube AG air/oil system. Machine weight: 6.500Kg. The head has changed bearings, tie rods, etc. In addition, improvements were made to the machine to increase its accuracy, such as a lubricated bushing for the cradle support. The bellows are completely new, and elements that wore out from use were replaced. With the machine we include thermal, and PGR cones from Franken, it also has a postprocessor made exclusively for it from Mastercam, with direct machine simulation.
ManufacturerMikron ModelUCP 600 Year2000 Observations5-axis machining center: X-Y-Z travel: 530-450-450 mm . Fast feed: 22 m/min . Max. working feed: 15 m/min . Spindle speed: 42000 rpm . HSK E-40 cone . Spindle power: 14 kW . Max. tool diameter: 16 mm . Number of tools: 36 . Changeover time: 5 sec . Wedge turn: -15° to 122° . Plate diameter: 280 mm . Max. weight on table: 200 kg . Workpiece measuring probe: Renishaw OMP 40 . Workpiece Breakage Probe: BLUM . CNC: Heidenhain 430M . External coolant + Unilube AG air/oil system. Machine weight: 6.500Kg. The head has changed bearings, tie rods, etc. In addition, improvements were made to the machine to increase its accuracy, such as a lubricated bushing for the cradle support. The bellows are completely new, and elements that wore out from use were replaced. With the machine we include thermal, and PGR cones from Franken, it also has a postprocessor made exclusively for it from Mastercam, with direct machine simulation.
Start price 30.000 €

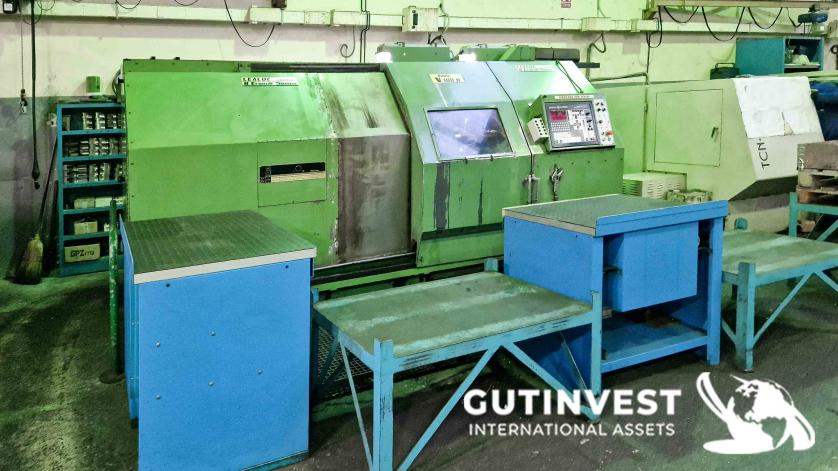

ManufacturerLEALDE ModelV 100 N Year1980 No. Series164 ObservationsCNC Lathe. Distance between points: 1250mm, Turning Diameter: 510mm, Machining Diameter: 340mm, Bar Diameter: 56mm, Number of Tools: 8. Power 40 Kw, Numerical Control: General Electric, Mark Century 1050 Model,
ManufacturerLEALDE ModelV 100 N Year1980 No. Series164 ObservationsCNC Lathe. Distance between points: 1250mm, Turning Diameter: 510mm, Machining Diameter: 340mm, Bar Diameter: 56mm, Number of Tools: 8. Power 40 Kw, Numerical Control: General Electric, Mark Century 1050 Model,
Start price 10.500 €

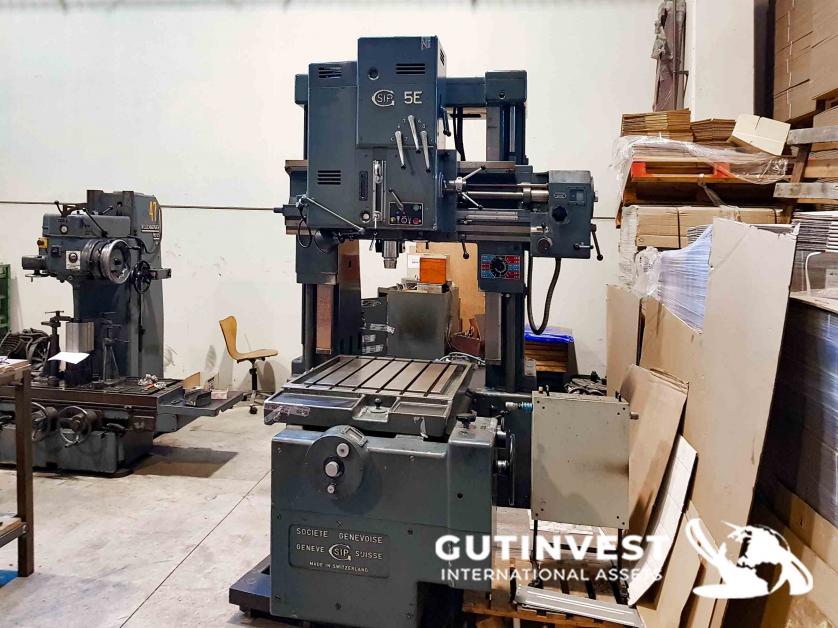

ManufacturerSIP ModelMP-5E ObservationsDrilling and Boring Machine
Longitudinal travel movement: 700 mm. Transverse movement of the drill head: 500 mm. Spindle stroke: 180 mm. Worktable area: 900x770 mm. Max. pitch between table and spindle: 800 mm. Min. distance between table and spindle: 200 mm. Free passage between machine columns: 875 mm. Drill spindle sleeve diameter: 95 mm.Spindle pitch: 5 mm. Spindle speed (12 speeds): 50-2250 rpm. Drilling feeds (4 gears): 0.04-0.21 mm/rev. Power required: 8 kVa. Max. table load: 600 kg. Machine weight (gross): 5400 kg.
ManufacturerSIP ModelMP-5E ObservationsDrilling and Boring Machine
Longitudinal travel movement: 700 mm. Transverse movement of the drill head: 500 mm. Spindle stroke: 180 mm. Worktable area: 900x770 mm. Max. pitch between table and spindle: 800 mm. Min. distance between table and spindle: 200 mm. Free passage between machine columns: 875 mm. Drill spindle sleeve diameter: 95 mm.Spindle pitch: 5 mm. Spindle speed (12 speeds): 50-2250 rpm. Drilling feeds (4 gears): 0.04-0.21 mm/rev. Power required: 8 kVa. Max. table load: 600 kg. Machine weight (gross): 5400 kg.
Start price 4.800 €
