No. of sale: 261223M
Starting date
ManufacturerOerlikon / Air Liquide ModelOxitome B25 Year2002 ObservationsPlasma and oxyfuel cutting table
Table dimensions: 3,300 x 2,650 mm, Hypertherm HPR-130 plasma torch. Equipped with a high-definition plasma torch with a cutting capacity of up to 38 mm, and an oxyfuel torch with a cutting capacity of up to 300 mm. Numerical control: Digisaf 100.
ManufacturerOerlikon / Air Liquide ModelOxitome B25 Year2002 ObservationsPlasma and oxyfuel cutting table
Table dimensions: 3,300 x 2,650 mm, Hypertherm HPR-130 plasma torch. Equipped with a high-definition plasma torch with a cutting capacity of up to 38 mm, and an oxyfuel torch with a cutting capacity of up to 300 mm. Numerical control: Digisaf 100.
Start price 10.500 €

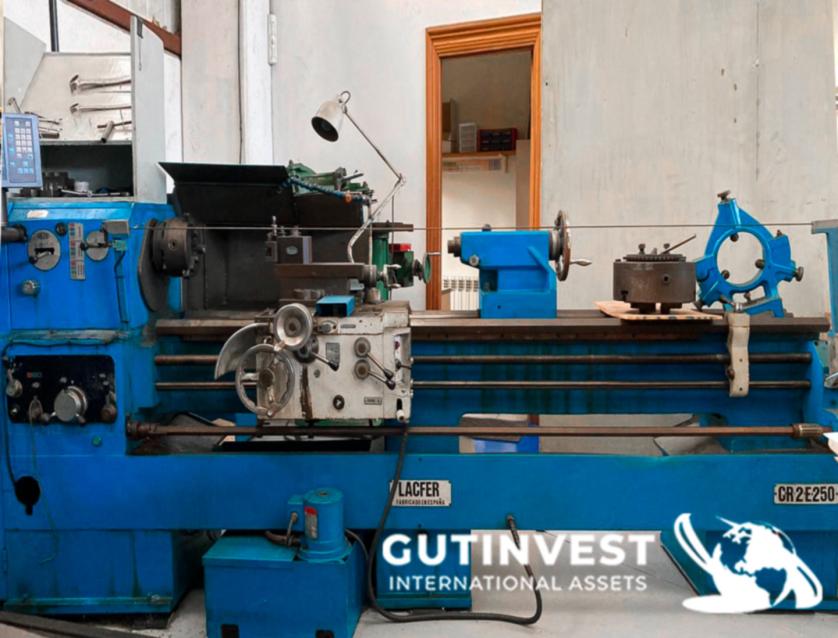

ManufacturerLacfer ModelCR-2-E-250 ObservationsLathe
Height from centers to bed: 320mm
Distance between centers: 2000mm
Bed width: 500mm
Hardened ways 400-500 hb: Yes
Maximum swing over bed: 530mm
Maximum swing over carriage: 320mm
Headstock bore diameter: 60mm
Headstock spindle nose: DIN 55022-6"
Headstock horsepower: 10
Quick-change turret: Yes
Lead spindle pitch: 6"
Number of speeds: 16
Spindle speed range, min-max: 25-1800 rpm
Number of automatic feeds: 18 x 2
Feed rates, min-max (mm/rev): 0.06-2.5
Number of thread feeds (mm): 18x4
Number of thread feeds (inches): 18x4
Min-max thread pitch (mm): 0.5 - 14
Min-max thread pitch (inches): 32 - 2
Tailstock, Morse taper: 5
Steady rest: Yes
Tool holder set: 6
Jaw set: 3
Approximate weight (kg): 2700
ManufacturerLacfer ModelCR-2-E-250 ObservationsLathe
Height from centers to bed: 320mm
Distance between centers: 2000mm
Bed width: 500mm
Hardened ways 400-500 hb: Yes
Maximum swing over bed: 530mm
Maximum swing over carriage: 320mm
Headstock bore diameter: 60mm
Headstock spindle nose: DIN 55022-6"
Headstock horsepower: 10
Quick-change turret: Yes
Lead spindle pitch: 6"
Number of speeds: 16
Spindle speed range, min-max: 25-1800 rpm
Number of automatic feeds: 18 x 2
Feed rates, min-max (mm/rev): 0.06-2.5
Number of thread feeds (mm): 18x4
Number of thread feeds (inches): 18x4
Min-max thread pitch (mm): 0.5 - 14
Min-max thread pitch (inches): 32 - 2
Tailstock, Morse taper: 5
Steady rest: Yes
Tool holder set: 6
Jaw set: 3
Approximate weight (kg): 2700
Start price 7.500 €
