CNC lathe SPINNER PD- Metalworking sector

No. of sale: 301123M

Starting date
27/10/2023 16:00:00
Closing Date
28/05/2024 16:00:00
Viewing days
by appointment
Location
France

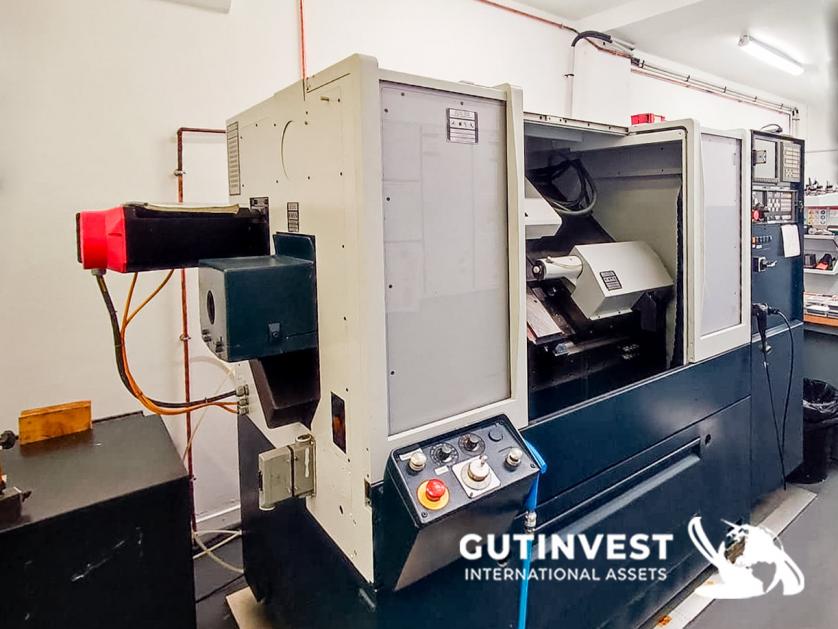

Direct sale of CNC lathe, "SPINNER - Germany", model: PD - CNC, (2001), in good condition.
Payment methods

Manufacturer
SPINNER
Model
PD - CNC
Year
2001
Observations
Lathe CNC
- diameter admitted above the bench: 300 mm
- passage of the spindle: 32 mm
- engine power:7. 7 kw
- fast forward: 12m/min
- travel of the transverse slide (x): 400 mm
- maximum length of the carriage (z): 400 mm
- the sheath / stroke: 40 / 128 mm.
- Spindle speed: 8000 rpm
- tool holder turret with 12 tools of which 6 motorized (6000 rpm)
- max power: 11 kw , max torque: 23 nm
CNC: Control Fanuc
- Small dimensions: 2160 x 1080 x 1715mm
- Weight: 2100 kg



Start price 22.500 €

Manufacturer
SPINNER
Model
PD - CNC
Year
2001
Observations
Lathe CNC
- diameter admitted above the bench: 300 mm
- passage of the spindle: 32 mm
- engine power:7. 7 kw
- fast forward: 12m/min
- travel of the transverse slide (x): 400 mm
- maximum length of the carriage (z): 400 mm
- the sheath / stroke: 40 / 128 mm.
- Spindle speed: 8000 rpm
- tool holder turret with 12 tools of which 6 motorized (6000 rpm)
- max power: 11 kw , max torque: 23 nm
CNC: Control Fanuc
- Small dimensions: 2160 x 1080 x 1715mm
- Weight: 2100 kg



Start price 22.500 €

1  -  Lathe CNC
22.500 €
