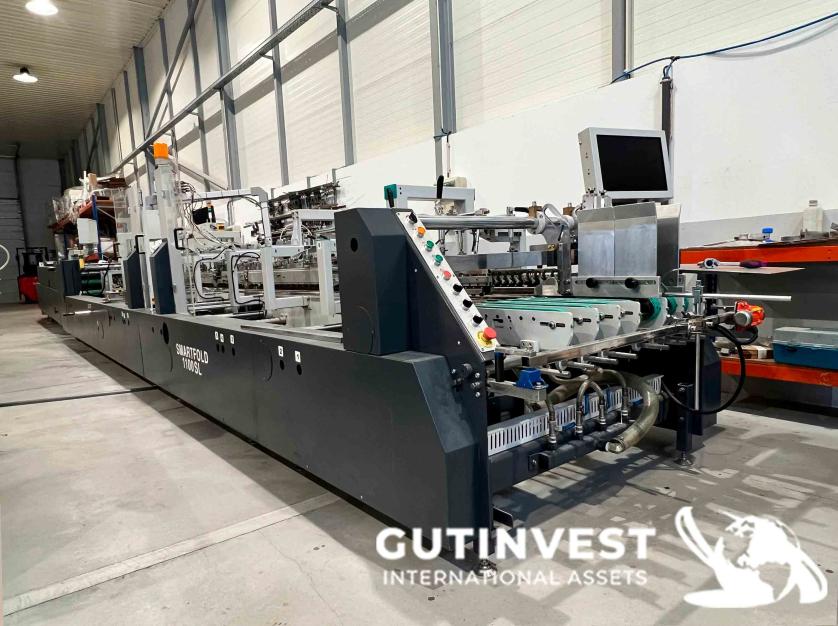

ManufacturerDGM (made in China) ModelSF-1100SL (Smartfold 1100SL) Year2017 ObservationsAutomatic Box folding and gluing machine
Gluing machine for closing side-glued boxes with pre-folding on the first and third folds. Includes a servo motor for 4 and 6 points. High-end gluing equipment with cold glue and four HHS glue guns. Suitable for cardboard from 200 to 800 g/m² and E&B corrugated board, with continuous automatic feeding. Power: 30 kW. Dimensions and Weight: 15.92 x 1.86 x 1.4 meters. Weight: 9.000 kg.
Composition:
Feeder section
·Driven independently by servo motor.
·Adjustable electronic pile vibrator.
·Side feed gates fully adjustable to the width of the blank.
·8 feeder belts.
·Three adjustable front feed knives.
Side register section
Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.
Pre-folding section
·Left hand glue flap pre-folder up to 180º.
·Third crease line pre-folder up to 135º.
·1st and 3rd crease openers.
Crash lock bottom section
Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
Set of accessories for B-type lock bottom.
Lower gluing unit
One lower (left side) gluing tank.
Easy to remove and clean.
Folding & Closing section
·Smooth and accurate folding of 2nd and 4th creases.
·Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
·Outer folding belts L&R sides adjustable up to 180º with variable speed.
Trombone section
Upper and lower drive mechanism for lengthwise adjustment.
Equipped with automatic belt tension-adjusting system.
Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.
Press section
·Independent and motorized press section.
·Manual and Automatic mode (follow up).
·Upper section moves back and forward, allowing for different box length.
·5.59 meters total length with 3.1 meters effective pressure length.
·Pneumatic pressure adjustment.
Servo-motor of back folding device
Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.
·Processed Material: Carton board max. 800 g/m². Corrugated flute type N, E & F
·Capability: Speed max. 400 m/min. Inching speed 20 m/min. Thickness of folded box max. 12 mm. Blank width 1100 mm
·Installation: Electrical connected load: 28 kW. Compressed air: 6 bar. Air compressor capacity: 10 m³/h. Air tank capacity 60 L
Box types:
Straight - line Box:
A: 136 - 1080 mm
B: 100 - 800 mm
E: 68 - 530 mm
Lock - bottom Box:
A: 146 - 1050 mm
B: 110 - 800 mm
E: 68 - 518 mm
Double - wall Box:
A: 200 - 1100 mm
B: 100 - 800 mm
D: 30 - 150 mm
E: 80 - 980 mm
4 - corner Box:
A: 140 - 1050 mm
B: 140 - 800 mm
H: 25 - 120 mm
4 - corner Box with Lid:
A: 250 - 1020 mm
B: 140 - 800 mm
H: 25 - 120 mm
6 - corner Box:
A: 250 - 1020 mm
B: 140 - 800 mm
H: 25 - 120 mm
ManufacturerDGM (made in China) ModelSF-1100SL (Smartfold 1100SL) Year2017 ObservationsAutomatic Box folding and gluing machine
Gluing machine for closing side-glued boxes with pre-folding on the first and third folds. Includes a servo motor for 4 and 6 points. High-end gluing equipment with cold glue and four HHS glue guns. Suitable for cardboard from 200 to 800 g/m² and E&B corrugated board, with continuous automatic feeding. Power: 30 kW. Dimensions and Weight: 15.92 x 1.86 x 1.4 meters. Weight: 9.000 kg.
Composition:
Feeder section
·Driven independently by servo motor.
·Adjustable electronic pile vibrator.
·Side feed gates fully adjustable to the width of the blank.
·8 feeder belts.
·Three adjustable front feed knives.
Side register section
Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.
Pre-folding section
·Left hand glue flap pre-folder up to 180º.
·Third crease line pre-folder up to 135º.
·1st and 3rd crease openers.
Crash lock bottom section
Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
Set of accessories for B-type lock bottom.
Lower gluing unit
One lower (left side) gluing tank.
Easy to remove and clean.
Folding & Closing section
·Smooth and accurate folding of 2nd and 4th creases.
·Two upper and two lower carriers with 25 mm lower and 30 mm outer belts.
·Outer folding belts L&R sides adjustable up to 180º with variable speed.
Trombone section
Upper and lower drive mechanism for lengthwise adjustment.
Equipped with automatic belt tension-adjusting system.
Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.
Press section
·Independent and motorized press section.
·Manual and Automatic mode (follow up).
·Upper section moves back and forward, allowing for different box length.
·5.59 meters total length with 3.1 meters effective pressure length.
·Pneumatic pressure adjustment.
Servo-motor of back folding device
Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.
·Processed Material: Carton board max. 800 g/m². Corrugated flute type N, E & F
·Capability: Speed max. 400 m/min. Inching speed 20 m/min. Thickness of folded box max. 12 mm. Blank width 1100 mm
·Installation: Electrical connected load: 28 kW. Compressed air: 6 bar. Air compressor capacity: 10 m³/h. Air tank capacity 60 L
Box types:
Straight - line Box:
A: 136 - 1080 mm
B: 100 - 800 mm
E: 68 - 530 mm
Lock - bottom Box:
A: 146 - 1050 mm
B: 110 - 800 mm
E: 68 - 518 mm
Double - wall Box:
A: 200 - 1100 mm
B: 100 - 800 mm
D: 30 - 150 mm
E: 80 - 980 mm
4 - corner Box:
A: 140 - 1050 mm
B: 140 - 800 mm
H: 25 - 120 mm
4 - corner Box with Lid:
A: 250 - 1020 mm
B: 140 - 800 mm
H: 25 - 120 mm
6 - corner Box:
A: 250 - 1020 mm
B: 140 - 800 mm
H: 25 - 120 mm
Start price 85.000 €
