No. of sale: 290725M
Starting date

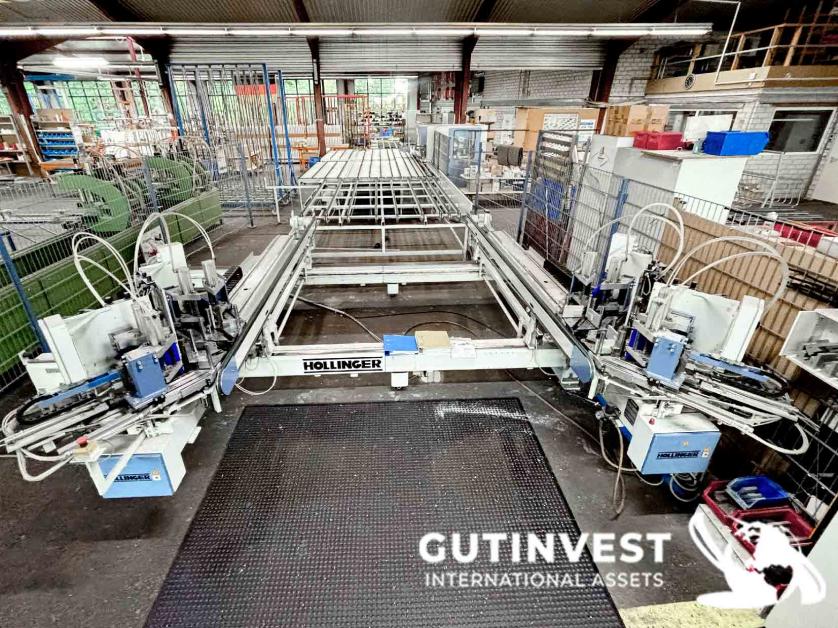

ManufacturerHOLLINGER - ROTOX ModelMSP - EPA 472 Year2005 Observations 4- head welding line for windows frames
Fully automatic cleaning of visible surfaces, outer corners, seal grooves, inner corners on
uPVC window frames and sashes. The profile support side can be selected.
Profile range
All known profiles rebate seal systems, middle seal systems, reverse butt weld systems,
sliding window systems and "monobloc" systems (sill frames)
Characteristic features
Flexible
- variable tooling with up to twelve tool places
- pneumatic clamping system
- manual and/or turntable operation
- interconnection of multiple head welding machines
- interpolating 2-axes-CNC control with integrated SPS
- memory for up to 300 NC programs
- program editing by DIN (German Industrial Standard) programming language, teach-inmodus as well as copy programming
- automatic profile recognition or data transfer from the welding machine
Efficient
- high processing qualtity due to spring-mounted knifing units compensating profile
tolerances in the inner corner area. Reliable and of low-maintenance
- low-maintenance precision guiding devices with central lubrication system and
recirculating ball spindles
Bedienerfreundlich
- clear control panel or visual display control based on a Pentium PC with CD ROM and
disk drive
- adjustment of correction parameters by means of CAD profile drawings
Profitabel
- low cycle times for corners of approx. 20 sec.
- low cycle times for frames of approx. 2 min. In turntable operation
- short amortization period
ManufacturerHOLLINGER - ROTOX ModelMSP - EPA 472 Year2005 Observations 4- head welding line for windows frames
Fully automatic cleaning of visible surfaces, outer corners, seal grooves, inner corners on
uPVC window frames and sashes. The profile support side can be selected.
Profile range
All known profiles rebate seal systems, middle seal systems, reverse butt weld systems,
sliding window systems and "monobloc" systems (sill frames)
Characteristic features
Flexible
- variable tooling with up to twelve tool places
- pneumatic clamping system
- manual and/or turntable operation
- interconnection of multiple head welding machines
- interpolating 2-axes-CNC control with integrated SPS
- memory for up to 300 NC programs
- program editing by DIN (German Industrial Standard) programming language, teach-inmodus as well as copy programming
- automatic profile recognition or data transfer from the welding machine
Efficient
- high processing qualtity due to spring-mounted knifing units compensating profile
tolerances in the inner corner area. Reliable and of low-maintenance
- low-maintenance precision guiding devices with central lubrication system and
recirculating ball spindles
Bedienerfreundlich
- clear control panel or visual display control based on a Pentium PC with CD ROM and
disk drive
- adjustment of correction parameters by means of CAD profile drawings
Profitabel
- low cycle times for corners of approx. 20 sec.
- low cycle times for frames of approx. 2 min. In turntable operation
- short amortization period
Start price 45.000 €
