CNC milling machine and radial drilling machine

No. of sale: 280323M

Starting date
20/02/2023 16:00:00
Closing Date
25/04/2023 16:00:00
Viewing days
by appointment
Location
Spain

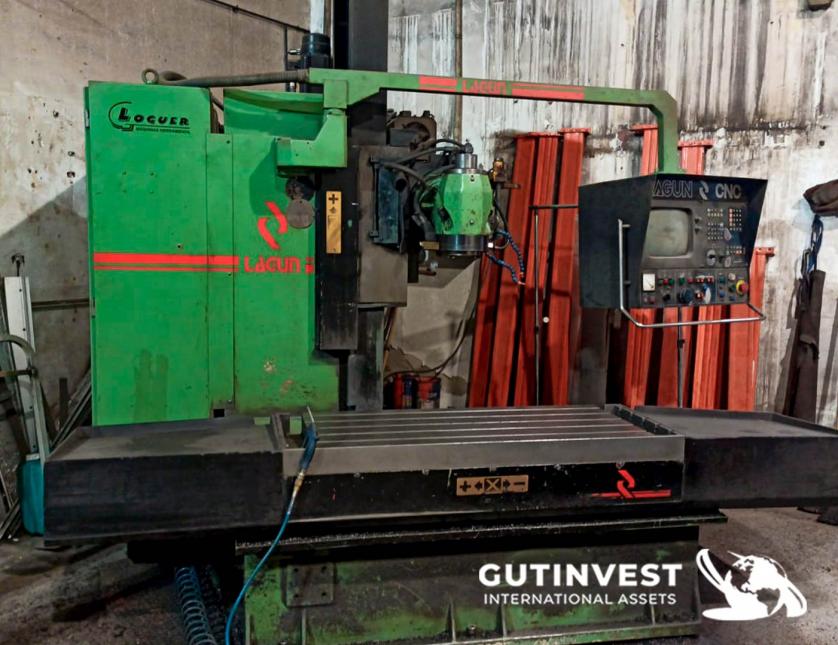

Direct sale of CNC fixed bed milling machine "Lagun", type: FBF 1200, Year: 1991 and radial drilling machine "Foradia".
Payment methods

Manufacturer
LAGUN
Model
FBF 1200
Year
1991
Observations
CNC fixed bed milling machine.
Shaft displacements: X - 1100mm, Y - 600mm, Z - 600mm.
Table dimensions: 1200x550mm.
Control: HEIDENHAIN TNC 355
Cone: ISO 50
Head speeds: 50 - 3000 rpm (2 speed ranges)
Fast forward X and Z axes: 10,000 mm/min
Advances on X and Z axes:  1 - 3000 mm/min
Motor power: 15KW
Machine weight approx.: 5.500kg.



Start price 11.500 €

Manufacturer
LAGUN
Model
FBF 1200
Year
1991
Observations
CNC fixed bed milling machine.
Shaft displacements: X - 1100mm, Y - 600mm, Z - 600mm.
Table dimensions: 1200x550mm.
Control: HEIDENHAIN TNC 355
Cone: ISO 50
Head speeds: 50 - 3000 rpm (2 speed ranges)
Fast forward X and Z axes: 10,000 mm/min
Advances on X and Z axes:  1 - 3000 mm/min
Motor power: 15KW
Machine weight approx.: 5.500kg.



Start price 11.500 €

Sold
1  -  CNC fixed bed milling machine
11.500 €

Manufacturer
FORADIA
Model
F40
Observations
Radial drilling machine
Maximum drilling diameter: 40 mm.
Column diameter: 300 mm
Arm: 1.200mm
Morse cone 5
Speed range 35-1460, 6 advances,
Approx. weight: 2,500 kg with table.



Start price 4.500 €

Manufacturer
FORADIA
Model
F40
Observations
Radial drilling machine
Maximum drilling diameter: 40 mm.
Column diameter: 300 mm
Arm: 1.200mm
Morse cone 5
Speed range 35-1460, 6 advances,
Approx. weight: 2,500 kg with table.



Start price 4.500 €

Sold
2  -  Radial drilling machine
4.500 €
