No. of sale: 271022L
Starting date

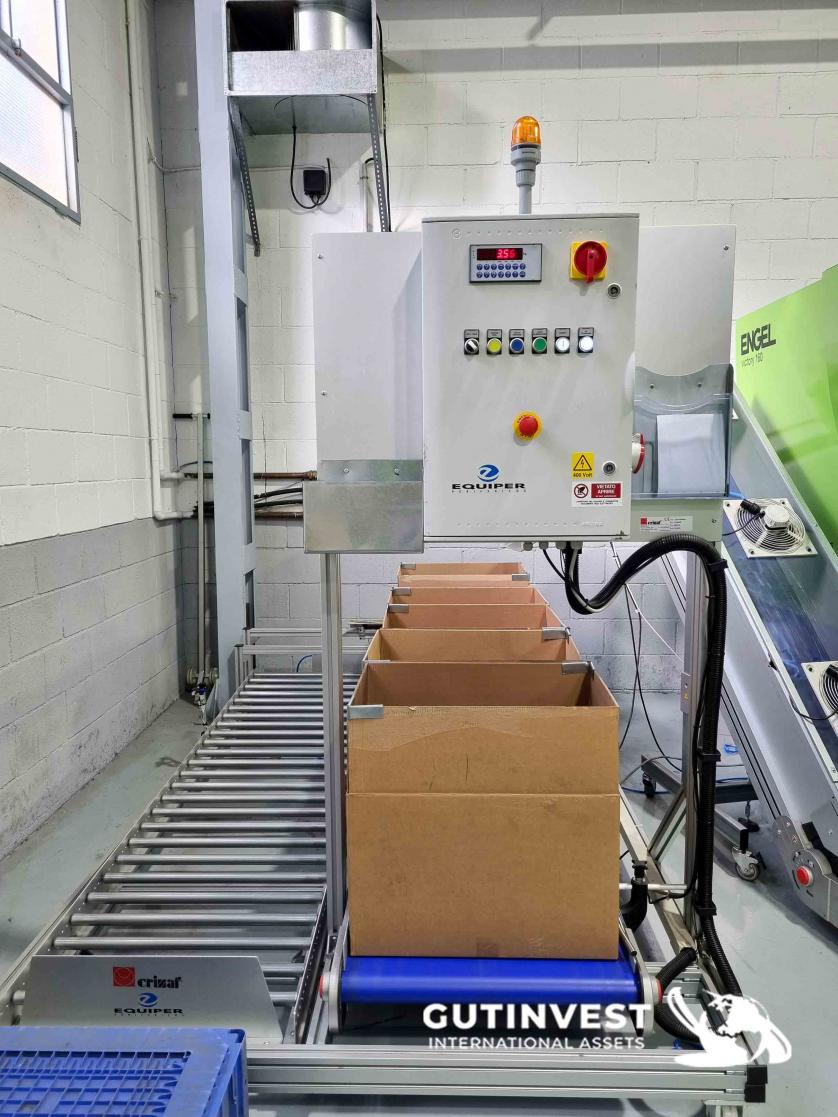

ManufacturerCRIZAF-EQUIPER ModelF3310/1750 Year2021 ObservationsConveyor belt for boxes with diverter and scale.
Type of container: plastic/cardboard
Measures 600 x 400 x h: 600 mm.
Length working area: 2,6mts. (1 box filling, 4 standby)
Pneumatic linear pusher for displacement of finished boxes.
Roller accumulation area: 2,5mts. (5 boxes)
Available useful width: 650 mm.
Rough PVC drag band.
Height from band to ground: 350 mm.
Construction in extruded aluminum profile.
General electrical panel + side support attached with:
On-off switch, Partial pulse counter, Injected or movement programmer per container, Photocell reading adjustable boxes,
Cylinder presence detector.
Proximity detection (machine mounting).
Control connections to power conveyor belt.
Voltage 400V/3Ph / 50Hz.
Exterior measures approx: 3.100x1.800x2.200mm.
Weight approx: 250Kg.
ManufacturerCRIZAF-EQUIPER ModelF3310/1750 Year2021 ObservationsConveyor belt for boxes with diverter and scale.
Type of container: plastic/cardboard
Measures 600 x 400 x h: 600 mm.
Length working area: 2,6mts. (1 box filling, 4 standby)
Pneumatic linear pusher for displacement of finished boxes.
Roller accumulation area: 2,5mts. (5 boxes)
Available useful width: 650 mm.
Rough PVC drag band.
Height from band to ground: 350 mm.
Construction in extruded aluminum profile.
General electrical panel + side support attached with:
On-off switch, Partial pulse counter, Injected or movement programmer per container, Photocell reading adjustable boxes,
Cylinder presence detector.
Proximity detection (machine mounting).
Control connections to power conveyor belt.
Voltage 400V/3Ph / 50Hz.
Exterior measures approx: 3.100x1.800x2.200mm.
Weight approx: 250Kg.
Start price 6.900 €
