No. of sale: 270324M
Starting date

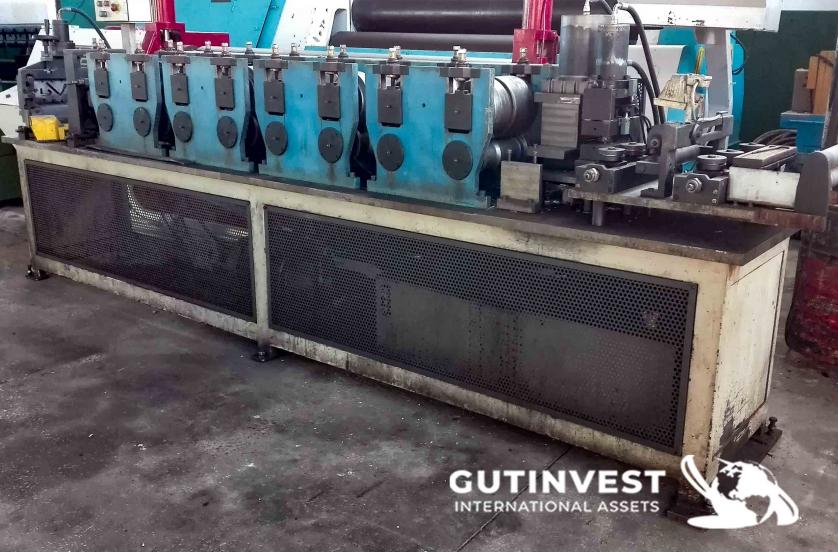

ManufacturerAMOB ModelPF 8 Year2004 ObservationsSheet Metal Roll Forming Machine. 8 Workstations. Includes Sheet Metal Roll Feeder.
ManufacturerAMOB ModelPF 8 Year2004 ObservationsSheet Metal Roll Forming Machine. 8 Workstations. Includes Sheet Metal Roll Feeder.
Start price 11.000 €

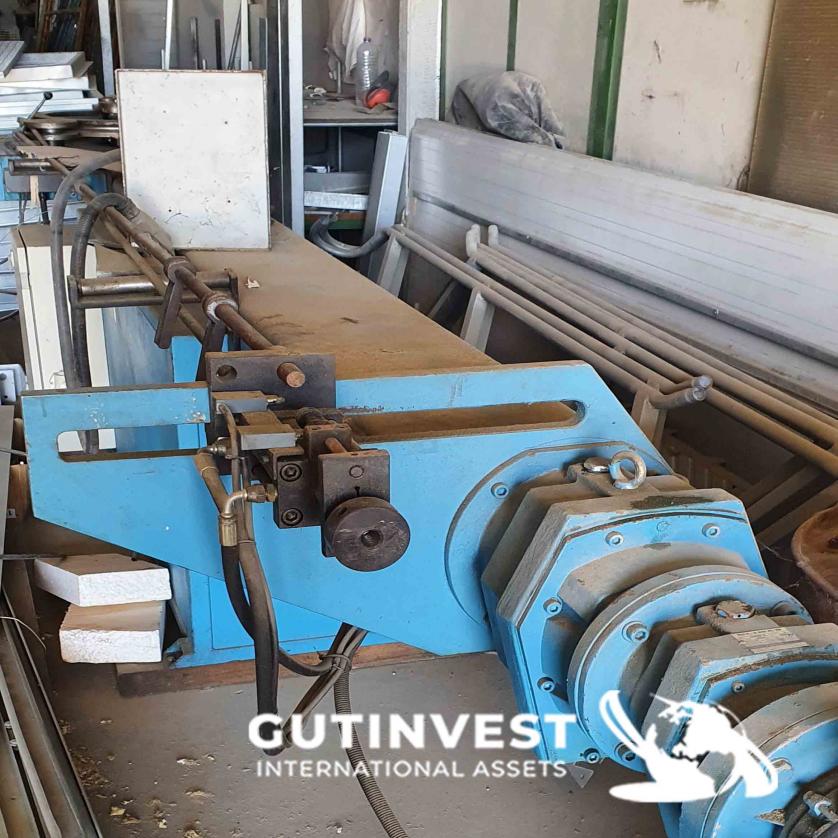

ManufacturerAMOB ModelMDH/60/4 Year2004 ObservationsTube Bending Machine.
Total Power (hp) 8.5
Net Weight (Kg) 1300
Gross Weight (Kg) 1330
Machine Dimensions (mm) 4500x1100x1200
Packaging Dimensions (mm) 4700x1300x1400
RAL Ink Used Blue 5015
Voltage (VAC) / Frequency (Hz) 380 V Max.
Capacity External Ø x thickness (steel - 450 N/mm2) (mm) 60×3
Capacity Max. Outer Ø x thickness (Stainless steel - 700 N/mm2) (mm) 50.8×1.5 Maximum Section Module (steel - 450 N/mm2) (cm3) 7.2
Maximum radius to center of curvature (mm) 330
Useful machine length (mm) 3000
Maximum Bending Angle (º) 190
Bending Speed and Y (º/s) 45
Eixo Y Bending Accuracy (º) 0.1
Standard Curvature Direction Schedule
Includes tools and pipe chuck.
ManufacturerAMOB ModelMDH/60/4 Year2004 ObservationsTube Bending Machine.
Total Power (hp) 8.5
Net Weight (Kg) 1300
Gross Weight (Kg) 1330
Machine Dimensions (mm) 4500x1100x1200
Packaging Dimensions (mm) 4700x1300x1400
RAL Ink Used Blue 5015
Voltage (VAC) / Frequency (Hz) 380 V Max.
Capacity External Ø x thickness (steel - 450 N/mm2) (mm) 60×3
Capacity Max. Outer Ø x thickness (Stainless steel - 700 N/mm2) (mm) 50.8×1.5 Maximum Section Module (steel - 450 N/mm2) (cm3) 7.2
Maximum radius to center of curvature (mm) 330
Useful machine length (mm) 3000
Maximum Bending Angle (º) 190
Bending Speed and Y (º/s) 45
Eixo Y Bending Accuracy (º) 0.1
Standard Curvature Direction Schedule
Includes tools and pipe chuck.
Start price 12.500 €
