No. of sale: 241125M
Starting date

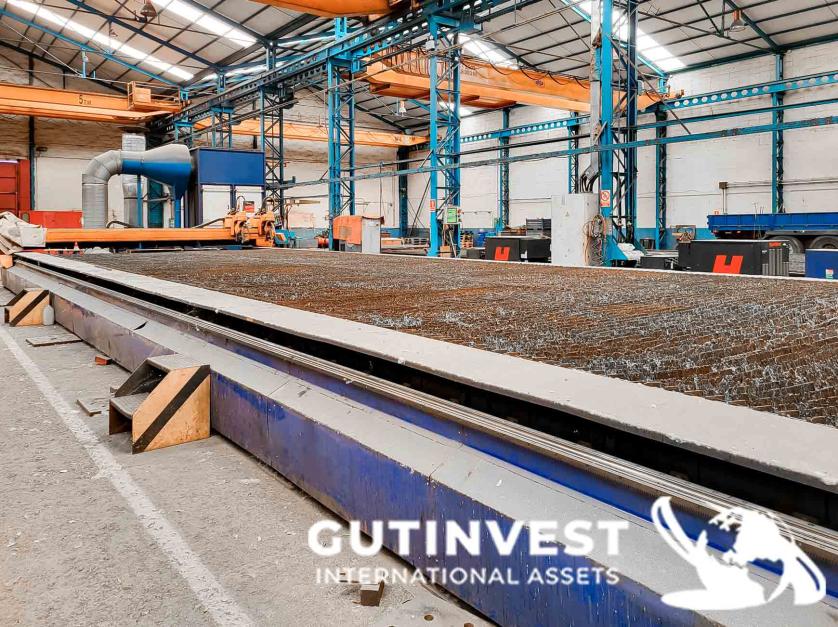

ManufacturerMicrostep - Plasmatech Model MG/PLS Year2011 ObservationsPlasma Cutting Machine - 24 Meters
Table dimensions: 24.000 x 5.000 mm. Hypertherm XPR 400 XD plasma cutter. 400 amps. Cutting capacity: 80 mm carbon steel (50 mm with perforation) and 50 mm stainless steel. Gas-operated console with semi-automatic digital control, independent of the power source. MSNC-500 numerical control. 5-axis automatic bevel cutting system for joint preparation, precision height control, reinforced bridge, and robotic anti-collision system. MSNC-500 numerical control. Asperwin software. Filtration system. Suction unit and compressor included. Machine guides with reinforced low-profile mounting surfaces. Direct rack-and-pinion transmission on the rail shaft. Gantry designed for oxy-fuel/plasma cutting with direct engagement between the rack and pinion (without an intermediate drive belt). Maximum axis speed: 40 m/min. (X and Y axes) Max. Cutting speed: 20 m/min. Hardened double path with guide bearings. High-precision travel due to the zero backlash of the gearboxes. Powerful digital servomotor system. Cable chain wiring system on both axes. Three-phase power supply: 380 V, 50 Hz. CE compliant
ManufacturerMicrostep - Plasmatech Model MG/PLS Year2011 ObservationsPlasma Cutting Machine - 24 Meters
Table dimensions: 24.000 x 5.000 mm. Hypertherm XPR 400 XD plasma cutter. 400 amps. Cutting capacity: 80 mm carbon steel (50 mm with perforation) and 50 mm stainless steel. Gas-operated console with semi-automatic digital control, independent of the power source. MSNC-500 numerical control. 5-axis automatic bevel cutting system for joint preparation, precision height control, reinforced bridge, and robotic anti-collision system. MSNC-500 numerical control. Asperwin software. Filtration system. Suction unit and compressor included. Machine guides with reinforced low-profile mounting surfaces. Direct rack-and-pinion transmission on the rail shaft. Gantry designed for oxy-fuel/plasma cutting with direct engagement between the rack and pinion (without an intermediate drive belt). Maximum axis speed: 40 m/min. (X and Y axes) Max. Cutting speed: 20 m/min. Hardened double path with guide bearings. High-precision travel due to the zero backlash of the gearboxes. Powerful digital servomotor system. Cable chain wiring system on both axes. Three-phase power supply: 380 V, 50 Hz. CE compliant
Start price 65.000 €
