PE Extrusion Blow Molding Machine "BATTENFELD FISCHER" VK1-1.02

No. of sale: 230126P

Starting date
18/11/2025 16:00:00
Closing Date
23/01/2026 16:00:00
Viewing days
by appointment
Location
Spain

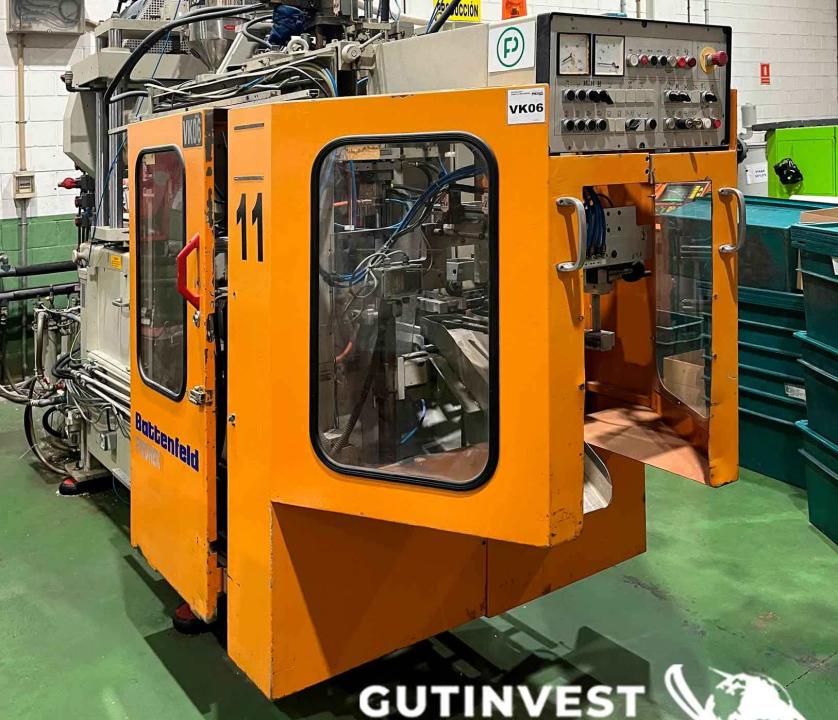

Direct Sale of PE Extrusion Blow Molding Machine "BATTENFELD FISCHER" VK1-1.02 (1990)
Payment methods

Manufacturer
BATTENFELD FISCHER
Model
VK1-1.02
Year
1990
Observations
PE Blow Molding Extrusion Machine
Current Container Size: 0.20 L
Number of Dies: 2
Material Type: PE
Maximum Container Size: 1 L
Number of Stations: 1
Capacity (units/hour or kg/hour): 1000/h (small bottles)
Extruder Type: Continuous
Number of Extruders: 1
Screw Diameter: 60 mm
L/D: 24
Wall Thickness Control: Yes
Distance Between Centers: 100 mm
Double Die
100 mm Center-to-Center Distance
Hot Cutting Blade
Deburring Unit
Bottle Extraction Gripper
MOOG 25-Point Parison Thickness Control
Siemens PLC Simatic S5
Engine power: 28 kW
Heating power: 14 kW
New hydraulic pump in 2016



Start price 8.500 €

Manufacturer
BATTENFELD FISCHER
Model
VK1-1.02
Year
1990
Observations
PE Blow Molding Extrusion Machine
Current Container Size: 0.20 L
Number of Dies: 2
Material Type: PE
Maximum Container Size: 1 L
Number of Stations: 1
Capacity (units/hour or kg/hour): 1000/h (small bottles)
Extruder Type: Continuous
Number of Extruders: 1
Screw Diameter: 60 mm
L/D: 24
Wall Thickness Control: Yes
Distance Between Centers: 100 mm
Double Die
100 mm Center-to-Center Distance
Hot Cutting Blade
Deburring Unit
Bottle Extraction Gripper
MOOG 25-Point Parison Thickness Control
Siemens PLC Simatic S5
Engine power: 28 kW
Heating power: 14 kW
New hydraulic pump in 2016



Start price 8.500 €

1  -  PE Blow Molding Extrusion Machine
8.500 €
