No. of sale: 220126M
Starting date

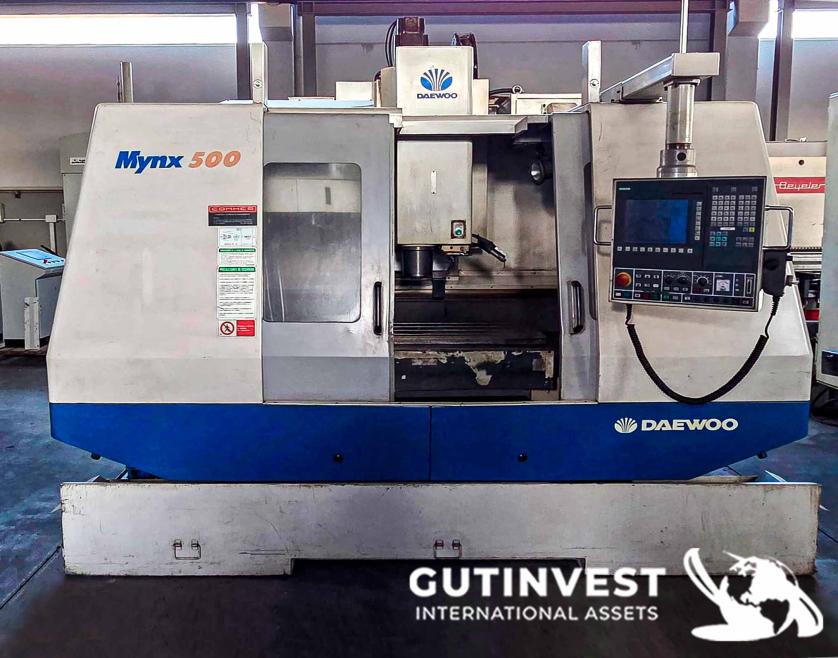

ManufacturerDAEWOO ModelMYNX 500 Year2001 ObservationsCNC Machining Center
• Longitudinal travel: 1020 mm
• Transverse travel (Y): 510 mm
• Vertical travel (Z): 575 mm
• CNC type: SIEMENS
• Table length: 1200 mm
• Table width: 500 mm
• Maximum permissible weight: 800 kg
• Number of tools: 30
• Spindle taper: ISO 40
• Maximum spindle speed: 8000 rpm
• Spindle motor power: 15 kW
• Dimensions (L x W x H): 3275 × 2948 × 2996 mm
• Weight: 7500 kg
ManufacturerDAEWOO ModelMYNX 500 Year2001 ObservationsCNC Machining Center
• Longitudinal travel: 1020 mm
• Transverse travel (Y): 510 mm
• Vertical travel (Z): 575 mm
• CNC type: SIEMENS
• Table length: 1200 mm
• Table width: 500 mm
• Maximum permissible weight: 800 kg
• Number of tools: 30
• Spindle taper: ISO 40
• Maximum spindle speed: 8000 rpm
• Spindle motor power: 15 kW
• Dimensions (L x W x H): 3275 × 2948 × 2996 mm
• Weight: 7500 kg
Start price 17.000 €

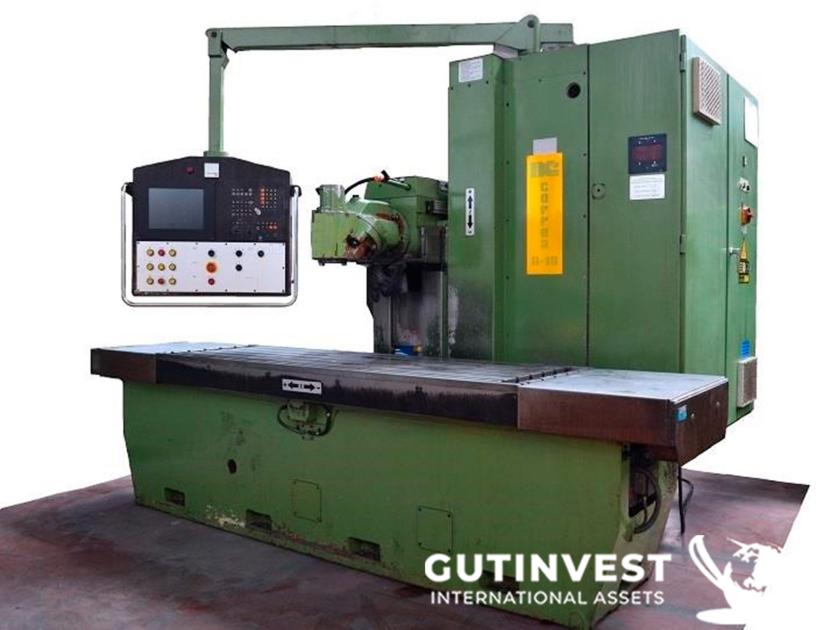

ManufacturerCORREA ModelA-16 Year1989 ObservationsCNC Fixed Bed Milling Machine
Dimensions
• Table dimensions: 2,000 x 630 mm
• Number of T-slots: 6
• T-slot dimensions: 18 mm
Axis travels
• Longitudinal travel X: 1,800 mm
• Transverse travel Y: 800 mm
• Vertical travel Z: 800 mm
Headstock
• Headstock type: Manual universal
• Tool clamping: Hydraulic
• Spindle taper: ISO 50
• Speed range: 25 - 3,250 rpm
• Spindle power: 16 kW
Machine feeds
• Working feeds: 5 - 5,000 mm/min
• Rapid traverses: 8,000 mm/min
Weights and dimensions
• Max. weight Tabletop weight: 3,000 kg
• Approximate machine weight: 10,000 kg
• Machine dimensions: 4,920 x 2,714 x 2,417 mm
ManufacturerCORREA ModelA-16 Year1989 ObservationsCNC Fixed Bed Milling Machine
Dimensions
• Table dimensions: 2,000 x 630 mm
• Number of T-slots: 6
• T-slot dimensions: 18 mm
Axis travels
• Longitudinal travel X: 1,800 mm
• Transverse travel Y: 800 mm
• Vertical travel Z: 800 mm
Headstock
• Headstock type: Manual universal
• Tool clamping: Hydraulic
• Spindle taper: ISO 50
• Speed range: 25 - 3,250 rpm
• Spindle power: 16 kW
Machine feeds
• Working feeds: 5 - 5,000 mm/min
• Rapid traverses: 8,000 mm/min
Weights and dimensions
• Max. weight Tabletop weight: 3,000 kg
• Approximate machine weight: 10,000 kg
• Machine dimensions: 4,920 x 2,714 x 2,417 mm
Start price 15.000 €

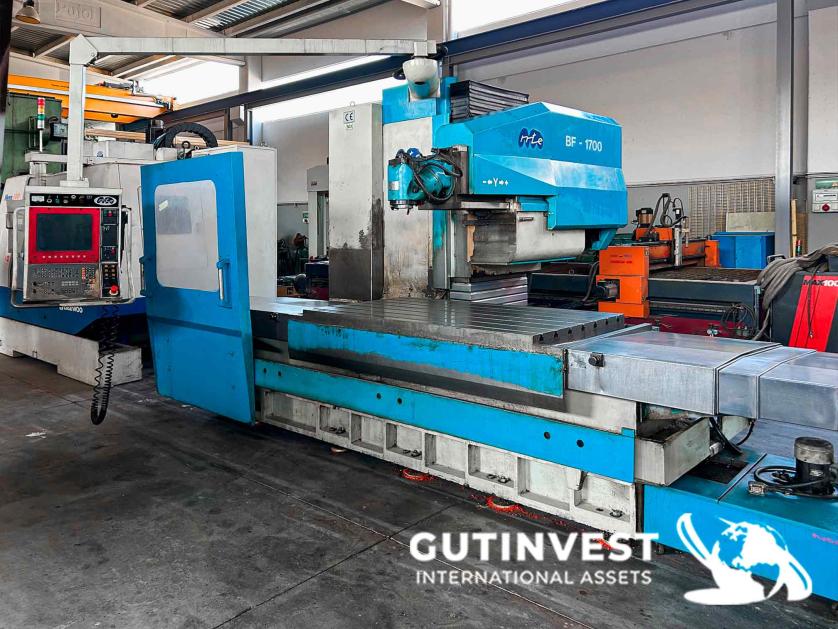

ManufacturerMTE ModelBF-1700 Year1998 ObservationsCNC Fixed Bed Milling Machine
Control Unit
· Model: TNC 410
· Brand: Heidenhain
Main Transmission
· Spindle speed range: 40 - 2500 rpm
· Spindle speed: 3000 rpm
· Spindle taper: SK 50
Travel
· X-axis travel: 1500 mm
· Y-axis travel: 1000 mm
· Z-axis travel: 1000 mm
Worktable
· External length: 1700 mm
· External width: 1000 mm
· Worktable load: 5500 kg
· Operating hours: 51,183 h
ManufacturerMTE ModelBF-1700 Year1998 ObservationsCNC Fixed Bed Milling Machine
Control Unit
· Model: TNC 410
· Brand: Heidenhain
Main Transmission
· Spindle speed range: 40 - 2500 rpm
· Spindle speed: 3000 rpm
· Spindle taper: SK 50
Travel
· X-axis travel: 1500 mm
· Y-axis travel: 1000 mm
· Z-axis travel: 1000 mm
Worktable
· External length: 1700 mm
· External width: 1000 mm
· Worktable load: 5500 kg
· Operating hours: 51,183 h
Start price 21.000 €

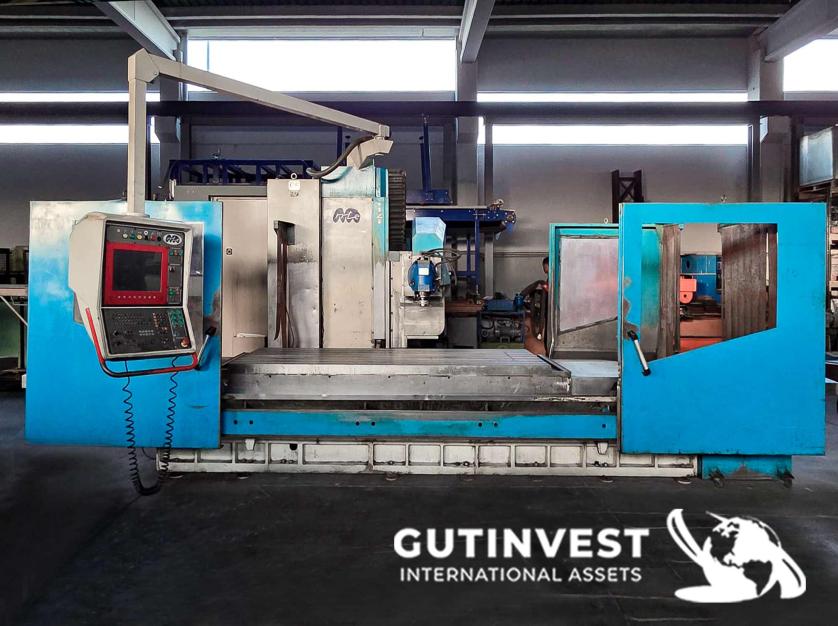

ManufacturerMTE ModelBF-2700 Year2001 ObservationsCNC Fixed Bed Milling Machine
• Machine length: 7000 mm
• Machine width: 3000 mm
• Machine height: 3000 mm
Control unit
• Model: TNC 410
• Brand: Heidenhain
Main transmission
• Spindle speed range: 3000 rpm
• Spindle taper: SK 50
Travel
• X-axis travel: 2500 mm
• Y-axis travel: 1000 mm
• Z-axis travel: 1000 mm
Worktable
• External length: 2700 mm
• External width: 1000 mm
• Power consumption: 40 kW
• Operating hours: 53,800 h
ManufacturerMTE ModelBF-2700 Year2001 ObservationsCNC Fixed Bed Milling Machine
• Machine length: 7000 mm
• Machine width: 3000 mm
• Machine height: 3000 mm
Control unit
• Model: TNC 410
• Brand: Heidenhain
Main transmission
• Spindle speed range: 3000 rpm
• Spindle taper: SK 50
Travel
• X-axis travel: 2500 mm
• Y-axis travel: 1000 mm
• Z-axis travel: 1000 mm
Worktable
• External length: 2700 mm
• External width: 1000 mm
• Power consumption: 40 kW
• Operating hours: 53,800 h
Start price 35.000 €
ManufacturerKAIR ObservationsGrinding Machine
• Table length: 800 mm
• Table width: 400 mm
• Grinding wheel diameter: 250 mm
• Grinding wheel width: 40 mm
• Spindle power: 2 kW
• Overall dimensions (L x W x H): 4800 × 2000 × 2000 mm
• Weight: 3200 kg
ManufacturerKAIR ObservationsGrinding Machine
• Table length: 800 mm
• Table width: 400 mm
• Grinding wheel diameter: 250 mm
• Grinding wheel width: 40 mm
• Spindle power: 2 kW
• Overall dimensions (L x W x H): 4800 × 2000 × 2000 mm
• Weight: 3200 kg
Start price 6.000 €
ManufacturerGER Model RS-10/50 Year1991 ObservationsTangential Grinding machine
• Table dimensions: 1000×550 mm
• Distance from table to wheel center: 625 mm
• Table speed: 2 to 25 rpm
• Maximum grinding weight: 1000 kg
• Longitudinal travel (X): 1050 mm
• Transverse travel (Y): 500 mm
• Automatic feed: Yes
• Wheel dimensions: Ø 400x80x127 mm
• Wheel head: 12.5 HP
• Hydraulic pump power: 5.5 HP
• Equipped with electromagnet: 760×500 mm
ManufacturerGER Model RS-10/50 Year1991 ObservationsTangential Grinding machine
• Table dimensions: 1000×550 mm
• Distance from table to wheel center: 625 mm
• Table speed: 2 to 25 rpm
• Maximum grinding weight: 1000 kg
• Longitudinal travel (X): 1050 mm
• Transverse travel (Y): 500 mm
• Automatic feed: Yes
• Wheel dimensions: Ø 400x80x127 mm
• Wheel head: 12.5 HP
• Hydraulic pump power: 5.5 HP
• Equipped with electromagnet: 760×500 mm
Start price 16.000 €
