Plastic injection molding machine – 550Tn - Victor

No. of sale: 200224I

Starting date
02/01/2024 16:00:00
Closing Date
23/05/2024 16:00:00
Viewing days
by appointment
Location
Greece

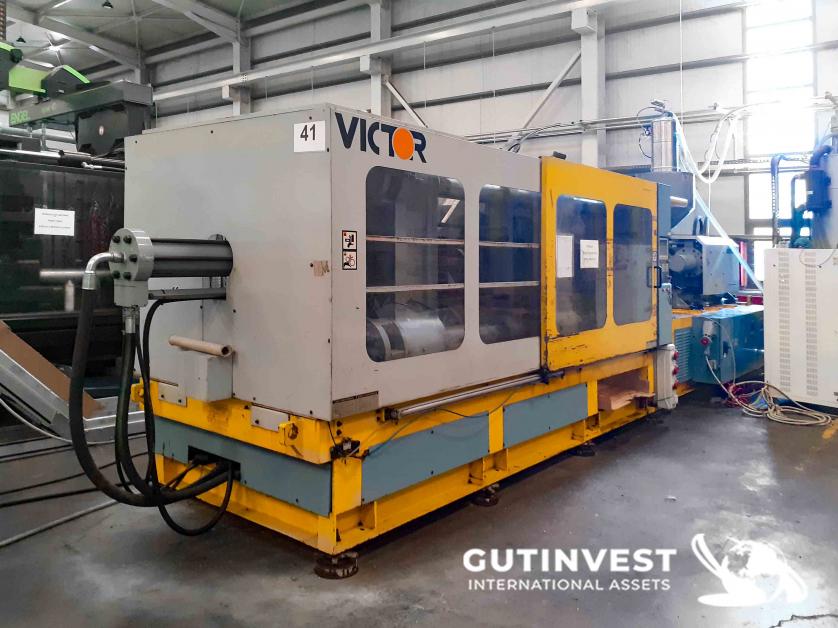

Direct sale of plastic injection molding machine – 550Tn "VICTOR (Taiwan)", model: EU-550 (2000), in good condition.
Payment methods

Manufacturer
VICTOR (Taiwan)
Model
EU-550
Year
2000
Observations
Plastic injection molding machine:
·Clamping Force: 550 ton
·Shot Weight (Max): 2802 g
·Platen Size (H): 850 mm
·Platen Size (V): 850 mm
·Screw Diameter: 100 mm
·Mould Thickness (Max): 950 mm
·Mould Thickness (Min): 300 mm
·Ejector Force: 11 ton
·Ejector Stroke: 220 mm
·Screw L/D Ratio: 18
·Screw Speed: 150 rpm
·Injection Volume: 3141 cm³
·Injection Pressure: 1261 bar
·Injection Rate: 654 cm³/s
·Nozzle Force (Max): 10.8 ton
·Nozzle Stroke (Max): 530 mm
·Plasticising Capacity: 138.89 g/s
·Heating Zones: 6
·Heating Capacity: 32 kW
·Oil Tank Capacity: 1100 l



Start price 13.500 €

Manufacturer
VICTOR (Taiwan)
Model
EU-550
Year
2000
Observations
Plastic injection molding machine:
·Clamping Force: 550 ton
·Shot Weight (Max): 2802 g
·Platen Size (H): 850 mm
·Platen Size (V): 850 mm
·Screw Diameter: 100 mm
·Mould Thickness (Max): 950 mm
·Mould Thickness (Min): 300 mm
·Ejector Force: 11 ton
·Ejector Stroke: 220 mm
·Screw L/D Ratio: 18
·Screw Speed: 150 rpm
·Injection Volume: 3141 cm³
·Injection Pressure: 1261 bar
·Injection Rate: 654 cm³/s
·Nozzle Force (Max): 10.8 ton
·Nozzle Stroke (Max): 530 mm
·Plasticising Capacity: 138.89 g/s
·Heating Zones: 6
·Heating Capacity: 32 kW
·Oil Tank Capacity: 1100 l



Start price 13.500 €

1  -  Plastic injection molding machine - 550Tn
13.500 €
