No. of sale: 190226P
Starting date

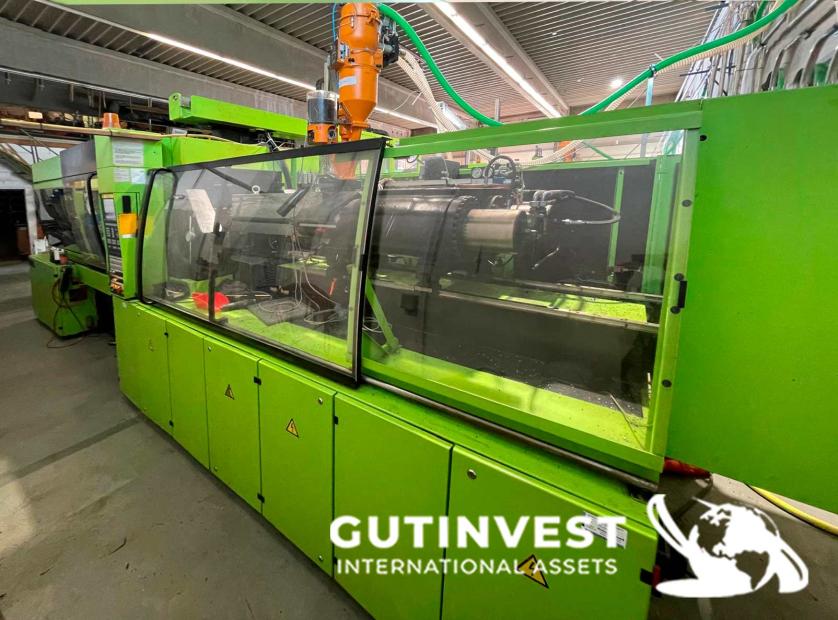

ManufacturerEngel ModelES2050/275 HL-V Year2000 ObservationsPlastic Injection Molding Machine with Robot - 300Tn
With fully integrated Engel ERC 43/1-EA robotic handling system
Injection molding machine with 69,000 operating hours:
Clamping Unit:
• Clamping force: 3000 kN
• Platen sizes: DS 1050 x 980 mm, AS 1050 x 900 mm
• Minimum installation height: 350 mm
• Maximum distance between platens: 1200 mm
• 2 core pullers
• 2 air valves
• Centering ring diameter: 160 mm
Injection Unit:
• Screw diameter: 70 mm
• Max. Stroke volume: 1155 cm³
• Specific injection pressure: 1779 bar
• Rated temperature up to 500 °C
Handling dimensions:
• X 500 mm
• Y 800 mm
• Z 1880 mm
• Pneumatic C-axis, 0-90°
• 2 suction/grip circuits
• Freely programmable I/O
• 4000 x 600 mm conveyor belt, height adjustable
ManufacturerEngel ModelES2050/275 HL-V Year2000 ObservationsPlastic Injection Molding Machine with Robot - 300Tn
With fully integrated Engel ERC 43/1-EA robotic handling system
Injection molding machine with 69,000 operating hours:
Clamping Unit:
• Clamping force: 3000 kN
• Platen sizes: DS 1050 x 980 mm, AS 1050 x 900 mm
• Minimum installation height: 350 mm
• Maximum distance between platens: 1200 mm
• 2 core pullers
• 2 air valves
• Centering ring diameter: 160 mm
Injection Unit:
• Screw diameter: 70 mm
• Max. Stroke volume: 1155 cm³
• Specific injection pressure: 1779 bar
• Rated temperature up to 500 °C
Handling dimensions:
• X 500 mm
• Y 800 mm
• Z 1880 mm
• Pneumatic C-axis, 0-90°
• 2 suction/grip circuits
• Freely programmable I/O
• 4000 x 600 mm conveyor belt, height adjustable
Start price 14.500 €
