No. of sale: 161122M
Starting date

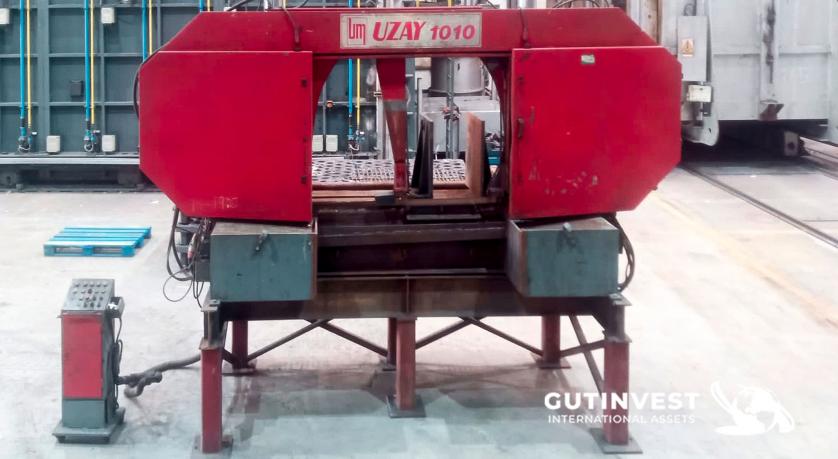

ManufacturerUZAY MAKINA ModelSY-1010 Year1999 No. Series620399 Observations UZAY saw model SY 1010,
Semi-automatic double column saw,
Distance between centers of the two columns 2250mm,
Diameter of the columns 170mm
Cutting measurements: diameter max 1010mm X 750mm
Rectangle 1010 x 1010 mm,
Square 1010mm x 1010mm
Round at 45º 620mm at 30º 820mm 45º L 500mm 30º L 660mm ,
Rectangle 45º R 1010 x620mm , 30º R 1010 x 820mm , 45º L 1010mm x500mm , 30º L 1010mmx660mm,
Square 45º R 620mm , 30º R 820mm , 45º L 500mm , 30º L 660mm,
Cutting speed 15 to 105m/min (variable by electronic variator),
Main motor 4kw, total power 4,5kw, machine with motorized rotation,
Jaw height 600mm, jaw length 535 mm,
Estimated working height 725mm,
Tape dimensions 1.64mm x 54mm x 9400mm,
Weight approx. 4500kg
ManufacturerUZAY MAKINA ModelSY-1010 Year1999 No. Series620399 Observations UZAY saw model SY 1010,
Semi-automatic double column saw,
Distance between centers of the two columns 2250mm,
Diameter of the columns 170mm
Cutting measurements: diameter max 1010mm X 750mm
Rectangle 1010 x 1010 mm,
Square 1010mm x 1010mm
Round at 45º 620mm at 30º 820mm 45º L 500mm 30º L 660mm ,
Rectangle 45º R 1010 x620mm , 30º R 1010 x 820mm , 45º L 1010mm x500mm , 30º L 1010mmx660mm,
Square 45º R 620mm , 30º R 820mm , 45º L 500mm , 30º L 660mm,
Cutting speed 15 to 105m/min (variable by electronic variator),
Main motor 4kw, total power 4,5kw, machine with motorized rotation,
Jaw height 600mm, jaw length 535 mm,
Estimated working height 725mm,
Tape dimensions 1.64mm x 54mm x 9400mm,
Weight approx. 4500kg
Start price 15.000 €
