No. of sale: 150524V
Starting date

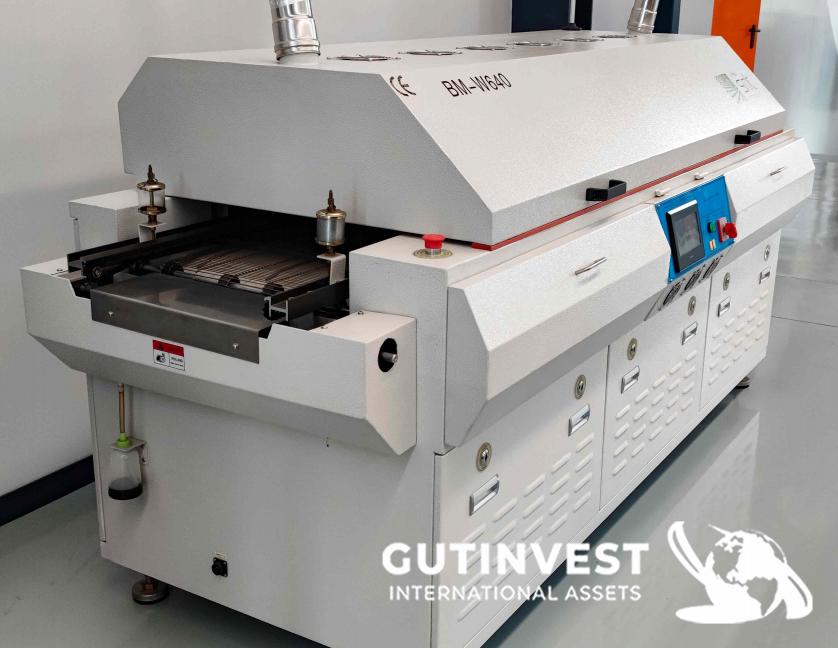

ManufacturerBM ModelW640 Year2014 ObservationsLead-free benchtop remelting furnace A revolutionary and ultra-competitive remelting furnace for the SMT market. Convection oven 6 upper zones convection heating 6 lower zones convection heating 1 Cooling zone Tunnel length: 1,540 mm Maximum PCB width: 400 mm Chain & Mesh Conveyor Touch screen control + PLC Storage of up to 50 groups 2 ports for thermocouples Aluminium oven bed. Smema. Dimensions 2550 x 850 x 1250mm. Weight 400 kgs
ManufacturerBM ModelW640 Year2014 ObservationsLead-free benchtop remelting furnace A revolutionary and ultra-competitive remelting furnace for the SMT market. Convection oven 6 upper zones convection heating 6 lower zones convection heating 1 Cooling zone Tunnel length: 1,540 mm Maximum PCB width: 400 mm Chain & Mesh Conveyor Touch screen control + PLC Storage of up to 50 groups 2 ports for thermocouples Aluminium oven bed. Smema. Dimensions 2550 x 850 x 1250mm. Weight 400 kgs
Start price 19.500 €

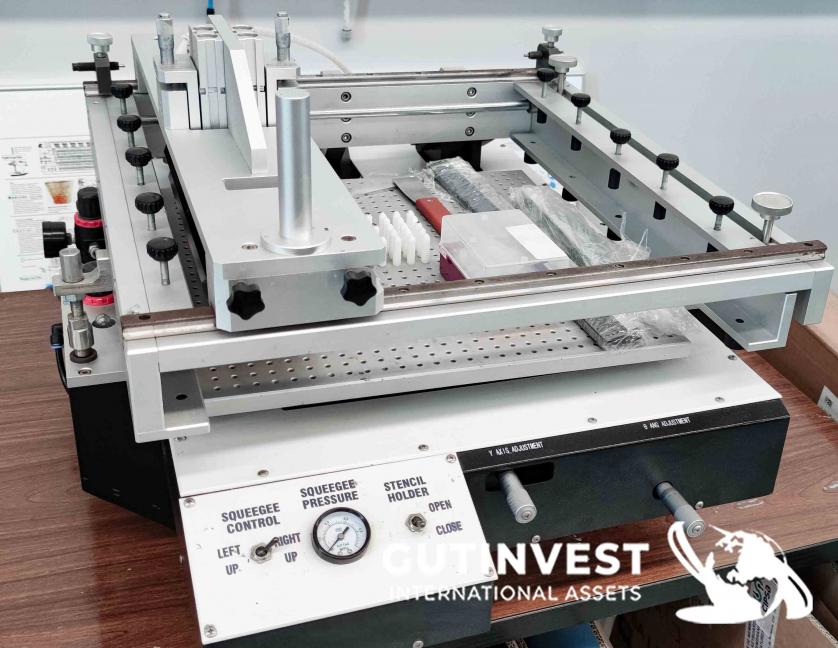

ManufacturerAutotronik Modelzhsp-b Year 2014 ObservationsManual Screen Printing Equipment. Size Maximum Frame Size: 470X550mm. Table Size: 400x440mm. Print Area 270x380 mm. PCB fixing using pins and brackets Spatulas included: 250, 350 and 450 mm. Table adjustment: X, Y, rot micrometers. Print accuracy: +/- 50 microns. Print repeatability: +/-25 microns. Pneumatic pressure adjustment Manual spatula movement Raise/lower spatulas pneumatic. Dimensions: 700x600x500 mm. Weight: 45 kg
ManufacturerAutotronik Modelzhsp-b Year 2014 ObservationsManual Screen Printing Equipment. Size Maximum Frame Size: 470X550mm. Table Size: 400x440mm. Print Area 270x380 mm. PCB fixing using pins and brackets Spatulas included: 250, 350 and 450 mm. Table adjustment: X, Y, rot micrometers. Print accuracy: +/- 50 microns. Print repeatability: +/-25 microns. Pneumatic pressure adjustment Manual spatula movement Raise/lower spatulas pneumatic. Dimensions: 700x600x500 mm. Weight: 45 kg
Start price 3.000 €

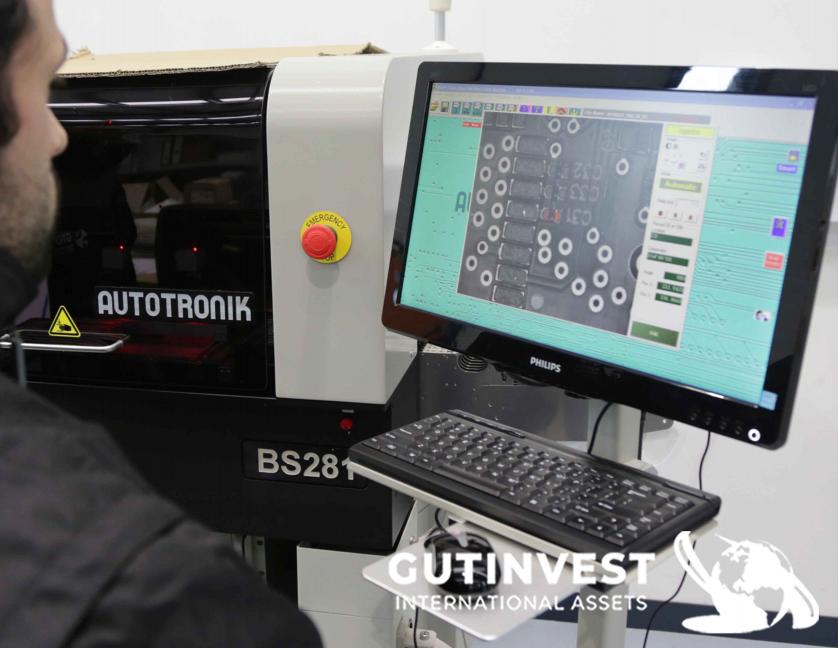

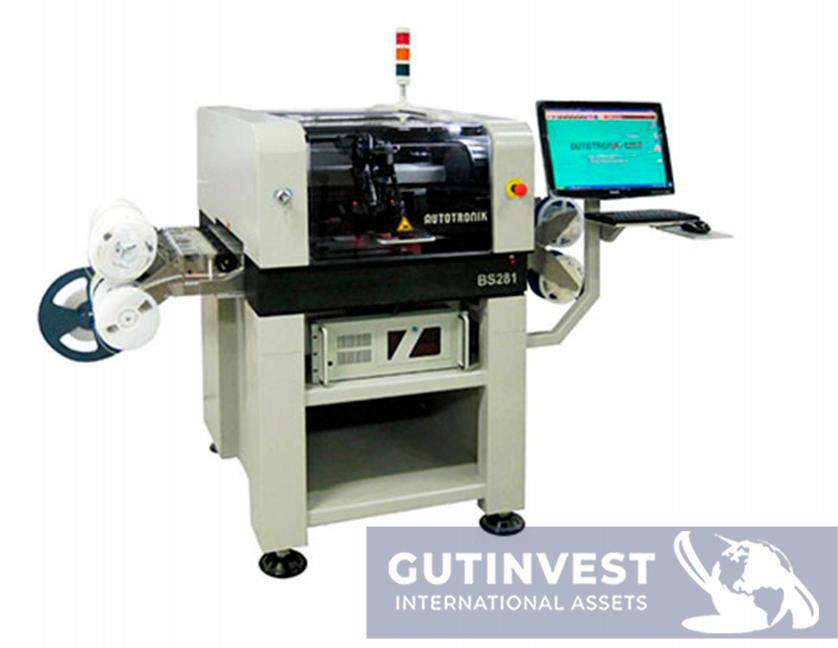

ManufacturerAutotronik ModelBS281 Bench-Top Year 2014 ObservationsBench-Top Pick and place. Placement speed 3000 cph. Speed (IPC 9850): 2,500 cph. Component range: 01005", uBGAs, QFPs. Maximum component (fixed camera): 150 mm X 100 mm. Placement accuracy +/- 0.05 mm. Maximum working area 415X320 mm (without trays). Smart Electronic Feeders. Capacity up to 64 feeders. Capacity up to 3 trays. Industrial PC and LCD monitor. Dimensions: 825 x 1060 x 590 mm. Weight 165 kg.
ManufacturerAutotronik ModelBS281 Bench-Top Year 2014 ObservationsBench-Top Pick and place. Placement speed 3000 cph. Speed (IPC 9850): 2,500 cph. Component range: 01005", uBGAs, QFPs. Maximum component (fixed camera): 150 mm X 100 mm. Placement accuracy +/- 0.05 mm. Maximum working area 415X320 mm (without trays). Smart Electronic Feeders. Capacity up to 64 feeders. Capacity up to 3 trays. Industrial PC and LCD monitor. Dimensions: 825 x 1060 x 590 mm. Weight 165 kg.
Start price 22.500 €
ManufacturerAutotronik ModelBS281 Bench-Top Year 2014 ObservationsBench-Top Pick and place. Placement speed 3000 cph. Speed (IPC 9850): 2,500 cph. Component range: 01005", uBGAs, QFPs. Maximum component (fixed camera): 150 mm X 100 mm. Placement accuracy +/- 0.05 mm. Maximum working area 415X320 mm (without trays). Smart Electronic Feeders. Capacity up to 64 feeders. Capacity up to 3 trays. Industrial PC and LCD monitor. Dimensions: 825 x 1060 x 590 mm. Weight 165 kg.
ManufacturerAutotronik ModelBS281 Bench-Top Year 2014 ObservationsBench-Top Pick and place. Placement speed 3000 cph. Speed (IPC 9850): 2,500 cph. Component range: 01005", uBGAs, QFPs. Maximum component (fixed camera): 150 mm X 100 mm. Placement accuracy +/- 0.05 mm. Maximum working area 415X320 mm (without trays). Smart Electronic Feeders. Capacity up to 64 feeders. Capacity up to 3 trays. Industrial PC and LCD monitor. Dimensions: 825 x 1060 x 590 mm. Weight 165 kg.
Start price 22.500 €
