No. of sale: 130324M
Starting date

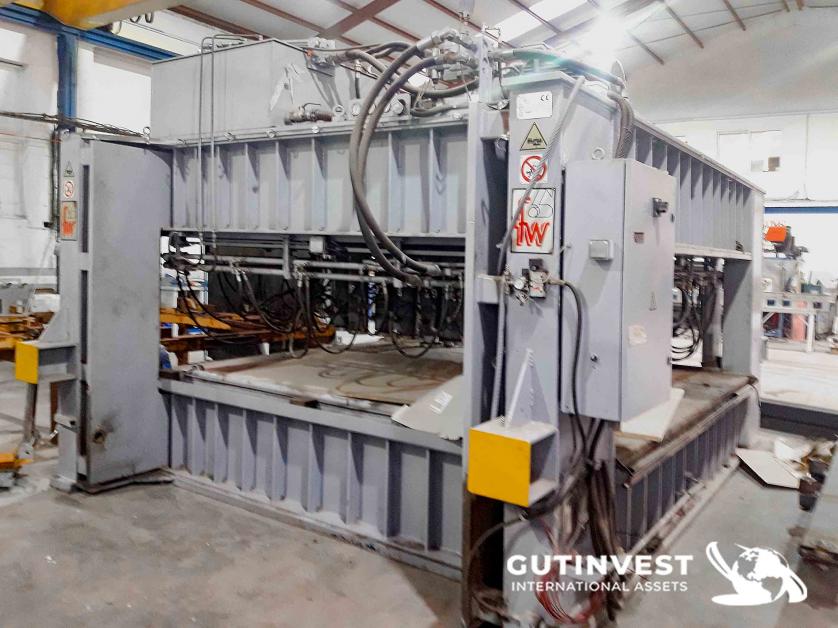

ManufacturerFACCIN - ITALY ModelPPH 2500/6 Year2004 ObservationsHydraulic press for hydroforming. Press for the formation of polycentric bottoms, used for the production of truck tanks with circular, oval or polycentric shape. Maximum thickness capacity: 6mm, maximum sheet length: 2,700mm, maximum sheet width: 2,500mm, maximum diameter: 2,500mm, maximum depth: 300mm, maximum depth approx.: 50,000cm2. Total installed power: 45Kw, Voltage trifásica_ 380V, 50Hz, CE certified. External dimensions of the machine: 3.750x5.500x3.400mm, Weight approx. machine: 30.000Kg. The process consists of the use of high-pressure water jets from the bottom upwards which, acting against the bottom opportunely fixed to treads, allow the deformation of the material and therefore the desired depth of the bottom to be obtained. A series of hydraulic pistons keep the treads fixed to the bottom, developing a total load of approximately 1,500 tons, guaranteeing, with a system of special protections, against the filtration of liquid at high pressure.
ManufacturerFACCIN - ITALY ModelPPH 2500/6 Year2004 ObservationsHydraulic press for hydroforming. Press for the formation of polycentric bottoms, used for the production of truck tanks with circular, oval or polycentric shape. Maximum thickness capacity: 6mm, maximum sheet length: 2,700mm, maximum sheet width: 2,500mm, maximum diameter: 2,500mm, maximum depth: 300mm, maximum depth approx.: 50,000cm2. Total installed power: 45Kw, Voltage trifásica_ 380V, 50Hz, CE certified. External dimensions of the machine: 3.750x5.500x3.400mm, Weight approx. machine: 30.000Kg. The process consists of the use of high-pressure water jets from the bottom upwards which, acting against the bottom opportunely fixed to treads, allow the deformation of the material and therefore the desired depth of the bottom to be obtained. A series of hydraulic pistons keep the treads fixed to the bottom, developing a total load of approximately 1,500 tons, guaranteeing, with a system of special protections, against the filtration of liquid at high pressure.
Start price 75.000 €
