No. of sale: 060526A
Starting date

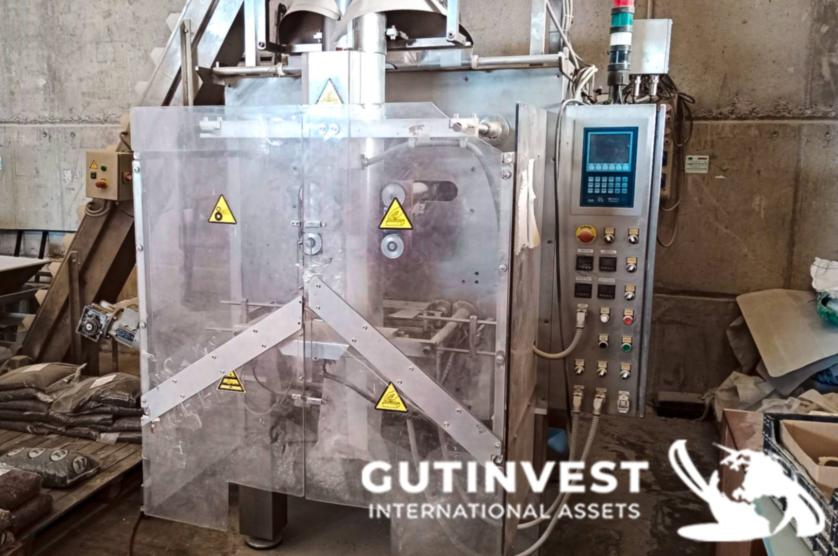

ManufacturerPECOVAL ModelTX-3E Year2008 No. Series 08/1001 ObservationsVertical Packaging Machine with Weigher - 5 kg
Automatic continuous plastic bag packaging machine. Includes conveyor belt, weighing scale, and labeler/coder (electronic chip missing).
USES:
Packaging and weighing of polyethylene and polypropylene products: nuts, potato chips, snacks, frozen foods, screws, wall plugs, knobs, handles, etc.
BAG DIMENSIONS: - WIDTH: up to 380 mm.
- LENGTH: up to 800 mm.
OPERATING VOLTAGE: 380 V AC. Three phases + neutral + ground are required.
AIR CONSUMPTION: 250 L/min. at a constant pressure of 6 kPa. FEATURES:
- Entire assembly finished in stainless steel and high-quality materials.
- Overhead structure with legs for easy cleaning.
- Output depends on the product and quantity to be packaged.
- Wrapping material is fed by belts.
- Tube with a forming neck suitable for working with complex plastics.
- Roll support bar.
- Photocell for centering the wrapping material (for use with printed rolls).
- Vertical constant-heat sealer.
- Horizontal constant-heat clamps.
- Electronic temperature control.
- Electronic bag length control.
- Synchronization for the weighing process.
- The entire system is managed by a Marc. OMRON PLC.
- Polycarbonate guards with automatic machine stop when opened.
- Indicator light that alerts the user to:
. White light: the machine is powered.
. Green light: the machine is in working position.
Red light and buzzer: indicates any malfunction in the machine (breakage or end of transfer film, end of plastic sheet, opening of protective doors, ...)
ManufacturerPECOVAL ModelTX-3E Year2008 No. Series 08/1001 ObservationsVertical Packaging Machine with Weigher - 5 kg
Automatic continuous plastic bag packaging machine. Includes conveyor belt, weighing scale, and labeler/coder (electronic chip missing).
USES:
Packaging and weighing of polyethylene and polypropylene products: nuts, potato chips, snacks, frozen foods, screws, wall plugs, knobs, handles, etc.
BAG DIMENSIONS: - WIDTH: up to 380 mm.
- LENGTH: up to 800 mm.
OPERATING VOLTAGE: 380 V AC. Three phases + neutral + ground are required.
AIR CONSUMPTION: 250 L/min. at a constant pressure of 6 kPa. FEATURES:
- Entire assembly finished in stainless steel and high-quality materials.
- Overhead structure with legs for easy cleaning.
- Output depends on the product and quantity to be packaged.
- Wrapping material is fed by belts.
- Tube with a forming neck suitable for working with complex plastics.
- Roll support bar.
- Photocell for centering the wrapping material (for use with printed rolls).
- Vertical constant-heat sealer.
- Horizontal constant-heat clamps.
- Electronic temperature control.
- Electronic bag length control.
- Synchronization for the weighing process.
- The entire system is managed by a Marc. OMRON PLC.
- Polycarbonate guards with automatic machine stop when opened.
- Indicator light that alerts the user to:
. White light: the machine is powered.
. Green light: the machine is in working position.
Red light and buzzer: indicates any malfunction in the machine (breakage or end of transfer film, end of plastic sheet, opening of protective doors, ...)
Start price 8.000 €
