No. of sale: 040926C
Starting date

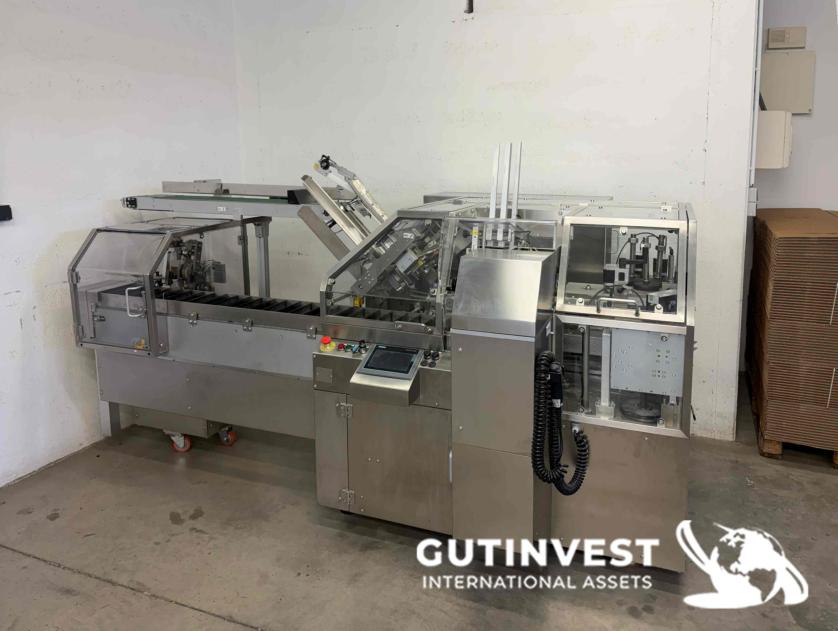

ManufacturerCitus Kalix ModelKP600 EVO Year2023 ObservationsCartoning machine for cosmetic and pharmaceutical products
• Application: Automatic forming, loading, and closing of cardboard cartons for cosmetic,
pharmaceutical, and similar products. CE marking: Yes
Production and Operation
• Production rate: up to 60 cycles/minute
• Operation: automatic
• Number of operators: 1
• Product feeding: manual or via optional automatic module
• Automatic carton feeding: Yes
• Leaflet/package insert insertion: Optional
• Carton marking system: Optional
• Defective carton rejection system: Optional
Supported Carton Formats
Cartons
• Length (A): 20 - 100 mm
• Width (B): 20 - 90 mm
• Height (C): 50 - 200 mm
• Extended A option: up to 115 mm
Leaflets / Inserts (Optional)
• Length: 80 - 220 mm
• Width: 15 - 70 mm
Electrical Specifications
• Power supply: 400 V - 50 Hz
• Control voltage: 24 VDC
• Installed power: 1.8 kVA
• Recommended electrical protection: 25 A
Pneumatic Specifications
• Operating pressure: 6 bar
• Air consumption: 35 - 50 Nm³/h
• Required air quality: dry and oil-free
Dimensions and Weight
• Width: 2,935 mm (15-position chain)
• Optional width: 3,315 mm (18-position chain)
• Depth: 1,350 mm
• Depth with cabinet open: 2,340 mm
• Height: 1,325 mm
• Height with guards open: 1,945 mm
• Approximate weight: 1,500 kg
Additional Features
• Machine equipped with safety guards and emergency stop systems
• Control panel with HMI screen
• USB and RJ45 ports
• Manual and automated format adjustments
• Compatible with different carton closing systems
• Noise level below 80 dB
Typical Industries
• Cosmetics
• Perfumery
• Pharmaceutical
• Light food products
• Hygiene and personal care products
The machine has:
• Number of included formats: only 1 currently installed, but compatible with multiple
formats
• Instruction manual included
• No hotmelt system
• Pick & place system included
• No automatic rejection system
• Low working hours
ManufacturerCitus Kalix ModelKP600 EVO Year2023 ObservationsCartoning machine for cosmetic and pharmaceutical products
• Application: Automatic forming, loading, and closing of cardboard cartons for cosmetic,
pharmaceutical, and similar products. CE marking: Yes
Production and Operation
• Production rate: up to 60 cycles/minute
• Operation: automatic
• Number of operators: 1
• Product feeding: manual or via optional automatic module
• Automatic carton feeding: Yes
• Leaflet/package insert insertion: Optional
• Carton marking system: Optional
• Defective carton rejection system: Optional
Supported Carton Formats
Cartons
• Length (A): 20 - 100 mm
• Width (B): 20 - 90 mm
• Height (C): 50 - 200 mm
• Extended A option: up to 115 mm
Leaflets / Inserts (Optional)
• Length: 80 - 220 mm
• Width: 15 - 70 mm
Electrical Specifications
• Power supply: 400 V - 50 Hz
• Control voltage: 24 VDC
• Installed power: 1.8 kVA
• Recommended electrical protection: 25 A
Pneumatic Specifications
• Operating pressure: 6 bar
• Air consumption: 35 - 50 Nm³/h
• Required air quality: dry and oil-free
Dimensions and Weight
• Width: 2,935 mm (15-position chain)
• Optional width: 3,315 mm (18-position chain)
• Depth: 1,350 mm
• Depth with cabinet open: 2,340 mm
• Height: 1,325 mm
• Height with guards open: 1,945 mm
• Approximate weight: 1,500 kg
Additional Features
• Machine equipped with safety guards and emergency stop systems
• Control panel with HMI screen
• USB and RJ45 ports
• Manual and automated format adjustments
• Compatible with different carton closing systems
• Noise level below 80 dB
Typical Industries
• Cosmetics
• Perfumery
• Pharmaceutical
• Light food products
• Hygiene and personal care products
The machine has:
• Number of included formats: only 1 currently installed, but compatible with multiple
formats
• Instruction manual included
• No hotmelt system
• Pick & place system included
• No automatic rejection system
• Low working hours
Start price 209.000 €
