No. of sale: 031225E
Starting date

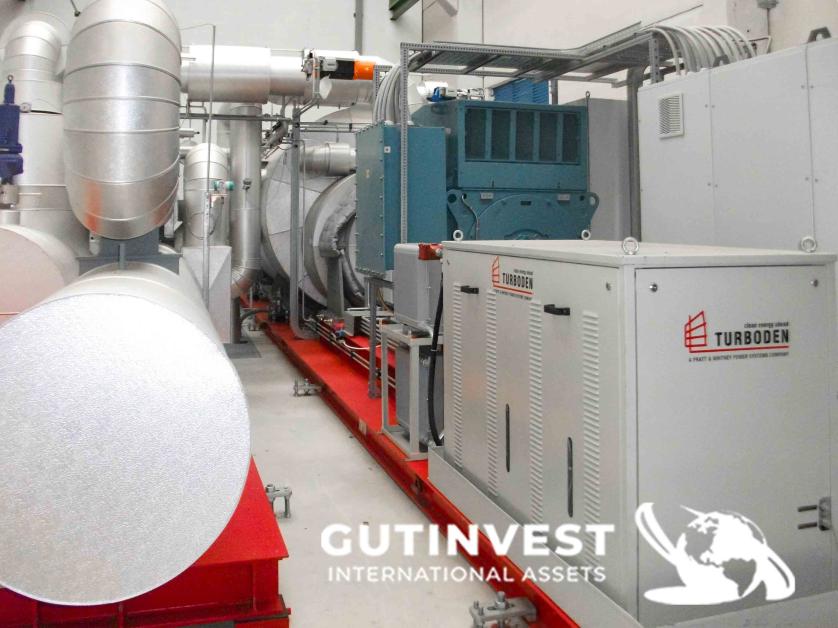

ManufacturerTURBODEN (Made in Italy) ModelTURBODEN 10 CHP SPLIT Year2012 ObservationsTurbine for electricity production with silicone thermal oil, ORC plants with biomass boiler
(NEVER USED) Inlet oil temperature at rated load: 310-250°C. Outlet oil temperature at rated load: 250-130°C. ORC oil diameter: ORC circuit inlet pressure drop at rated load: 1.4-0.1 bar. ORC oil diameter: ORC circuit net volume: 1550-180 cm³. Inlet cooling water temperature at rated load: 60°C.
Outlet cooling water temperature at rated load: 80°C. Water circuit pressure drop in the ORC model at rated load: 0.30 bar. Water volume in the ORC module: 950 l. Glycol concentration in water: 0%. Diameter oil power at rated load: 4690-450 kW. Gross electrical power generated at rated load: 1001 kW. Internal electrical consumption of the ORC module at rated load: 51 kW. Net electrical power generated at rated load: 950 kW. Thermal power generated by the condenser at rated load: 4099 kW. Minimum possible load: 10%. Thermal radiation emitted by the ORC module at rated load: 90%. Noise emission at 1 m: 90 dBA. Working fluid in the thermodynamic circuit:
Turboden Power 1. Working fluid contained in the ORC module: 1,900 kg. Total weight of the ORC module: 53,000 kg. Total length of the ORC module: 15.55 m. Total width of the ORC module: 6.4 m. Total height of the ORC module: 3.3 m.
ManufacturerTURBODEN (Made in Italy) ModelTURBODEN 10 CHP SPLIT Year2012 ObservationsTurbine for electricity production with silicone thermal oil, ORC plants with biomass boiler
(NEVER USED) Inlet oil temperature at rated load: 310-250°C. Outlet oil temperature at rated load: 250-130°C. ORC oil diameter: ORC circuit inlet pressure drop at rated load: 1.4-0.1 bar. ORC oil diameter: ORC circuit net volume: 1550-180 cm³. Inlet cooling water temperature at rated load: 60°C.
Outlet cooling water temperature at rated load: 80°C. Water circuit pressure drop in the ORC model at rated load: 0.30 bar. Water volume in the ORC module: 950 l. Glycol concentration in water: 0%. Diameter oil power at rated load: 4690-450 kW. Gross electrical power generated at rated load: 1001 kW. Internal electrical consumption of the ORC module at rated load: 51 kW. Net electrical power generated at rated load: 950 kW. Thermal power generated by the condenser at rated load: 4099 kW. Minimum possible load: 10%. Thermal radiation emitted by the ORC module at rated load: 90%. Noise emission at 1 m: 90 dBA. Working fluid in the thermodynamic circuit:
Turboden Power 1. Working fluid contained in the ORC module: 1,900 kg. Total weight of the ORC module: 53,000 kg. Total length of the ORC module: 15.55 m. Total width of the ORC module: 6.4 m. Total height of the ORC module: 3.3 m.
Start price 450.000 €
