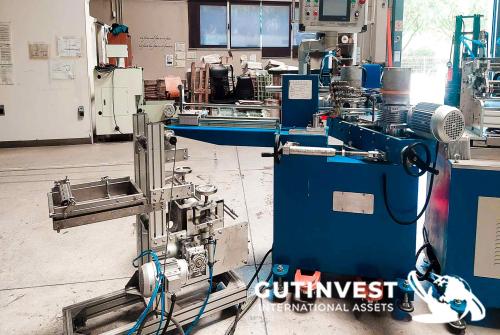

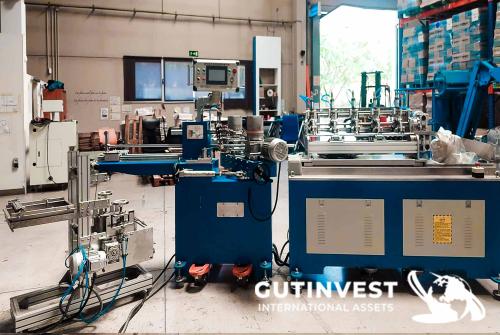

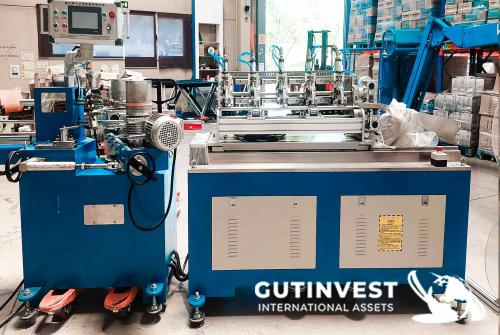

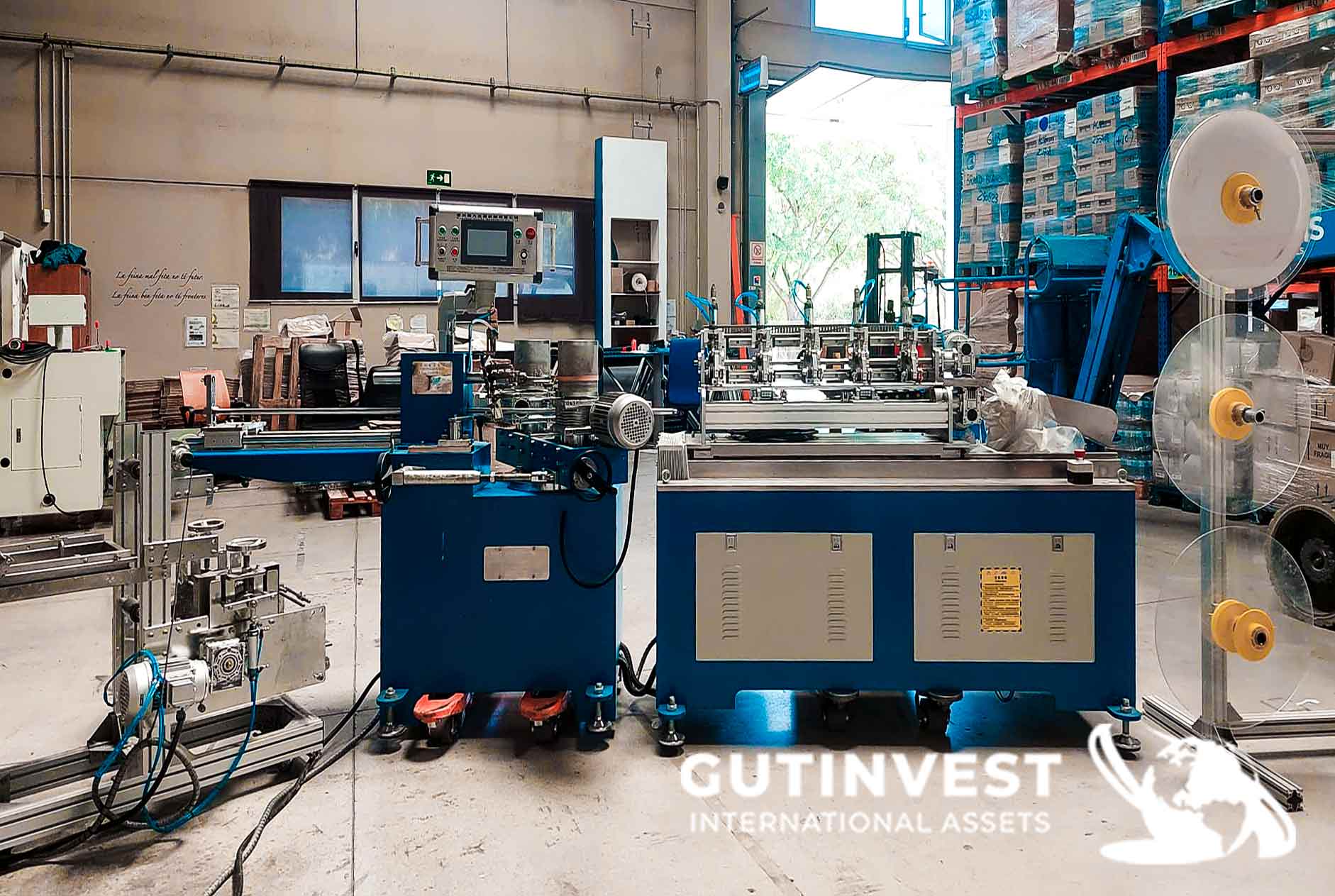

Home Máquina para fabricar pajitas de papel "Gaoda Machinery" (2020) Máquina para fabricar pajitas de papel - Online auction
ManufacturerGaoda Machinery Year2020 ObservationsPaper Straw Making Machine
Cutting blade: 5
Max paper tube length: 1100mm
Max speed: 50m/min
Stable speed: 30-45m/min

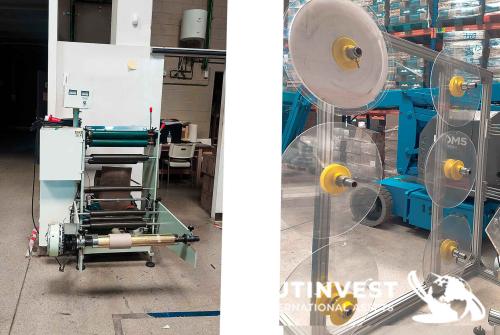

The CNC multi-blade paper straw making machine is mainly composed of 5 parts:
Paper reel bracket, Glue unit, Winding & control system, Cutting system, Straw
collector (belt transporter). So Gaoda machine is convenient to transport, moving and
installation. With stable, more efficiency, high precision performance.
Adopt PLC digital control & servo tracing technology, greatly improved the speed
and accuracy of paper tube. By using constant tension adjustment mechanism of inner
paper layer, improve the stability and quality of paper tube. The protection function
of pater interruption & blocking and tube loosing, which realize that one person

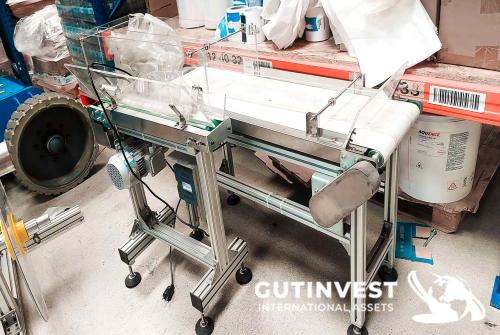

operate more machines. The belt of straw collector could separate tail end of paper
tube with paper straws effectively and orderly collects the paper straws. With
automatically mechanisms, reduce labor cost.
The paper straw making machine adopts at least two paper strips. The machine should
accomplish: Put paper strip reels on the bracket, adhesive double & single side
through glue unit, winding & stick together strips to be paper tube by main motor,
high speed cutting and chasing to cut tube into paper straws, automatic get rid of tail
ends by conveying belt, finish paper straws collection and other steps.
The machine adopts AC 380V 3-phase four-wire system power supply, rated
frequency 50-60 Hz. The maximum power is 6.5KW.
Main power supply line; aluminum wire ≥6mm2; copper wire ≥4mm2. And the
voltage fluctuation should be controlled between +5% to -5%. If necessary, use a 3-
phase voltage regulator.
No. of items: 1
Dismantling and loading costs not included.
