Manufacturer
TRAUB
Model
TNK 36
Year
2003
Observations

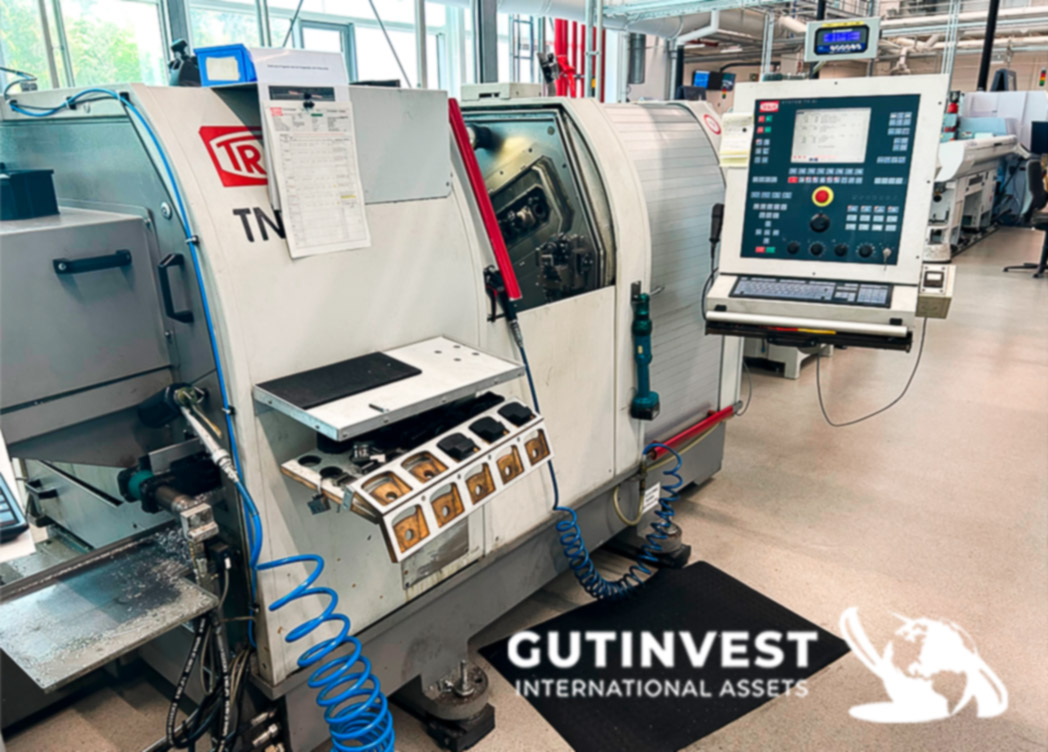

CNC Turning Center
Operating Hours: Approx. 124,705 h (May 2026)
Machine Description
The TRAUB TNK 36 is a high-performance CNC turning center designed for automated production of precision components from bar stock. Equipped with a main spindle, counter spindle, C-axis capability, driven tools, high-pressure coolant system, and automatic bar feeder, the machine is suitable for unattended operation and medium-to-high volume production.
CNC Control System
·TRAUB TX8i CNC Control (64-bit)
·10.4" Flat Screen Display
·Additional V24 RS232 Interface
·MDE Production Monitoring Interface
·Tool Monitoring System
·Rigid Tapping without Compensation Chuck

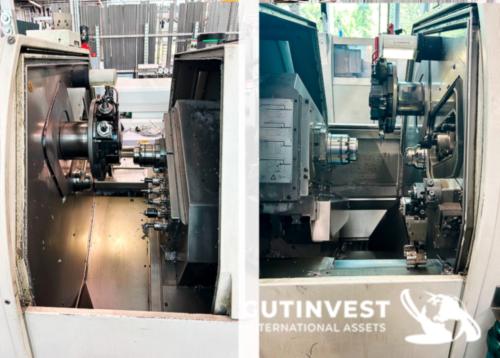

Main Spindle
·Bar Capacity: Ø 36 mm
·Maximum Spindle Speed: 6,300 rpm
·Drive Power:
o6.7 kW (Continuous)
o10.7 kW (Peak)
·Integrated C-Axis
·Hainbuch Quick-Change Clamping System
·Manual Hainbuch Changeover Device Included
Counter Spindle
·Motorized Counter Spindle
·Integrated C-Axis
·Counter Clamping Pressure Device
·Automatic Workpiece Ejector
·Hainbuch Axfix Chuck System
Tooling System
Upper Tool Carrier
·Driven Tool Capability
·Electronic Gear Function
·X3 Cross Axis for Front Working Unit
Front Working Unit
·5 Tool Positions
·Driven Tool Capability
Cut-Off / Back Working Station
·Driven Tool Capability for Secondary Operations
Workpiece Handling
·Automatic Part Gripper
·Gripper Jaw Sets Included:
oØ 5-8 mm
oØ 8-20 mm
oØ 20-36 mm
Coolant System
Standard Coolant Unit
·Tank Capacity: 230 Litres
·Pressure: 7 bar
·Flow Rate: 50 l/min
Through-Tool Coolant
·Internal Coolant Supply: 30 bar
·High-Pressure Coolant:
o120 bar at Front Working Station
o120 bar at Rear Working Station

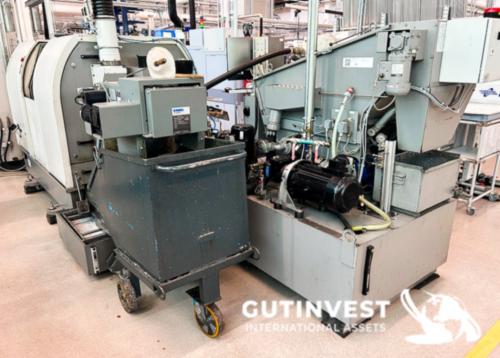

Filtration
·KNOLL VRF 150/750 Vacuum Rotary Filter
·Suitable for:
oAluminium
oBrass
oSteel
oPlastics
·Coolant Cleaning Gun Included
Additional Equipment
·Hinged-Belt Chip Conveyor
·Discharge Height: 950 mm
·Preparation for Automatic Bar Loader
·Guide Tubes for Ø25 mm and Ø36 mm Bars
·Synchronous Workpiece Stop
·Brankamp CMS 100 Collision Monitoring System on Main and Counter Spindle

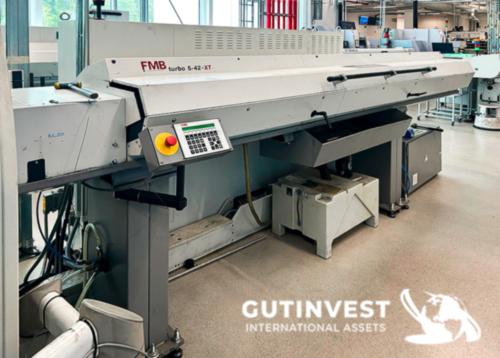

Bar Feeding System
Manufacturer: FMB
Model: Turbo 5-42 XT / 3200 C
Year: 2003
Capacity
·Maximum Bar Length: 3,000 mm
·Maximum Bar Diameter: Ø36 mm
·Designed for Fully Automatic Unattended Production
Electrical Data
·Connected Load: 22 kW
·Supply Voltage: 400 V
·Frequency: 50 Hz
·Rated Current: 60 A
Included Accessories
·Basic Set of Static Tool Holders
·Basic Set of Driven Tool Holders
·Hainbuch Clamping Equipment
·Workpiece Gripper Sets
·Chip Conveyor
·Coolant System
·FMB Bar Feeder
Machine Condition
·No known defects reported by the owner.
·Machine remained in productive operation until May 2026.
·Operated in a 2.5-shift production environment.
·Currently decommissioned but remains electrically connected.
·Available for inspection and power-on demonstration.
Main Advantages
✔ Main spindle and counter spindle with C-axis capability
✔ Driven tooling for milling, drilling and tapping operations
✔ High-pressure coolant system up to 120 bar
✔ Automatic FMB bar feeder for lights-out manufacturing
✔ Tool monitoring and collision detection system
✔ Suitable for steel, aluminium, brass and plastic machining
✔ High productivity for medium and large batch production
✔ Proven TRAUB reliability and precision engineering

No. of items: 1

Dismantling and loading costs not included.
