Surface Grinding Machine
Surface Grinding Machine
€25,000 (EUR)
Location:Spain
or
Call +34 932 696 282
Description

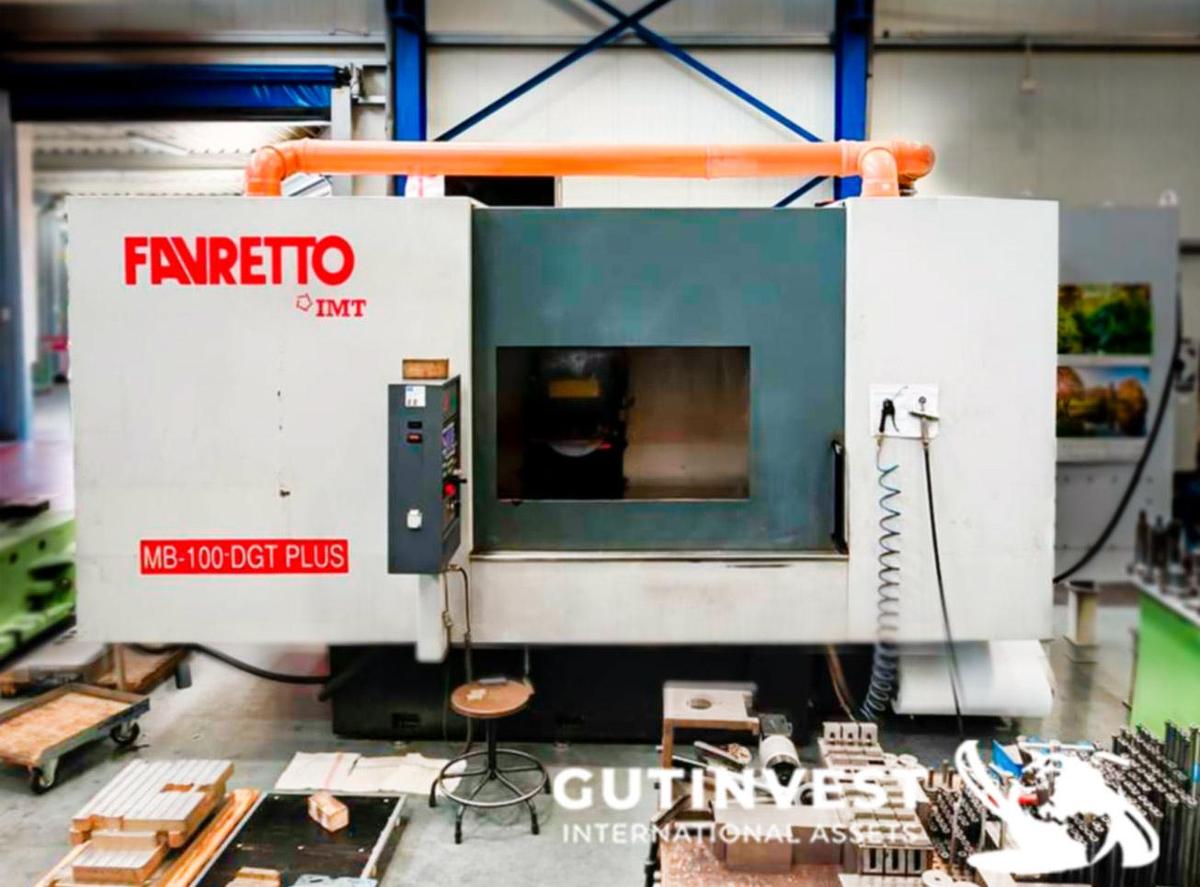

Surface Grinding Machine, with 1200 mm table, equipped with SIEMENS control and multiple automated systems (lubrication, cooling, wheel compensation). Ideal for demanding applications in toolmaking, precision machining, and mold production.
🔹 GENERAL DATA
🔹 WORKING CAPACITY
🔹 GRINDING SPINDLE
🔹 AXES & TRAVELS
Longitudinal axis (Z)
Vertical axis (Y)
🔹 DIMENSIONS & WEIGHT
🔹 STANDARD EQUIPMENT

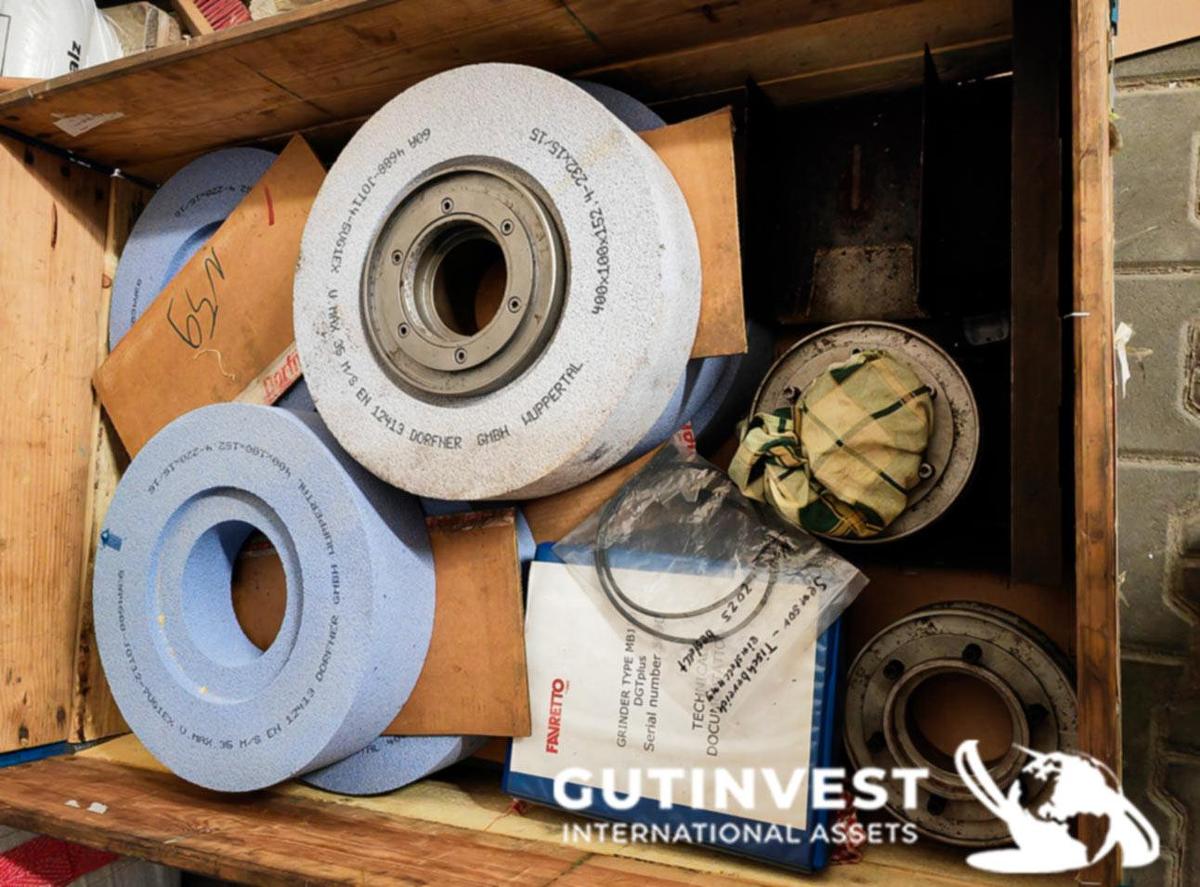

·Grinding wheel
·Wheel flange complete
·Wheel extractor
·Wheel balancing device
·Set of adjustment tools
·Operating manual (German)
·CE compliant
🔹 OPTIONAL / ADDITIONAL EQUIPMENT
·Electro-permanent magnetic chuck (1000 x 500 mm)
·Magnetic force control system
·Coolant system with paper filter and magnetic separator
·Frequency inverter for spindle speed control
·Automatic wheel wear compensation
·24V working light
·Extraction system (2100 m³/h)
·Cleaning gun
·Electronic handwheel (JOG)

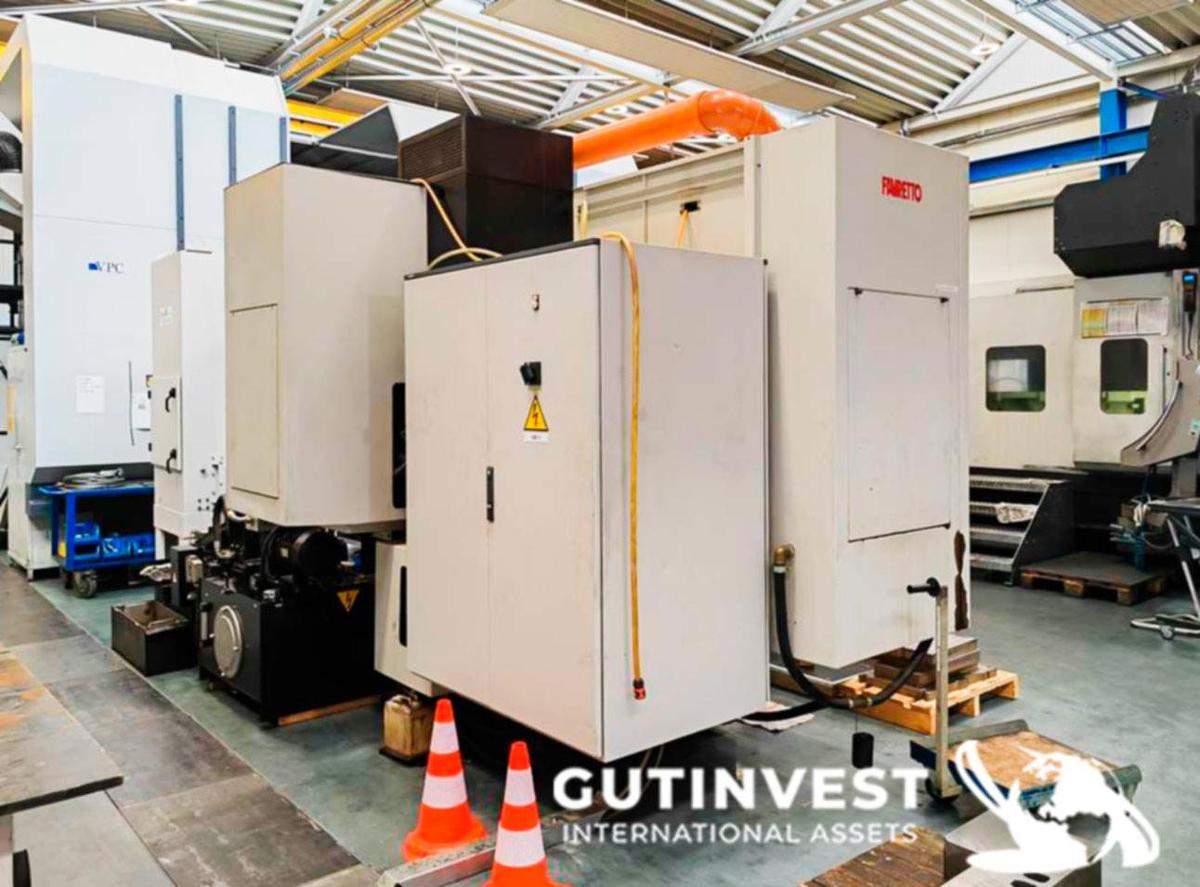

🔹 AUXILIARY SYSTEMS

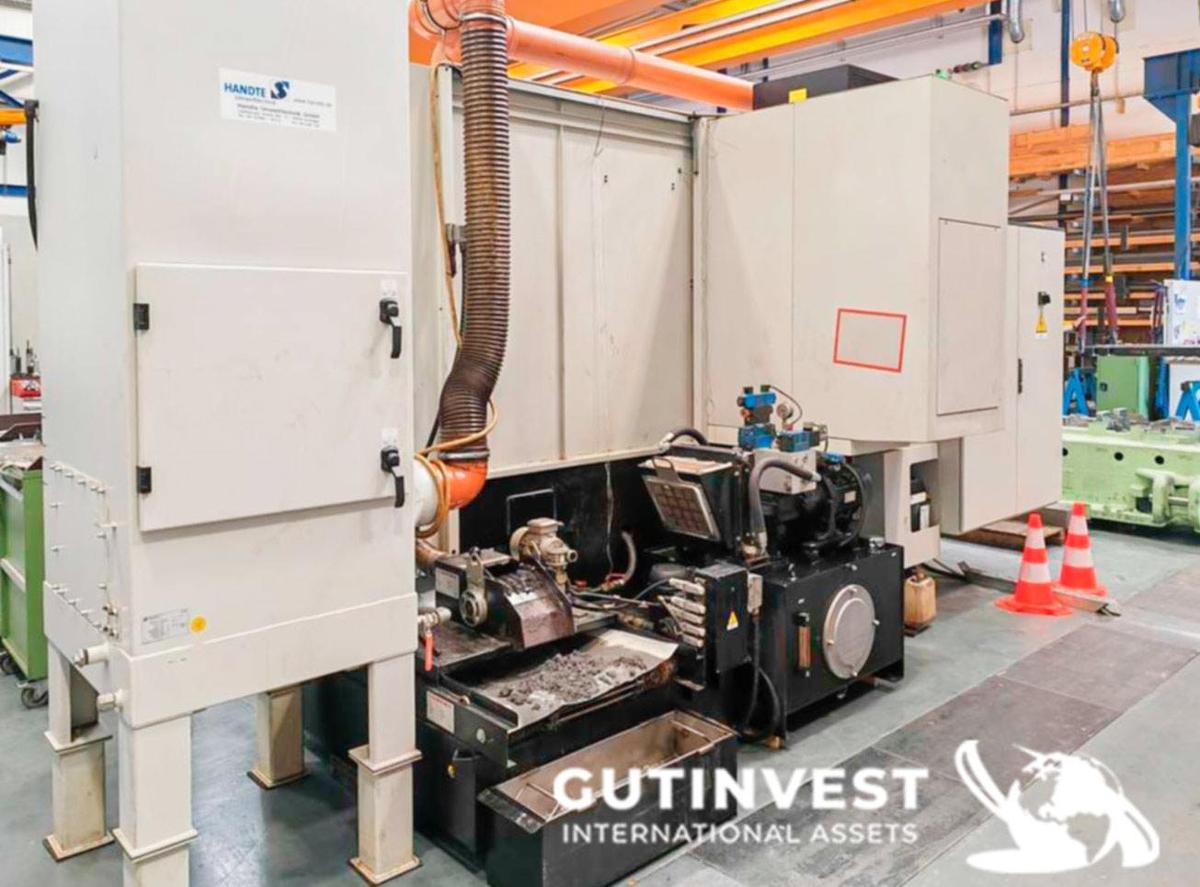

·Hydraulic unit
·Magnetic separator
·Independent cooling system
Specifications
| Manufacturer | FAVRETTO |
| Model | MB 100 DGT - PLUS |
| Year | 2011 |
| Condition | Used |
| Stock Number | 170626M-1 |
| Tender sale | 2026-09-22 16:00:00 |
| Working hours | 17.500h |

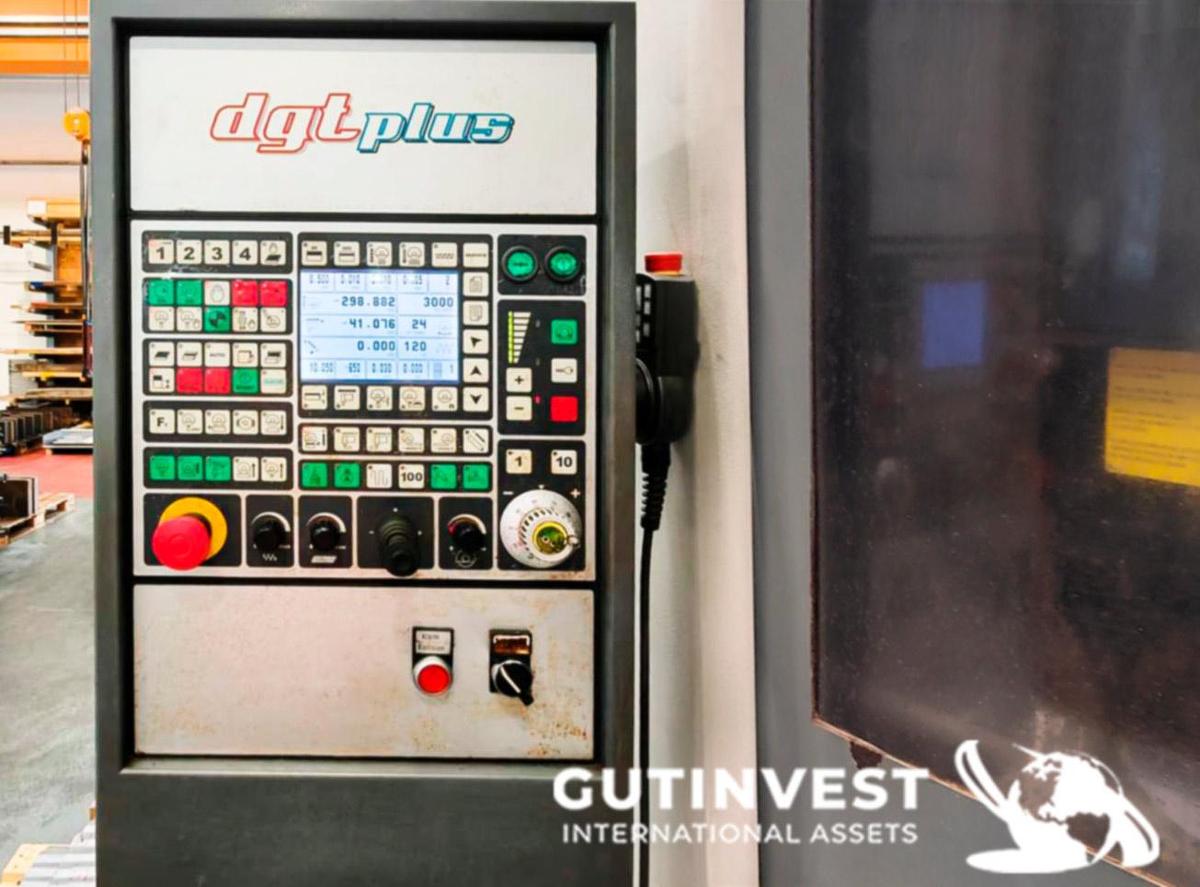

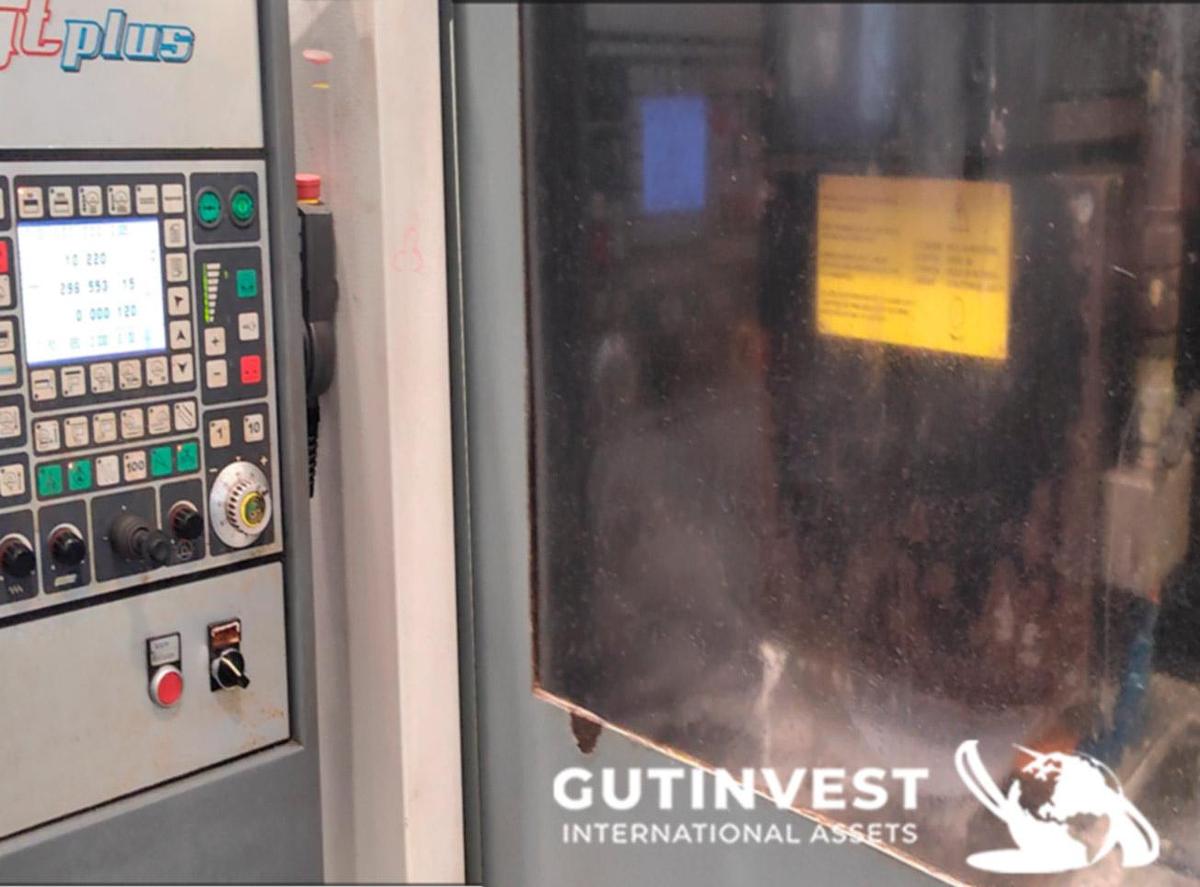

| Control system | SIEMENS + FAVRETTO control |
| Grinding capacity | 1200 x 600 mm |
| Max grinding length | 1200 mm |
| Max grinding width | 600 mm |
| Max grinding height | 550 mm |
| Table surface | 1200 x 400 mm |
| Table speed | 1 - 40 m/min |
| Table load (without magnetic chuck) | 1200 kg |
| Table load (with magnetic chuck) | 975 kg |
| Motor power | 11 kW |
| Grinding wheel size | 406 x 152.4 x 100 mm |
| Spindle speed | 1400 rpm |
| Rapid feed | 1.5 m/min |
| Adjustable feed | 1 - 50 m/min |
| Stepless feed | 0 - 2000 mm/min |
| Minimum increment | 0.001 mm |
| Working stroke | 610 mm |
| Total stroke | 645 mm |
| Dimensions (L x W x H) | 4450 x 2935 x 2540 mm |
| Total weight | approx. 6700 kg |
| Total installed power | approx. 25 kW |
