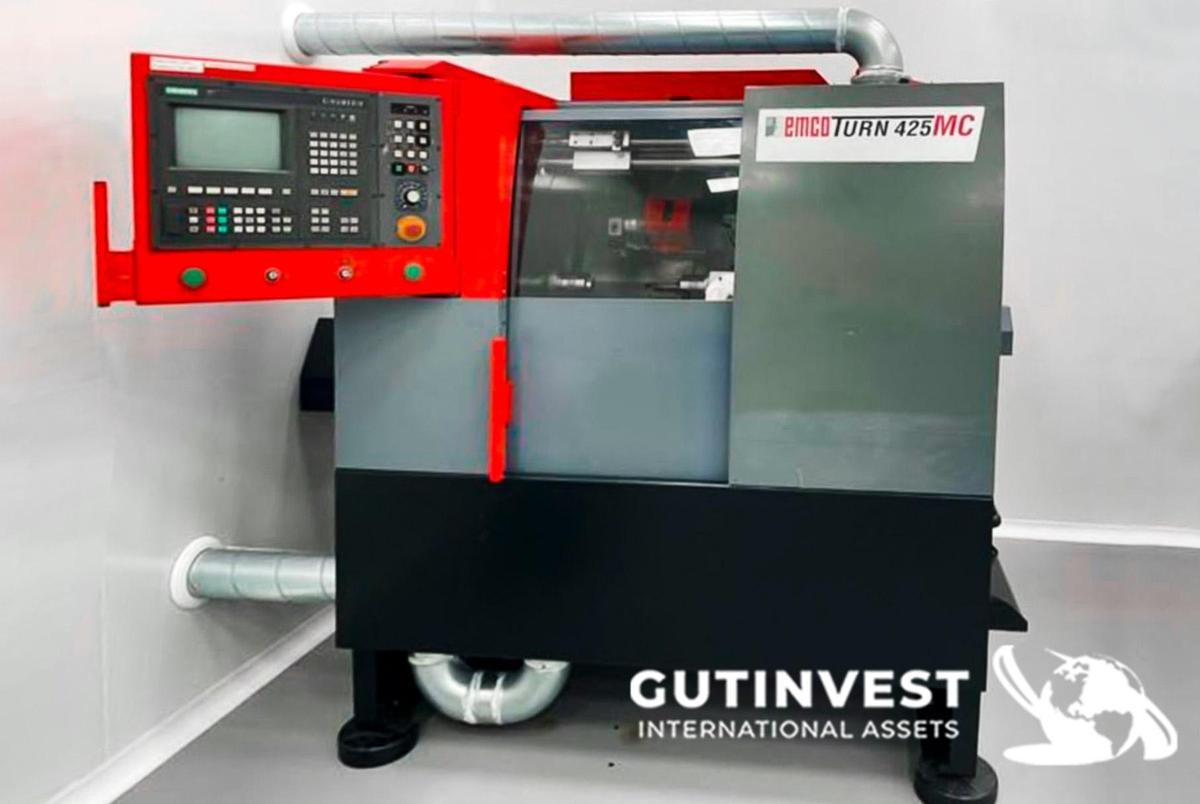

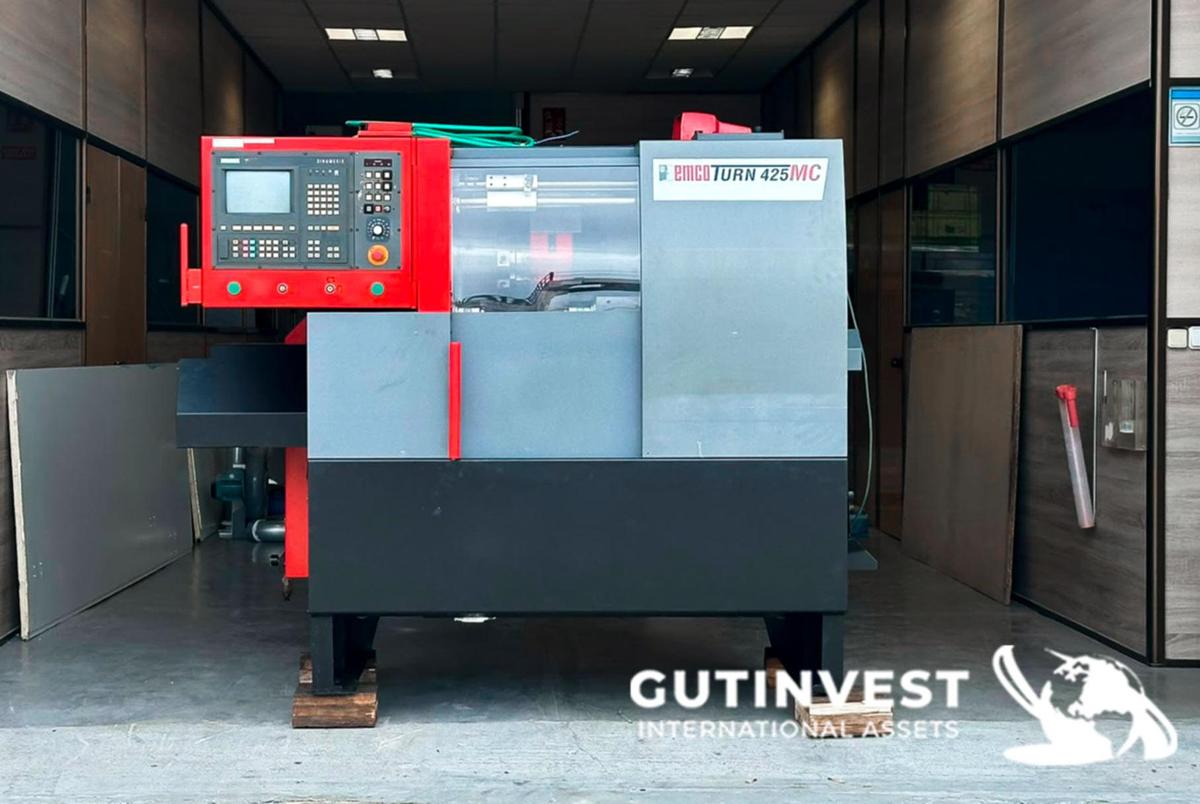

CNC lathe

Specific features

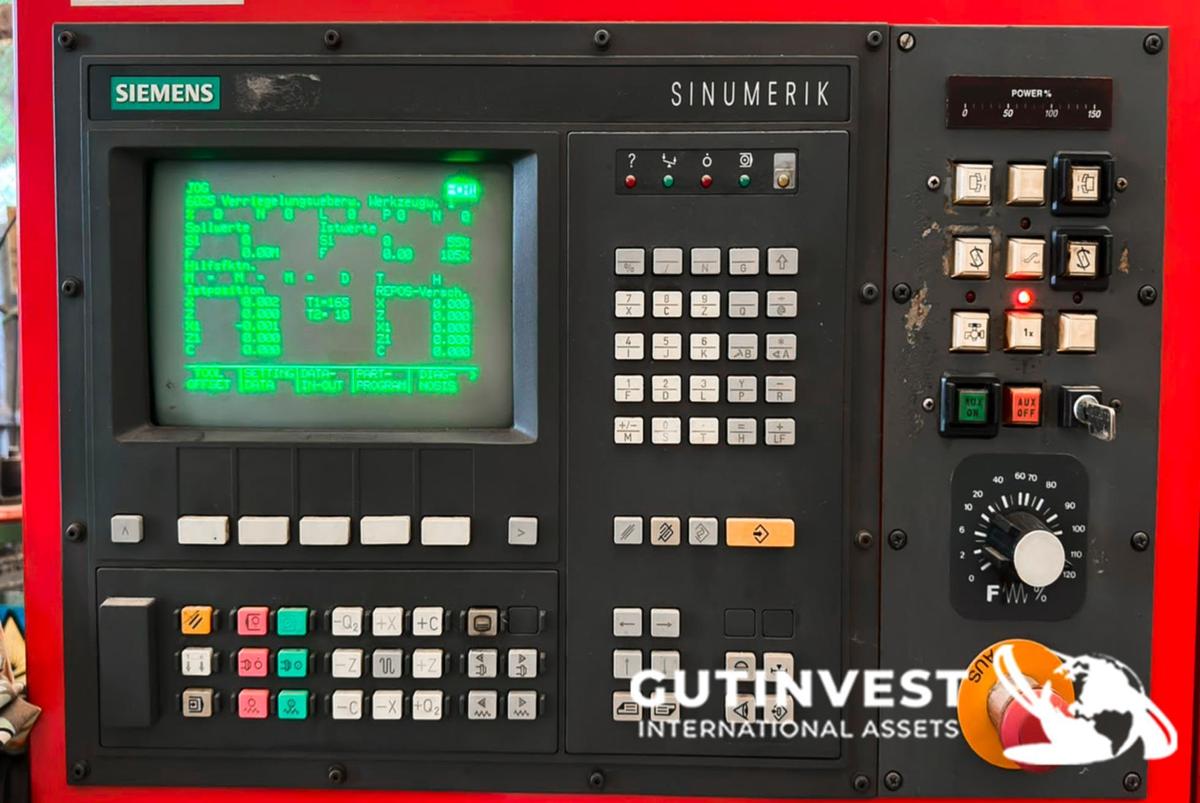

Siemens CNC

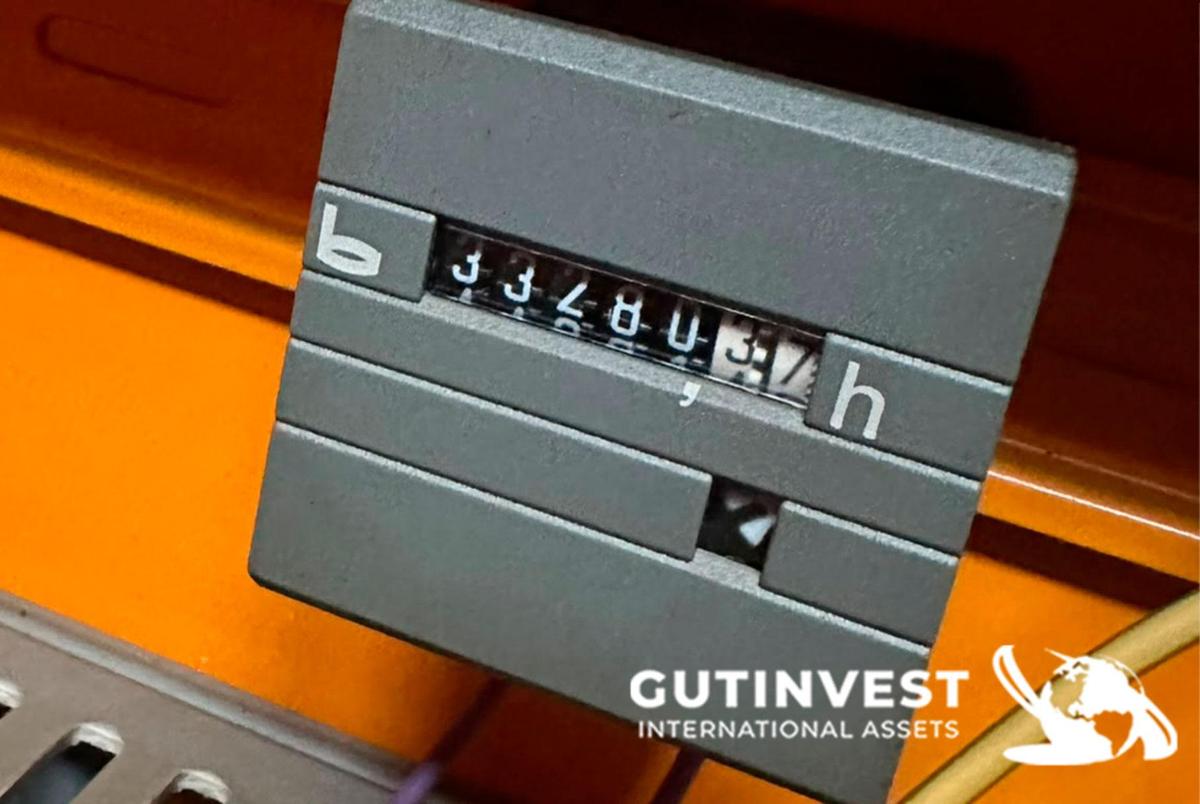

Operating time: 33,280h

X-axis travel: 75 mm

Y Axis: No

Z axis travel: 190 mm

Flipping on the bench: 160 mm

Distance between main spindles and counter-spindles: min. 169/ max. 409 mm

Piece dimensions: diam. 26 mm / 120 mm

Turning length:120 mm

Turning diameter:25 mm

Bar passing: 5-26 mm

Bar length: 3800 / 1000 mm

Total installed power: 15 Kva

Speed range: 20-5000 rpm

Spindle motor power: 11 kW

Chip conveyor: Yes

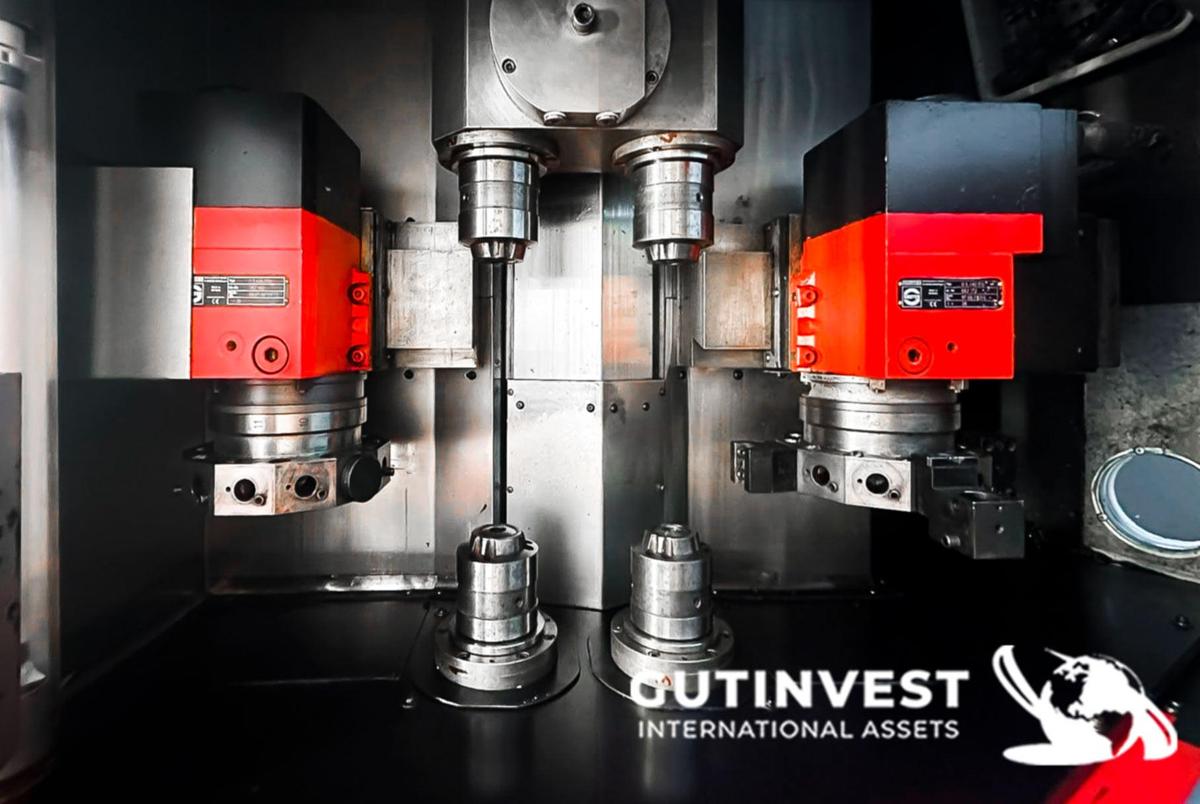

Number of turrets:2

Number of Y axes:2

Number of axes C:2

Main spindle:

Spindle nose: Ø70h5

Outer diameter of the spindle in the front bearings max. rod diameter: 60 mm

Spindle with integrated pneumatic ejector:

Spindle nose: Ø70h5

Outer diameter of the spindle in the front bearings: 60 mm

Spindle with chuck or jaw for Ø 5/26 mm: depth 100 mm

Z-axis travel: 240 mm

Dimensions: 2200 x 1386 x 1760 mm

Machine weight: 2600 kg

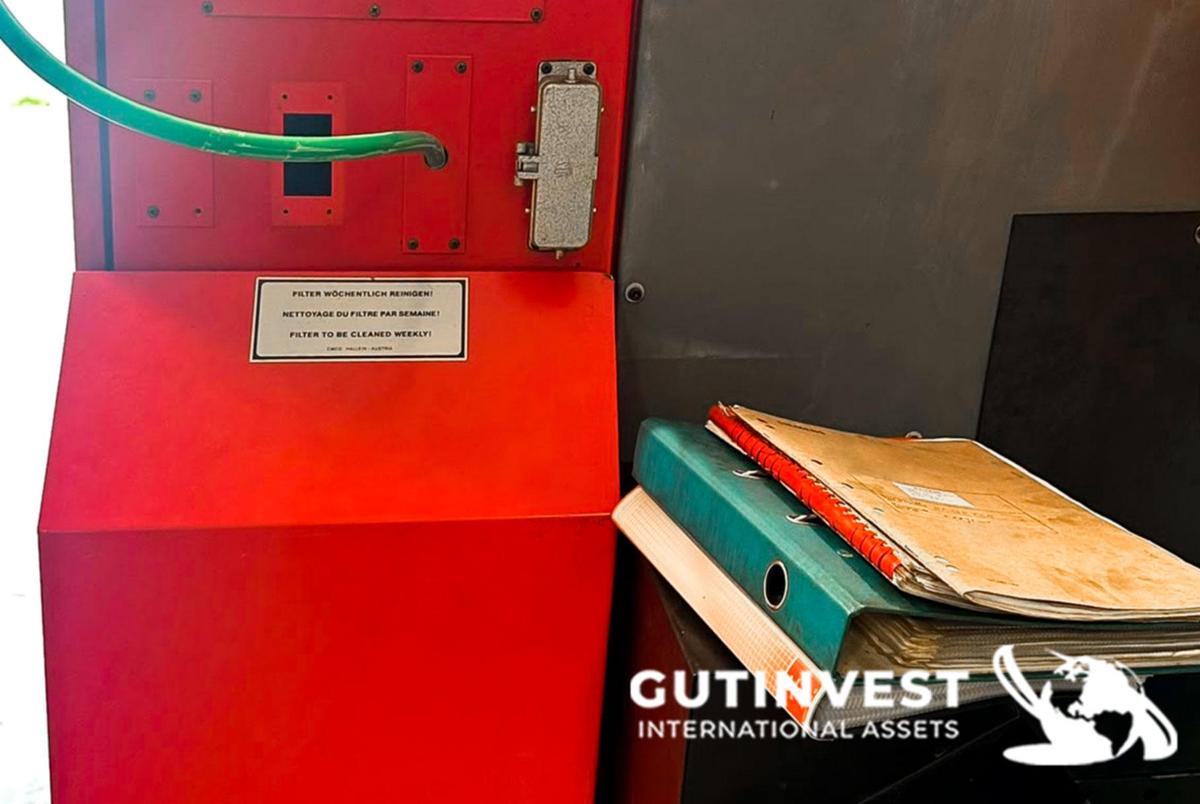

It has no chip conveyor, it is prepared to work with plastic, with extraction

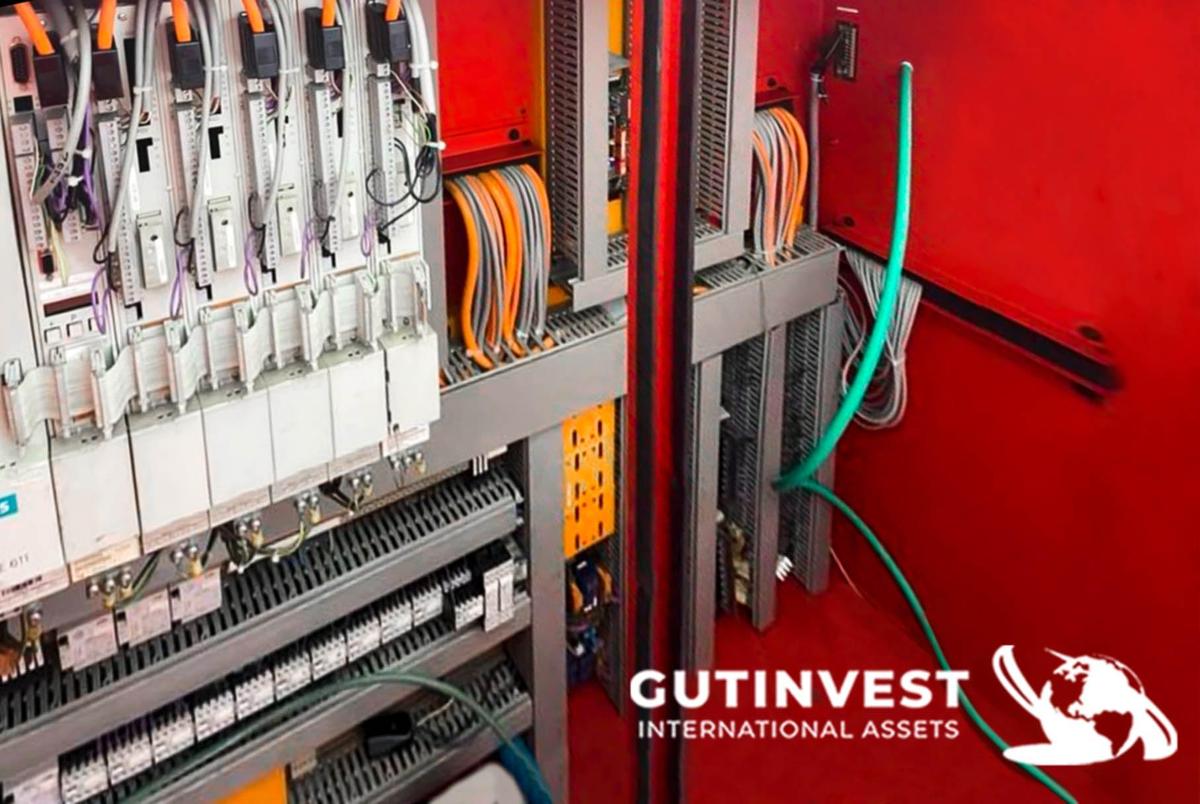

The electronics have been checked by Emco, in good condition

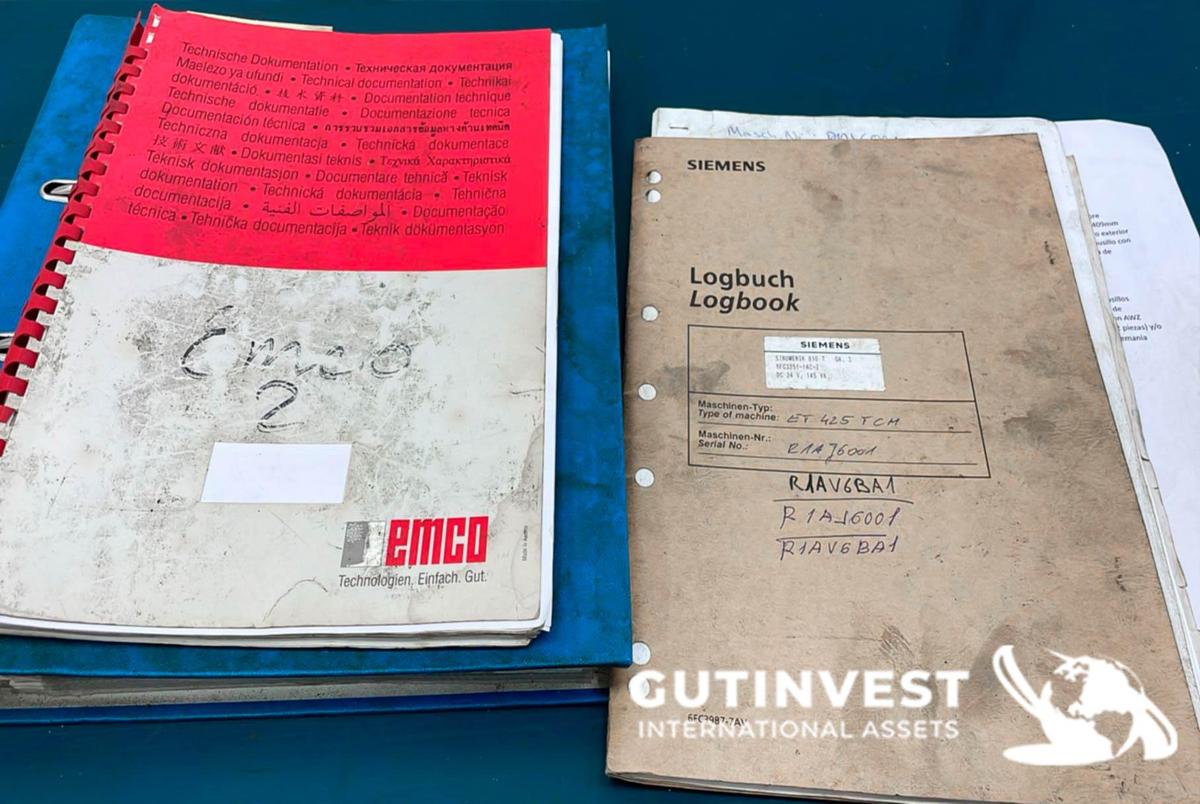

Provides the original documentation
