EMBOSSING-WRAPPING MACHINE

Dimensions (length x depth x height): 3,800 x 800 x 1,400mm.

Weight: 400Kg.

Drive type: Automatic. Operating temperature

max. – min: 0º C – 200º C. Electrical supply (VAC): 220. General power consumption (kW): 2.6.

MACHINE FEATURES:

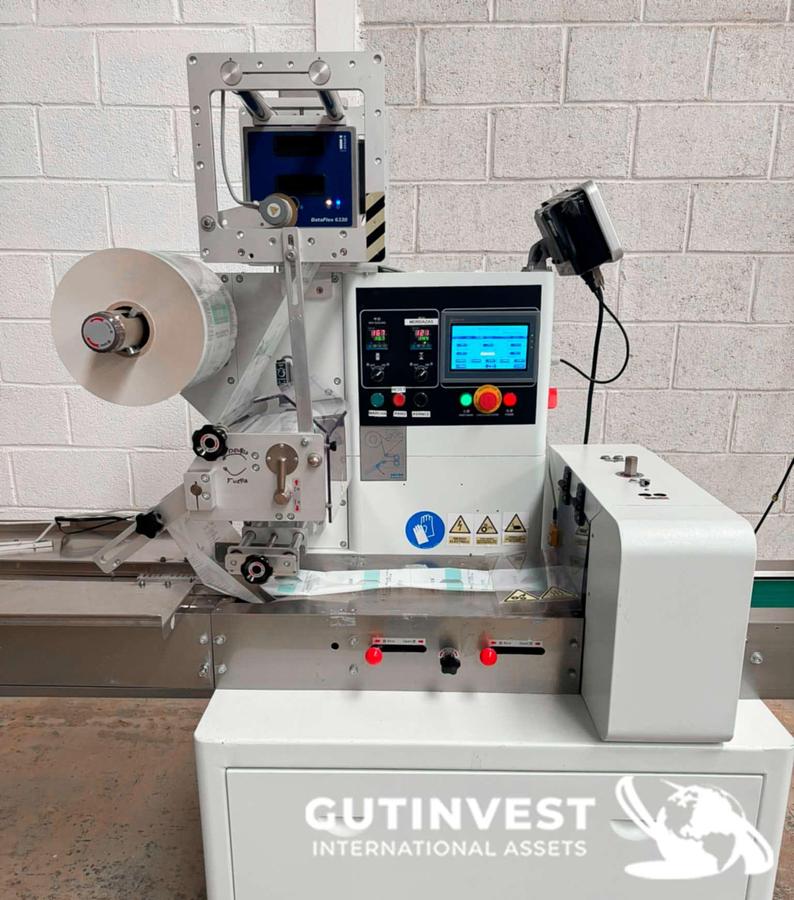

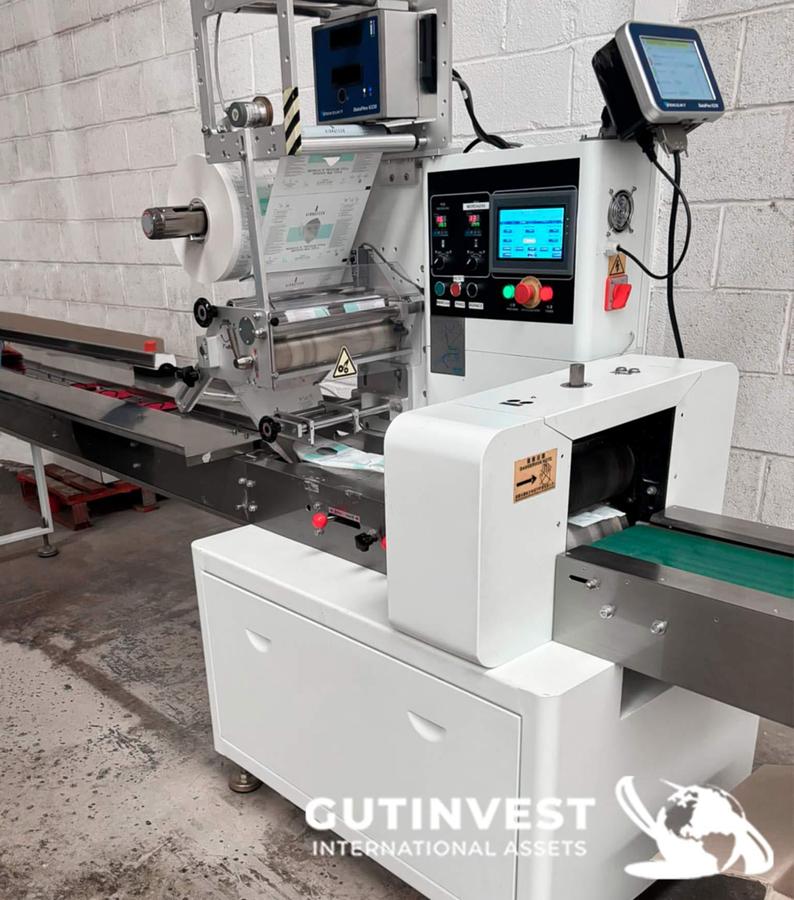

FLOWPACK HORIZONTAL (HFFS-HORIZONTAL FORM FILL SEAL) WITH PRINTING SYSTEM

-transfer TYPE TRANSFER TTO VIDEOJET DATA FLEX 6330

UTILITY:

This machine performs the entire automatic process:

1-Develop the film

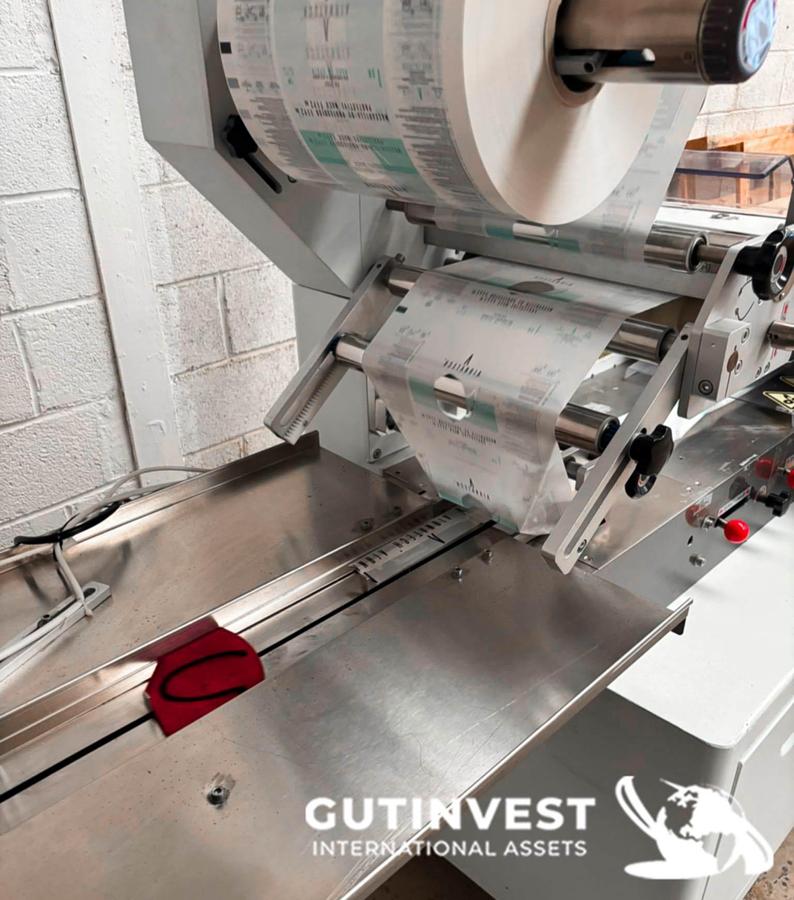

2-Form the packaging around the product.

3-seal longitudinally.

4-Cut and seal transversely.

5-Prints data, four print lines (batch, date, etc.)

Result: stick/sachet or flowpack bags. (very typical in cosmetics, stationery)

,feeding ,masks , etc.)

KEY COMPONENTS:

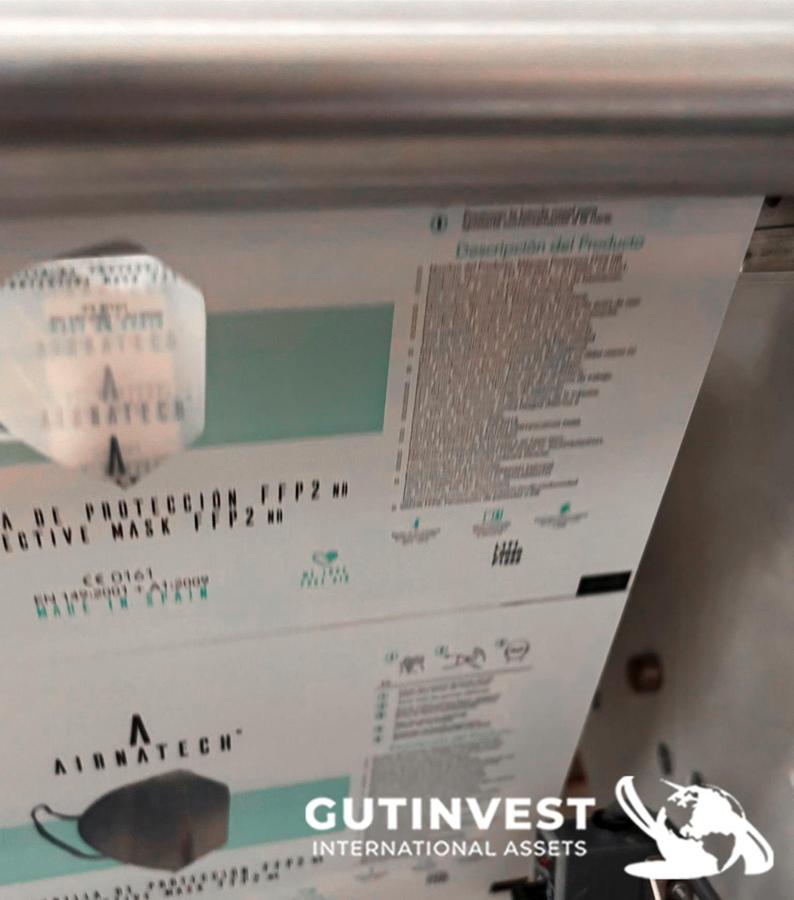

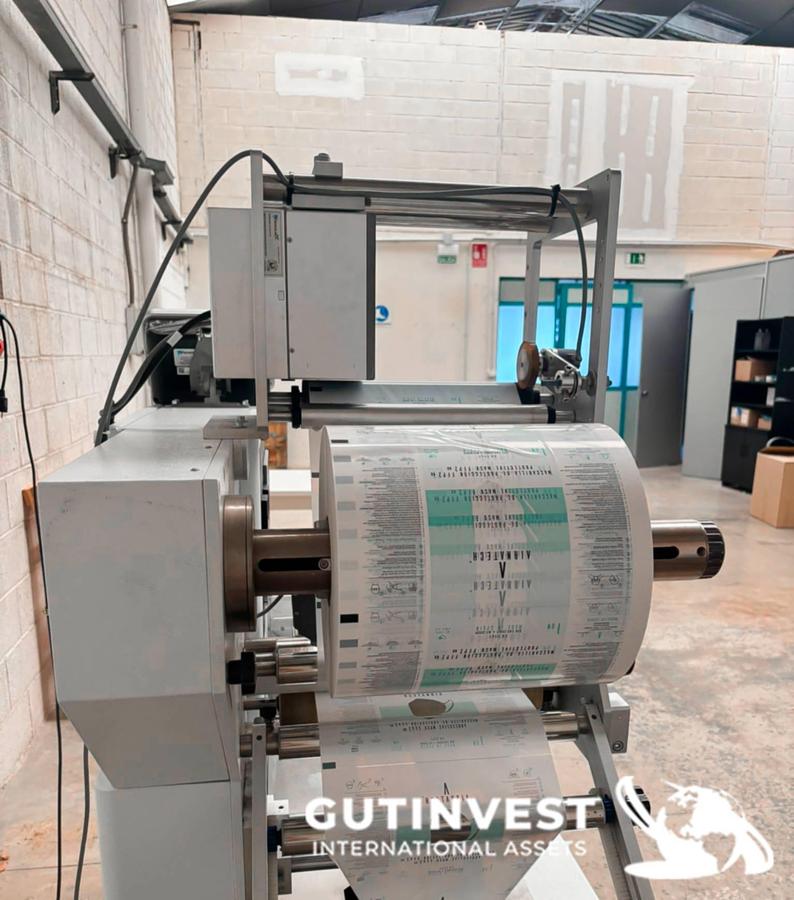

1- BOBIN HOLDER WITH FILM TAKE-UP

Tensioning rollers.

Film guiding.

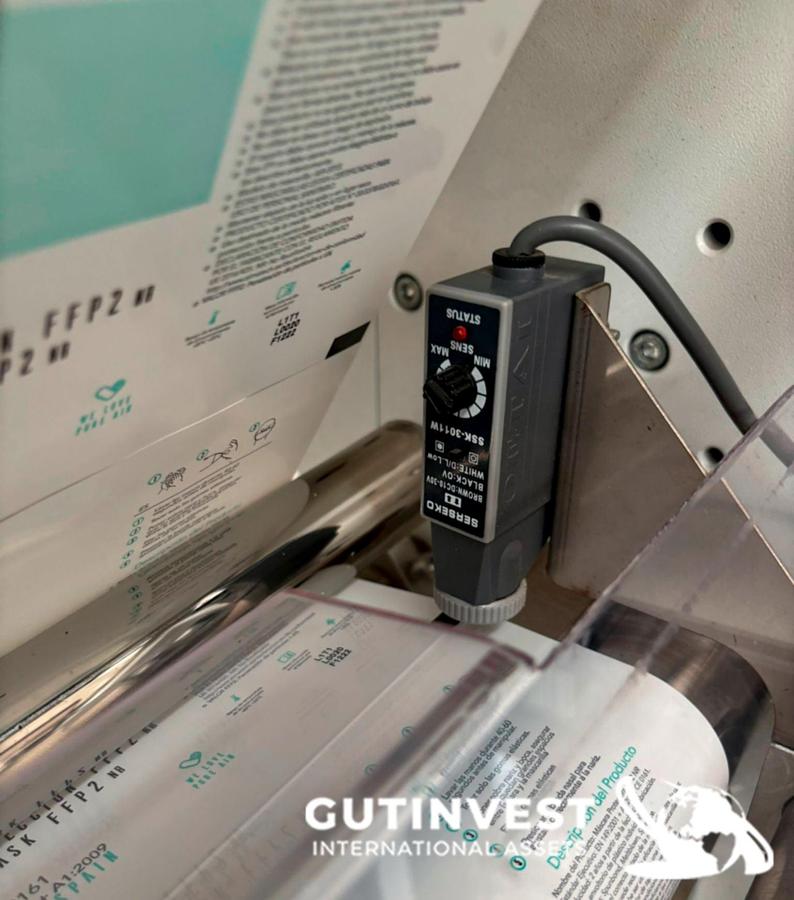

Tension control (very important for printing registration)

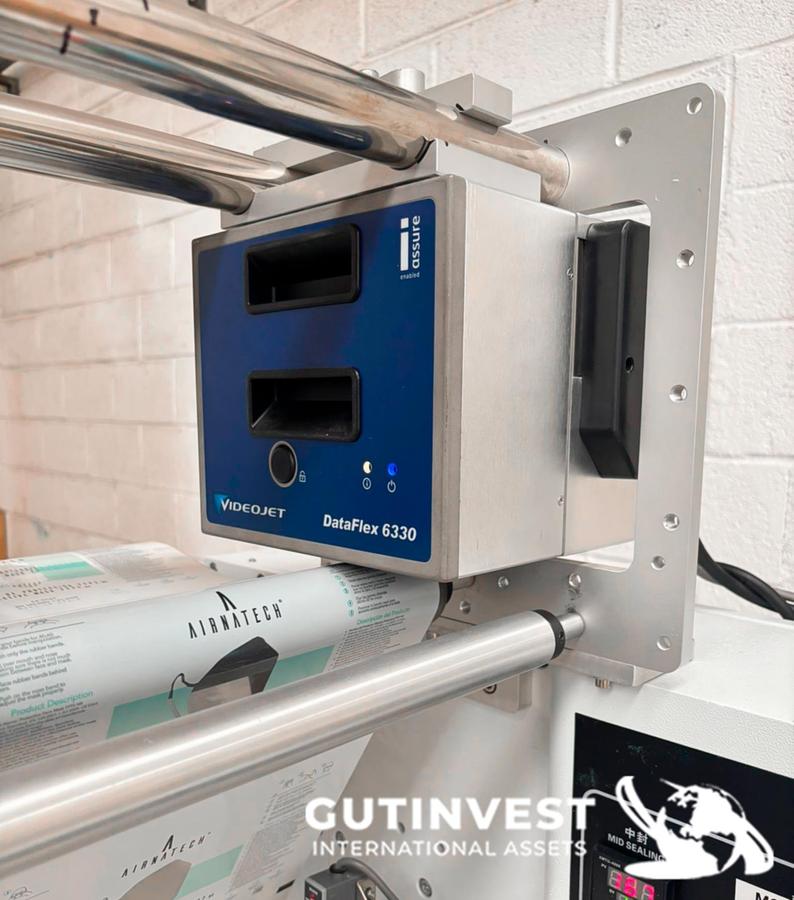

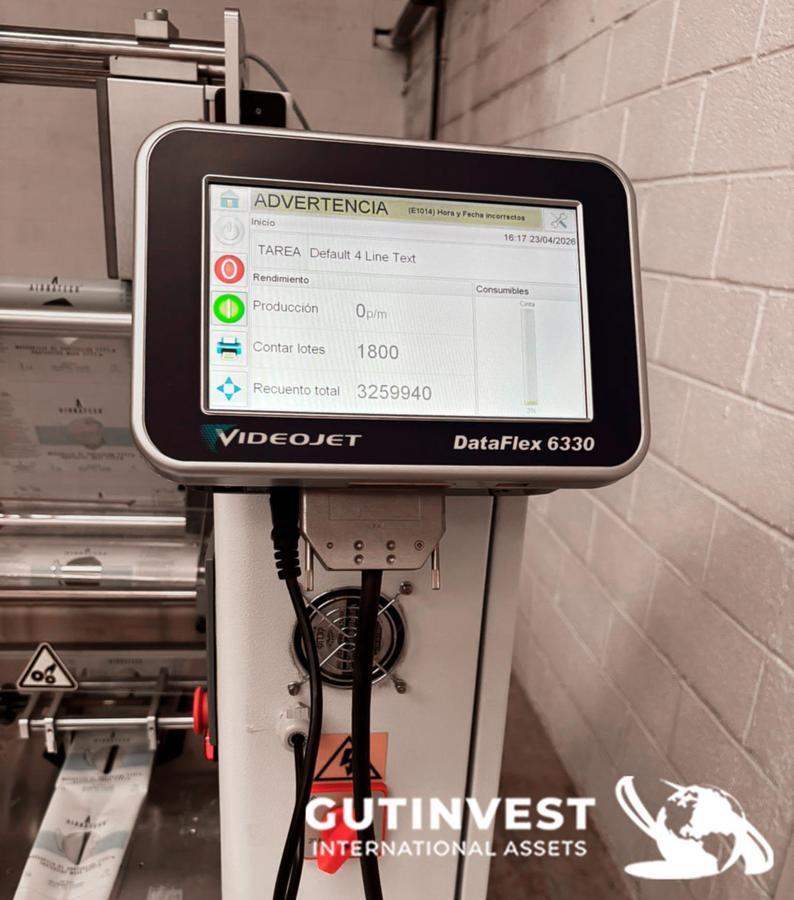

2- THERMAL PRINTER ( TTO)

-Videojet DataFlex 6330

-Prints by thermal transfer onto the film

.High resolution

Ideal for batches, dates, codes, etc.

No direct contact with product

3-ZONE OF SEALING AND CUTTING

Transverse sealing jaws.

Cutting blade.

Temperature control

( as observed in the photos and the video, the cover forms and each unit is cut.)

OUTPUT OUTPUT? Wait: '4-ZINTA DE SALIDA'

-Final conveyor belt.

-Collect the already packaged product.

APPROXIMATE TECHNICAL DATA

. Production : 30-120 packs / min ( depends on product )

Film type: BOPP, laminated, PE, etc.

Useful width approx. 250-400 mm

-Control PLC with touch screen

-Integrated TTO printing (Videojet)

Electrical power
