3D printer

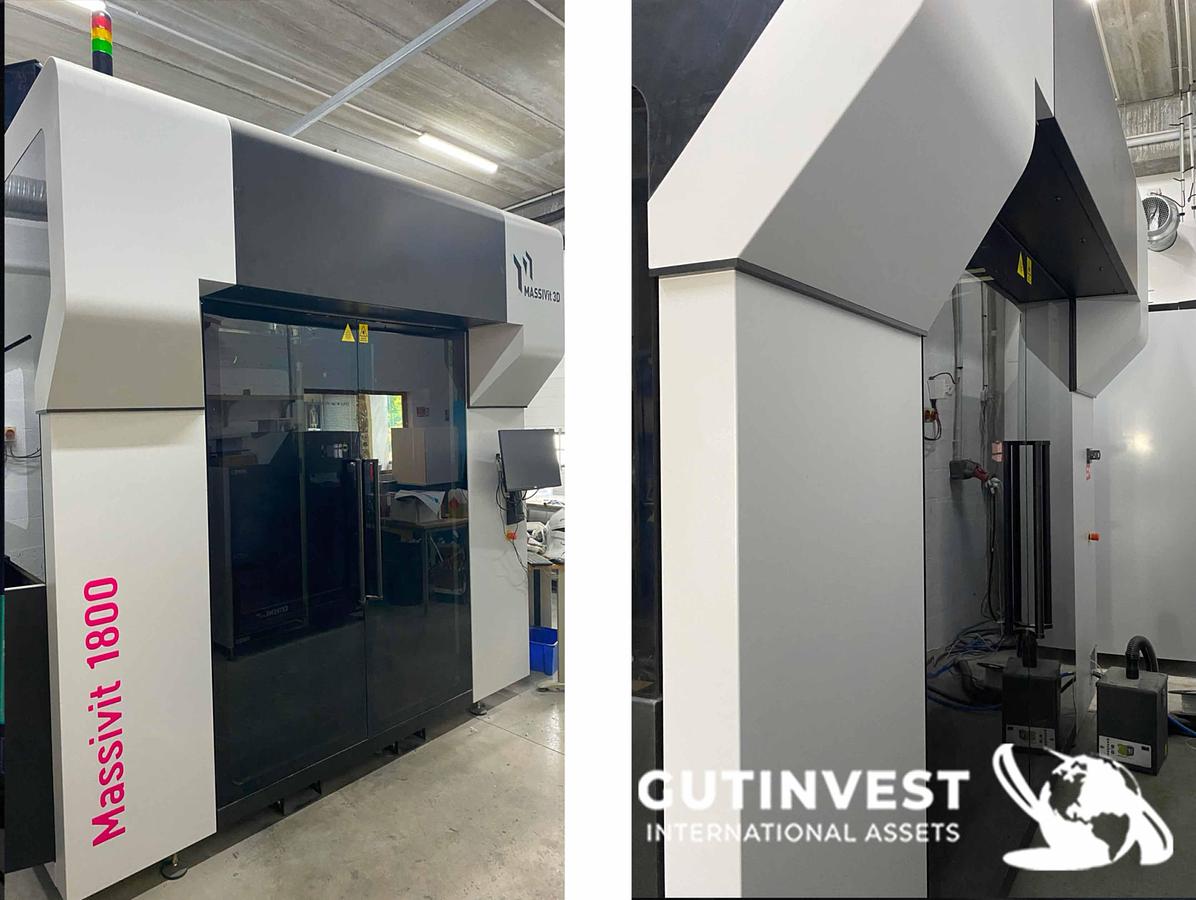

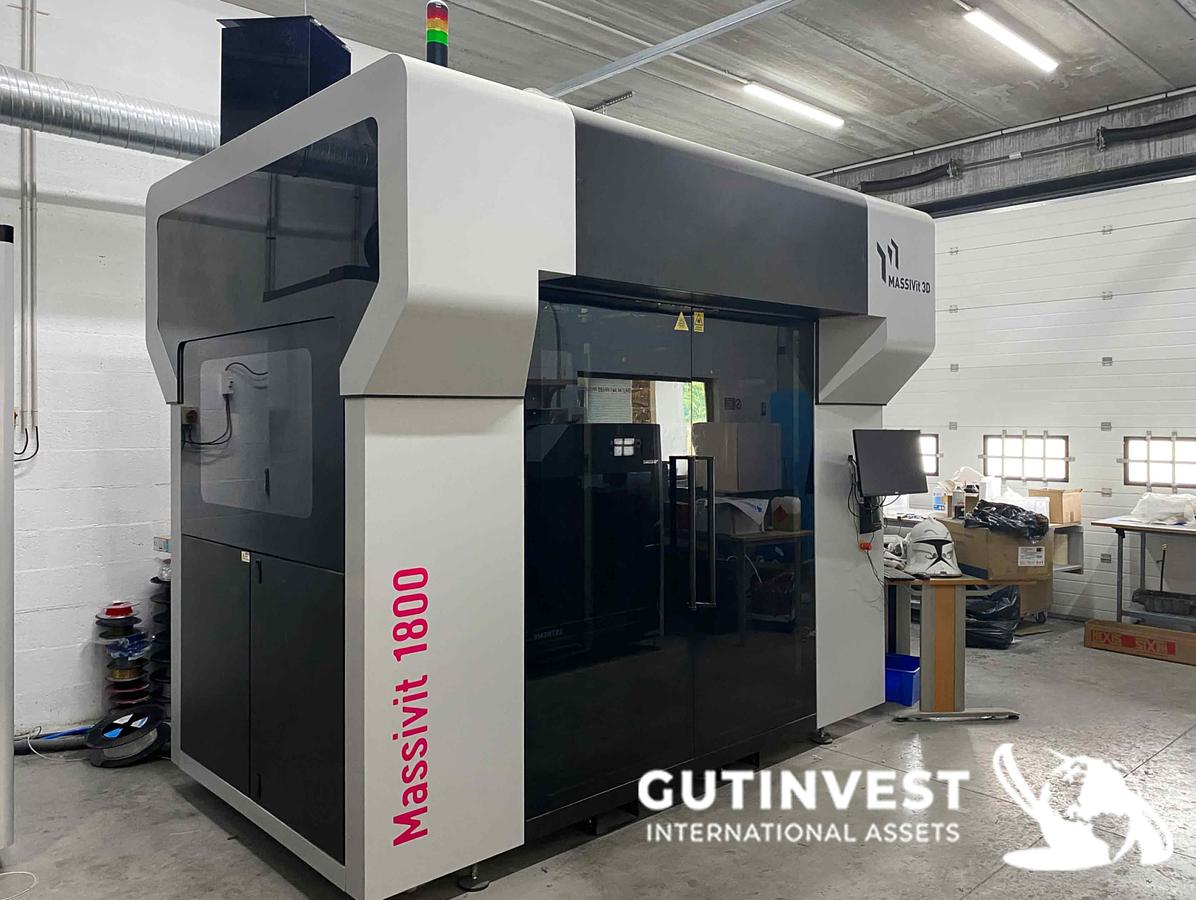

The Massivit 1800 it is a large-format industrial 3D printer designed for rapid prototyping, models, molds, large parts, props, advertising, displays and industrial applications. It uses the patented technology GDP (Gel Dispensado Printing), based on the deposition of a photopolymer in gel form that cures almost instantaneously by UV light.

Technical characteristics

• Maximum print volume: approx. 1.450 × 1.110 × 1.800 mm

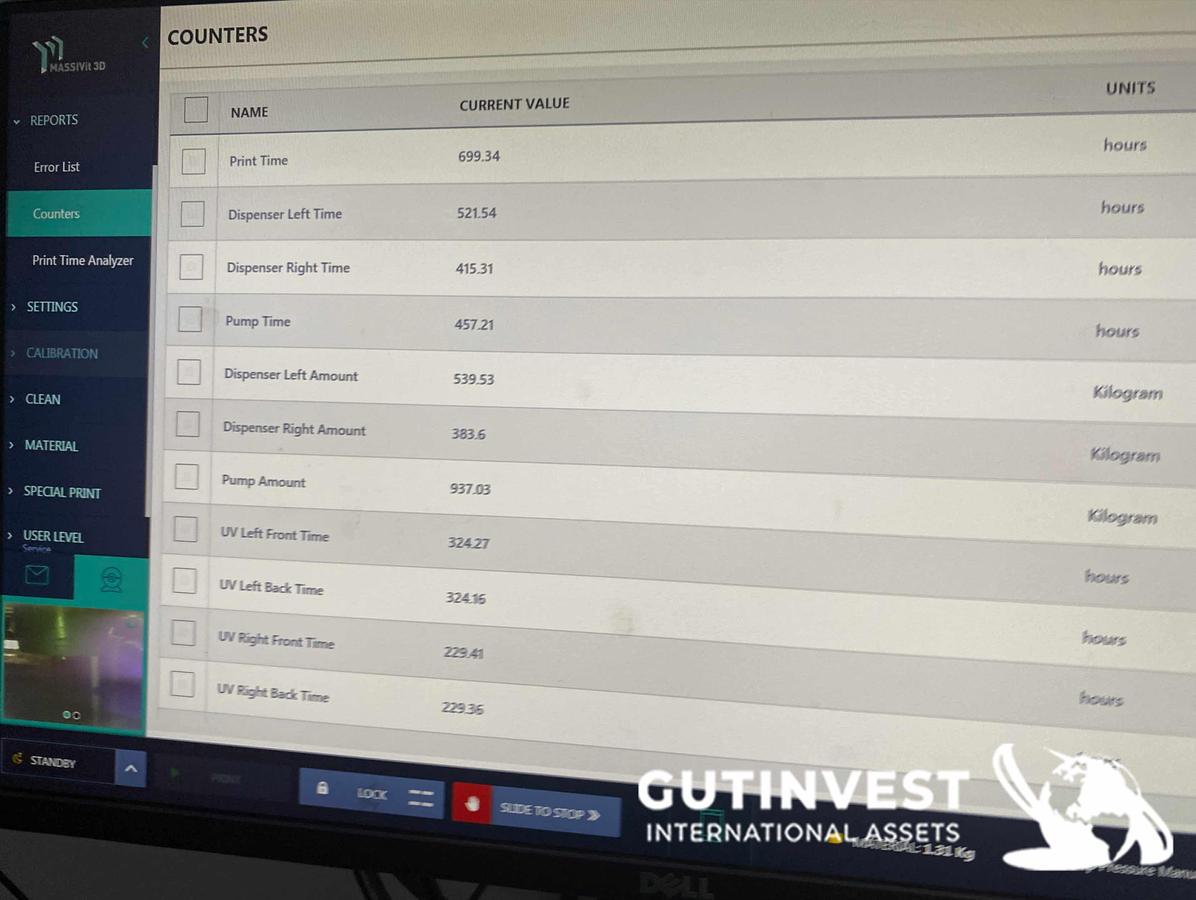

• Printing hours: 699.34
• Maximum print height: 1,800 mm
• Print speed: up to approx. 350 mm/s in the Z axisdepending on the geometry and configuration.
• Linear speed: up to 300 mm/s.
• Coating thickness:
• Normal: 1,3 mm
• Quality: 1,0 mm
• Alta resolución: 0,8 mm
• Print head: 1 head in the Massivit 1800 standard.
• Material: proprietary photopolymer Dimengel, available in different formulations.
• Cured: through UV light during the printing process.
• File format: STL.
• Software: Massivit proprietary software for print preparation and management.
• Maximum piece weight: up to approx. 150 kg, according to the manufacturer's specifications.

Power supply and requirements

• Feeding: 380–415 VAC
• Configuration: 3W + N + PE
• Frequency: 50/60 Hz
• Current 16 A
• Short Circuit Rating: 10 kA
• Marked: CE

Three-phase supply and compressed air requirements of approximately 6–8 bar, in addition to proper ventilation.

Machine dimensions and weight

• Printer dimensions: approx. 3,100 × 2,200 × 2,800 mm
• Weight: approx. 2.500 kg
