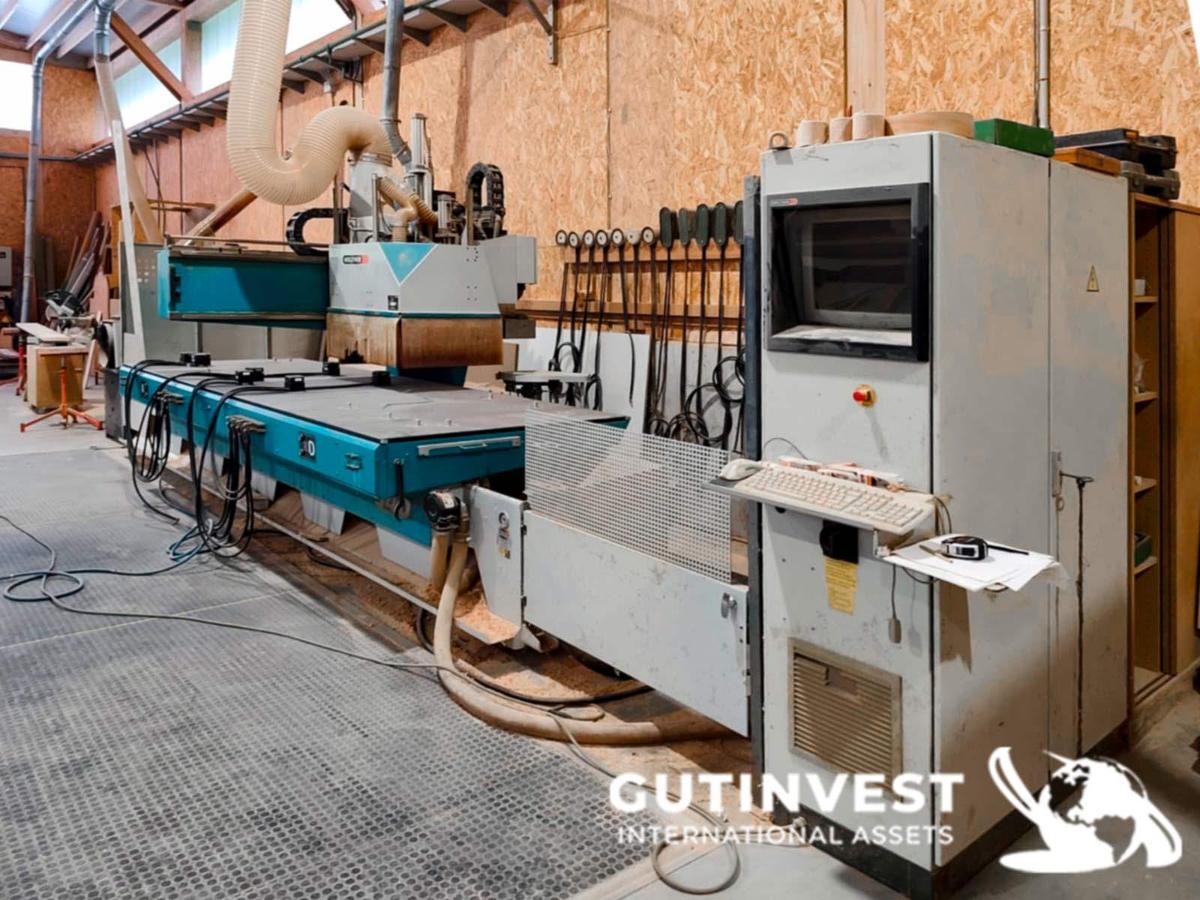

CNC wood machining center

CNC milling machine with vertical and horizontal head, drilling unit and groove saw.

Working range:

- X: 3820 mm

- Y: 1300 mm

- Z: 180 mm

- X axis travel speed "" Y "78 m / min.

- Linear speed on Z axis: 25 rpm.

- Liquid-cooled 12KW HSK63F electrospindle

- Horizontal milling head 2.2kw

Remote control

- VECTOR AXIS "C" for 360° rotation and angular head positioning with

automatic adjustment of rotation via numerical control.

- Liquid-spindle cooling system.

- Independent fixed blade group - for grooving in the "X" direction

- Rear 12-position tool changer magazine

- The magazine tool collects 10 additional positions

- PC WINDOWS-based programming and control system

Drill head:

-12 independent mandrels for vertical drilling in the direction "X"

- 6 independent mandrels for vertical drilling in the Y direction

- 4 drill spindles for horizontal holes in the direction "X"

- 2 mandrels for horizontal holes in the 'Y' direction
