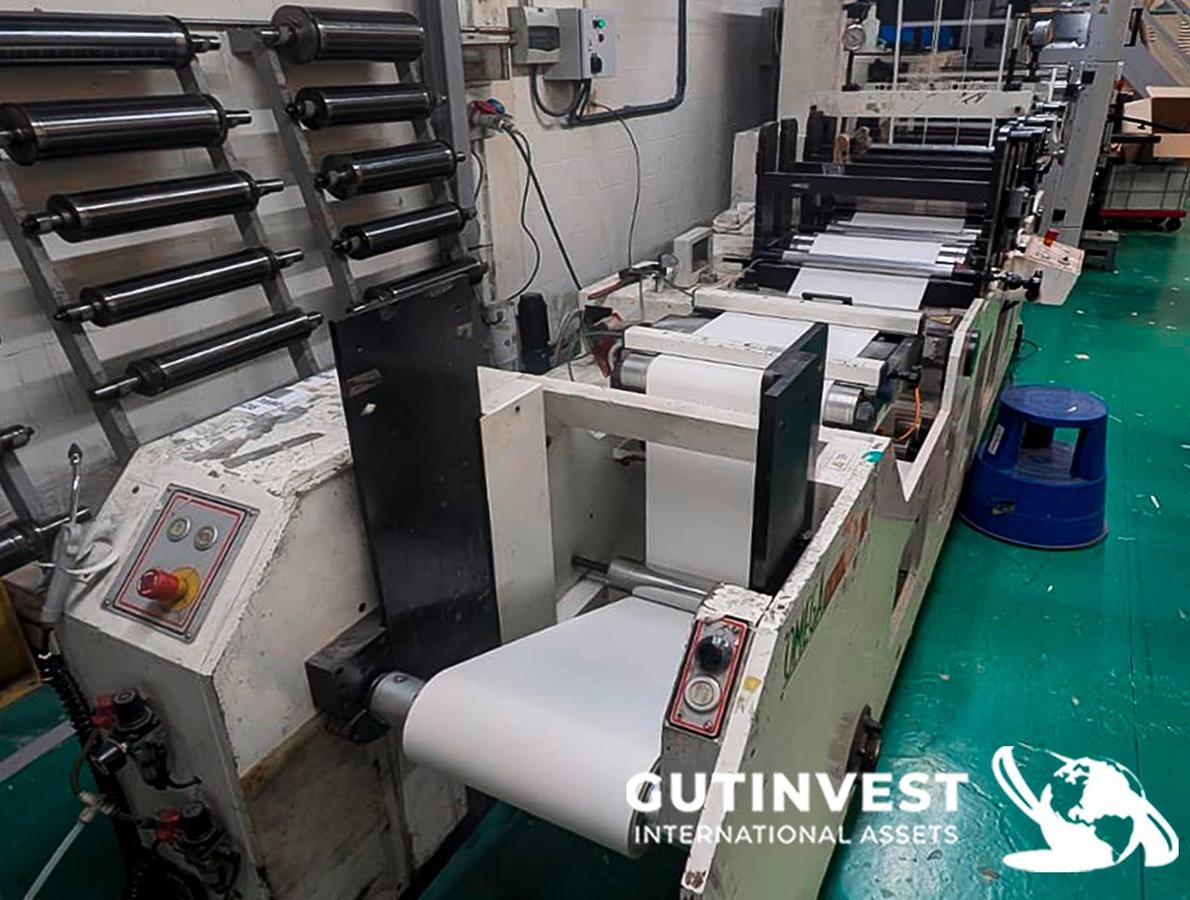

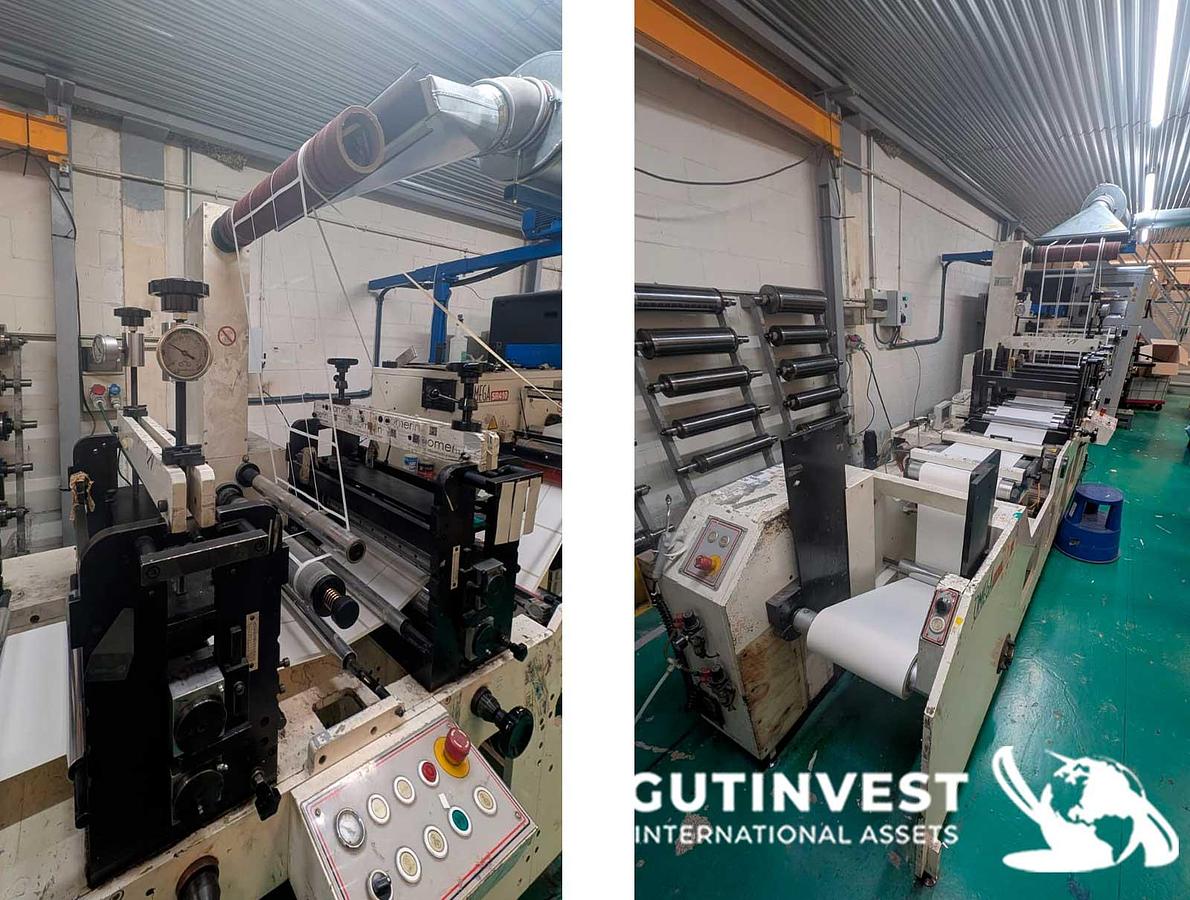

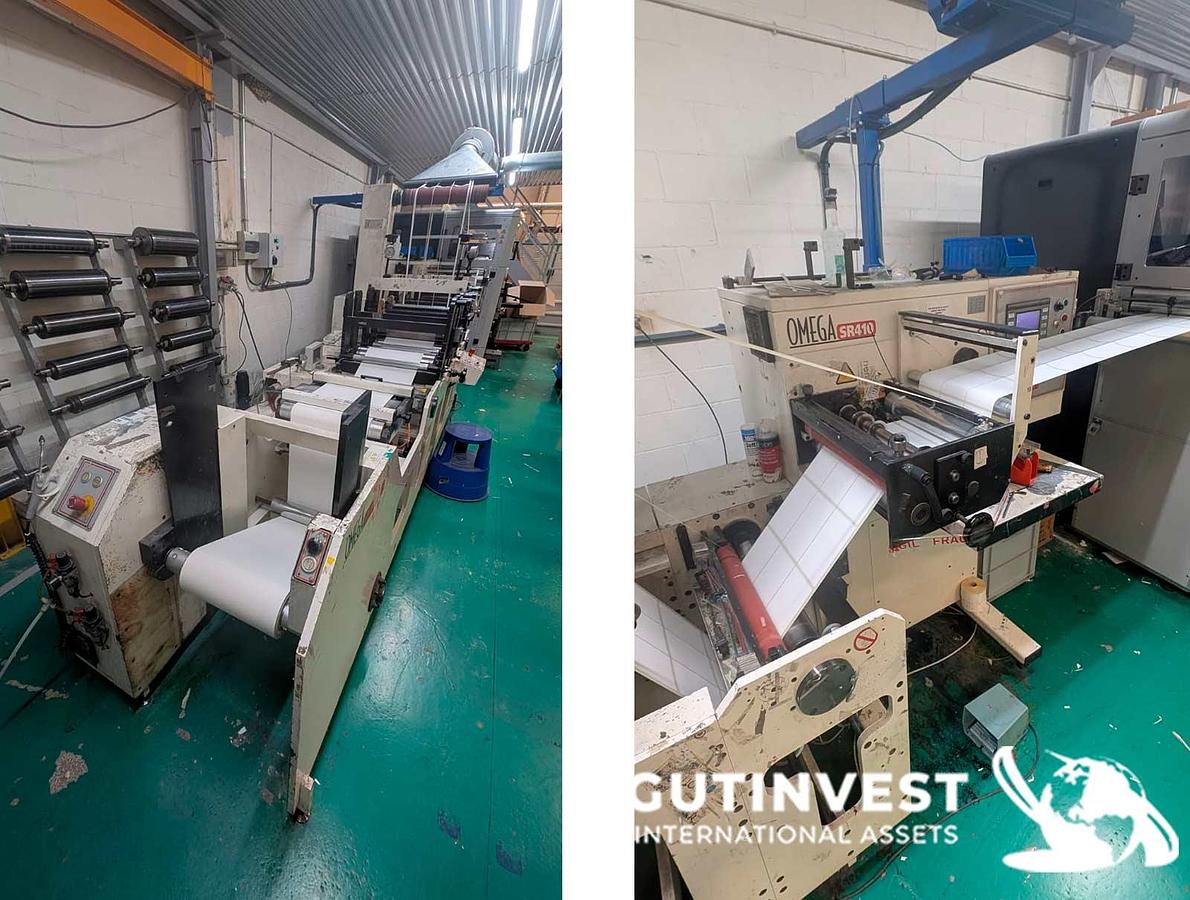

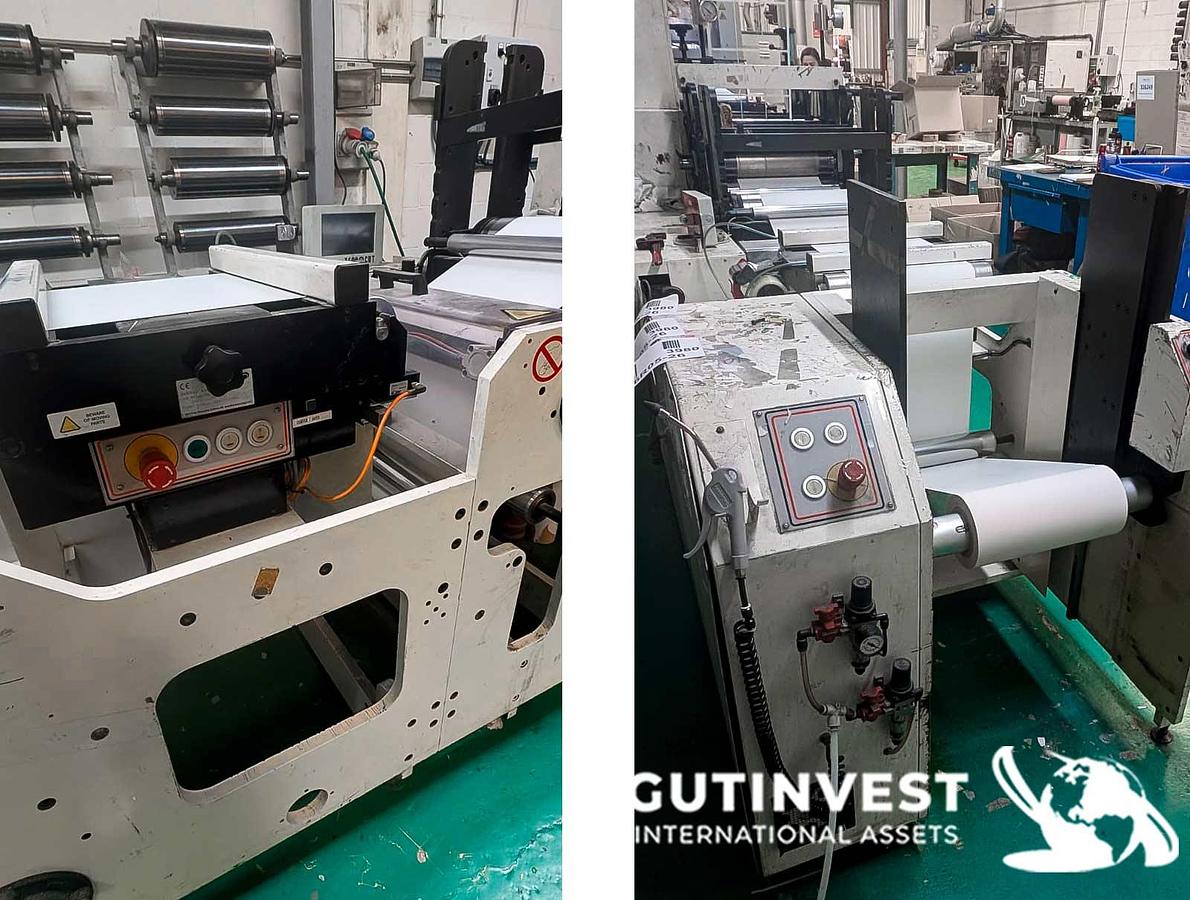

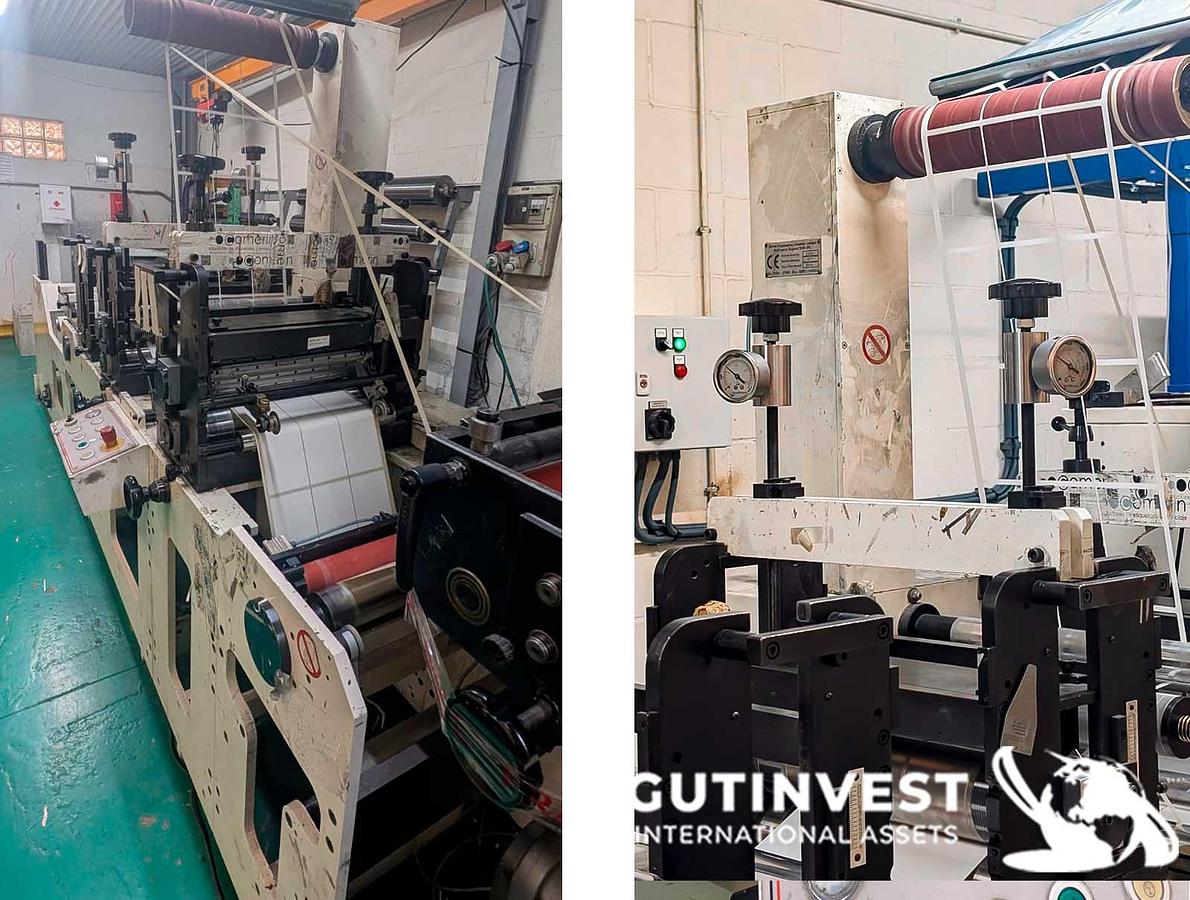

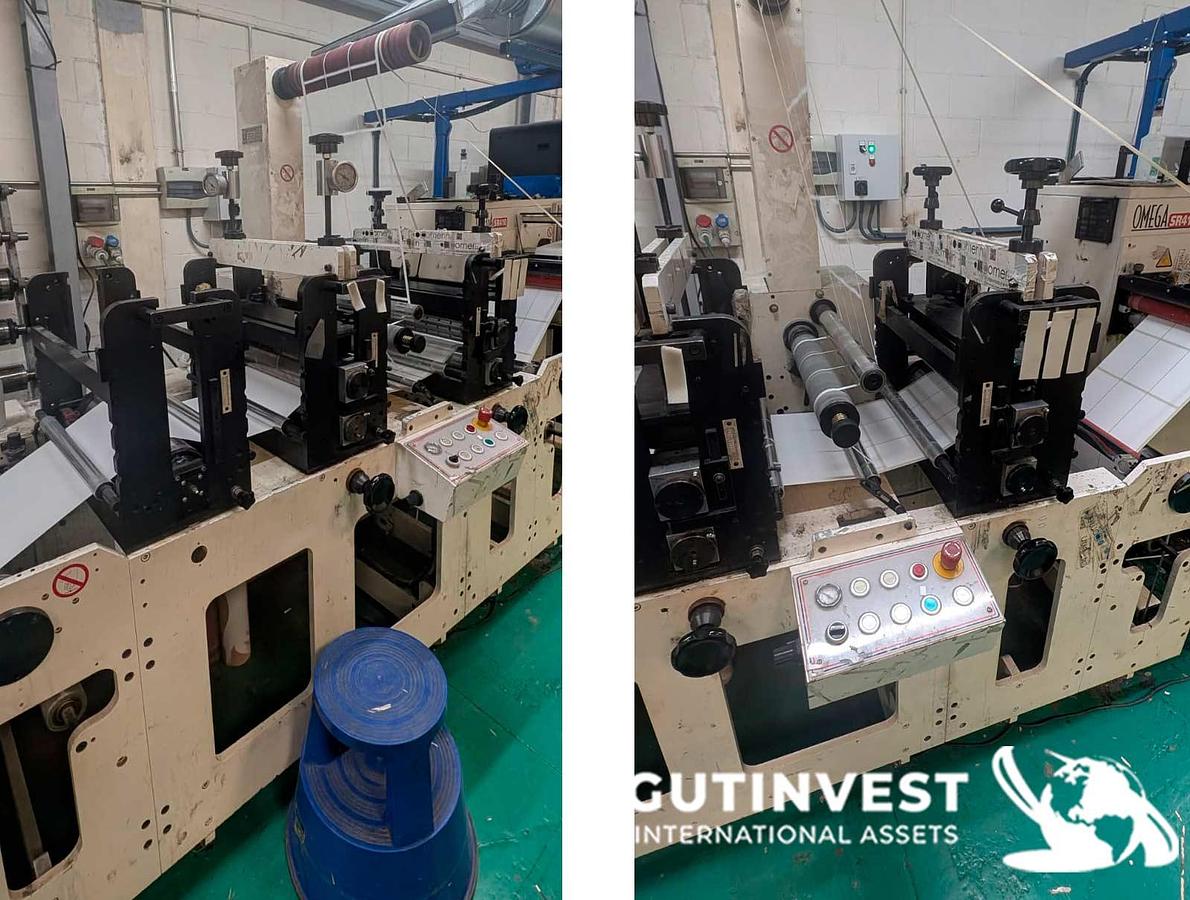

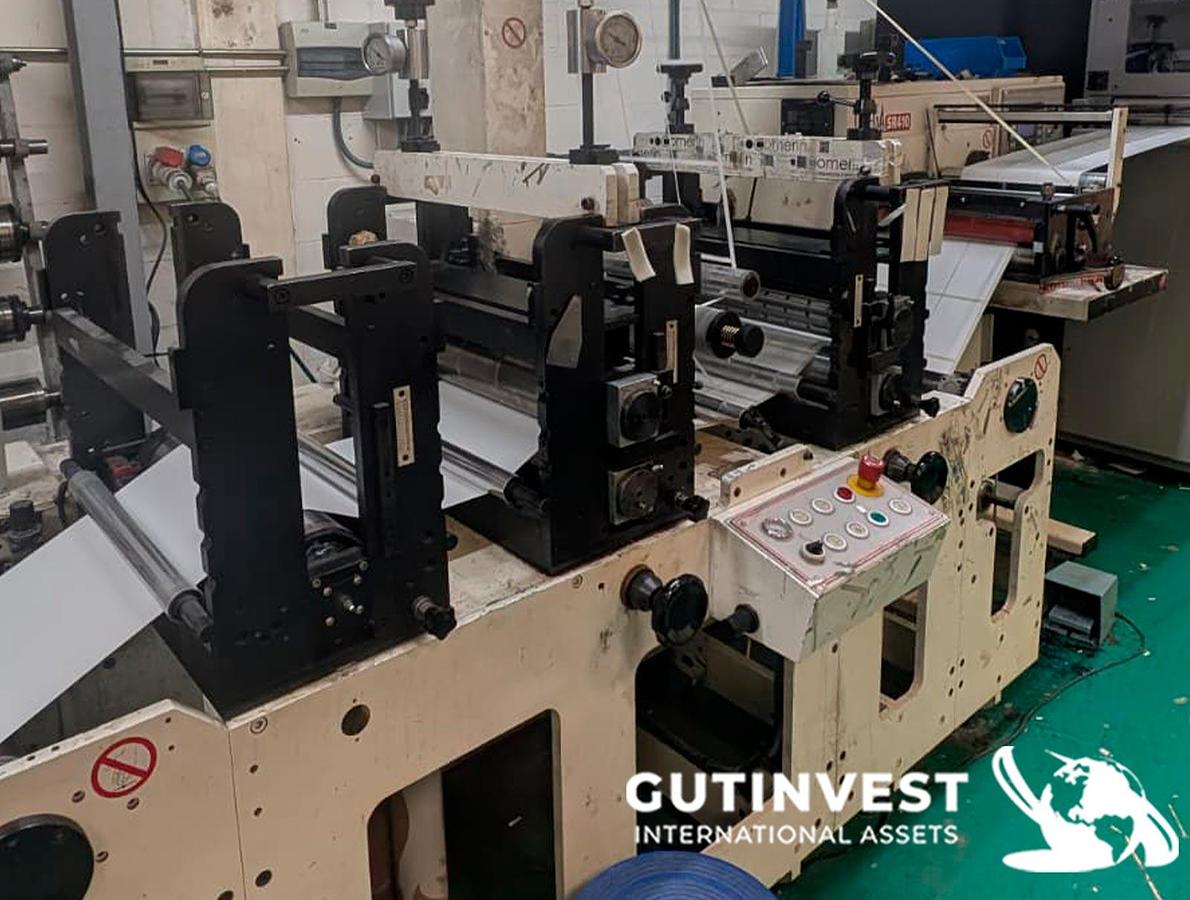

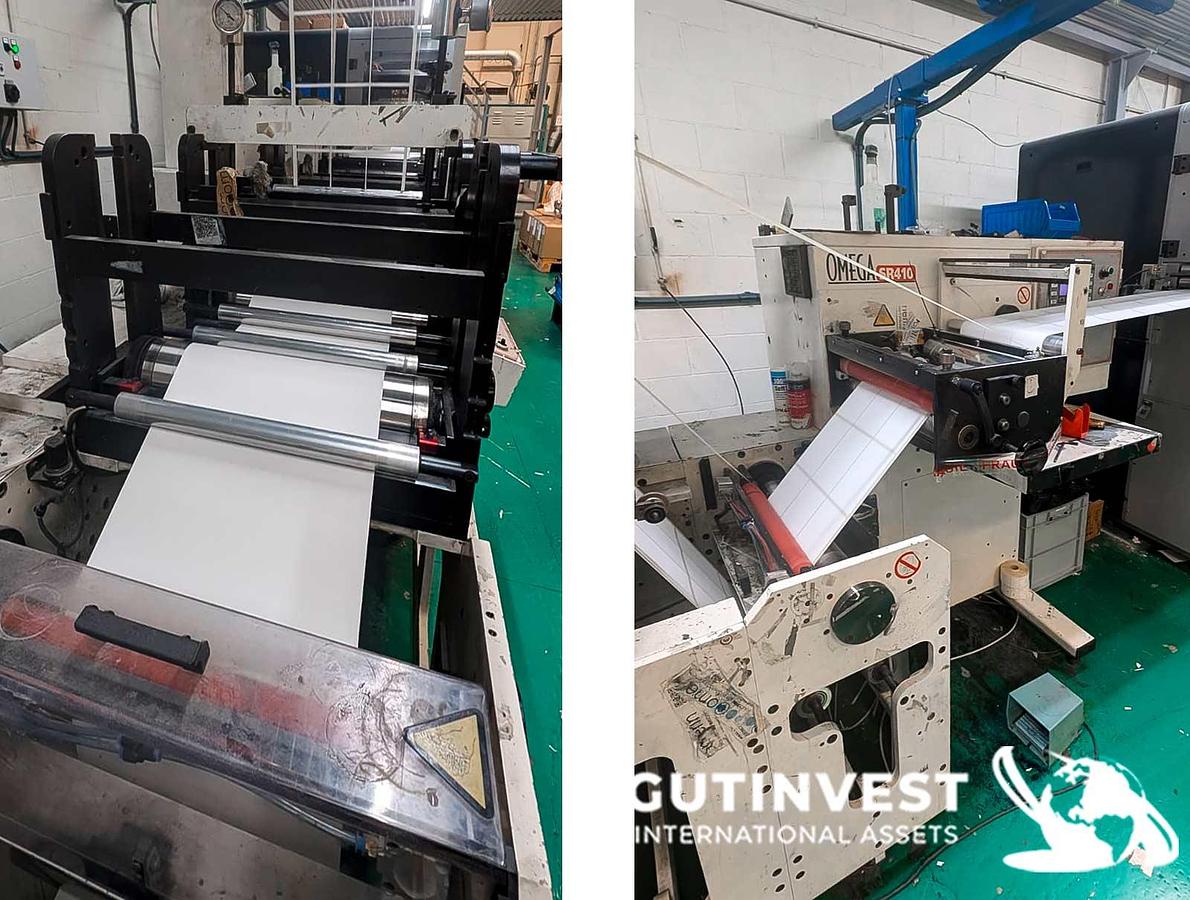

Flexographic roll and label printer

Flexographic roll and label printer Comprising: Converter, slitter, rewinder, and roll label inspection unit. 1. PERFORMANCE AND SPEED SPECIFICATIONS Maximum speed (With inspection or die-cutting systems): Up to 220 m/min. Noise emission: Approximately 78 dB(A) when operating at 80% of maximum speed (measured at a distance of 1 m and a height of 1.6 m). 2. ROLL HANDLING AND UNWINDING Tension control: Automatic (Nominal setting via HMI/pneumatic brake) Web guiding: Automatic electronic edge detection system with auto-lock 3. SLITTING AND REWINDING UNIT Standard slitting module: Slitting station equipped with 3 blades 4. SUPPLY AND INSTALLATION REQUIREMENTS Compressed air supply: 5 bar (Consumption: 5 cm) Mounting and location: Must rest on a solid floor. Includes leveling screws on the chassis feet forklift at the indicated section of the frame 5. CONTROL AND AUTOMATION SYSTEM Operator Interface (HMI): Paradigm digital display with numeric keypad, navigation keys, and programmable function keys (SK1 to SK4 and F1 to F7) an infrared opacity sensor to detect the gap/liner) or by physical length in meters Memory backup battery: Estimated life of 4 years for the HMI and 5 years for the PLC (Preventive replacement recommended between 2 and 2.5 years) 6. INSPECTION AND SAFETY MODULES Visual inspection area: Splicing table with integrated pneumatic clamps and tape dispenser for manual defect rectification. magnetic safety switch and stop relay (p. 5). Rear doors feature switches that require the power supply to be cut before opening. Conformity 93/44/EEC and BS EN machinery safety standards. We also provide 12 magnetic dies designed for various product formats.
