Lathe
Lathe
€7,500 (EUR)
Location:Spain
or
Call +34 932 696 282
Description

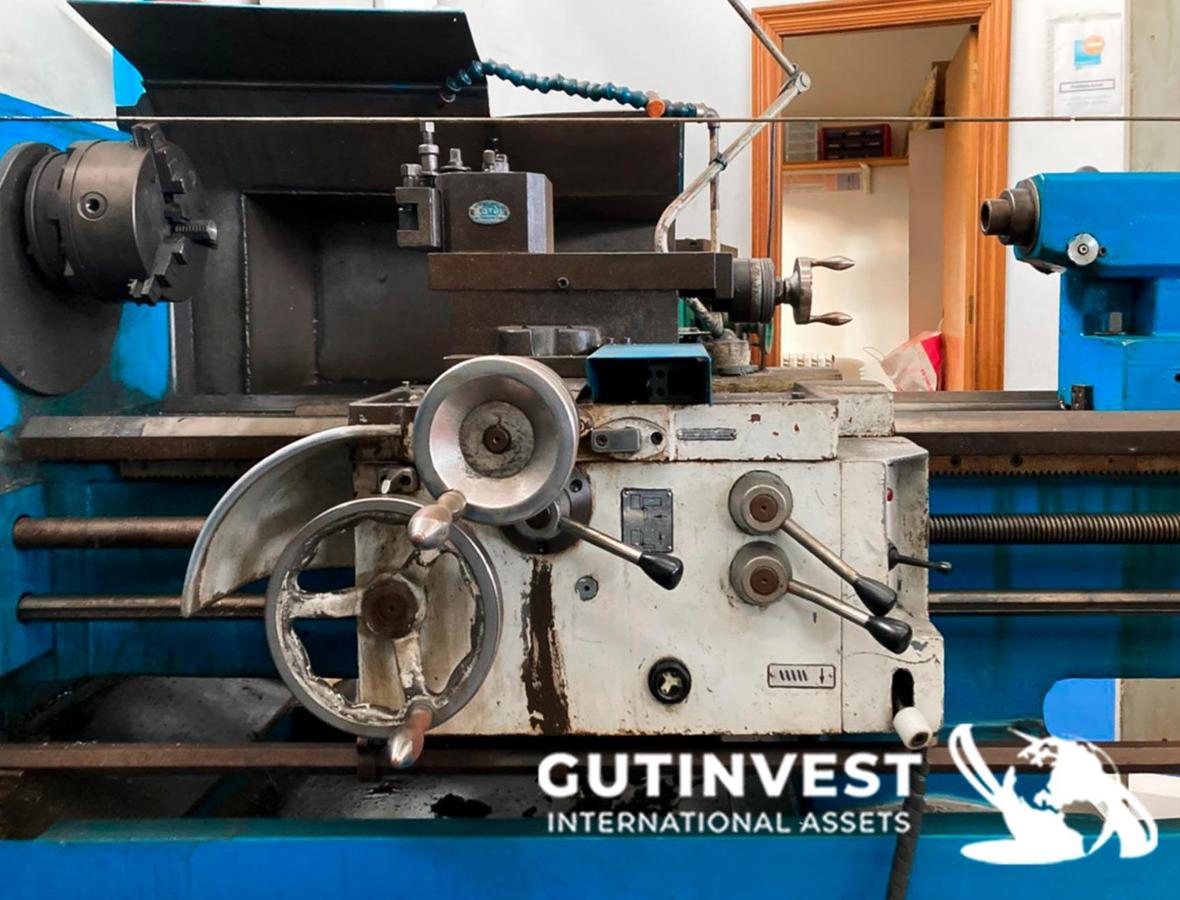

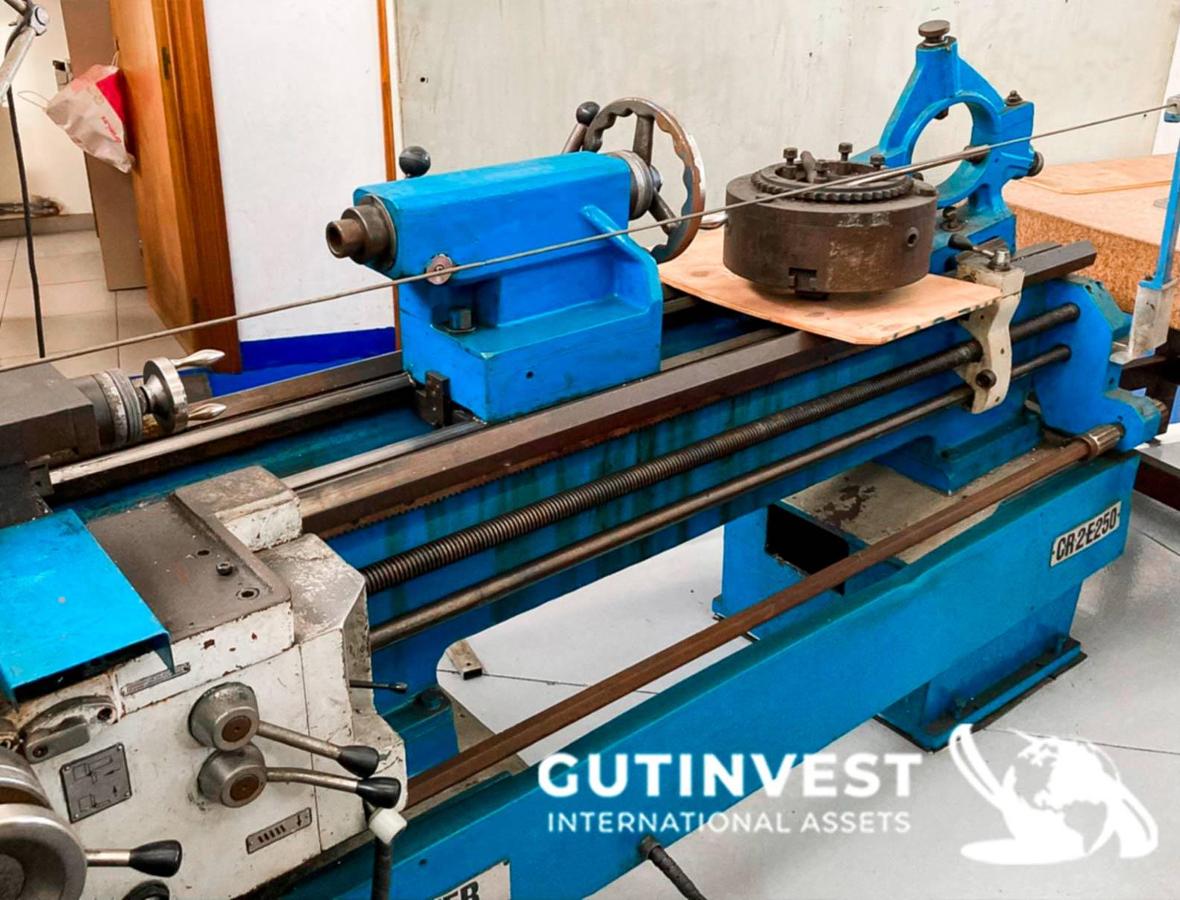

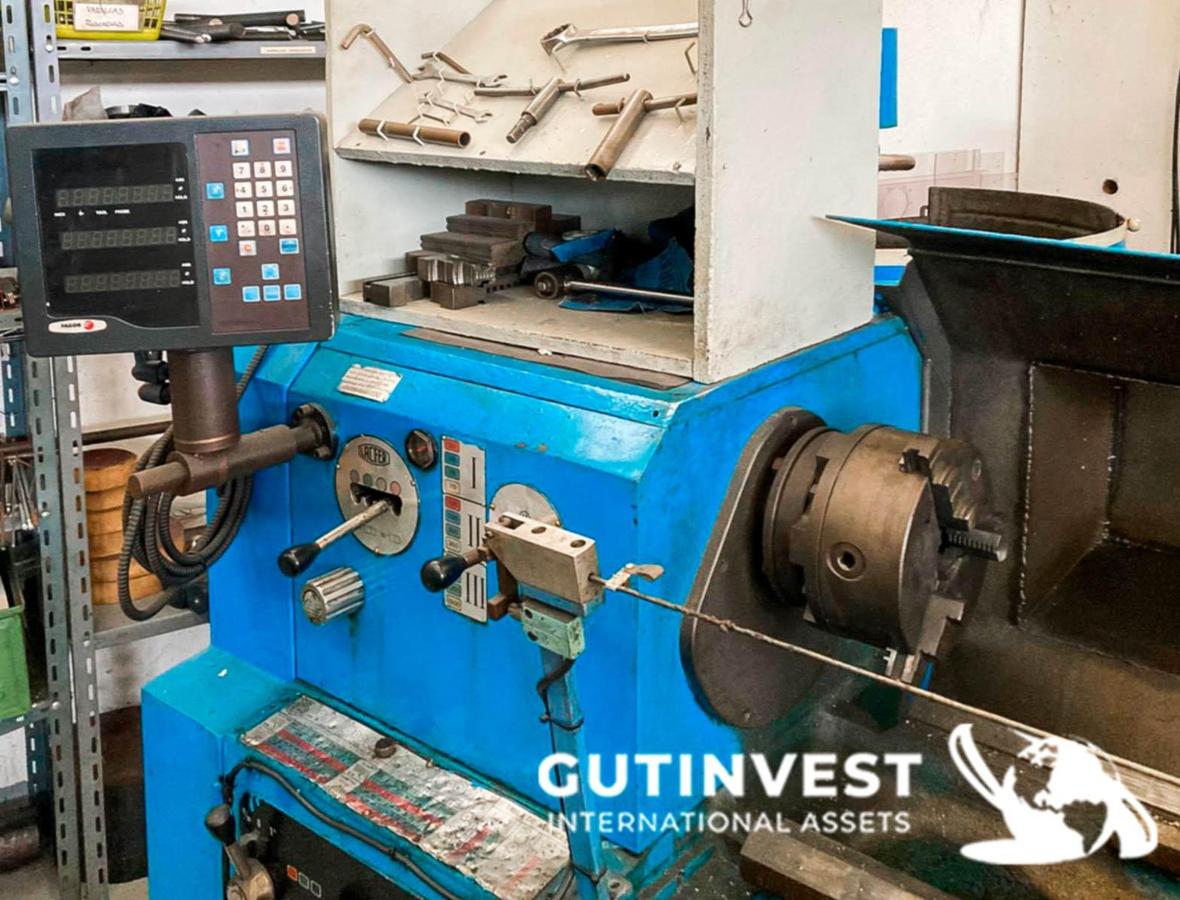

Lathe
Specifications
| Manufacturer | Lacfer |
| Model | CR-2-E-250 |
| Condition | Used |
| Stock Number | 261223M-63 |
| Height from centers to bed | 320mm |
| Distance between centers | 2000mm |
| Bed width | 500mm |
| Hardened ways 400-500 hb | Yes |
| Maximum swing over bed | 530mm |
| Maximum swing over carriage | 320mm |
| Headstock bore diameter | 60mm |
| Headstock spindle nose | DIN 55022-6" |
| Headstock horsepower | 10 |
| Quick-change turret | Yes |
| Lead spindle pitch | 6" |
| Number of speeds | 16 |
| Spindle speed range, min-max | 25-1800 rpm |
| Number of automatic feeds | 18 x 2 |
| Feed rates, min-max (mm/rev) | 0.06-2.5 |
| Number of thread feeds (mm) | 18x4 |
| Number of thread feeds (inches) | 18x4 |
| Min-max thread pitch (mm) | 0.5 - 14 |
| Min-max thread pitch (inches) | 32 - 2 |
| Tailstock, Morse taper | 5 |
| Steady rest | Yes |

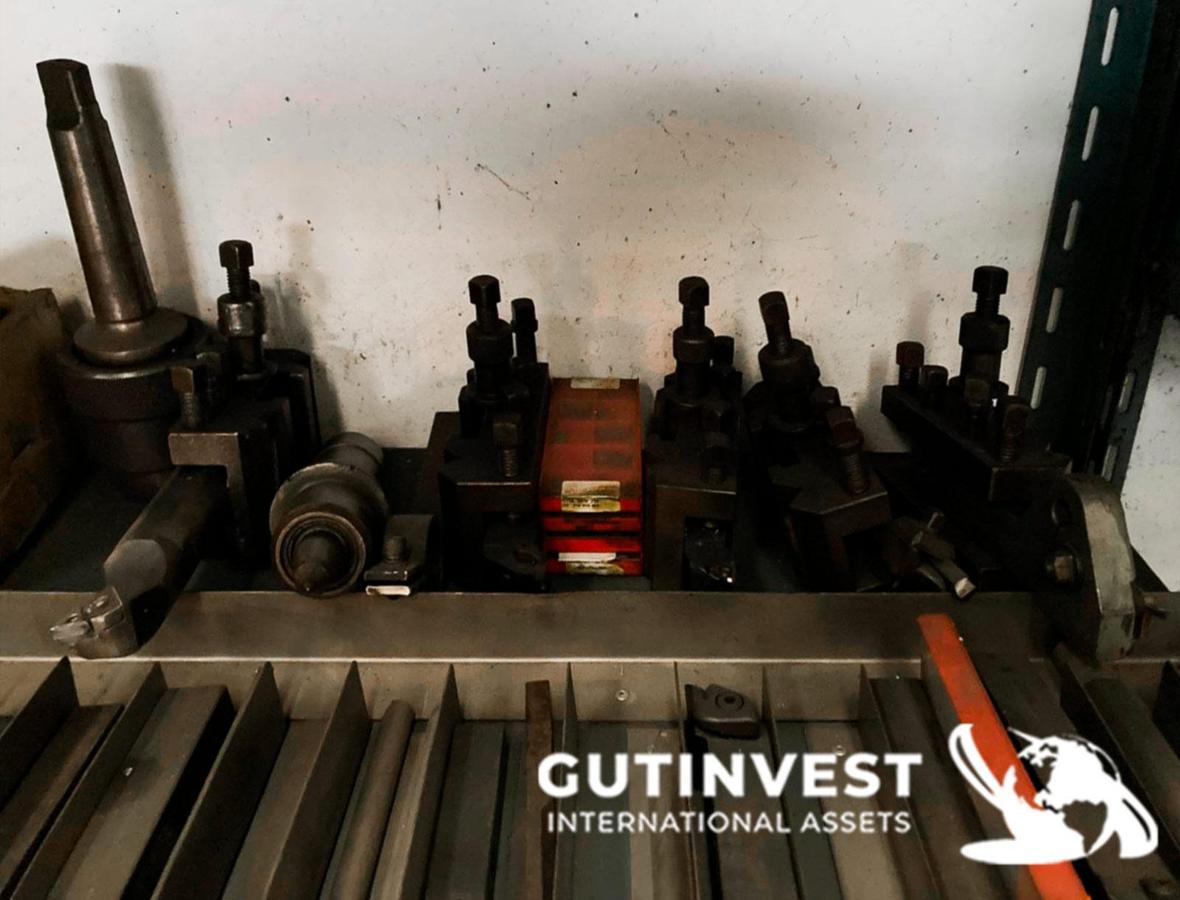

| Tool holder set | 6 |

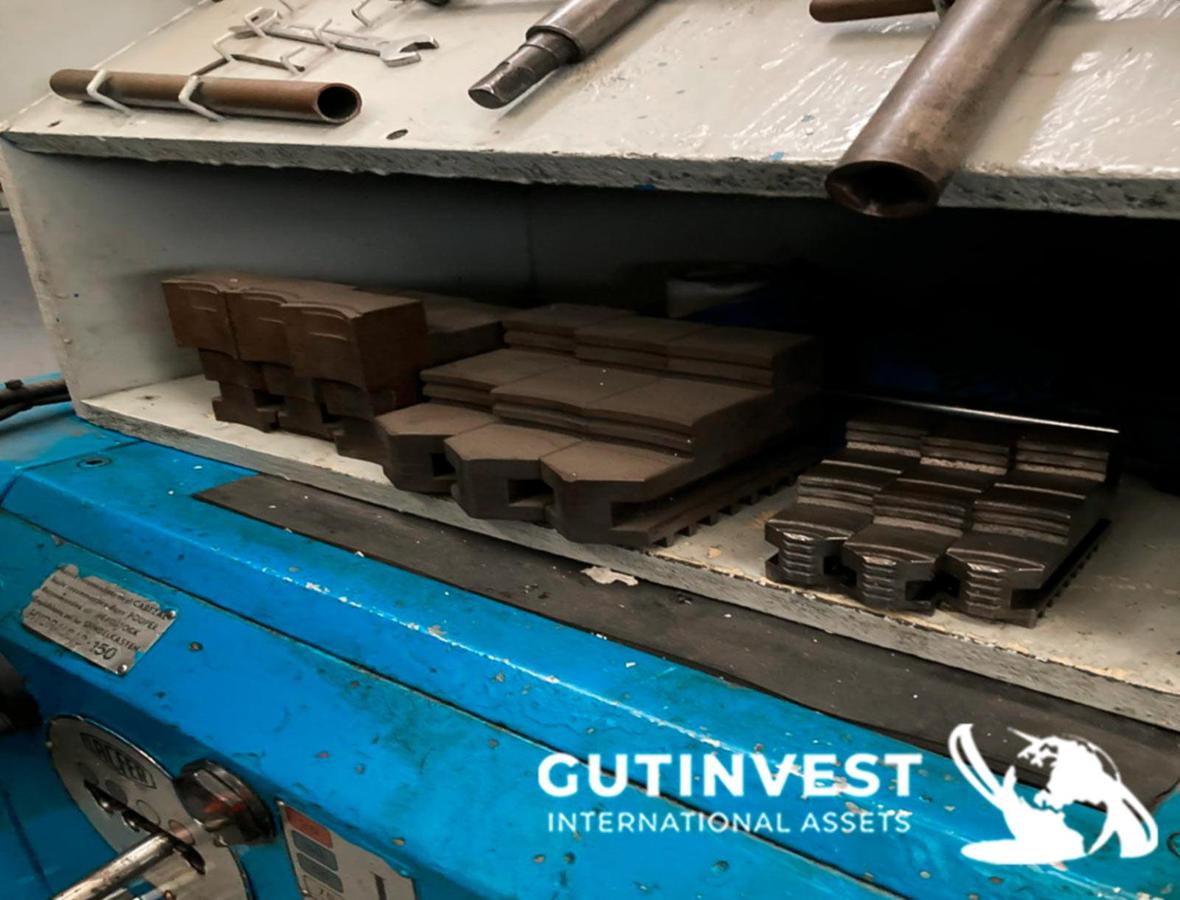

| Jaw set | 3 |
| Approximate weight (kg) | 2700 |
