Stamping Press Vertical injection 60Tn

Sold

Stamping Press Vertical injection 60Tn

Location:Spain

Description

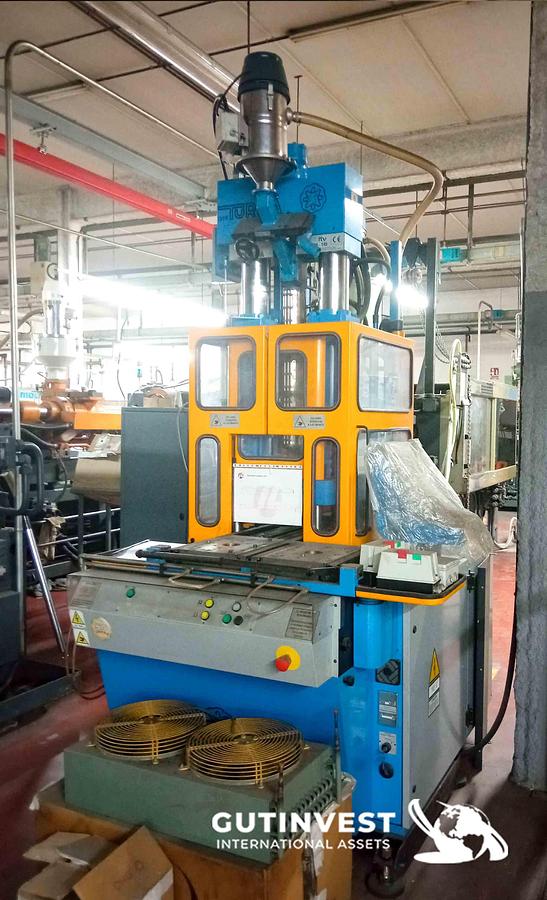

Stamping press Moulding Vertical Injector. Injection group: diameter Screw: 32mm. Min. Mold thickness 181 mm. 380V, 12kW.
Show All

Specifications

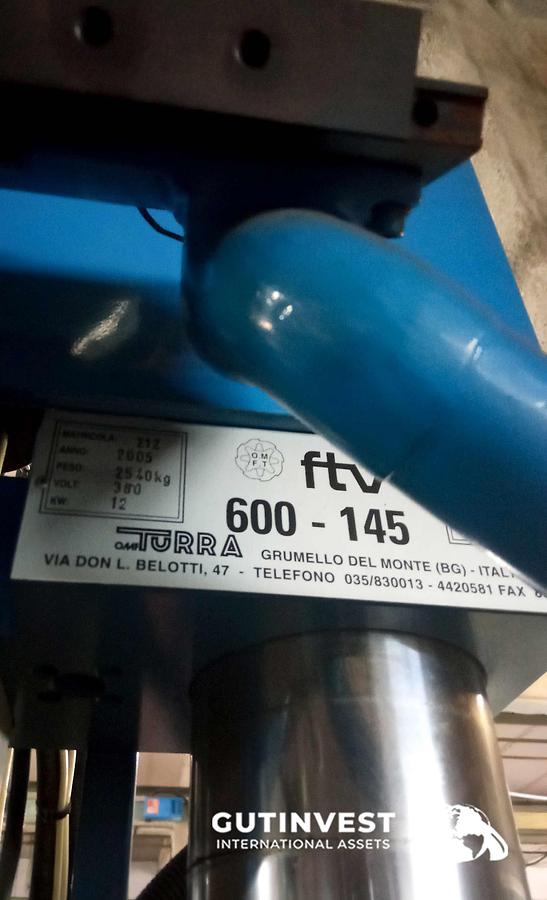

ManufacturerOMF TURRA SRL
ModelFTV 600-145
Year2005
ConditionUsed
Serial Number212
Stock Number261023P-37
Theoretical volume96 cm3.
Injection flow43 cm³ / sec.
Maximum pressure on the material1866 kg/cm2.
Piston closure groupAdjustable closing force 300 - 600 kN.
Maximum mold thickness with stroke of 30 mm365 mm.
Maximum opening of the plates415 mm.
Maximum dimensions of the mold base300x300 mm.
Distance between columns300x220mm
Machine weight2.580Kg
