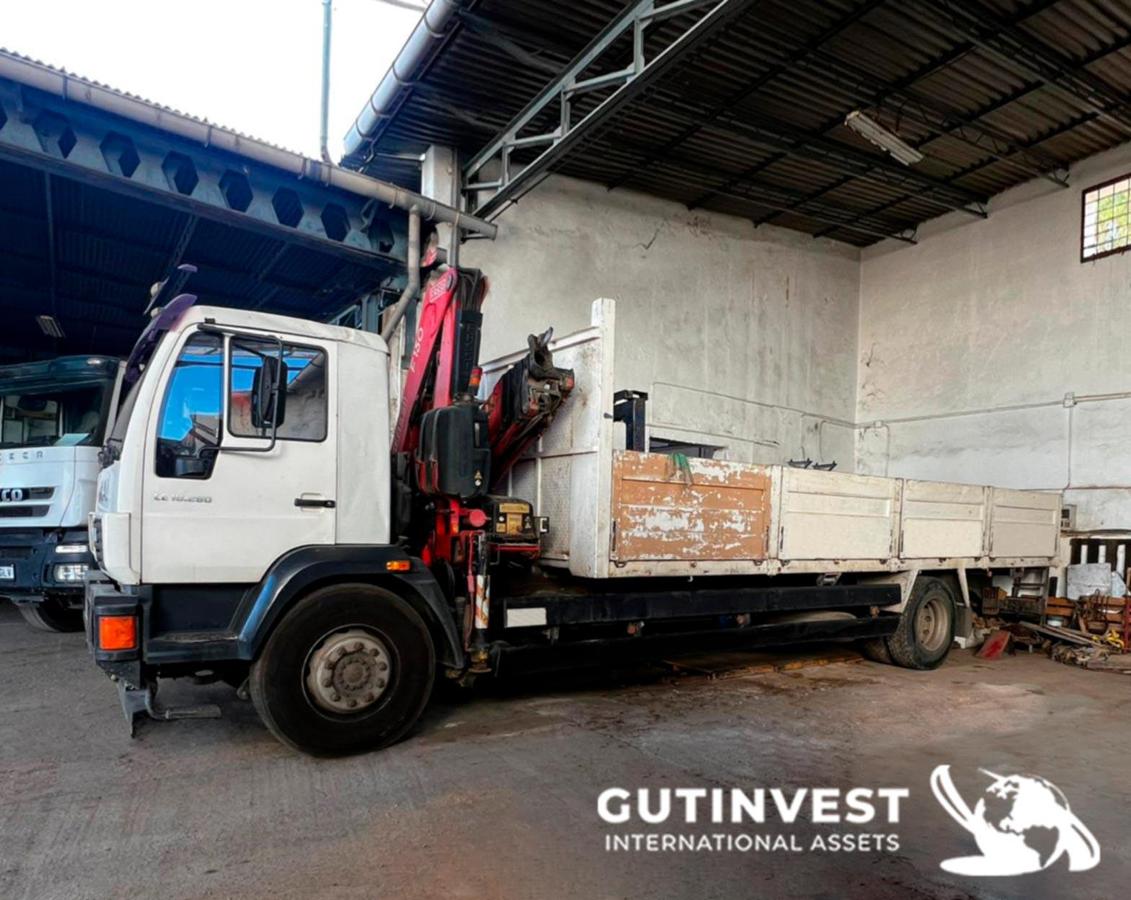

Flatbed Truck with Crane

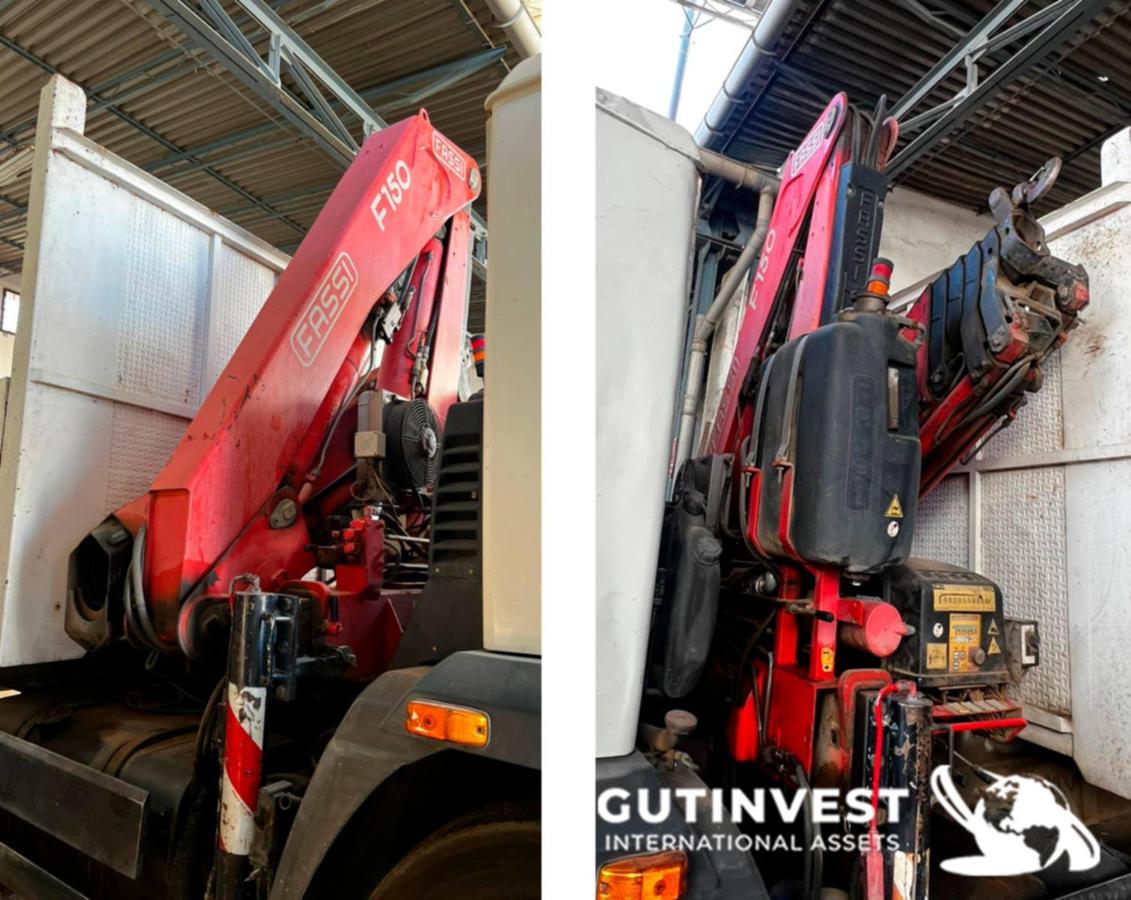

Flatbed Truck with Crane Engine Dimensions and Weights Tires • 6 tires 295/80R22.5 Hydraulic Crane Specifications Equipment Specified • Danfoss 4-Function Distributor • Danfoss PVEB 4 Electrical Module • Scanreco Radio Control • Red/Yellow Visual Indicator • SC004 Heat Exchanger (24V) Load Capacities (according to diagram) (Data from the Fassi F150A.25 load chart) Approximate capacity depending on reach: • 2.15 m → 5,750 kg • 4.55 m → 2,665 kg • 6.30 m → 1,775 kg • 8.20 m → 1,265 kg • 10.20 m → 960 kg • 12.30 m → 765 kg • 14.35 m → 650 kg Relevant MOT/ITV Observations • Installation of a Fassi F150A.25 self-loading crane behind the central cab • Vehicle equipped with ABS, side protection, and a 330 L fuel tank
