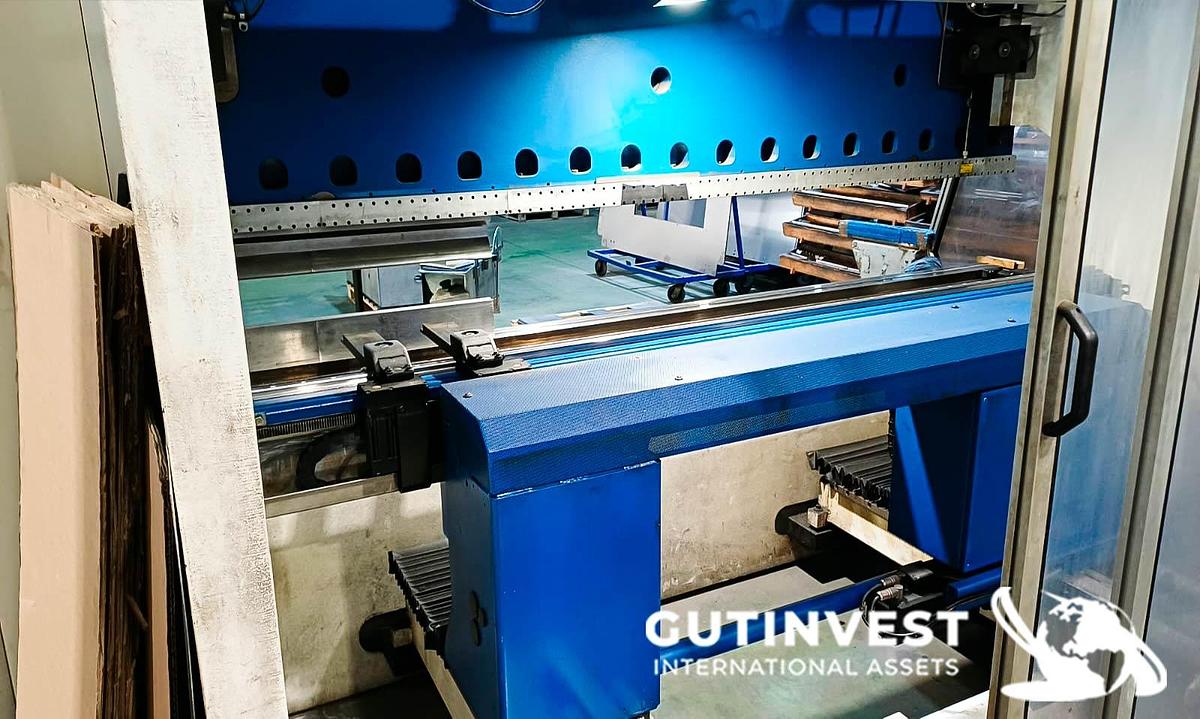

CNC hydraulic press brake

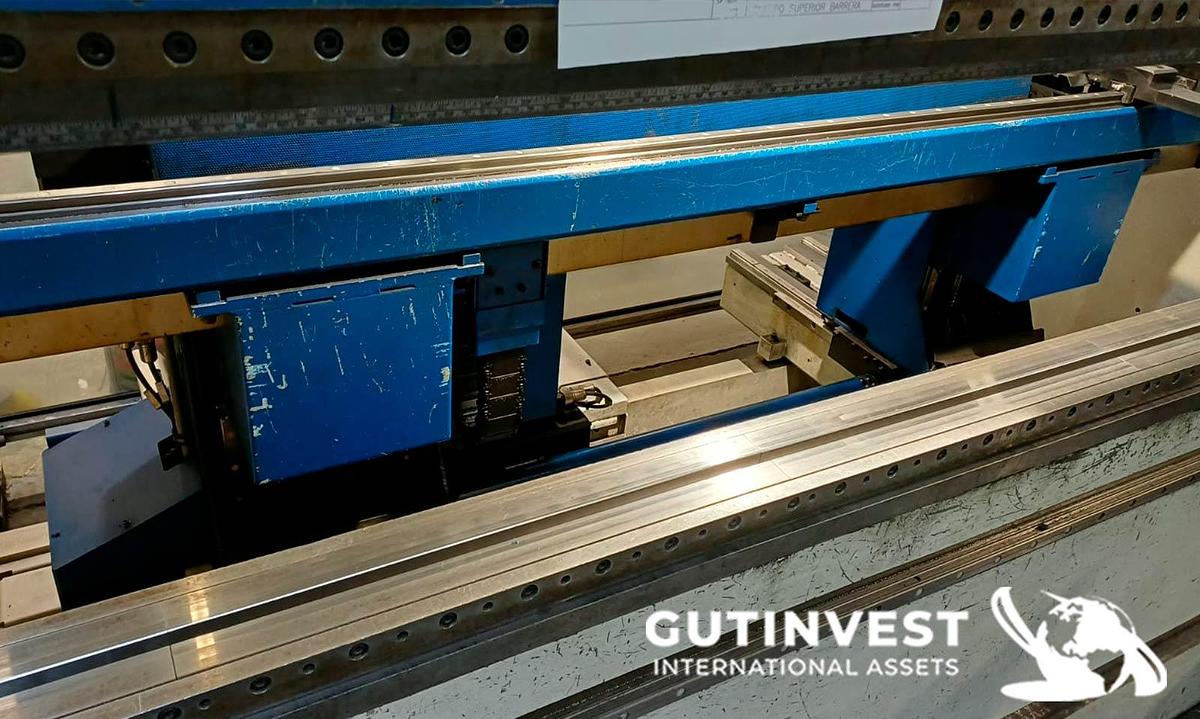

The TRUMPF TrumaBend V130 is a high-precision CNC hydraulic press brake designed for bending sheet metal made of steel, stainless steel, aluminum, and other materials. Technical specifications Feature Value Bending force 130 tons (1,300 kN) Usable bending length 3,060 mm Y-axis stroke 215 mm Throat depth 410 mm Clearance between uprights 2,690 mm Work table width 120 mm Working height 1,050 mm Daylight opening 385 mm Y-axis rapid speed 200 mm/s Working speed 1-10 mm/s Return speed 135 mm/s Y-axis accuracy ±0.01 mm Maximum X-axis backgauge range 860 mm Installed electrical power 18.7 kW Pneumatic system 6 ±1 bar Hydraulic oil capacity 250 liters Approximate weight 10,650 kg CNC backgauges The machine is equipped with CNC-controlled backgauges: Axis Travel X 600 mm R 250 mm Z 2,310 mm Accuracy: Speeds: These specifications appear in the "Backgauges" table of the technical manual. Nameplate data According to the plate installed on the machine: Observed equipment • TRUMPF CNC control • Motorized backgauges • Proportional hydraulic system • Optical safety barriers • Foot pedal • Front support table • Quick tool change system • High-rigidity monoblock frame • Side and rear guarding • Internal work lighting
