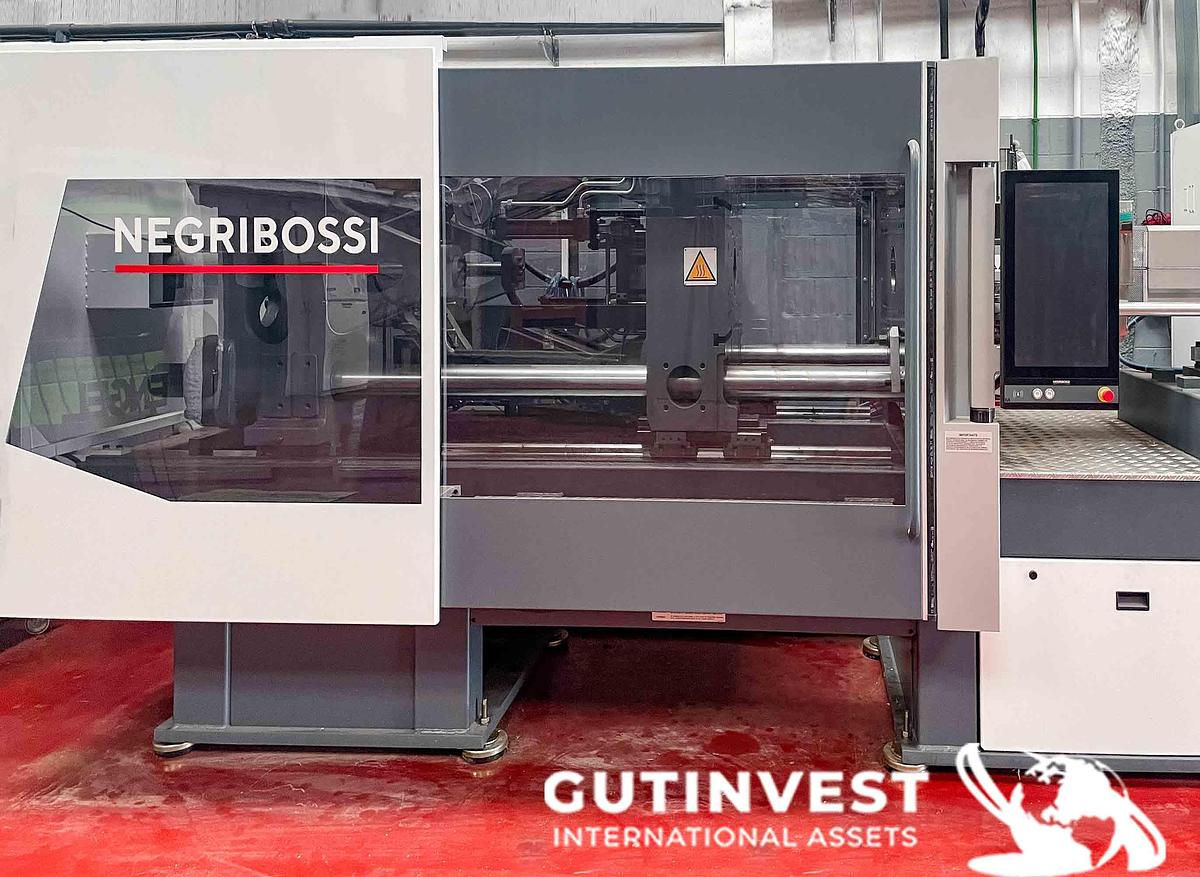

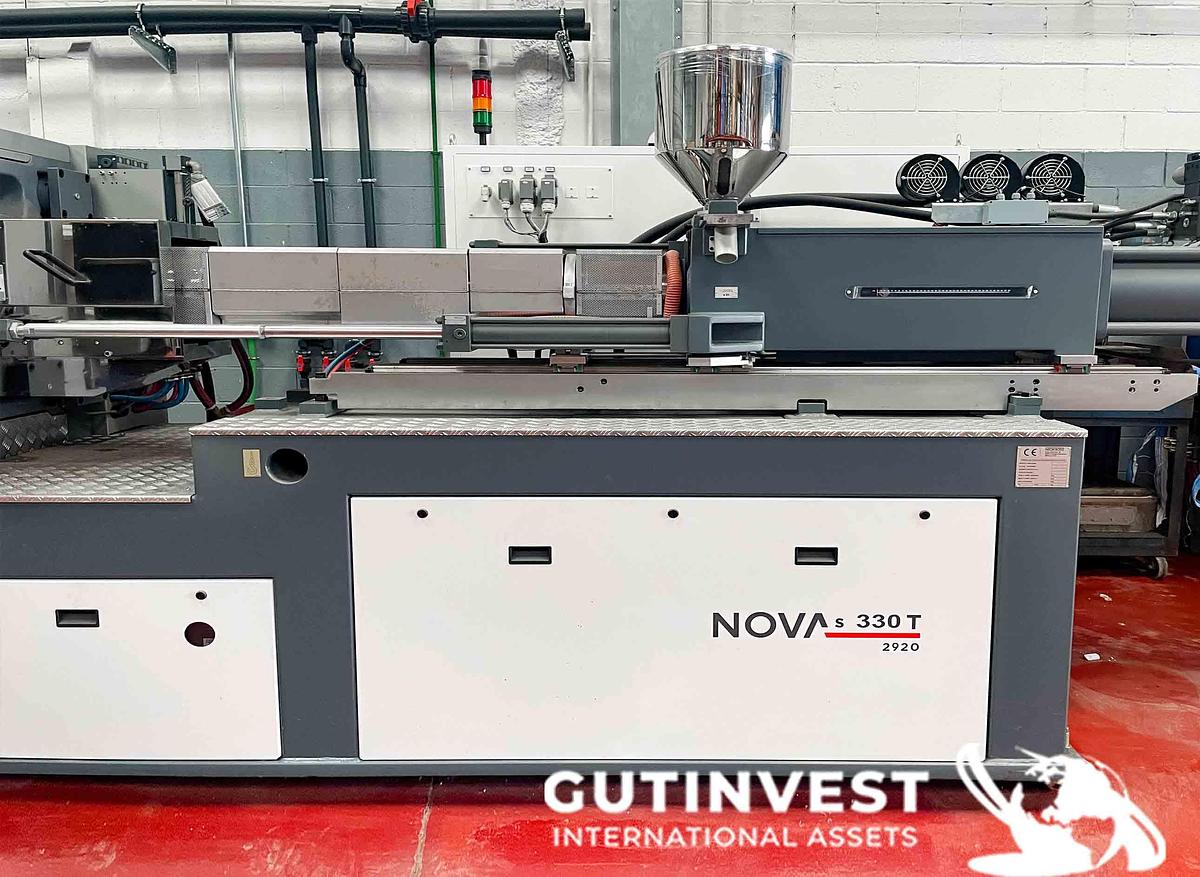

Plastic Injection molding Machine - 330Tn

Plastic Injection molding Machine - 330Tn Working hours: 2h. Clamping force: 330 tons. Injection unit: 2920. Screw diameter: 80mm. Screw L/D ratio: 20nº. Theorical injection volume: 1.810cm3. Shot capacity PS: 1.645g. Injection rate: 540cm3/s. Max. pressure on material: 1.615bar. Screw torque: 3.150Nm. Screw speed: 210min. Plasticising capacity PS: 85g/s. Screw driving power: 47kW. Screw torque: 2.200Nm. Barrel heating zones: 5. Heating capacity: 31kW. Nozzle contact force: 3.300kN. Locking force: 3.630kN. Mold max. opening stroke: 640mm. Min-Max Mold height: 220-730mm. Size of platen(HxV): 1.060x930mm. Tie bar space (HxV): 720x600mm. Hydraulic ejector force: 70kN. Hydraulic ejector stroke: 225mm. Pump driving power: 55kW. Main breaker capacity: 250A. Maximum power: 102 kW. Maximum hydraulic pressure (closing): 180 bar. Maximum hydraulic pressure (injection): 195 bar. Dimensions machine: 8.165x1.959.2.270mm. Machine weight: 12.800kg.
