Plastic Injection Molding Machine - 80 Ton

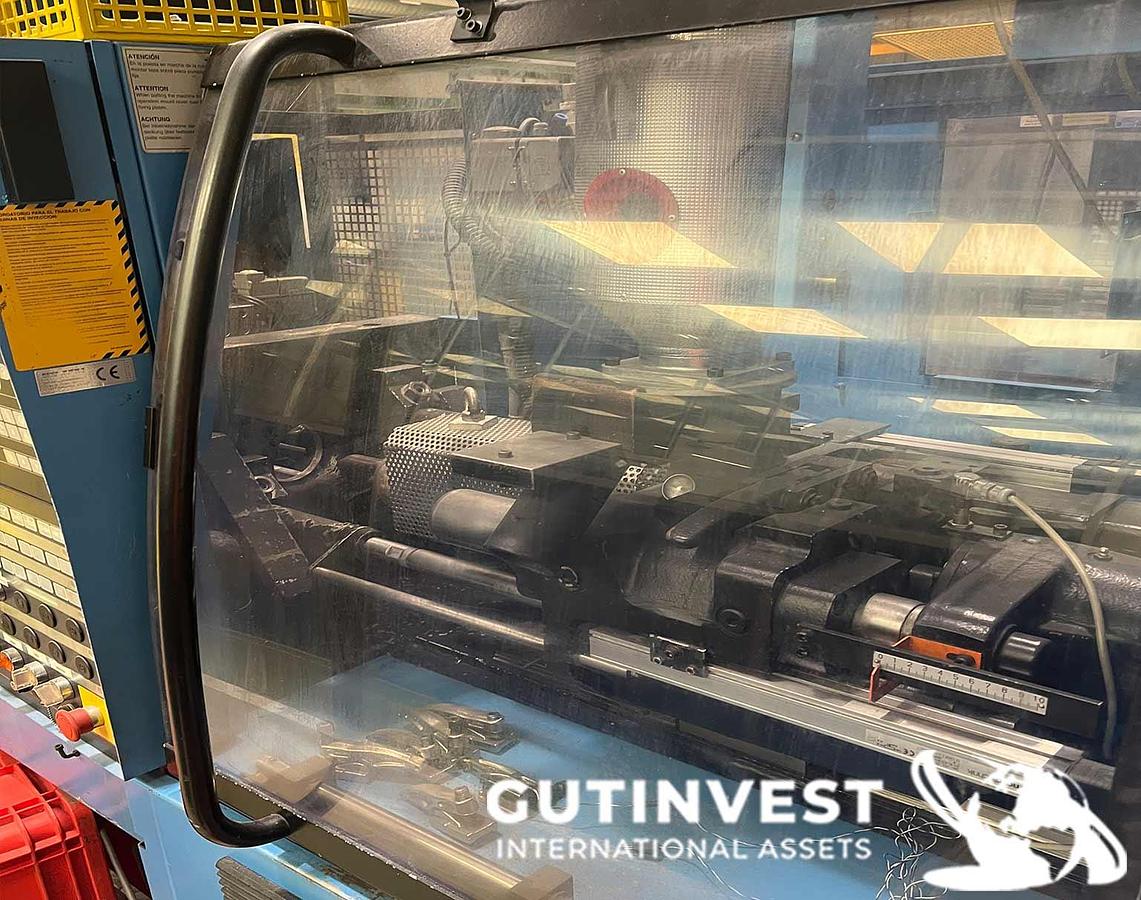

Plastic Injection Molding Machine - 80 Ton The Engel ES 330/80 HL is an 80-ton hydraulic injection molding machine designed for the production of medium-sized parts with high process stability. It combines a robust clamping unit with a precise injection system, making it suitable for a wide variety of industrial applications. Clamping unit Feature Value Clamping force 80 tons Max. opening stroke 500 mm Max. ejection stroke 130 mm Min. mold height 250 mm Centering ring 125 mm Platen size 730 × 600 mm Injection unit Feature Value Screw Ø35 mm Max. injection volume 154 cm³ Injection stroke 160 mm Injection speed 160 mm/s Rotation speed 400 rpm Max. pressure 1,600 bar Max. temperature 500 °C Hydraulic system Approximate weight 5,900 kg
