Column drilling machine
Sold
Column drilling machine
Location:Spain
Description
Column drilling machine
Morse Cone No. 4.
Column diameter 300 mm, base usable surface 1,345x750mm,
Maximum spindle-base height 1,165mm.

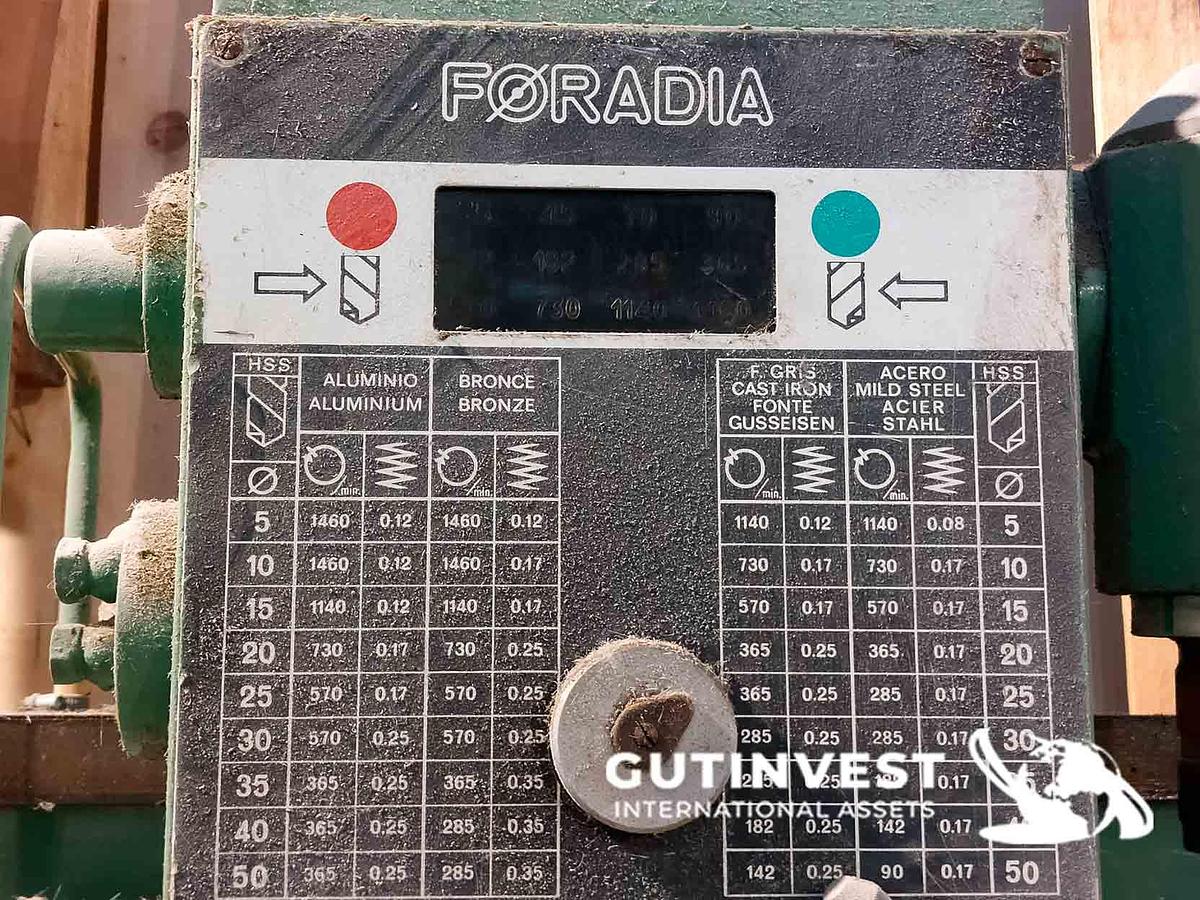

With 12 speeds 35-1,460rpm and 6 offsets 0.05-0.35mm/rev.
Main engine power: 3,5 hp , Bloking: Hydraulic,
Specifications
| Manufacturer | FORADIA |

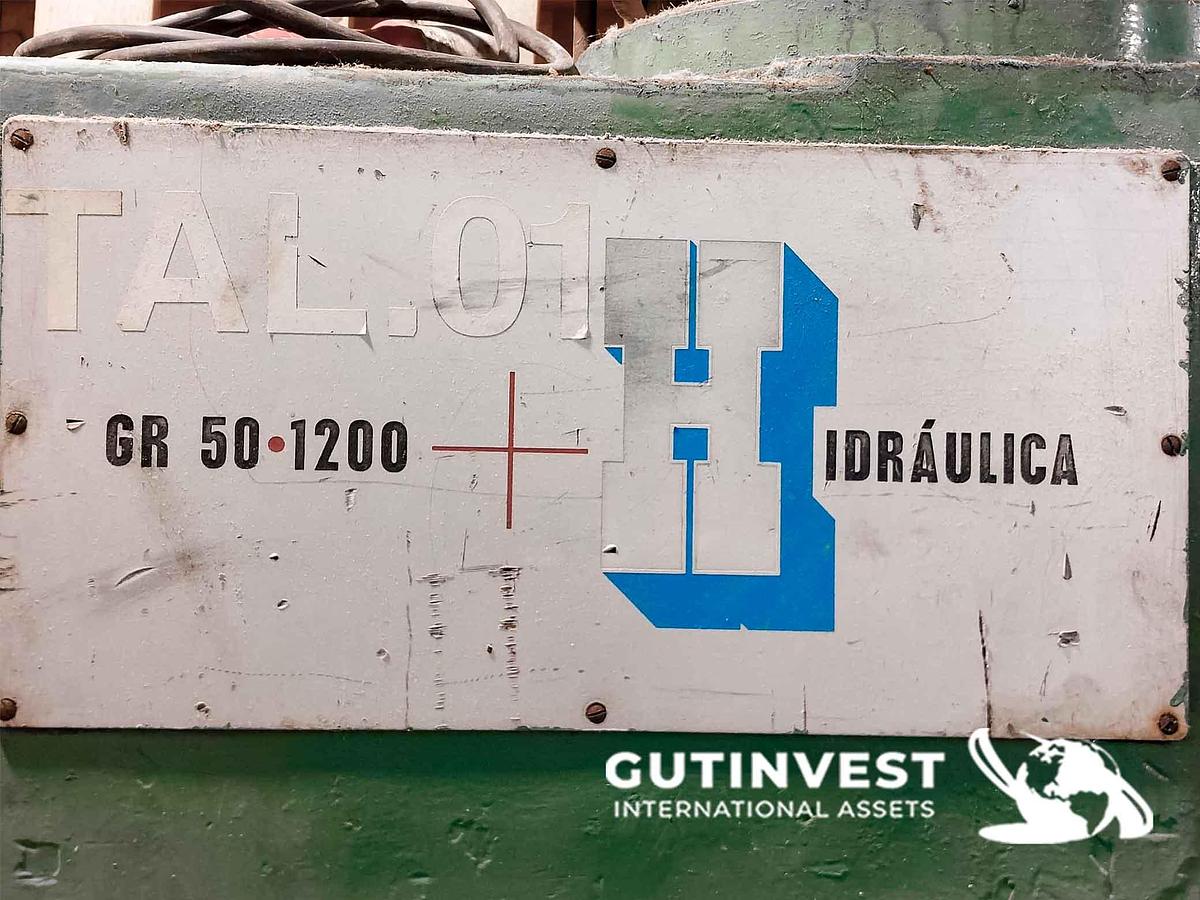

| Model | GR 50 - 1200 |
| Condition | Used |
| Stock Number | 261223M-9 |
| Maximum Drilling Diameter | 50mm, |
| Horizontal Displacement of Spinder Head | 1200 mm, |
| Distance from Spindle Shaft to Column | Max -Min / 1350 - 435 mm, |
| Weight approx. machine | 2.300 Kgs, |
| Dimensions machine approx. | 1825x780x2650 mm. |
