Double-head lathe with gantry robot

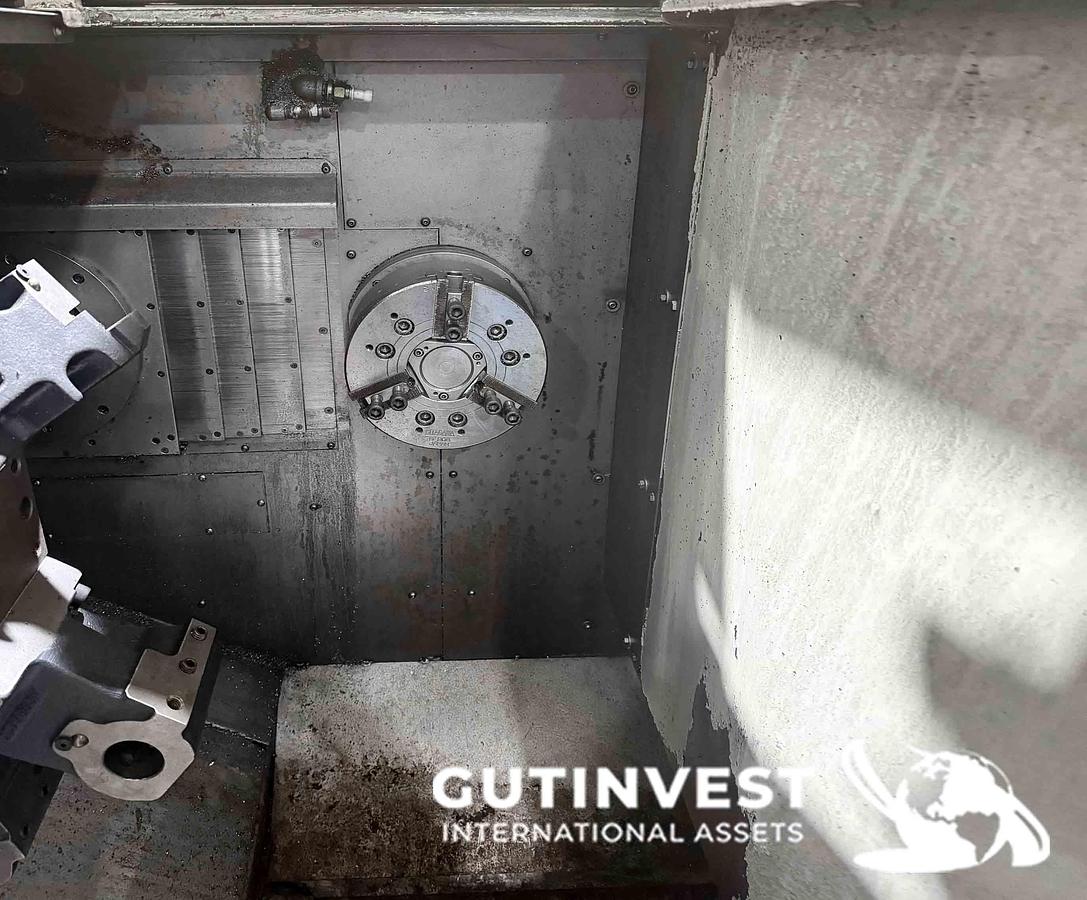

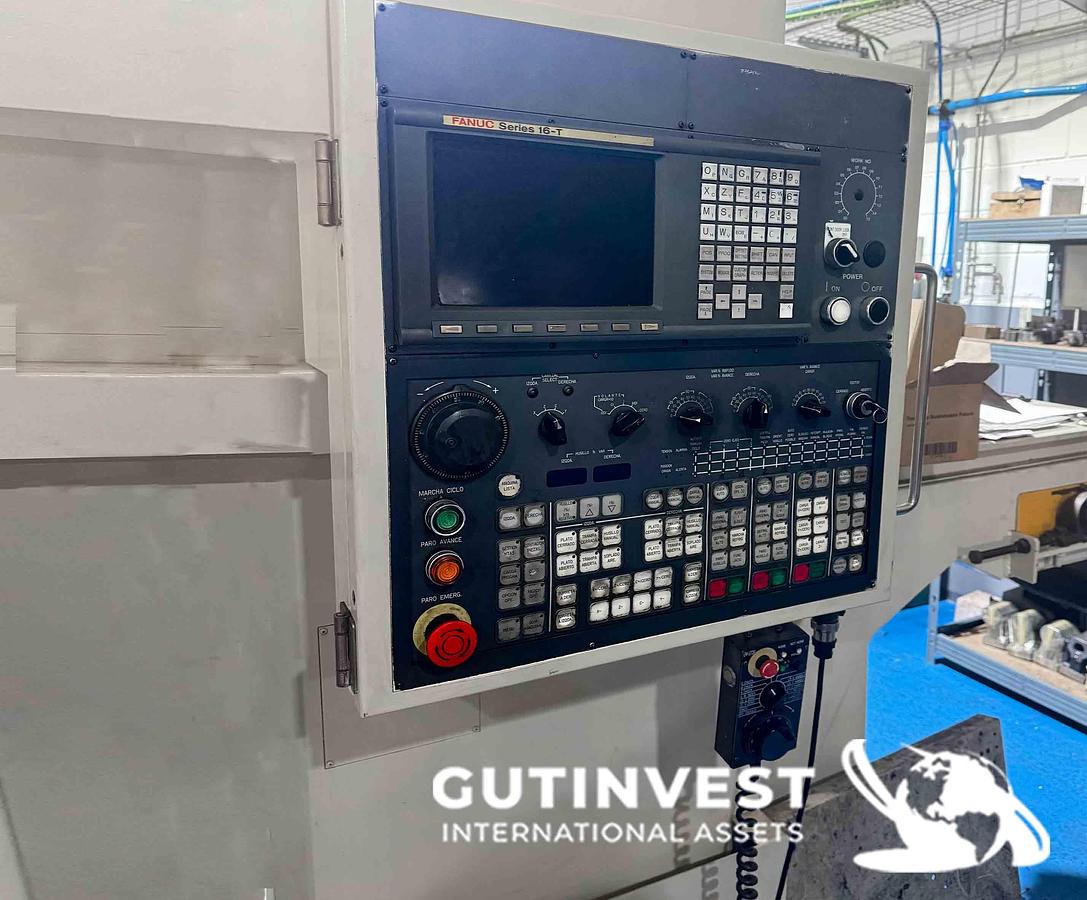

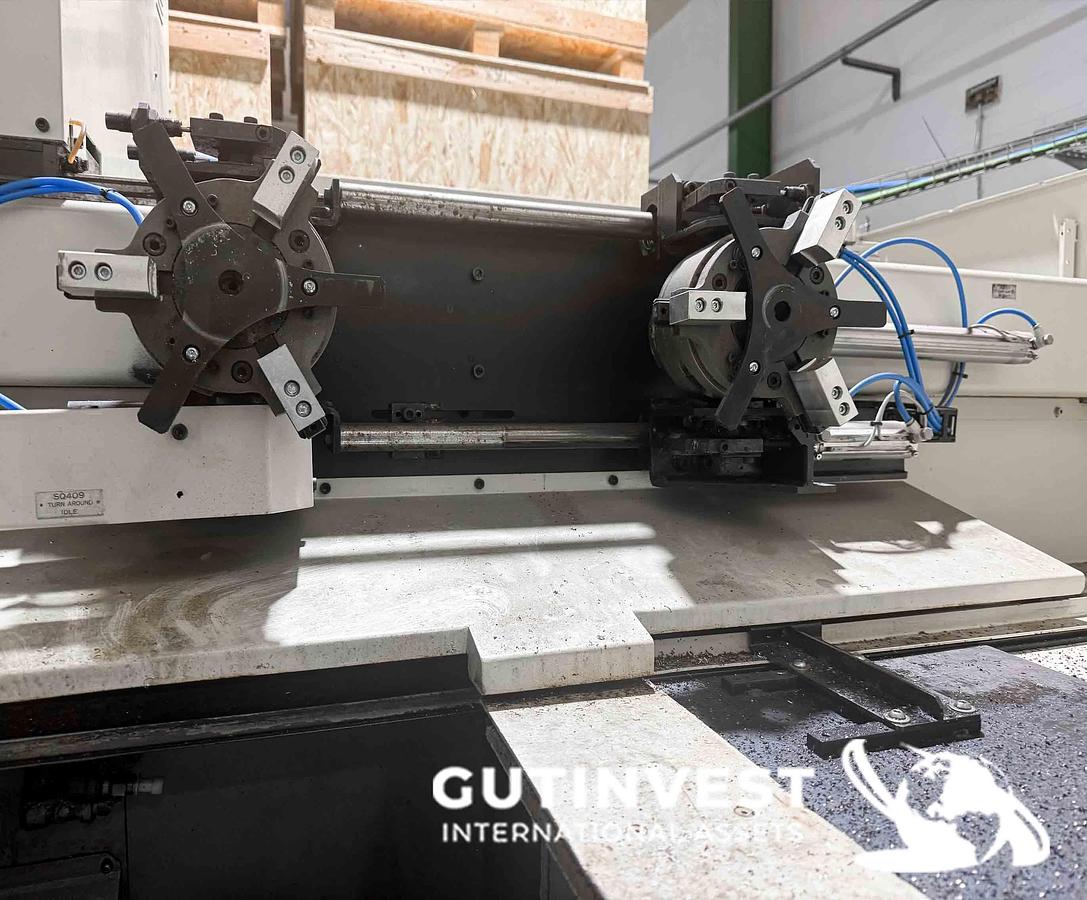

Double-head lathe with gantry robot The maximum workpiece capacity with the robot is 200 mm diameter x 120 mm length and a maximum workpiece weight of 6 kg. The chucks are equipped with two x 200 mm plates in each head. Power: 22 kW x 2 on each main spindle. Number of turrets: 2. Number of tools on the turret: 10. Robot: Muratec. Numerical control: Fanuc series 16-T. Dimensions (length, width, height): 3600 × 2130 × 2100 mm. Weight: 7,000 kg. The machine was retrofitted in 2022. The turret bushings were chrome-plated and adjusted, and all the turcite on the carriage and wedge guides was replaced. The pneumatic gantry system was replaced, and the entire machine underwent mechanical adjustments. The entire electrical panel was cleaned and serviced, and fans were replaced.
