CNC Bench-Top Machining Center

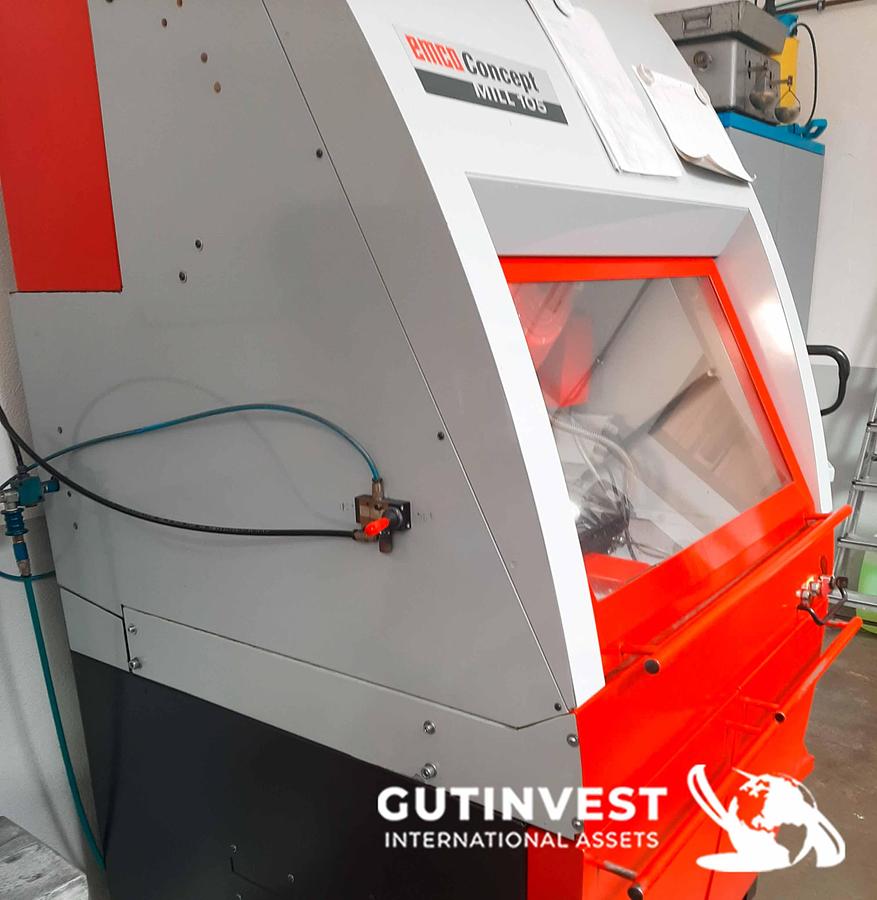

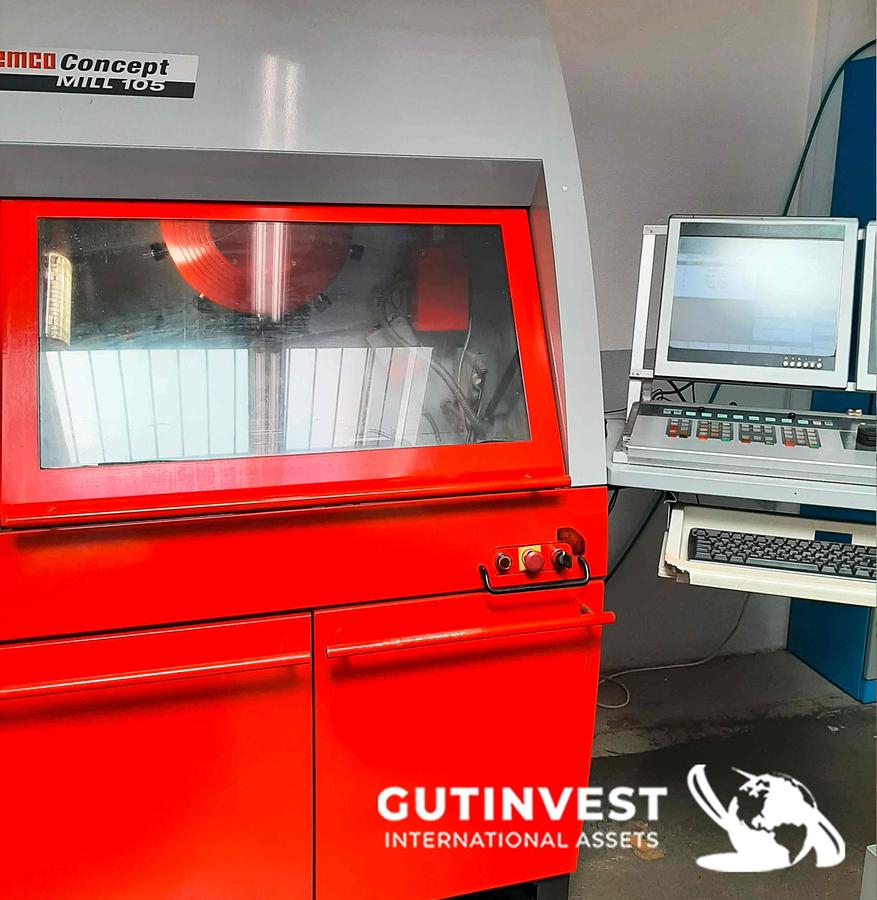

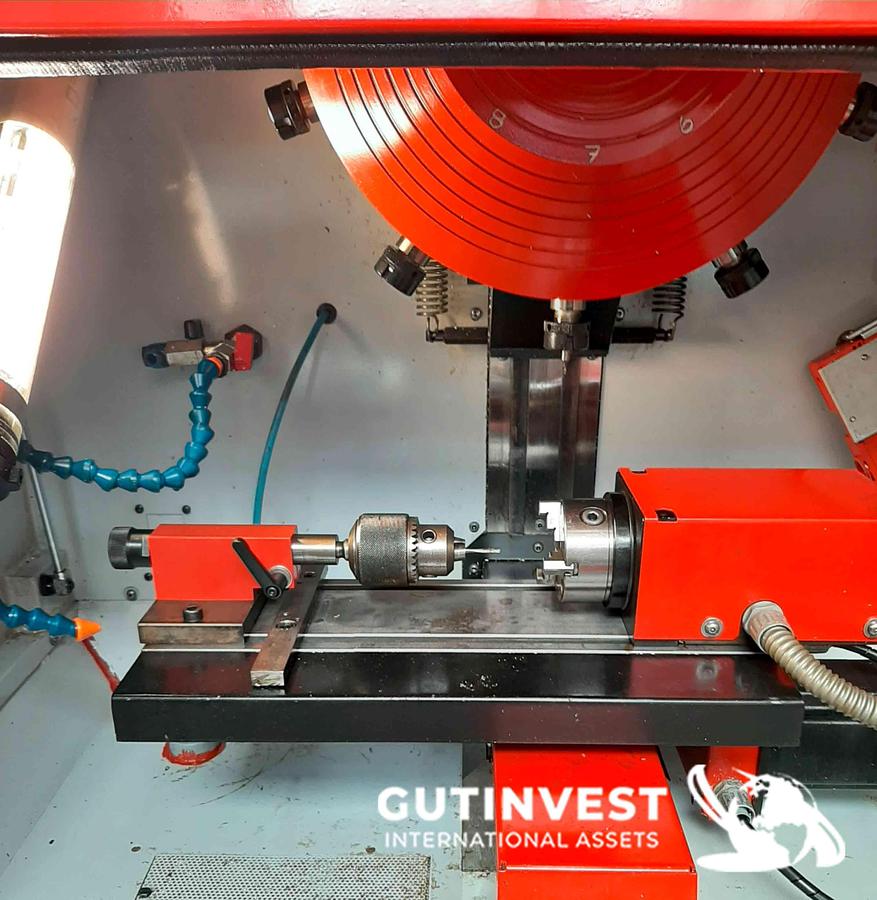

CNC Bench-Top Machining Center Condition Machine in full working condition. It can be inspected under power and tested. Single owner since new. Description Compact high-precision CNC machining center, EMCO Concept Mill 105, originally designed as an industrial training and prototyping machine, although widely used for small batches requiring high machining accuracy. This unit was originally purchased for drilling holes up to Ø3 mm in turned production components. After that production project ended in 2009, the machine was used only occasionally for machining aluminum front and rear panels for electronic equipment in very small batches. The machine has always operated using oil as the cutting coolant. It has seen very few actual operating hours (no hour meter installed). Axis Travels Axis Travel X 200 mm Y 150 mm Z 250 mm Usable Z stroke 150 mm Spindle nose to table 95-245 mm Work Table T-slots ·2 × DIN 650 T-slots Main Spindle ·Automatic tool clamping ·AC motor Feed System Independent stepper motors on X, Y and Z axes. Positioning Accuracy Maximum Feed Force Automatic Tool Changer Tool Change Time Tool-to-tool time: 10-11 seconds Lubrication ·Automatic centralized oil lubrication ·Continuous spindle lubrication Coolant System Coolant system included. CNC Control ·Original software included ·Original software license included ·Win3D-View graphical simulation included ·Compatible with 4th-axis machining Axis Configuration ·3 CNC axes ·4th-axis rotary indexing unit (CM55) Included Equipment ·Automatic 10-position tool changer ·10 × ER16 tool holders ·Shell mill arbor ·CM55 rotary indexing unit ·Tailstock for rotary unit ·Ø74 mm 3-jaw self-centering chuck ·Complete coolant system ·Automatic centralized lubrication ·Internal work light ·Siemens WinNC software ·Original software license ·Win3D simulation software ·Original manuals ·Electrical diagrams ·Clamping jaws ·Auxiliary tooling Electrical Supply ·230 V ·Single-phase ·50/60 Hz Rated current: 9.5 A Maximum current: 12 A Remarks ·Single-owner machine. ·Very few actual operating hours (no hour meter installed). ·Used exclusively for light precision machining. ·Never used for heavy-duty or high-volume production. ·Always operated using oil as coolant. ·The original plastic support for the control panel deteriorated over time due to prolonged exposure to oil. ·The control panel is now mounted on a robust custom-made aluminum support, fully functional and professionally installed. ·Machine is fully operational and available for inspection under power. Applications Ideal for: ·Technical training ·Educational institutions ·Prototyping ·Laboratories ·Tooling manufacture ·Small batch production ·Aluminum machining ·Engineering plastics ·Brass machining ·Non-ferrous materials ·Research & Development (R&D)
