Waterjet Cutting Machine - 5 Axes - 3 Cutting Heads
Waterjet Cutting Machine - 5 Axes - 3 Cutting Heads
€145,000 (EUR)
Location:Romania
or
Call +34 932 696 282
Description
Waterjet Cutting Machine - 5 Axes - 3 Cutting Heads
The machine is equipped with one 5-axis cutting head and two 3-axis cutting heads.
The two 3-axis heads can operate simultaneously, doubling productivity.
🔹 GENERAL CONFIGURATION

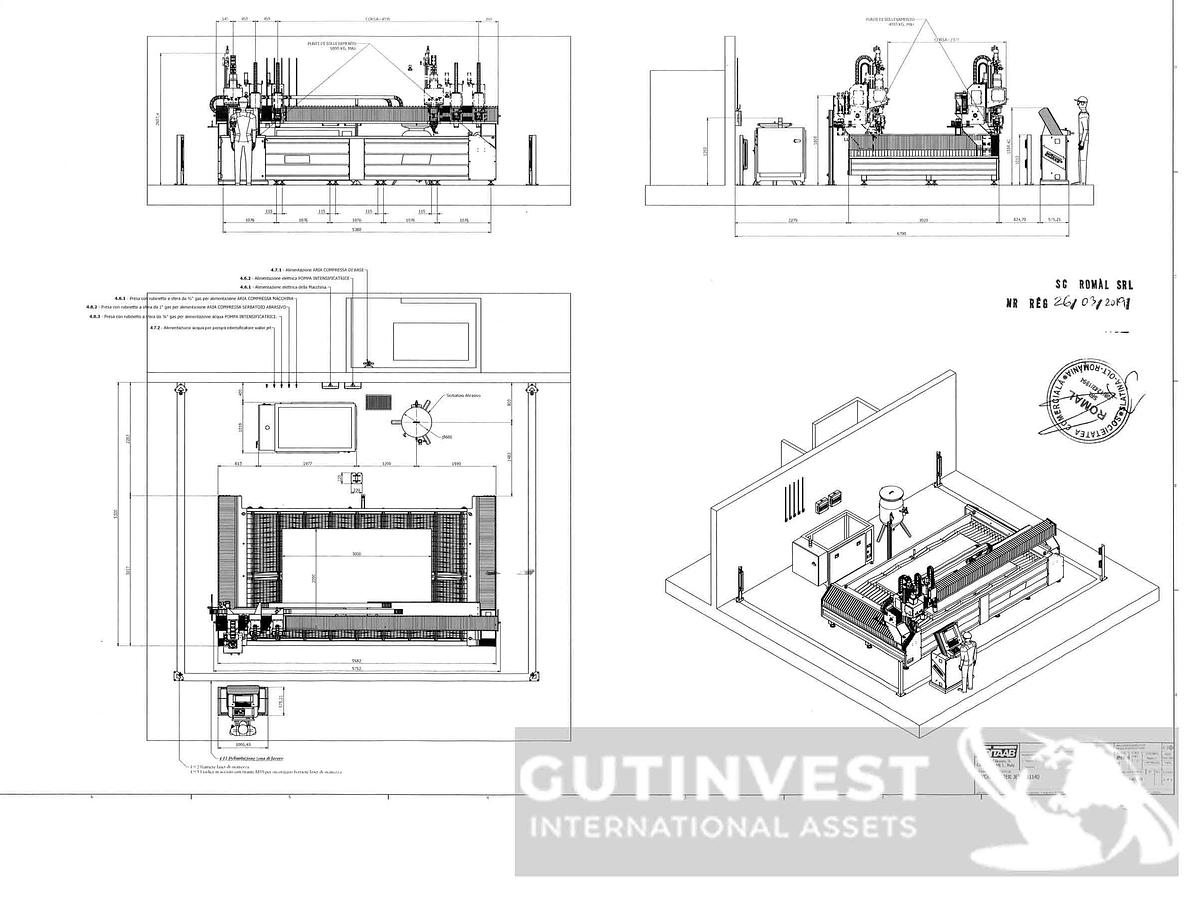

Complete waterjet cutting system, consisting of:
·Cutting table 3000 × 2000 mm
·Heavy-duty electro-welded structure
·Soitaab III CNC numerical control
·High-precision brushless motors
·Master and Slave carriages
·Waterjet cutting head (water and water + abrasive)
·High-pressure pump Hypertherm HyPrecision 50 HP
·Automatic abrasive feeding system
·CAD/CAM software with Bevel module
🔹 WORKING AREA

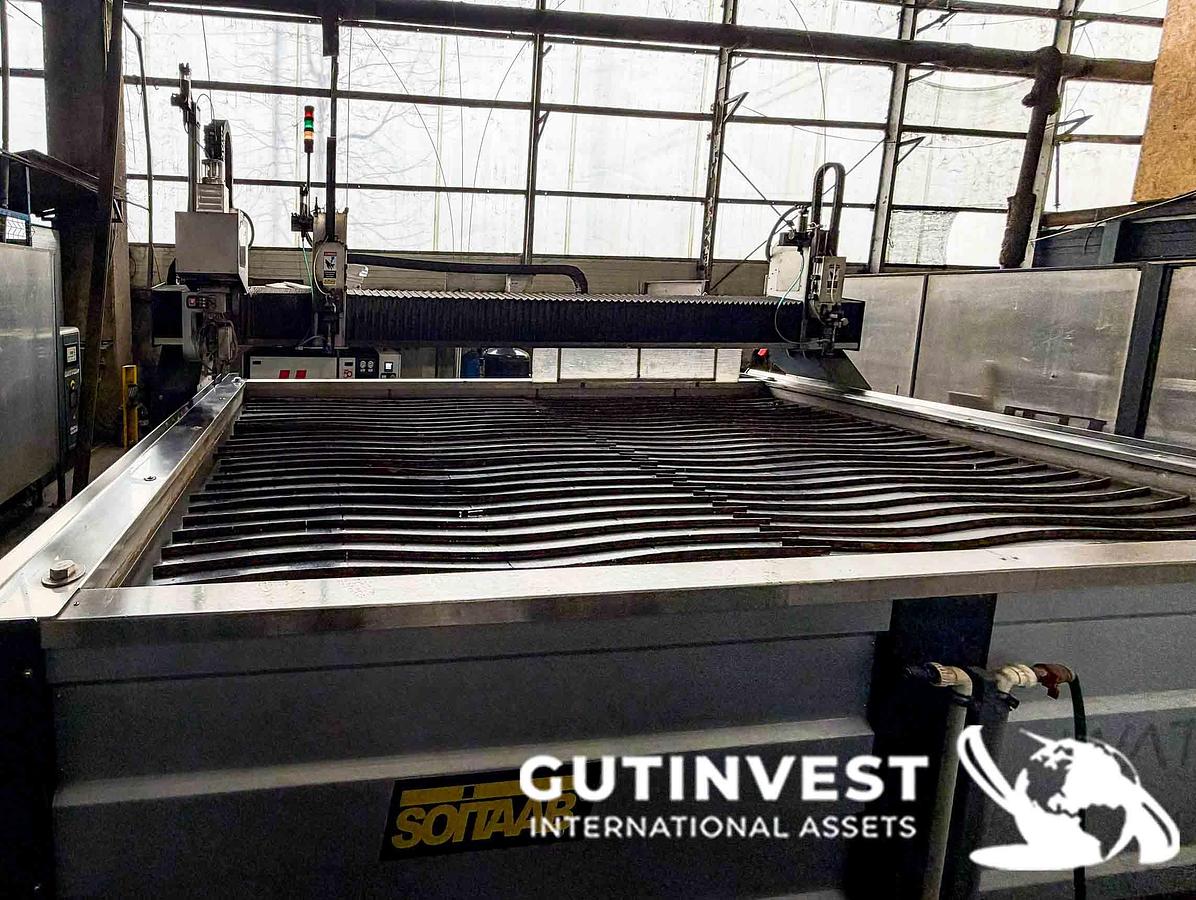

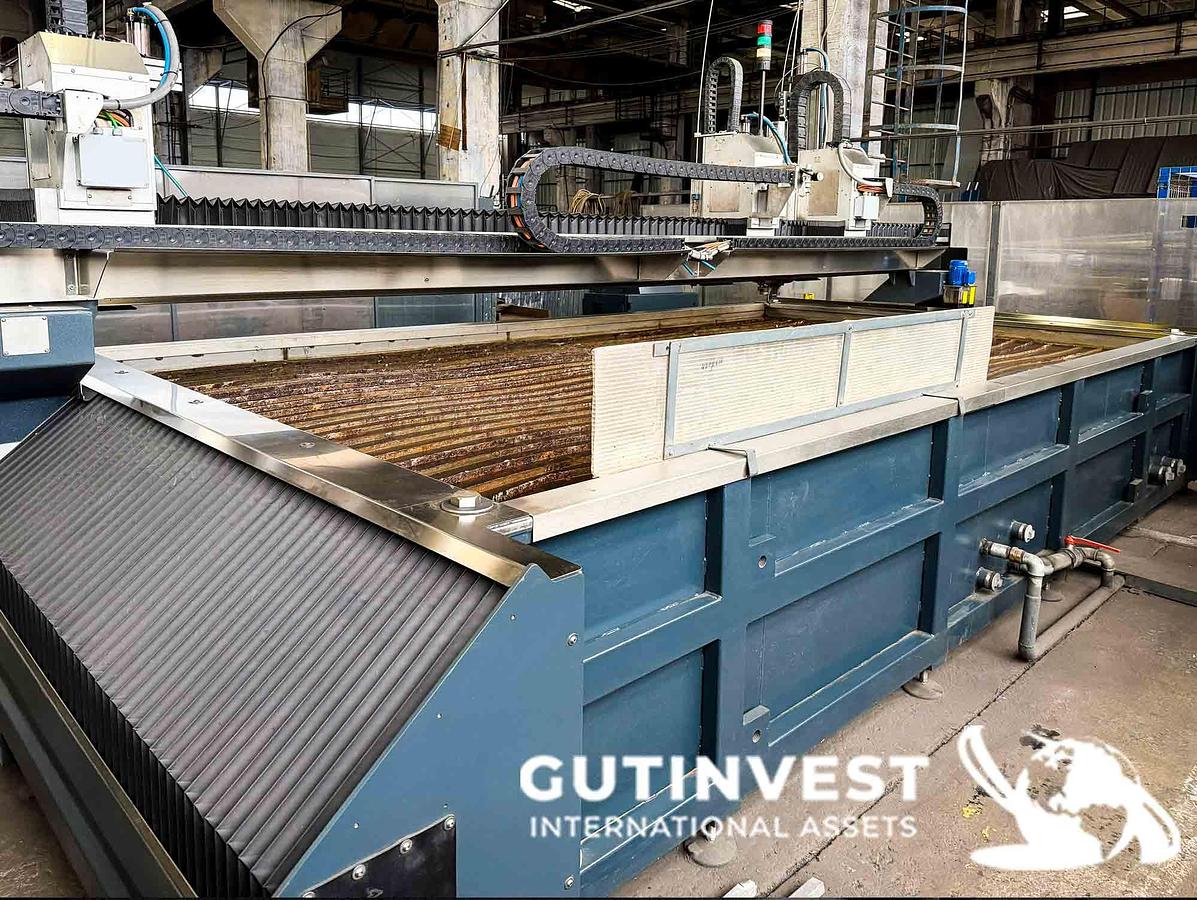

🔹 STRUCTURE AND TABLE
·Electro-welded structure designed to withstand static deformation with the tank filled
·Epoxy coating for humidity protection
·Stainless steel water tank with galvanized steel grates
·All components in contact with water made of stainless steel
·Material loading from 3 sides
·Automatic water level regulation
🔹 MOTION SYSTEM
·High-precision brushless motors
·Linear guides on both axes
·High-precision rack and pinion drive system
·Bellows protection against water and abrasive
·Guide lubrication via oil reservoirs

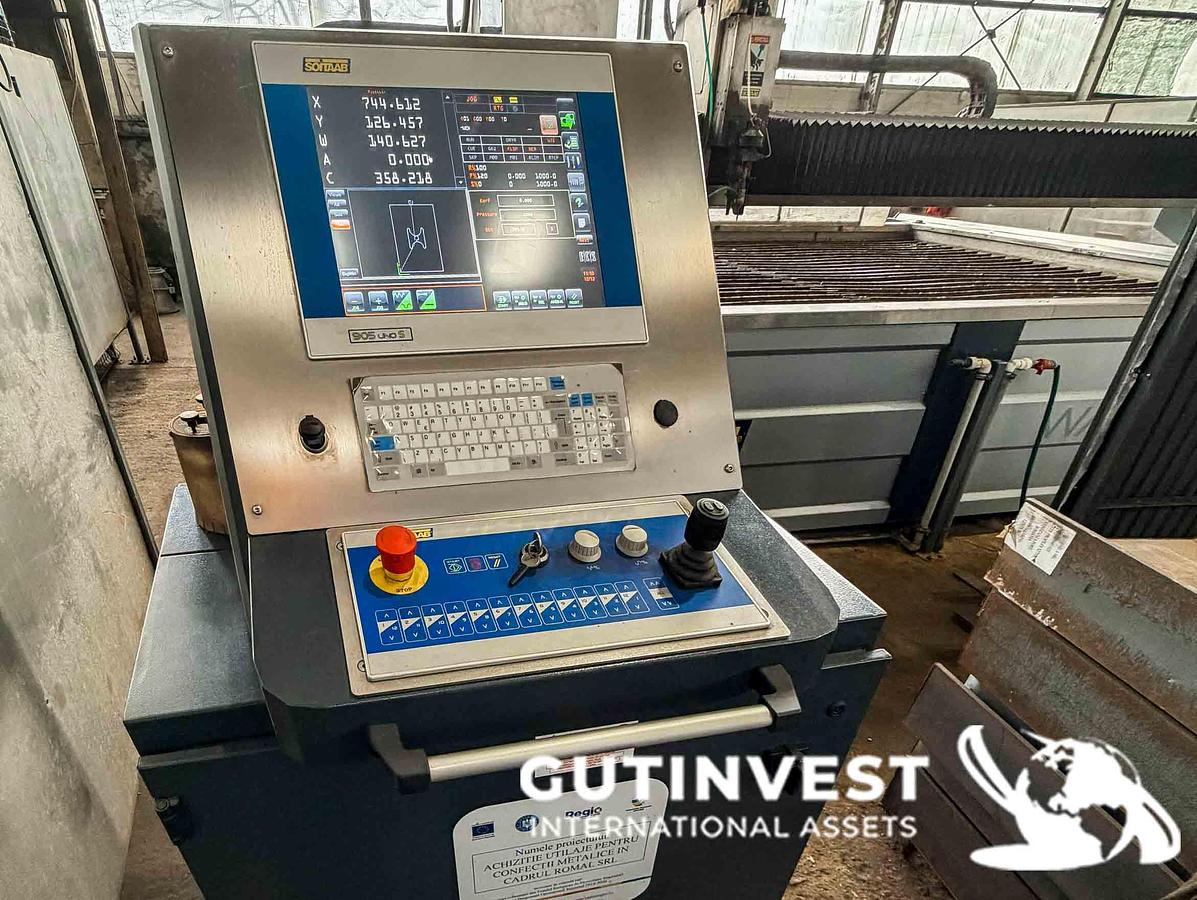

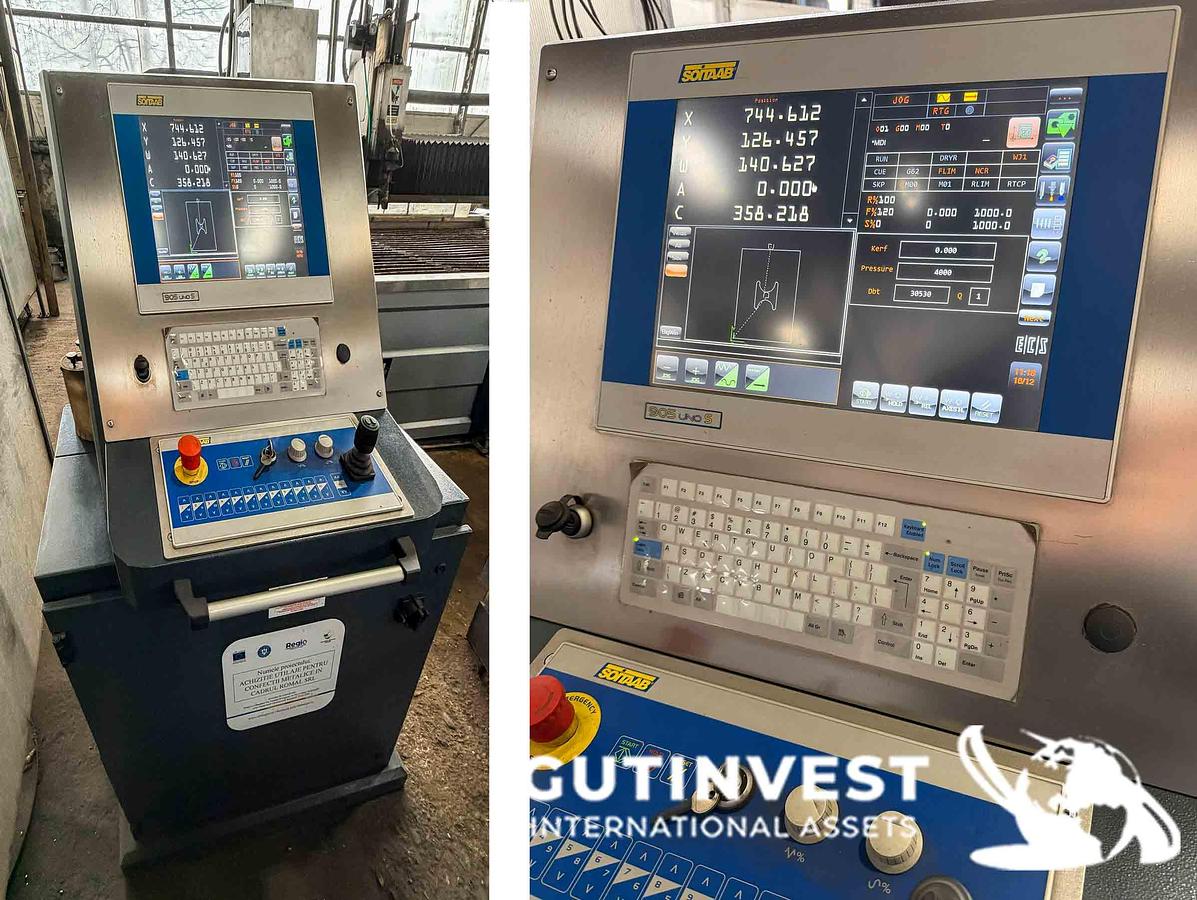

🔹 CNC CONTROL - SOITAAB III
·15” S-VGA touchscreen
·Multiple languages
·Standard ISO and parametric programming
·On-machine program simulation
Performance:
🔹 CUTTING HEADS
5-Axis Bevel Master Head
·Continuous 360° rotation
·Automatic taper compensation (1-3°)
·Automatic height control and sheet level sensing
·Laser pointer for positioning
Additional Cutting Heads
·Latest-generation AccuValve technology
·Cutting with pure water or water + abrasive

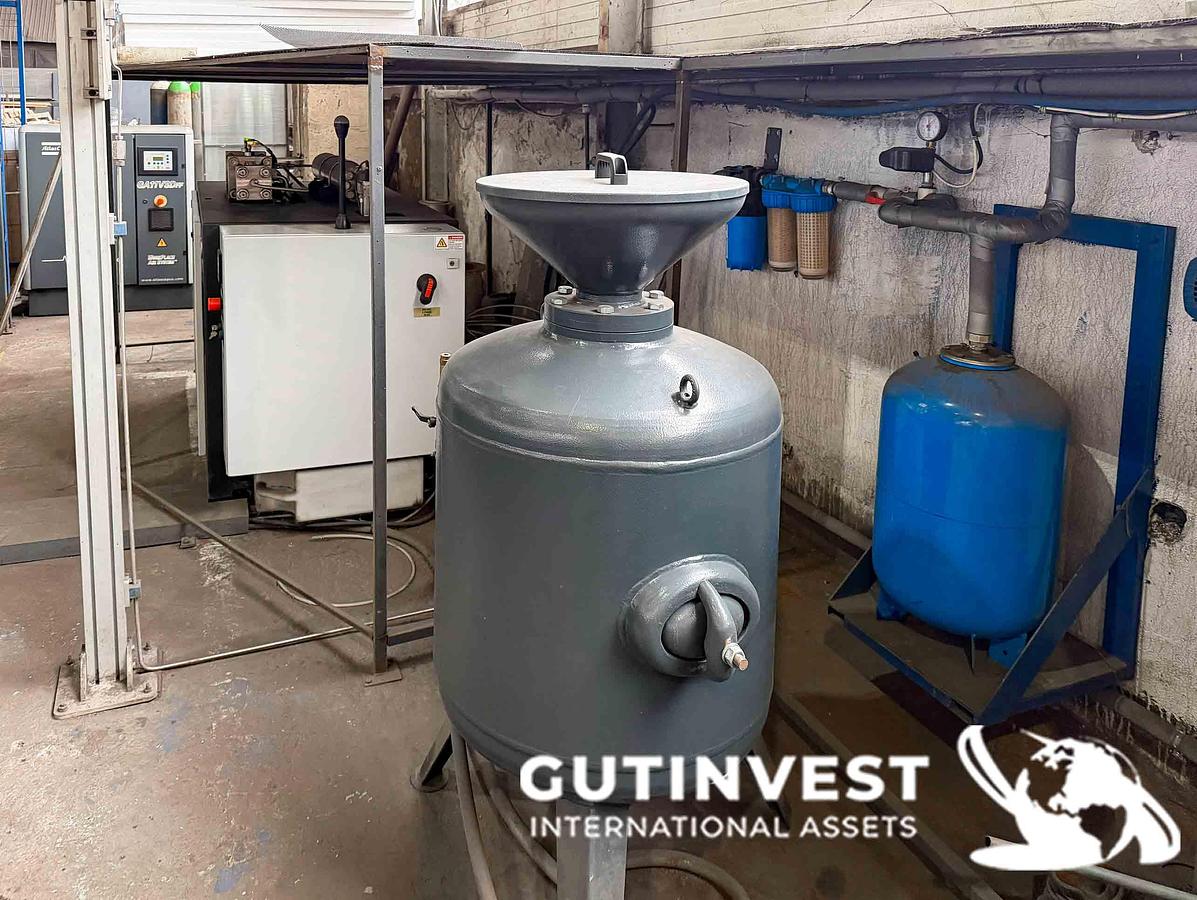

🔹 ABRASIVE SYSTEM
·3 × Mini Hopper mixers
·CNC-controlled abrasive flow
·Abrasive presence sensor
·Automatic shutdown in case of blockage

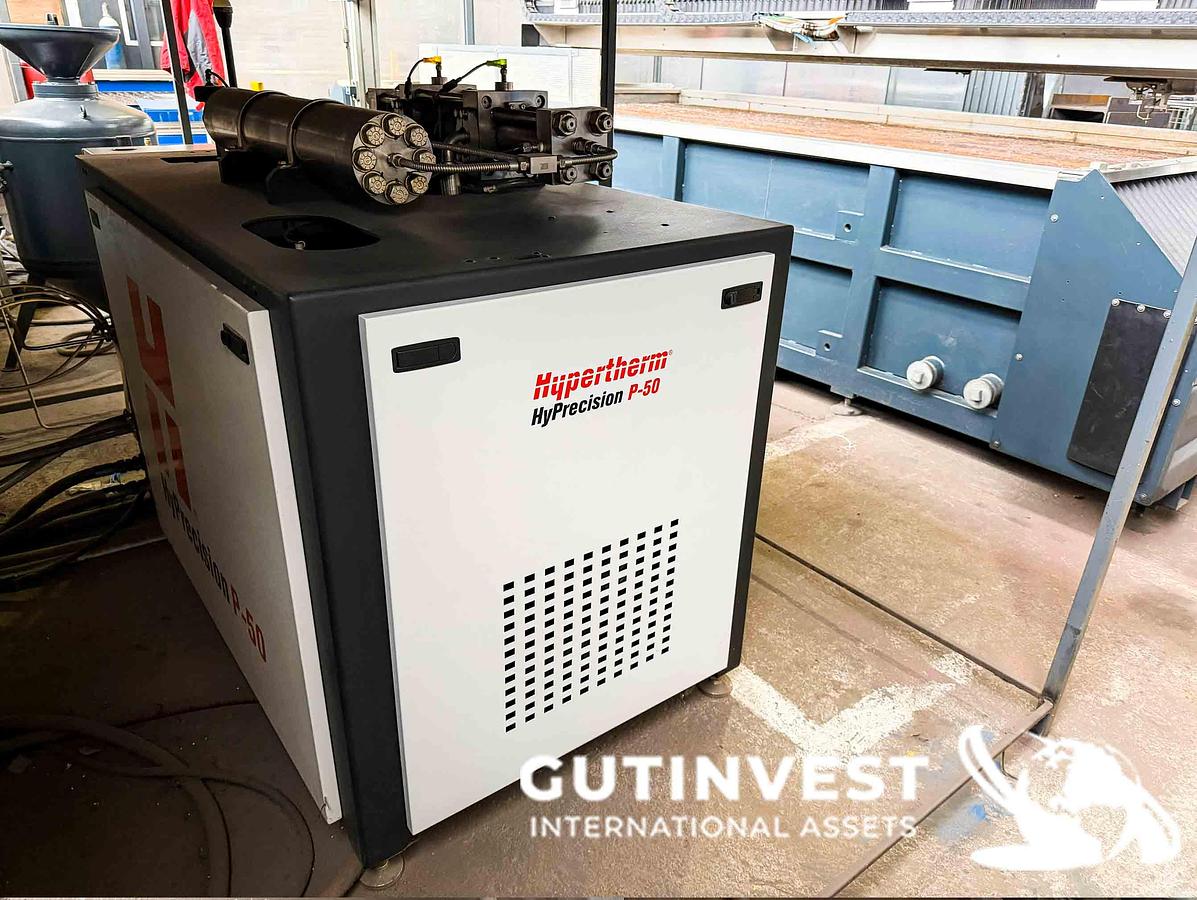

🔹 HIGH-PRESSURE PUMP
·Single-configuration intensifier
Pump dimensions:
🔹 SOFTWARE
·LOGOTAG-CAD for design and dimensioning
·MAGICTOOL-CAM, including:
oAutomatic nesting
oBevel module
oMicro-tabs
oSpecial lead-ins and lead-outs
oSheet recovery
Specifications
| Manufacturer | Soitaab Impianti S.r.l. |
| Model | Hypertherm HyPrecision 50 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 090326M-1 |
| Tender sale | 2026-07-29 16:00:00 |
| Working hours | 100 h |
| Effective cutting area | 3,000 × 2,000 mm |
| Table load capacity | 1,300 - 1,500 kg/m² |
| Z-axis stroke | 200 mm |
| Maximum cutting thickness (vertical) | up to 200 mm |
| Operating system | Windows 8.1 |
| Processor | i5 64-bit with FPU |
| Memory | 4 + 3 MB |
| Hard drive | 80 GB SSD |
| Maximum cutting speed | 20,000 mm/min |
| Maximum rapid traverse speed | 30,000 mm/min |
| Positioning accuracy | ±0.05 mm/m |
| Repeatability | ±0.1 mm |
| Maximum programmable angle | ±50° |
| Total | 3 waterjet cutting heads |
| Working pressure | up to 4,000 bar |
| Abrasive hopper capacity | 250 kg |
| Motor power | 37 kW |
| Continuous pressure | 4,137 bar (60,000 psi) |
| Flow rate | 3.8 l/min |
| Orifice | Ø 0.014 mm |
| Hydraulic fluid | ISO AW 46 mineral oil (140 l) |
| Length | 1,930 mm |
| Width | 1,016 mm |
| Height | 1,422 mm |
| Operating weight | 1,406 kg |
