CNC Vertical Machining Center - 5 Axes

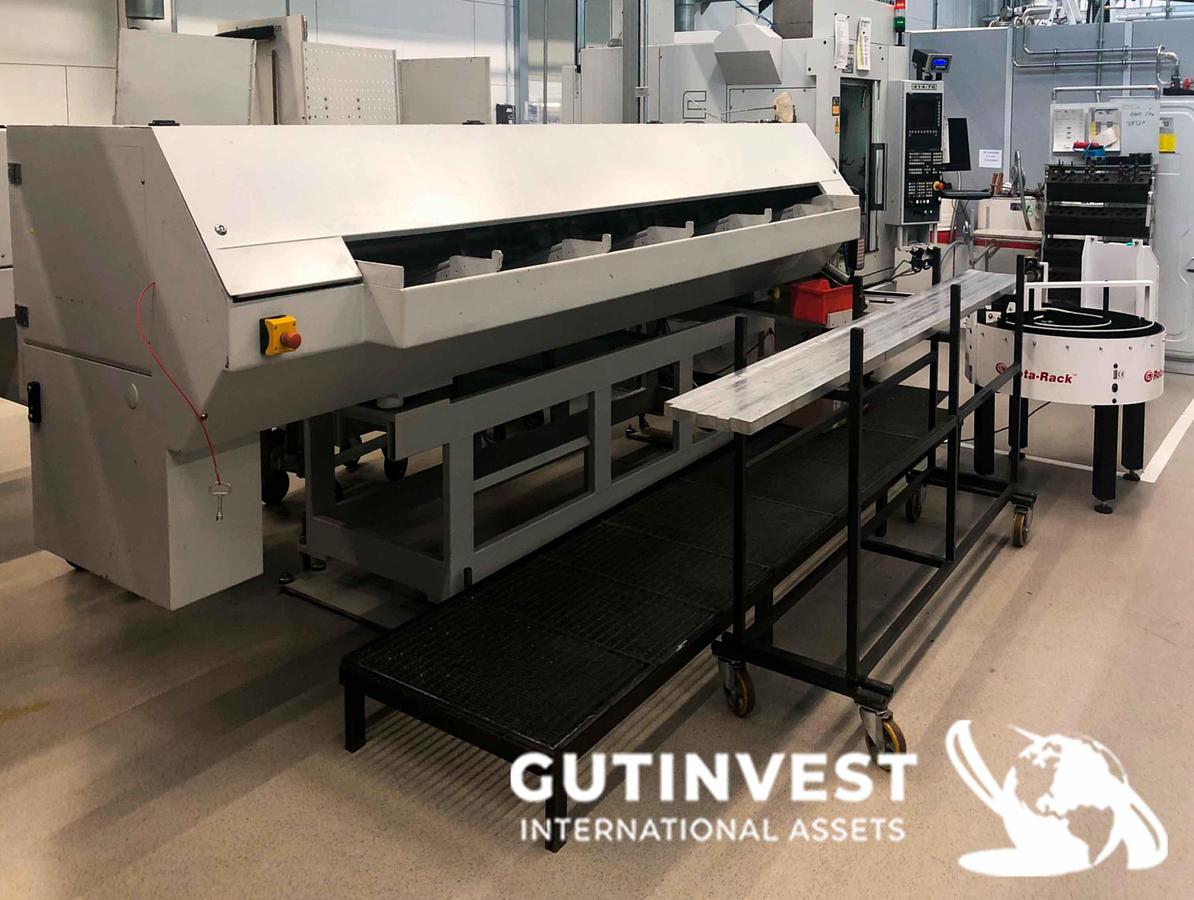

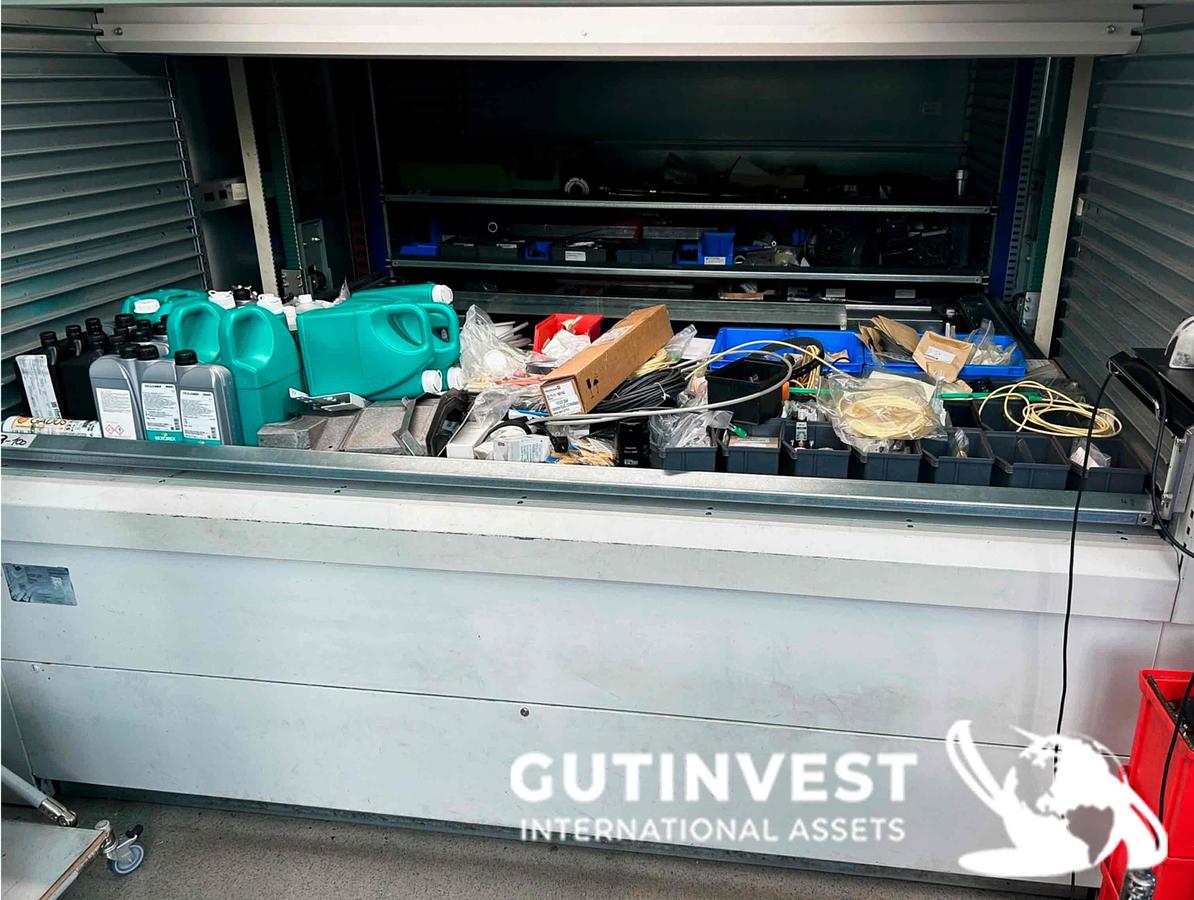

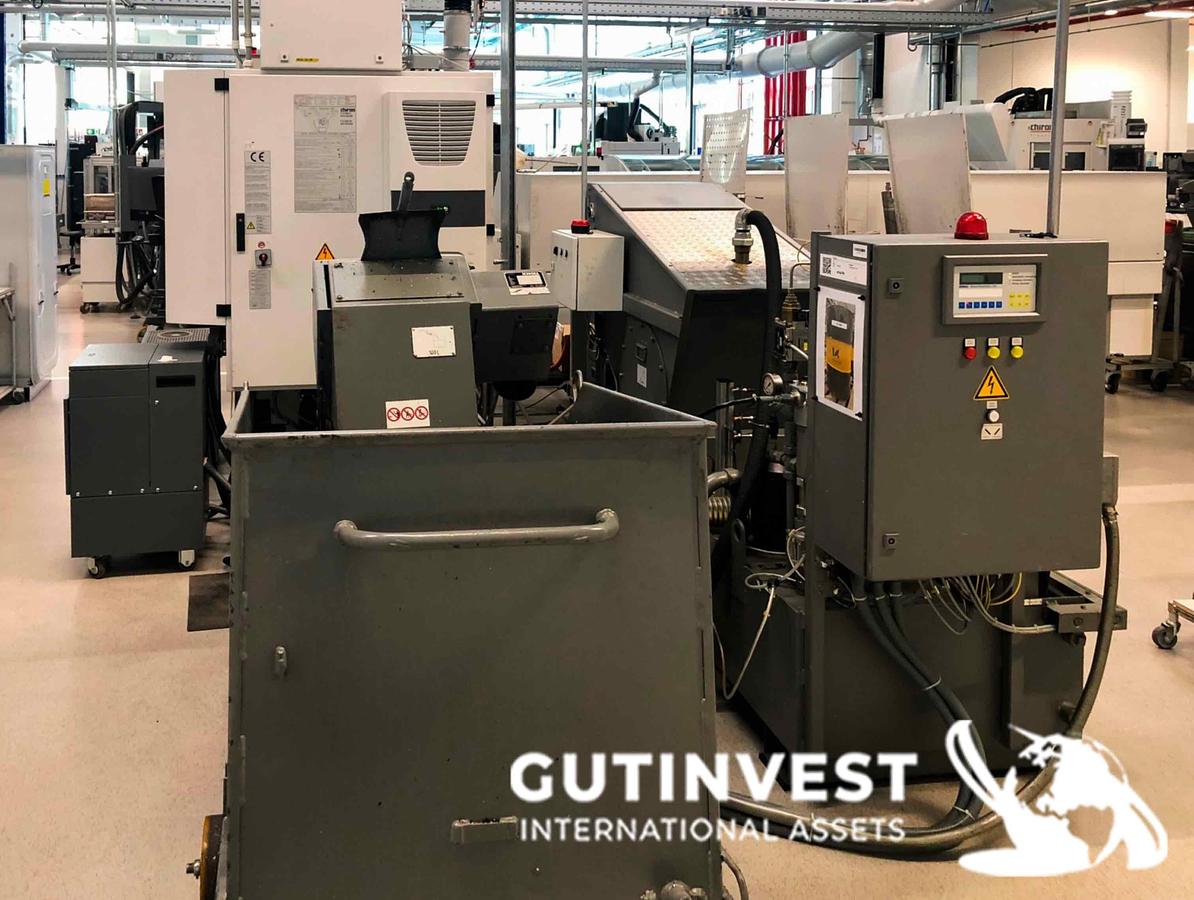

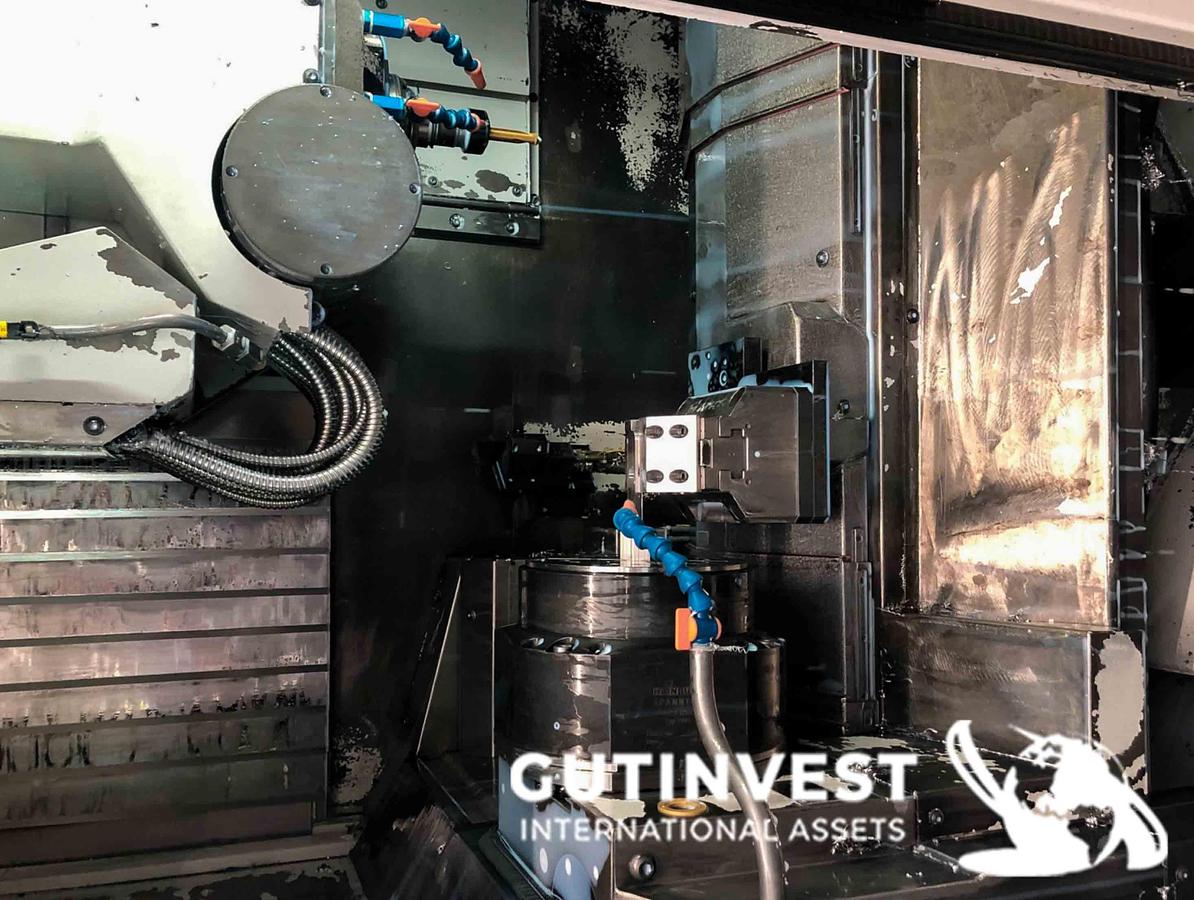

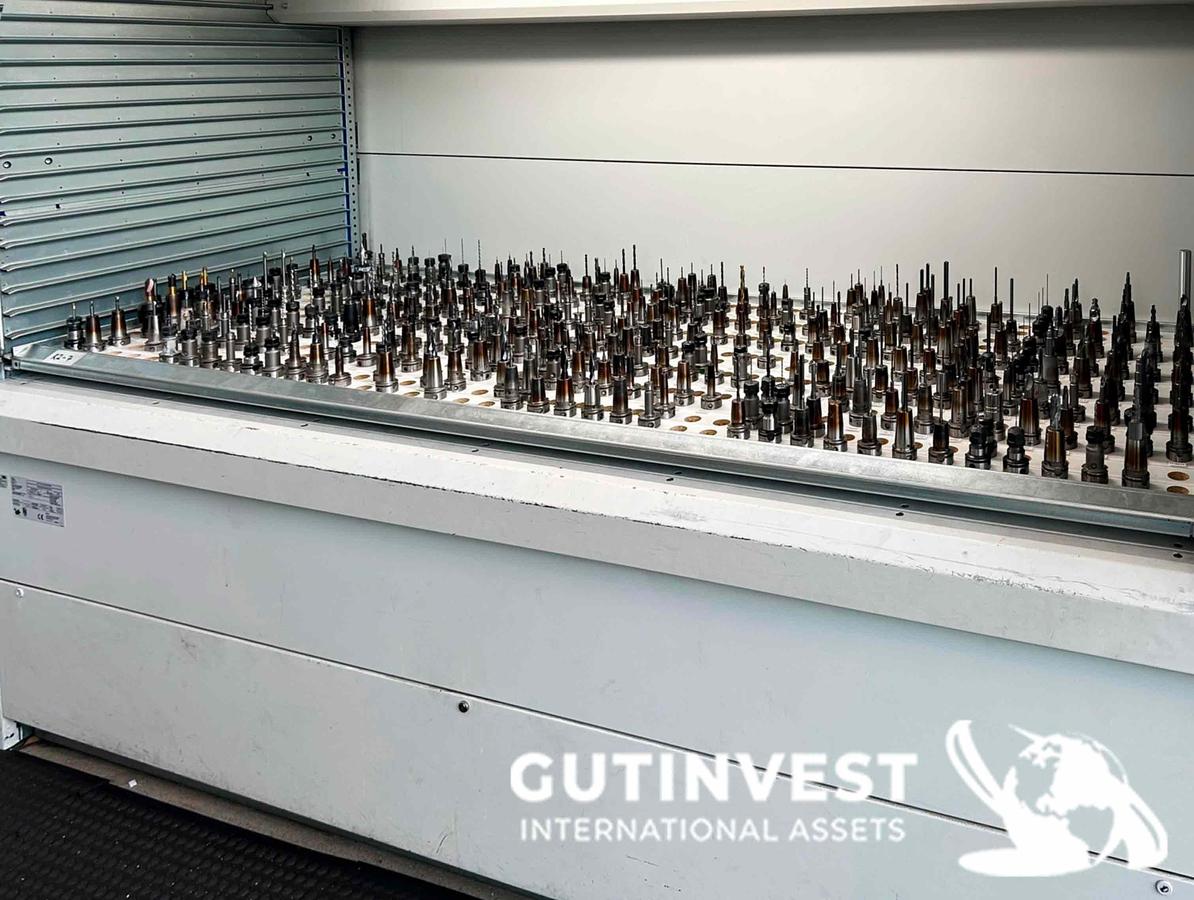

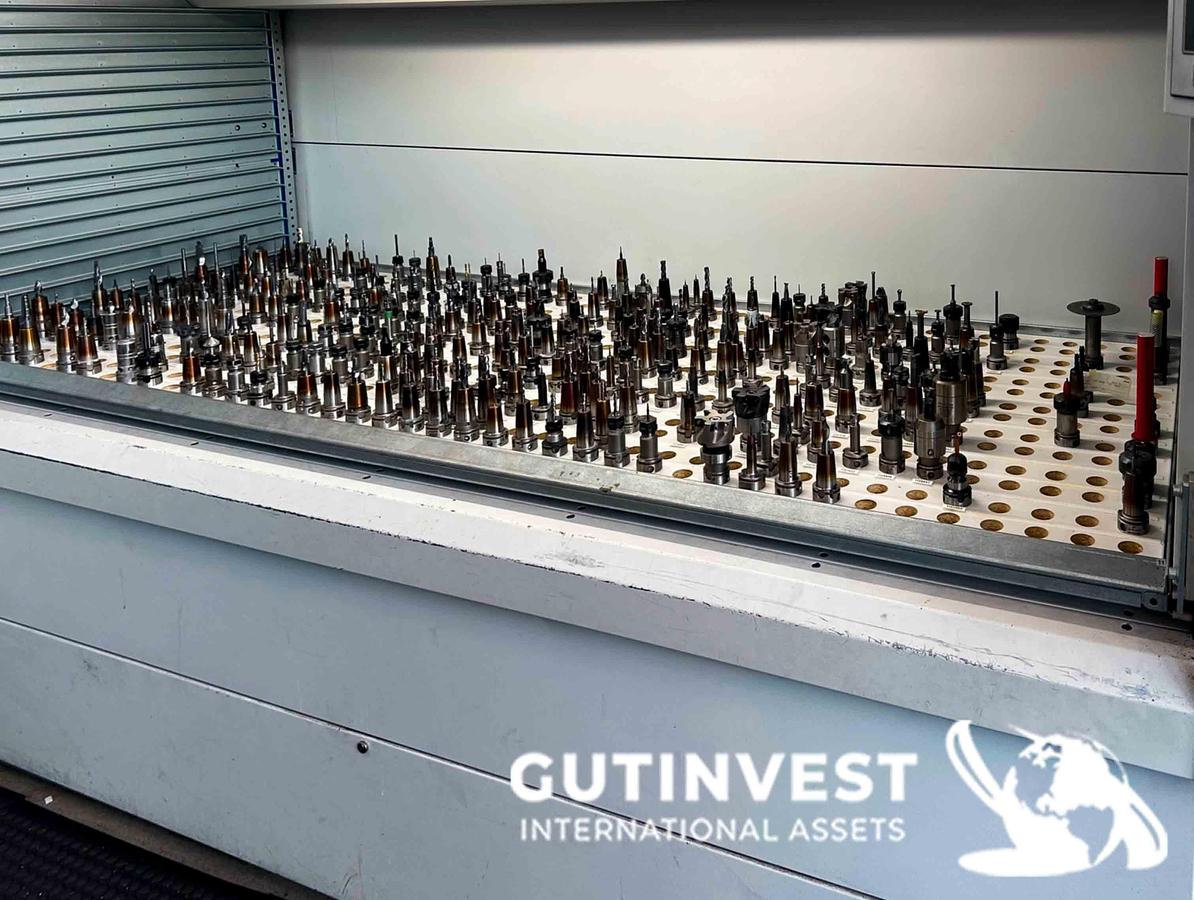

CNC Vertical Machining Center - 5 Axes Equipped with NC swiveling head, rotary table, bar feeder and automatic unloading system. CNC Control System NC tilting head Main Spindle Travels Speeds ·Rapid traverse: X / Y / Z: 75 m/min Tool Changer Additional Equipment ·Preparation for bar machining ·AWU 160 rotary table ·Additional positioning axis ·Hainbuch Spanntop D100 collet chuck ·Additional device for sixth-face machining ·Automatic finished parts extraction and unloading system ·IRCO SiMag 100.1-3000 bar feeder for round and profiled material ·Washing gun ·Preparation for internal tool cooling (IKZ) ·70 bar high-pressure coolant system with Varioventil valve ·Device washing system ·Scraper-type chip conveyor ·Vacuum rotary filter VRF 400 liters, manufacturer KNOLL ·MAHLE switchable double filter ·Electrical cabinet cooler ·Signal light tower ·Tool life monitoring ·Single F500 tool breakage monitoring ·Renishaw TS27R 3D probing system ·Brankamp Marposs CMS 100 collision monitoring system Included Accessories ·Breuning IRCO guide channel sets ·Hainbuch collets (as agreed) ·Approximately 500 HSK-A40 tool holders ·Spare parts for this machine type ·Machine-specific consumables Production Concept The system is designed for fully automated 24/7 unmanned production of cubic parts. Material is fed via a bar feeder with capacity for bars up to 100 mm diameter and 3000 mm length, suitable for both round and profiled material. The rotary table acts as a positioning axis, allowing machining of the four lateral faces using the vertical milling spindle. The fifth face is machined horizontally using the tilting head. Afterwards, the part is cut off, rotated 180°, and the sixth face is machined using the tilting head. Finished parts are automatically removed by a handling system and deposited in a parts storage unit. Machine Condition ·Factory overhaul carried out in 2017 ·The machine has been continuously maintained by the manufacturer under a full service contract, including preventive maintenance and technical upgrades.
