Winder and Loading Cart
Winder and Loading Cart
€23,500 (EUR)
Location:Spain
or
Call +34 932 696 282
Description
Winder and Loading Cart:

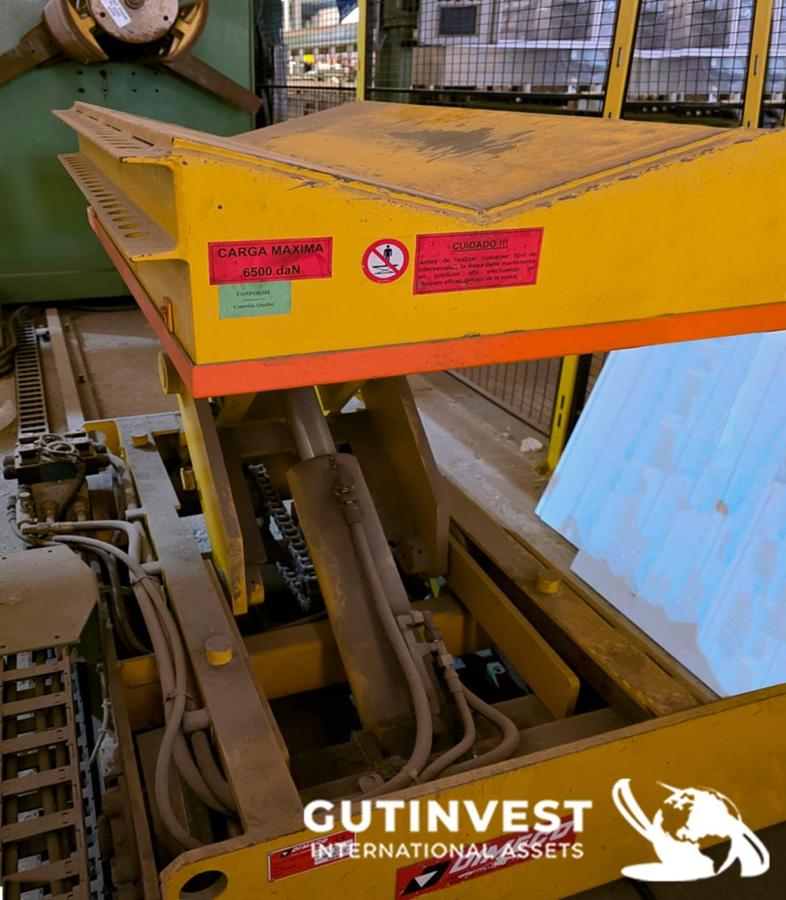

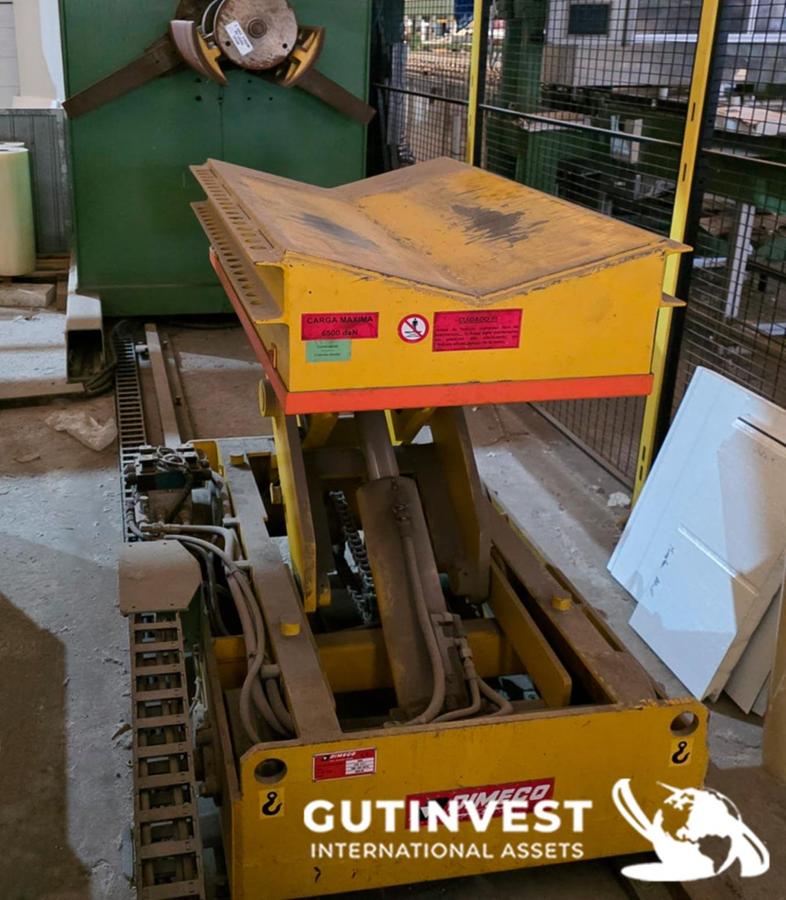

Loading Cart
General Information
Technical characteristics and dimensions
Hydraulic equipment
• Lifting via single-acting hydraulic cylinder
Travel system
• Hydraulic motor with drain
Electrical Equipment
• XCK M 115 type travel limit contact
• Safety frame contact
• Wiring to terminal box with:
o 16 mm² ground braid
o Symmetrical rail
o Copper bar
Design and Construction Elements
• Motorized shaft for hydraulic motor
• Mechanical stop
• Limit switches
• Mounting for CETOP 3 hydraulic distributors
• Rail guidance system

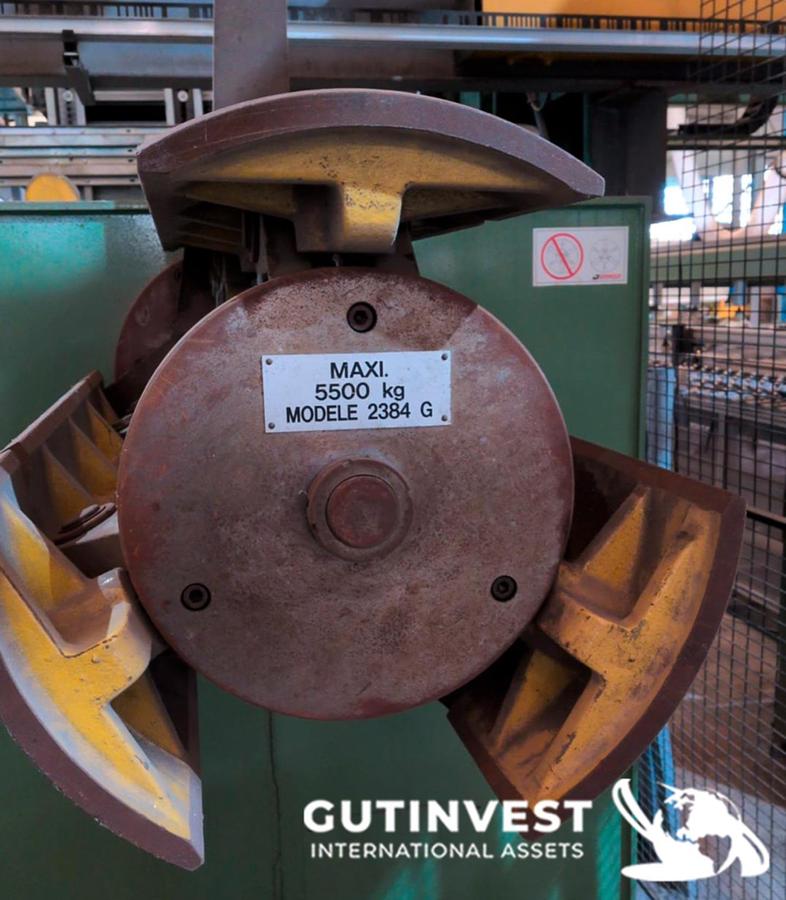

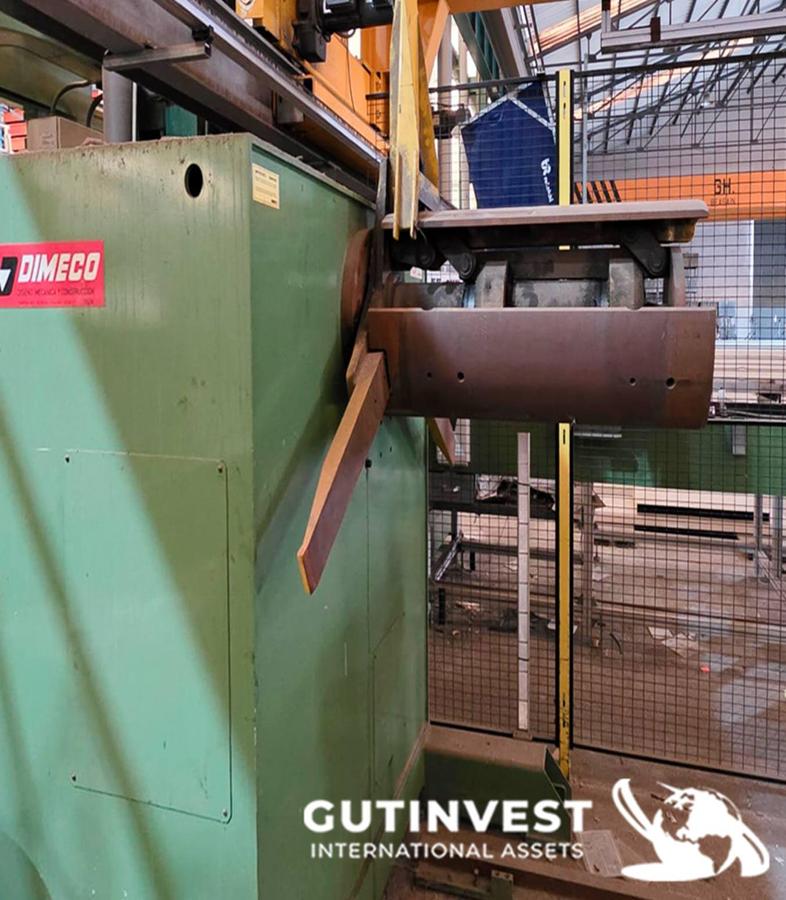

Wire-on Machine
• Widths: - Without side guides: 1000 mm
Specifications
| Manufacturer | Dimeco |
| Model | 2384/G |
| Year | 2002 |
| Condition | Used |
| Stock Number | 050526M-2 |
| Tender sale | 2026-07-20 16:00:00 |
| Equipment Type | Mobile Loading Cart |
| Year of manufacture | 2002 |
| Platform | V-shaped flat plate |
| Lifting system | Hydraulic scissor lift |
| Structure | Chassis with V-shaped table and anti-tip profile |
| Lifting capacity | 6500 daN |
| Trolley dimensions | 1050 × 610 mm |
| Height in folded position | 530 mm |
| Height in raised position | 1030 mm |
| Lifting stroke | 500 mm |
| Equipment weight | 1000 kg |
| Oil volume (lifting) | 3.4 L |
| Oil volume (lowering) | 2 L |
| Operating pressure (lifting) | ~170 bar |
| Travel speed | 6 m/min (for a flow rate of 1.5 L/min) |
| Operating pressure (traveling) | ~60 bar Bar |
| Maximum load | 5500 kg |
| Inner diameter | 470/530 mm |
| Outer diameter | 1500 mm |
| Fixed front guide, movable rear guide | 840 mm |
| Movable front and rear guides | 870 mm |
