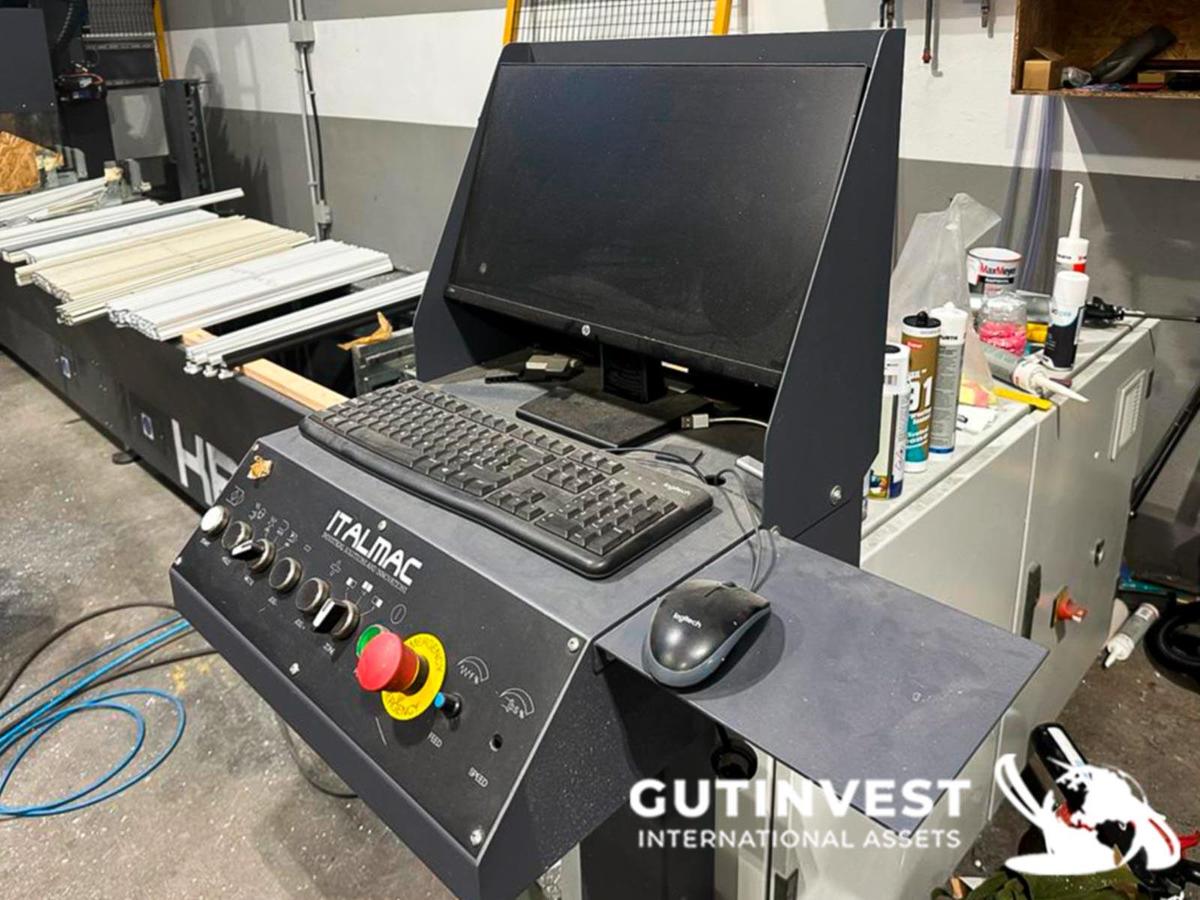

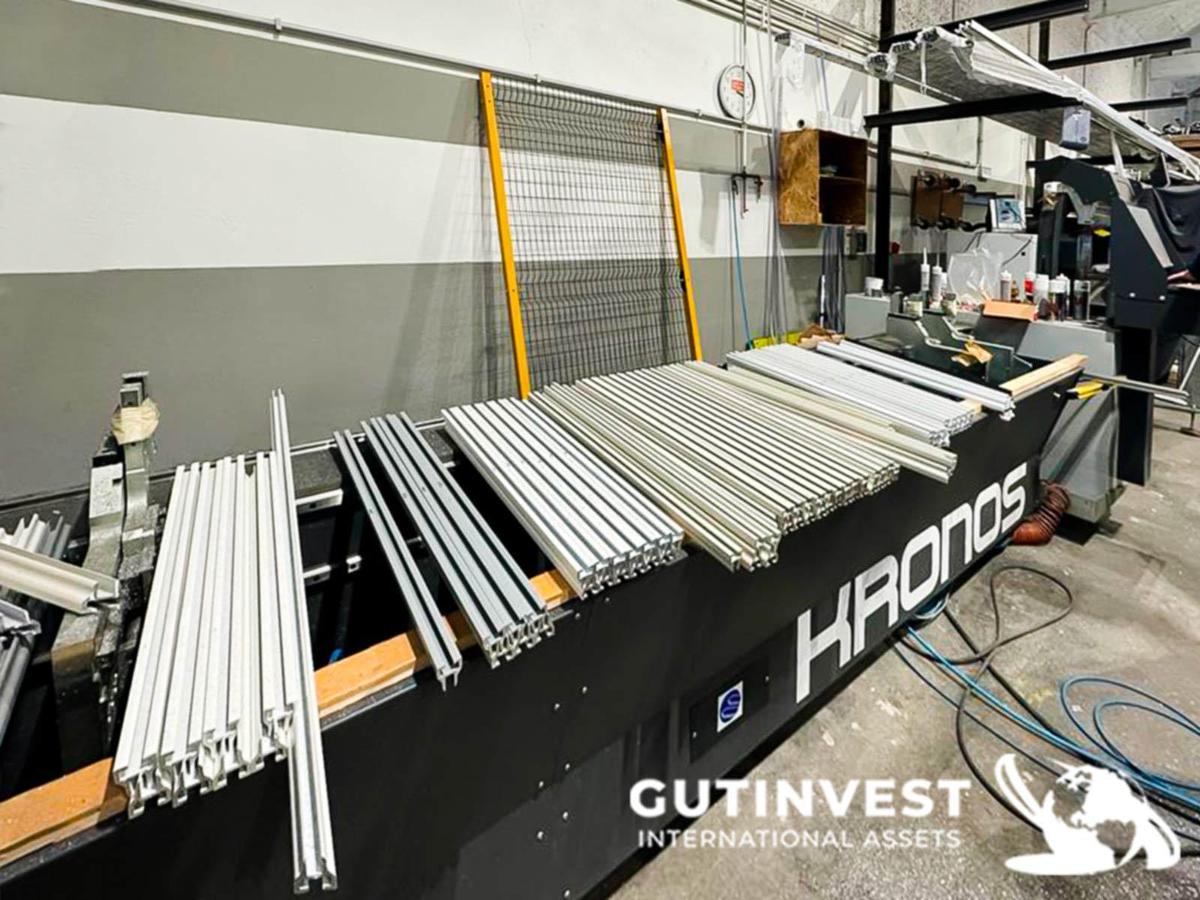

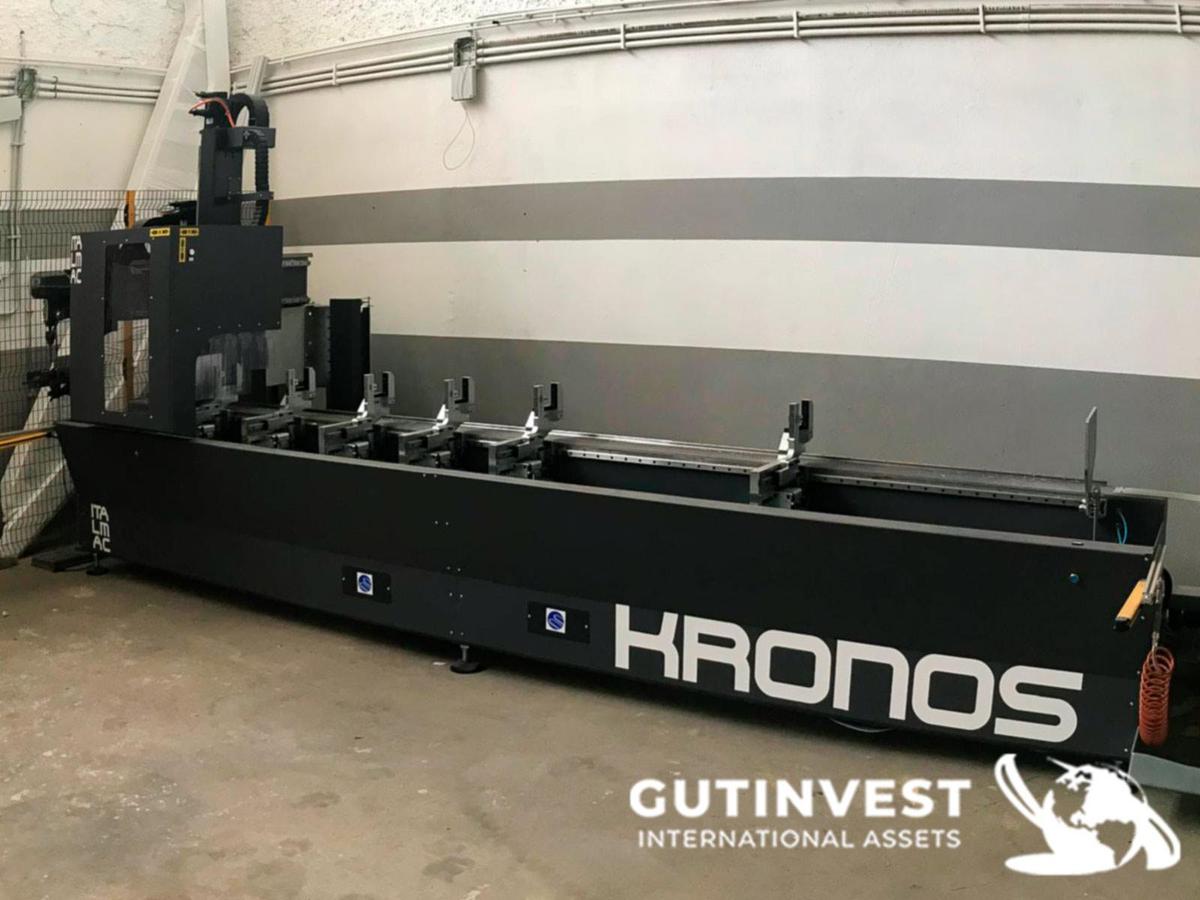

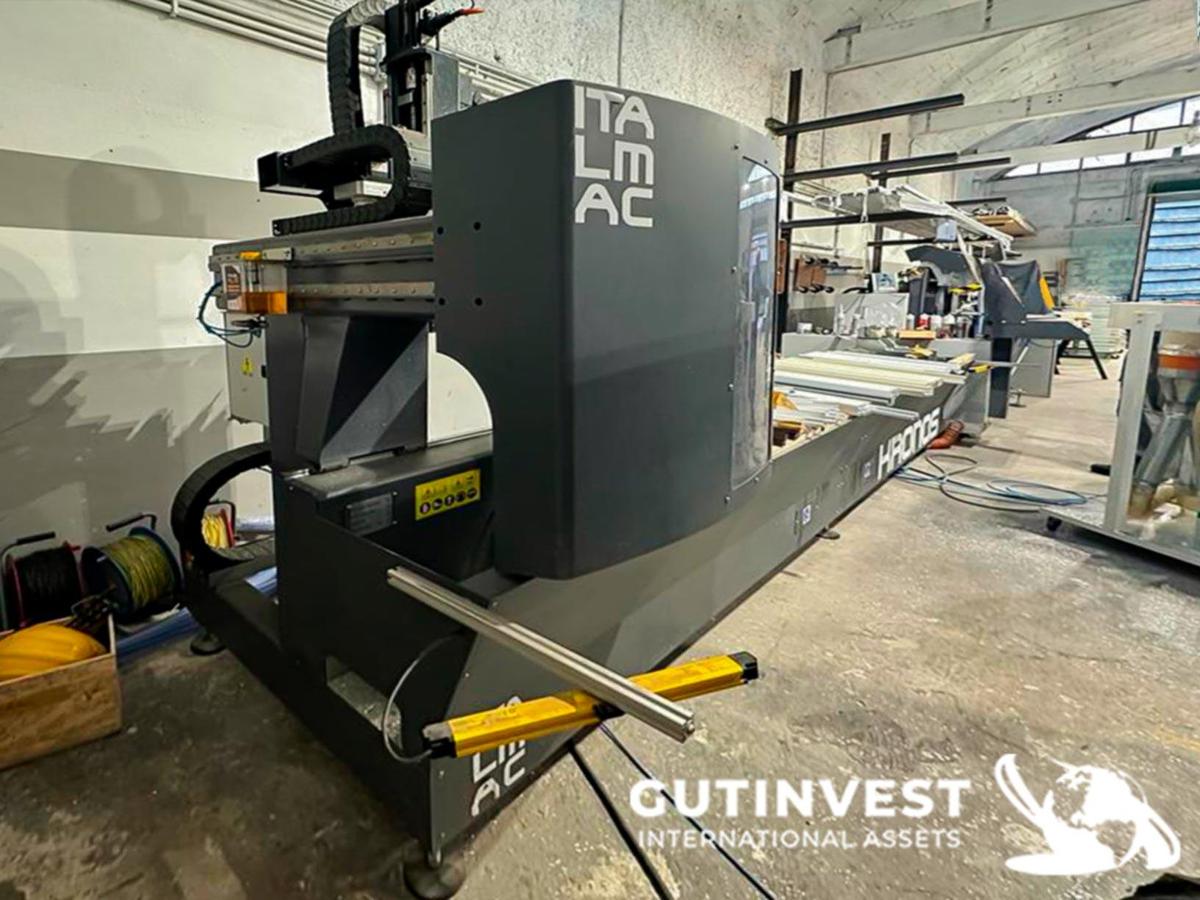

4-Axis CNC Machining Center for Aluminum and PVC

4-Axis CNC Machining Center for Aluminum and PVC 4-axis CNC machining center with moving column, designed for milling, drilling, tapping, and cutting bars or parts made of aluminum, PVC, light alloys in general, and steel. Equipment: • Main structure made of electro-welded, normalized, and CNC-machined steel. • Axis movement controlled by high-precision brushless motors. • 6.6 kW electrospindle in S1 mode, with ISO 30 taper, suitable for chip removal operations, including milling, drilling, and tapping. • 8-slot tool magazine located at the rear of the moving column. • Single work area. • Automatic movement of 6 jaws via the operating head. • Chip containment sheet. • Optoelectronic safety barrier system at the front of the machine. • Perimeter protection on 3 sides of the machine with electro-welded mesh. TECHNICAL DATA Axis travel: X: 4,050 mm, Y: 300 mm, Z: 230 mm ITALCAM software (included) + UNILINK
