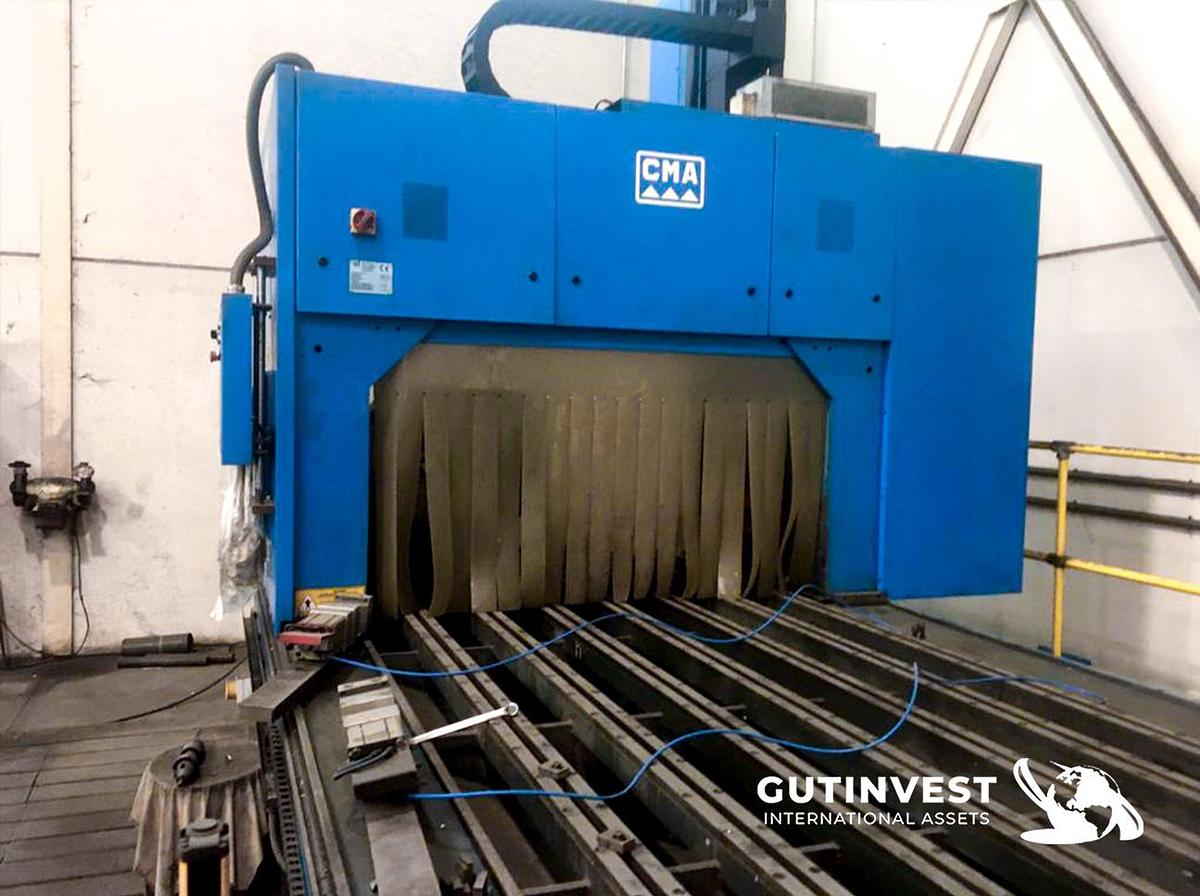

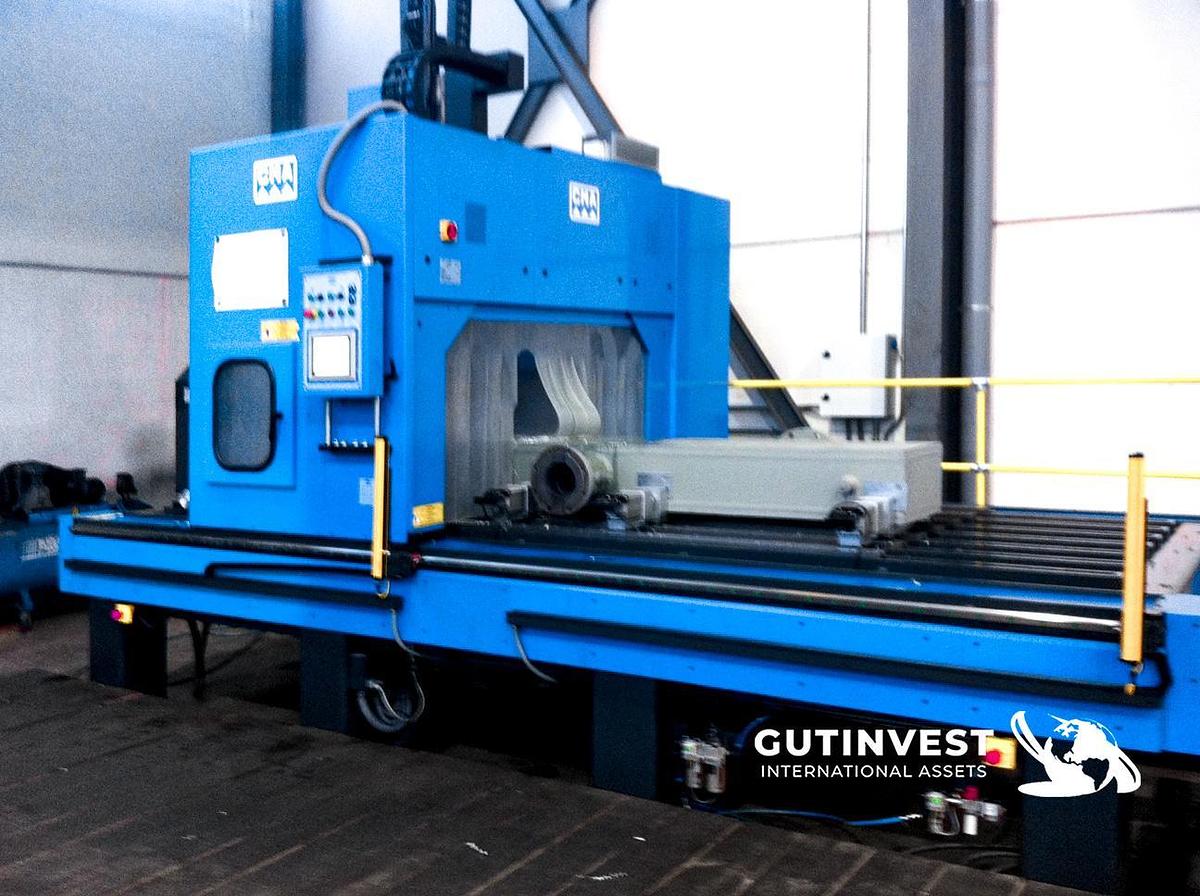

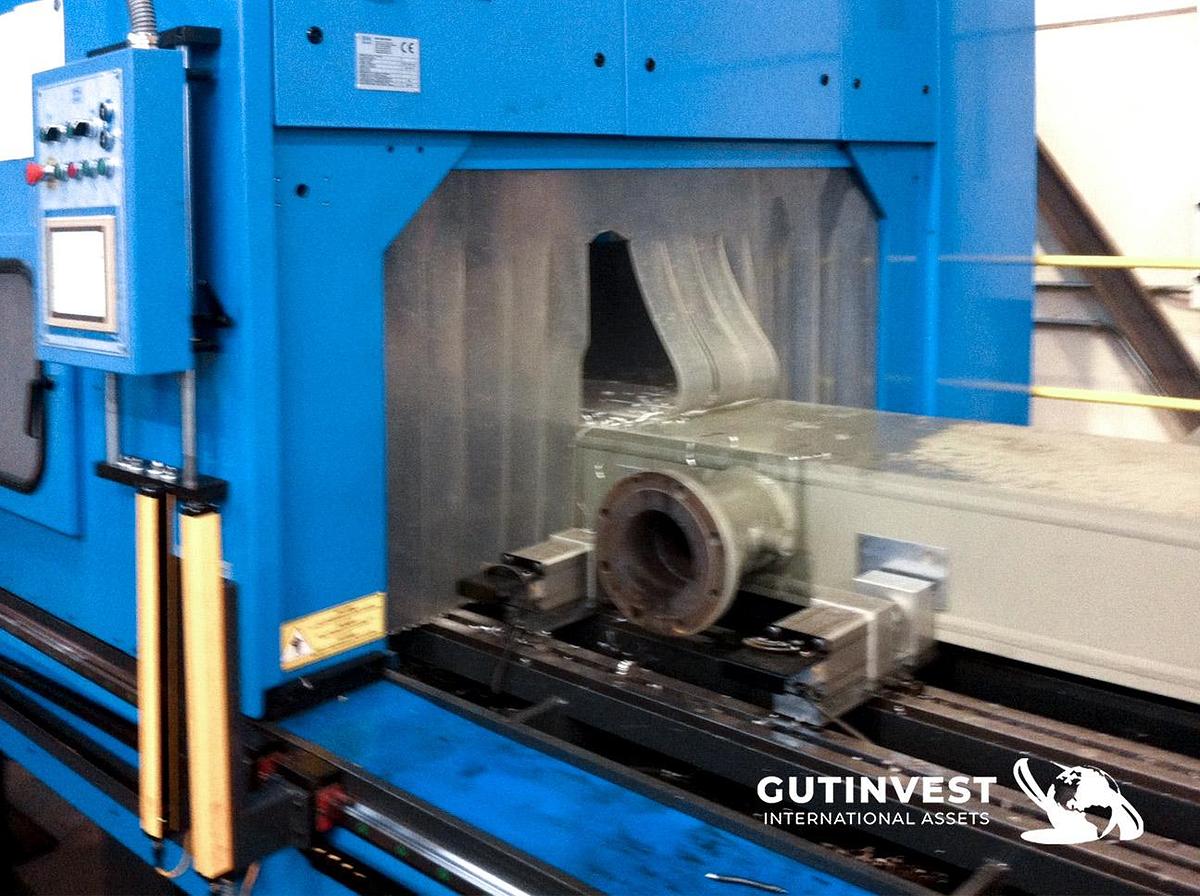

1 - Automatic coordinate drilling machine
Sold
1 - Automatic coordinate drilling machine
Location:
Description
Automatic coordinate drilling machine.
TRAVEL:
MAS-403-BT40
Adjustable TRAVEL SPEED:
AUTOMATIC TOOL LOADER:
Number of tools: 12 Maximum tool diameter: 70
MOTORS:
Spindle motor: ASINCRONO: 8.9 kW
Motor/spindle ratio: 1 : 1 and 4 : 1
X axis (2): Brushless: 0.75 kW
Y axis: Brushless: 0.75 kW
Z-axis: Brushless: 1.30 kW
CAPACITY:
GENERAL INFORMATION:
Specifications
| Manufacturer | CMA |
| Model | GRD50 CNZ 3012H |
| Year | 2012 |
| Condition | Used |
| Online Auctions | 2023-01-25 16:00:00 |
| Table dimensions | 3000 x 1200 mm. |
| Number and dimensions of the slots in T. | 7 x 215 x 20 x 3000 mm |
| Table height | 950 mm. |
| Lateral movement "X" | 3000 mm |
| Front movement "Y" | 1200 mm |
| Column travel. (Z) | 500 mm |
| Spindle/table distance | 160 - 660 mm |
| Maximum load weight | 2,000 kg/m2. |
| HEAD | Spindle cone |
| Speed in rpm. | 50 - 1000 / 1000 - 4000 Advances. |
| Maximum speed in X | 22 m/min |
| Maximum speed in Y | 22 m/min |
| Fast speed in Z | 4.2 m/min |
| Maximum tool length | 320 mm |
| Maximum weight per tool | 7Kg |
| Maximum total weight for full base | 84kg |
| Tool holder cone | MAS-403-BT40 |
| Strap | 45º |
| Required pressure | 6 bar |
| Z axis | Brushless |
| Cooling pump | 0.80 kW |

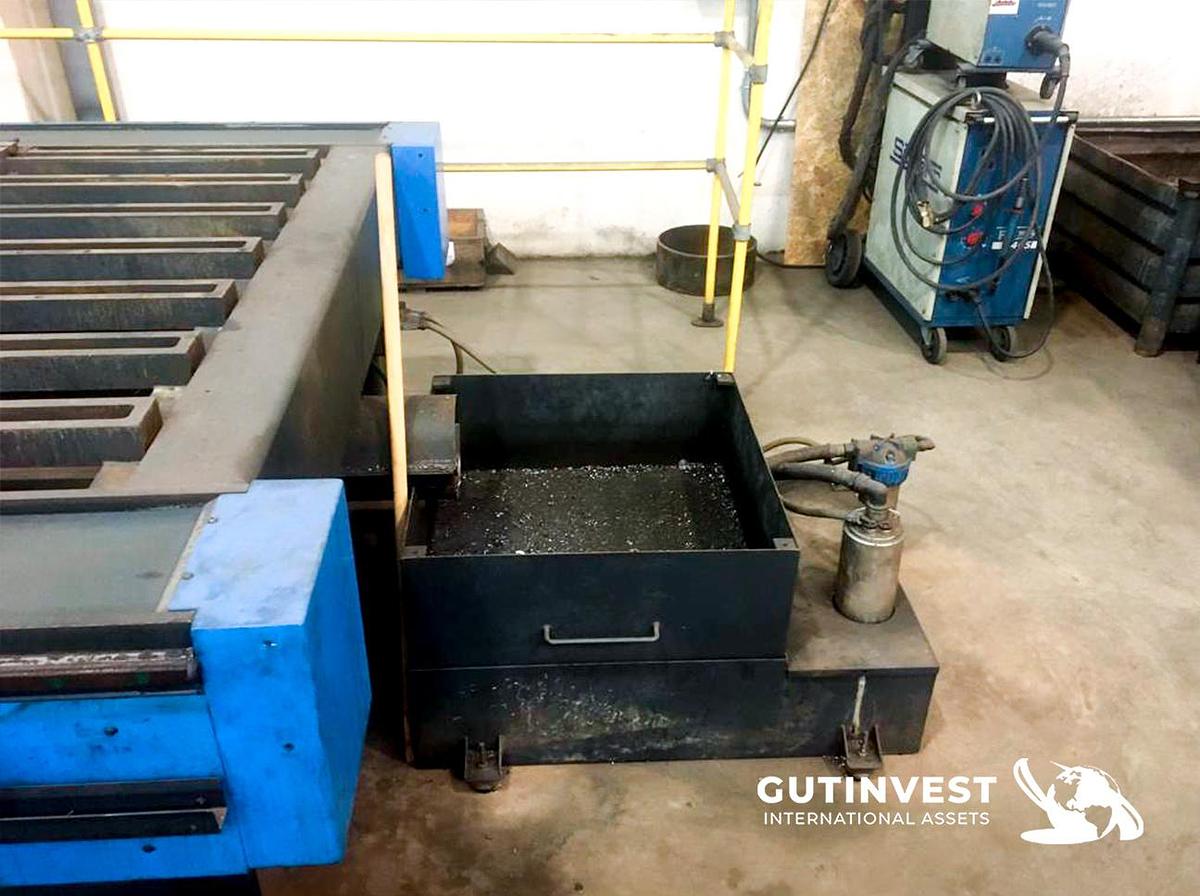

| Motor-reducer chip extractor | 0.18 kW |
| Steel drilling | ST60 Ø50 |
| Casting drilling | Ø50 |
| Steel threading | ST60 M30 |
| Cast threading | M30. |
| Machine dimensions | 460 x 335 x 240 cm |
| Net weight | 4000 kg. |
