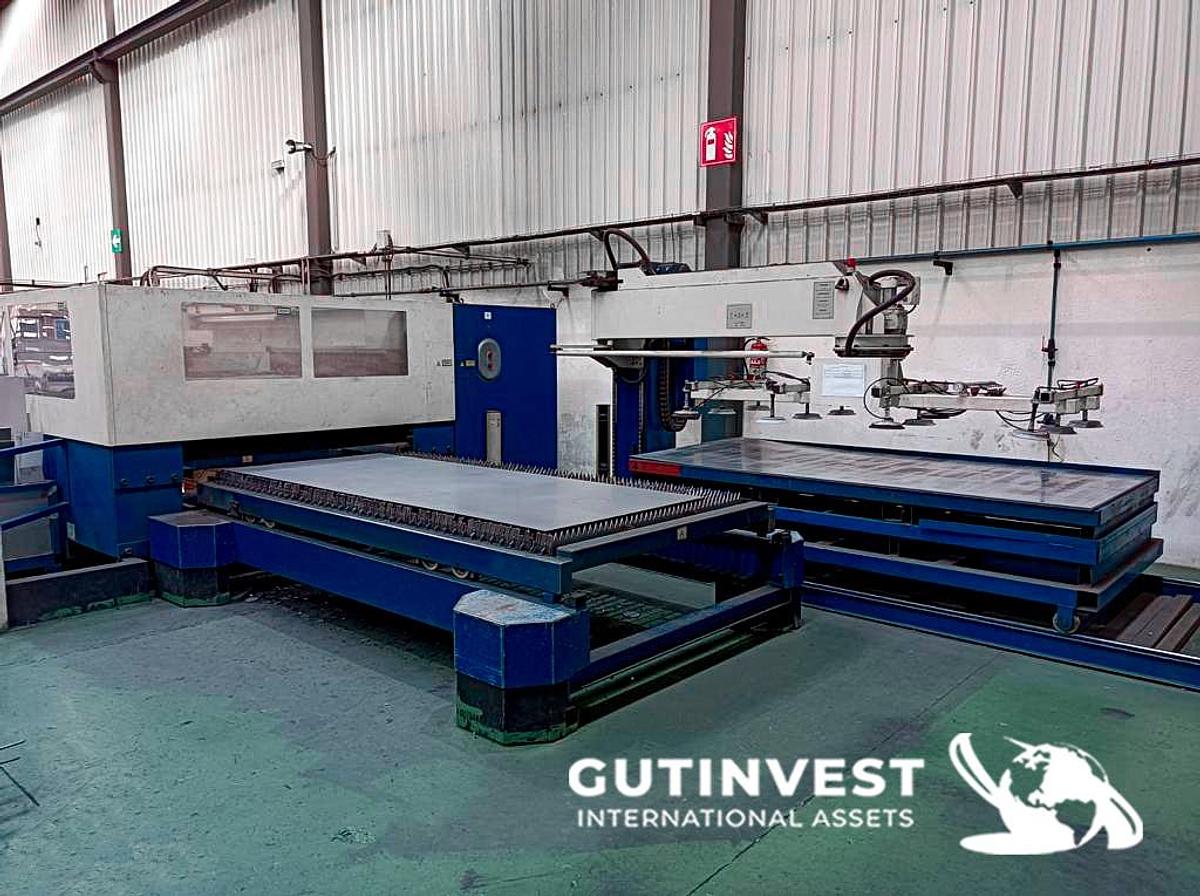

1 - CO2 laser cutting machine
Sold
1 - CO2 laser cutting machine
Location:
Description
Machine dimensions (length x width x height):
9800 x 5300 x 2000 mm

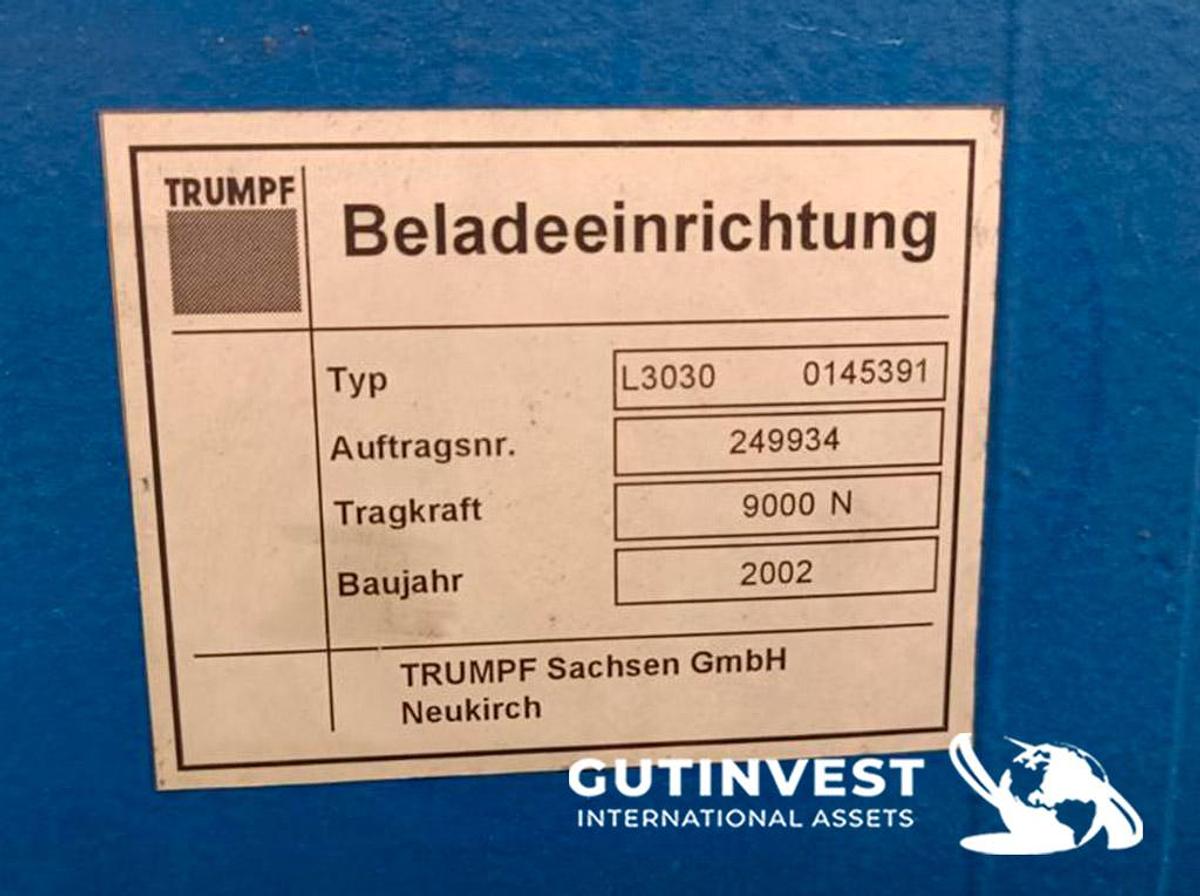

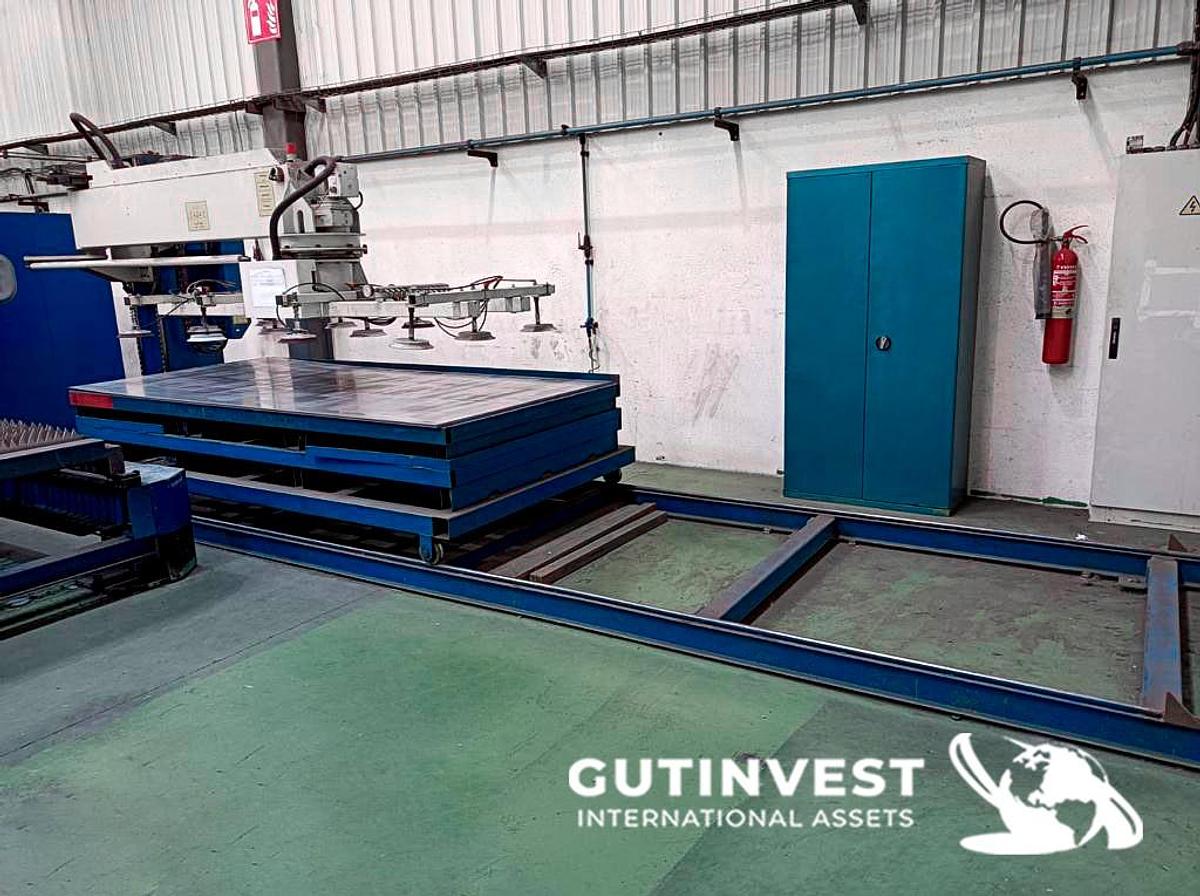

Includes sheet metal loading and unloading arm.
Specifications
| Manufacturer | Trumpf |
| Model | L3030 |
| Year | 2002 |
| Condition | Used |

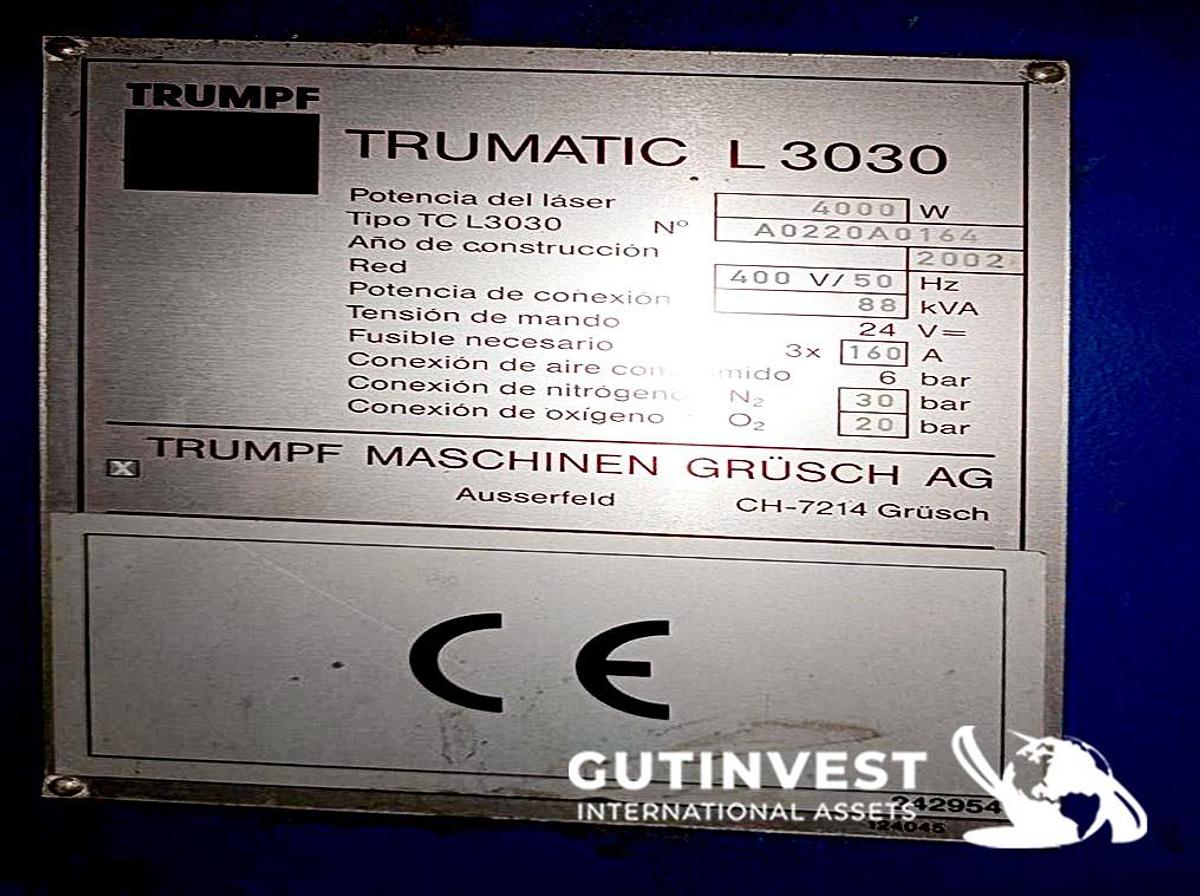

| Serial Number | A0220A0164 |
| Online Auctions | 2023-09-19 16:00:00 |

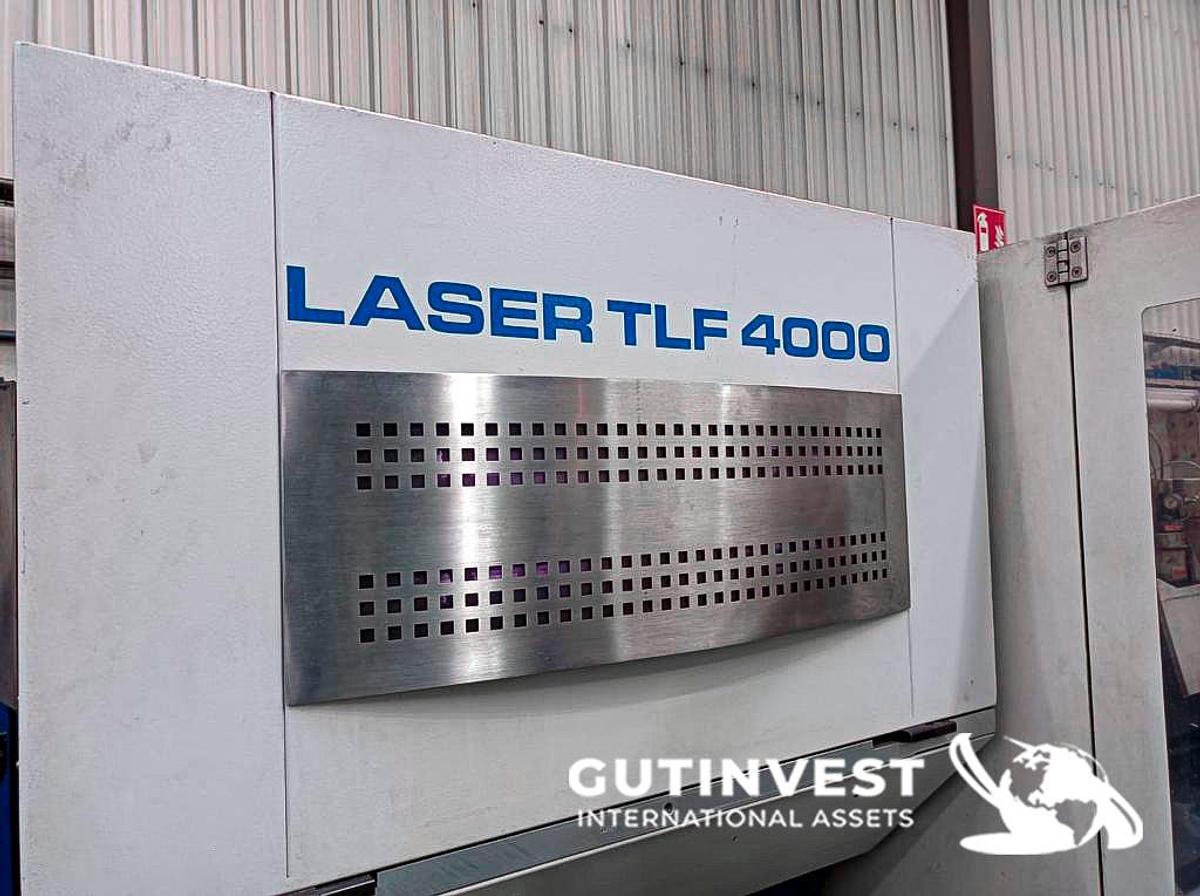

| CO2 laser cutting machine, power | 4 kW |
| Laser power | 4 kW |
| Laser type | CO₂ |
| Working range on X/Y/Z axis | 3000/1500/115 mm |
| Maximum travel on X/Y/Z axes | 3104/1580/117 mm |

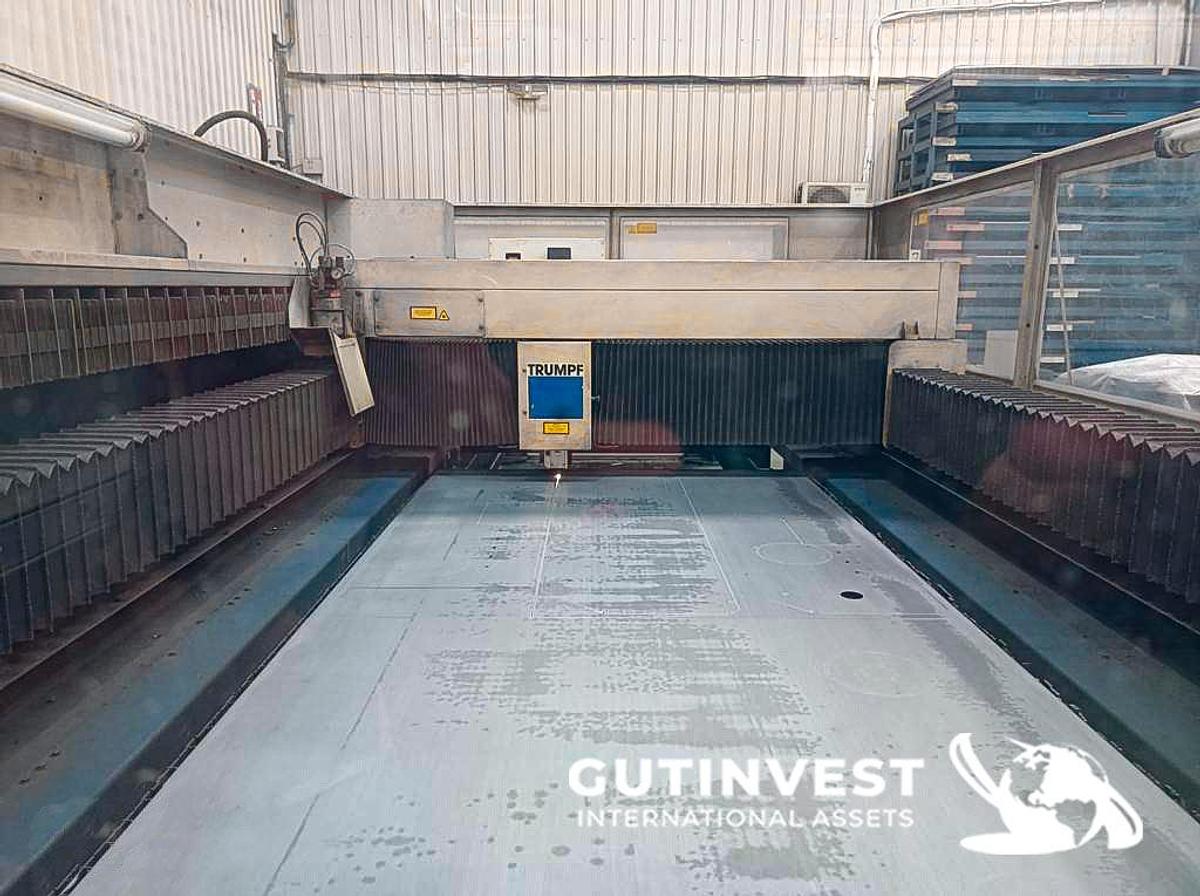

| Table dimensions - maximum blade size (L x W) | 3000 x 1500 mm |
| Maximum cutting thickness (black steel) | 20 mm |
| Maximum cutting thickness (stainless steel) | 12 mm |
| Maximum cutting thickness (aluminium) | 8 mm |
| X/Y axis positioning speed | 60 m/min |
| Simultaneous shaft positioning speed | 85 m/min |
| Power supply | 400 V/50 Hz |
| Approx. hours | ON - 50000 In work 35000 |
| Total weight | 11500 kg |
