1 - CNC machining center - Wood

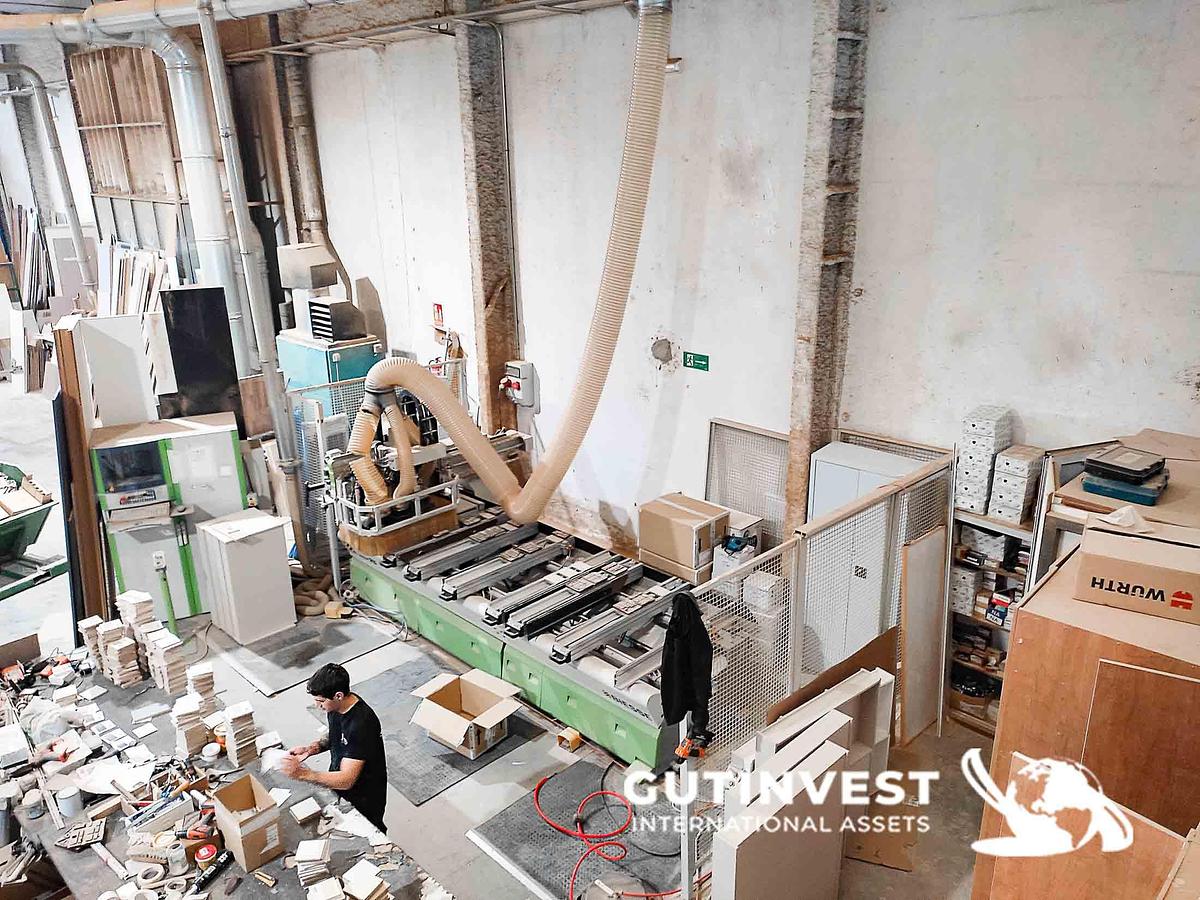

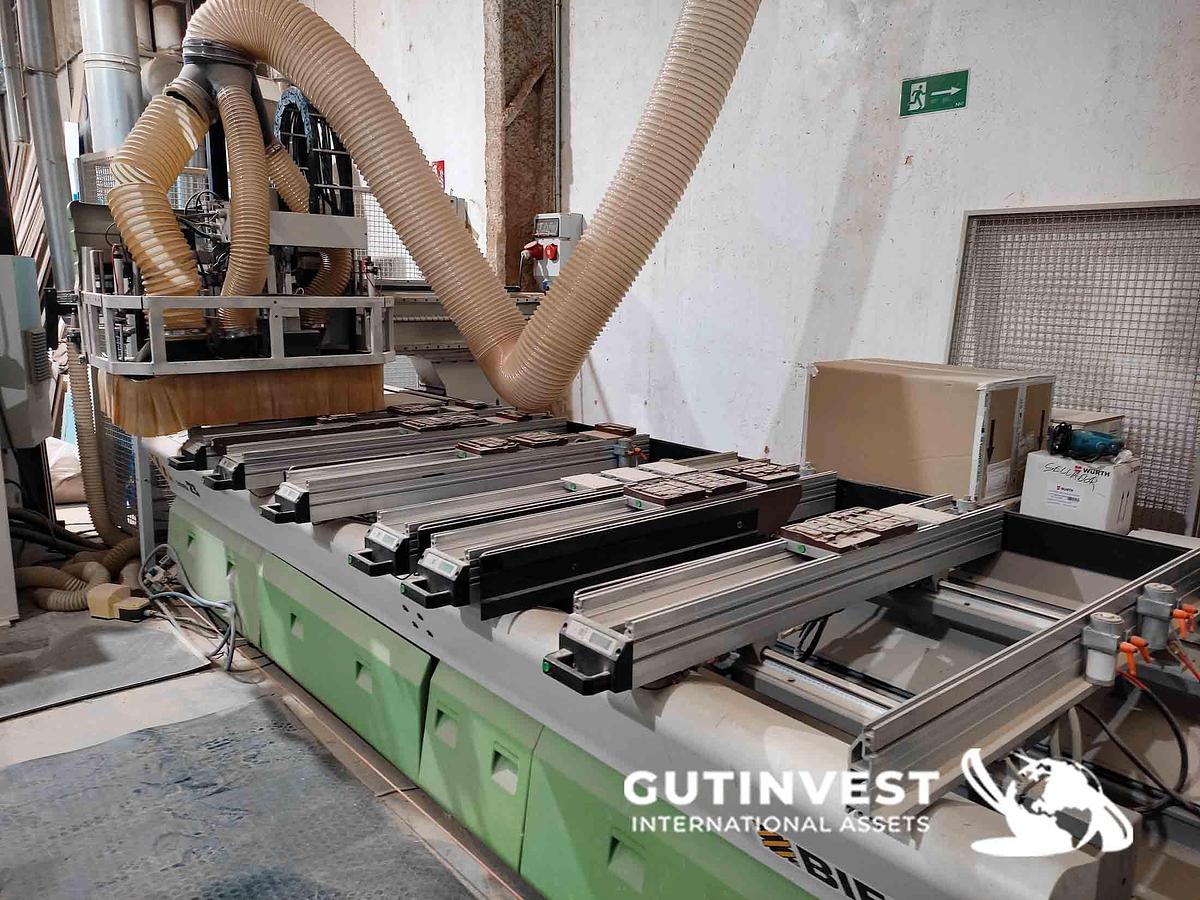

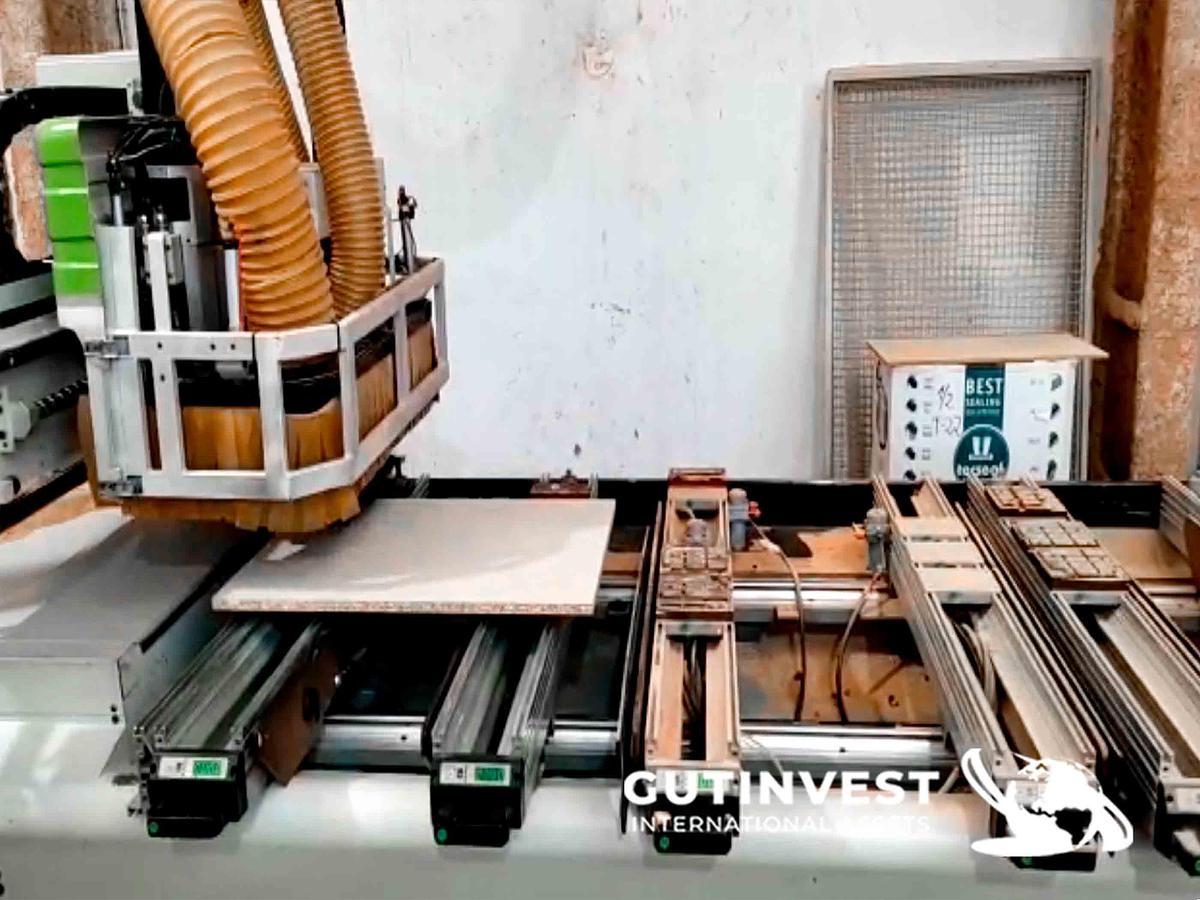

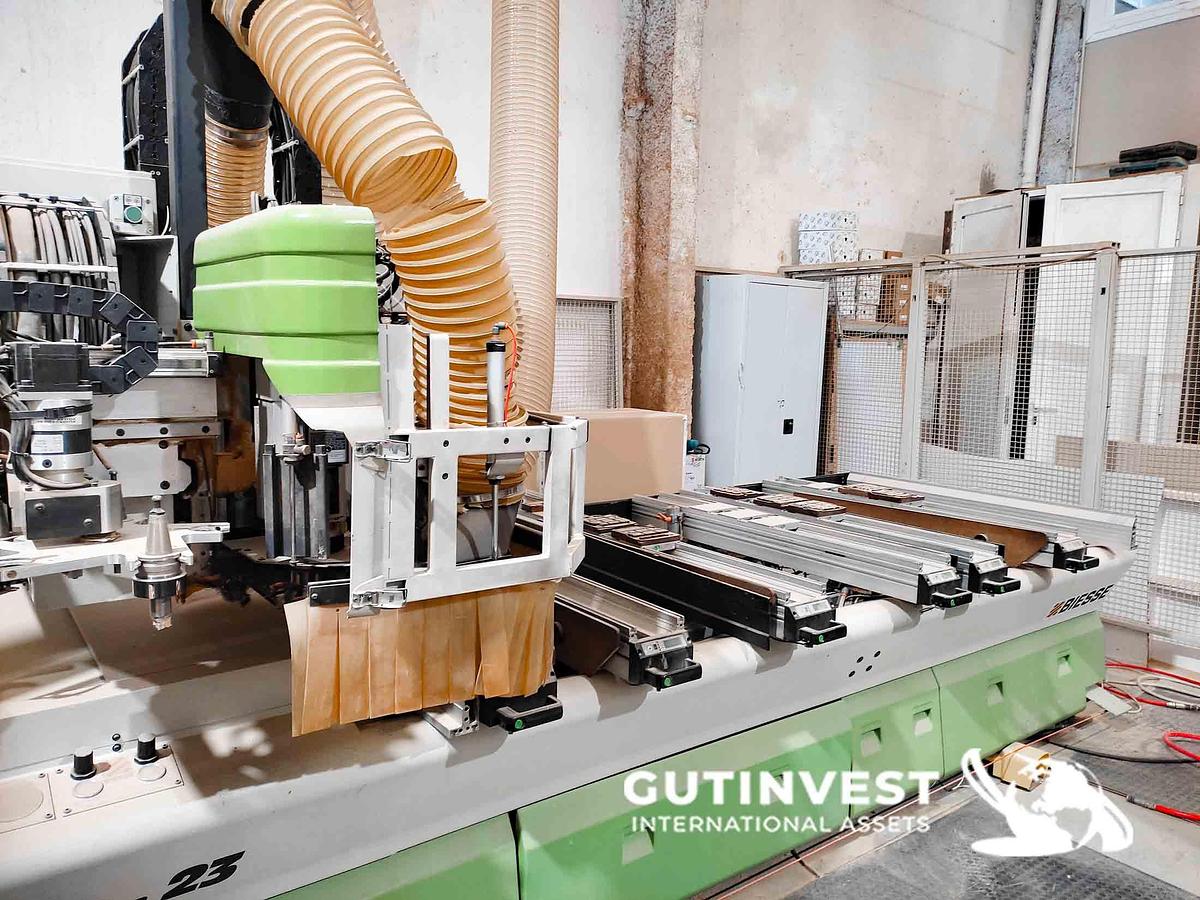

CNC machining center - Biesse Rover 23 Numerical control with Biesse Works software X-axis working field 2900 mm Y-axis working field 1300 mm Z-axis working stroke 150 mm 2 work fields Worktop with bars 6 adjustable suction cup support bars with display for viewing work quotas 6 bakelite pneumatic bars for plate elevation 3 manually adjustable suction cups for each bar with vacuum gasket for fixing the plate during machining. (In use 2 per plate) 1 vertical electro chuck with automatic tool change Automatic tool change system with 10 positions at the back of the machine Drilling head with spindles arranged as follows: - 5 vertical on the X-axis - 5 vertical on the Y-axis - 4 horizontal on the X-axis - 2 horizontal on the Y-axis Integrated blade of 120 mm in diameter for the execution of grooves Front carpet with protection and security system Perimeter guard Automatic lubrication system Air conditioning for cooling and cleaning of the machine Control 100 m3 / h Vacuum pump.
