2 - Automatic grinding machine

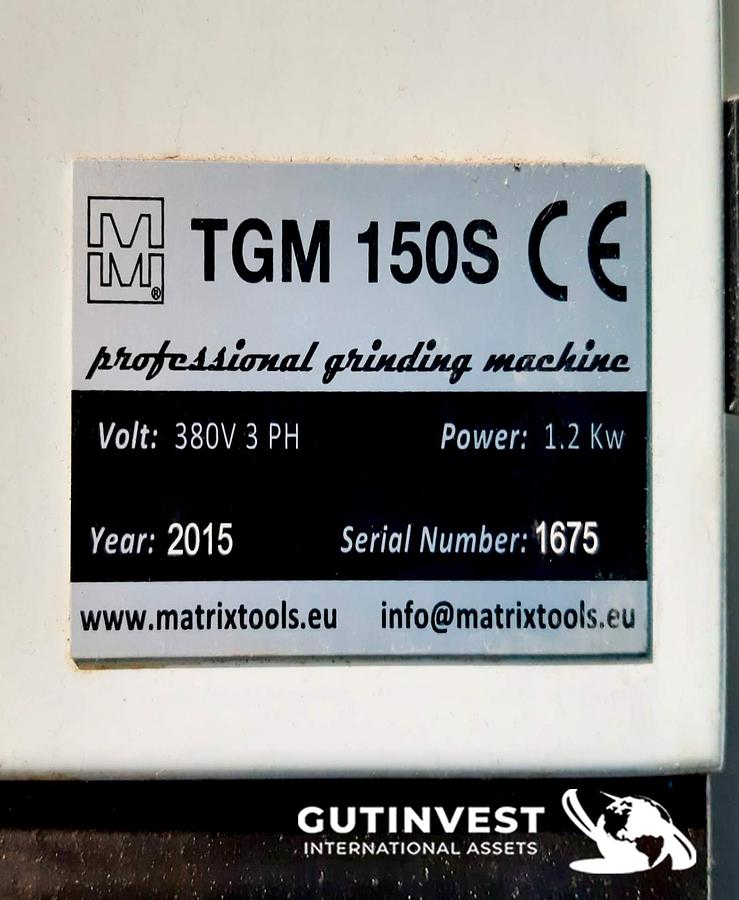

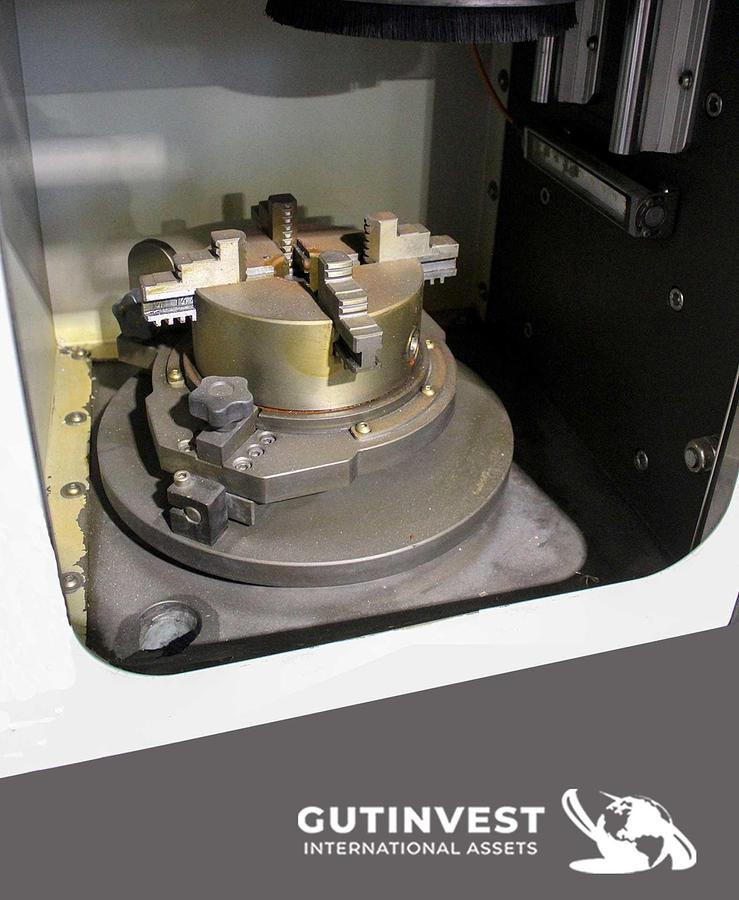

Automatic grinding machine. TGM-150S grinding machine with electrical drive, designed to grind any punching tool in hardened steel. Maximum grinding diameter: 180 mm. Maximum grinding height: 230 mm. Maximum grinding speed: 0.2 mm/min. Fast speed: 600 mm/min. Power supply: 380V 3 PH 50 HZ ±10% (0.75 Kw) PART SUPPORT: Swivel base Diameter 310 mm Inclination. Mandrel 10 degrees Rotary motor Power supply 380V 3 PH 50 HZ ±10% (0.18 Kw) COOLING: Recovery capacity 22 l Pump flow rate 60 l/min Filter TR160018-C Pump power supply 380V 3 PH 50 HZ ±10% (0.09 Kw) RECTIFIED CBN Grinding wheel 150 x 5 x 4 mm (F680WV00). POWER SUPPLY: Voltage 380V 3 PH 50 Hz ±10% Power: 1,2Kw. DIMENSIONS AND WEIGHT Height 1700 mm Width 600 mm Depth 450 mm. For more detail, please see Attached file.
