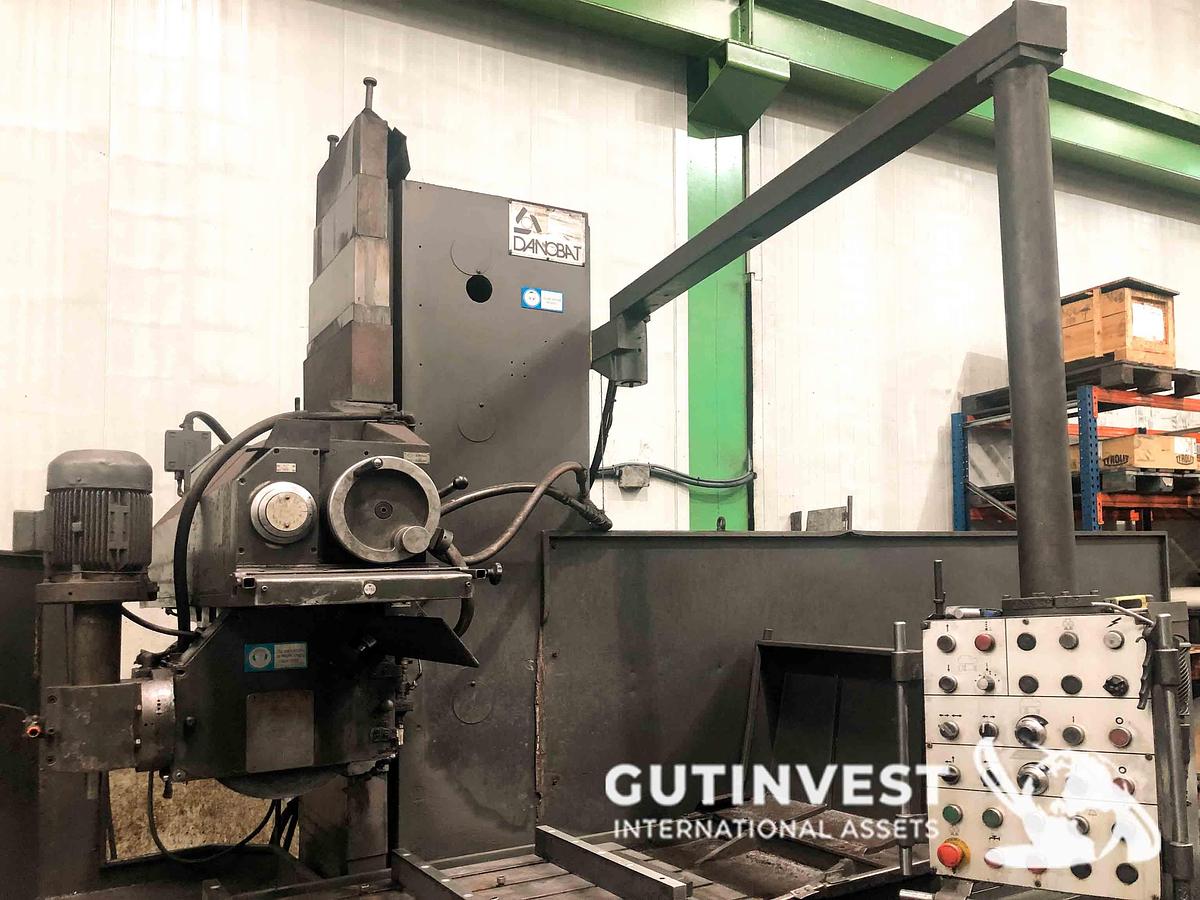

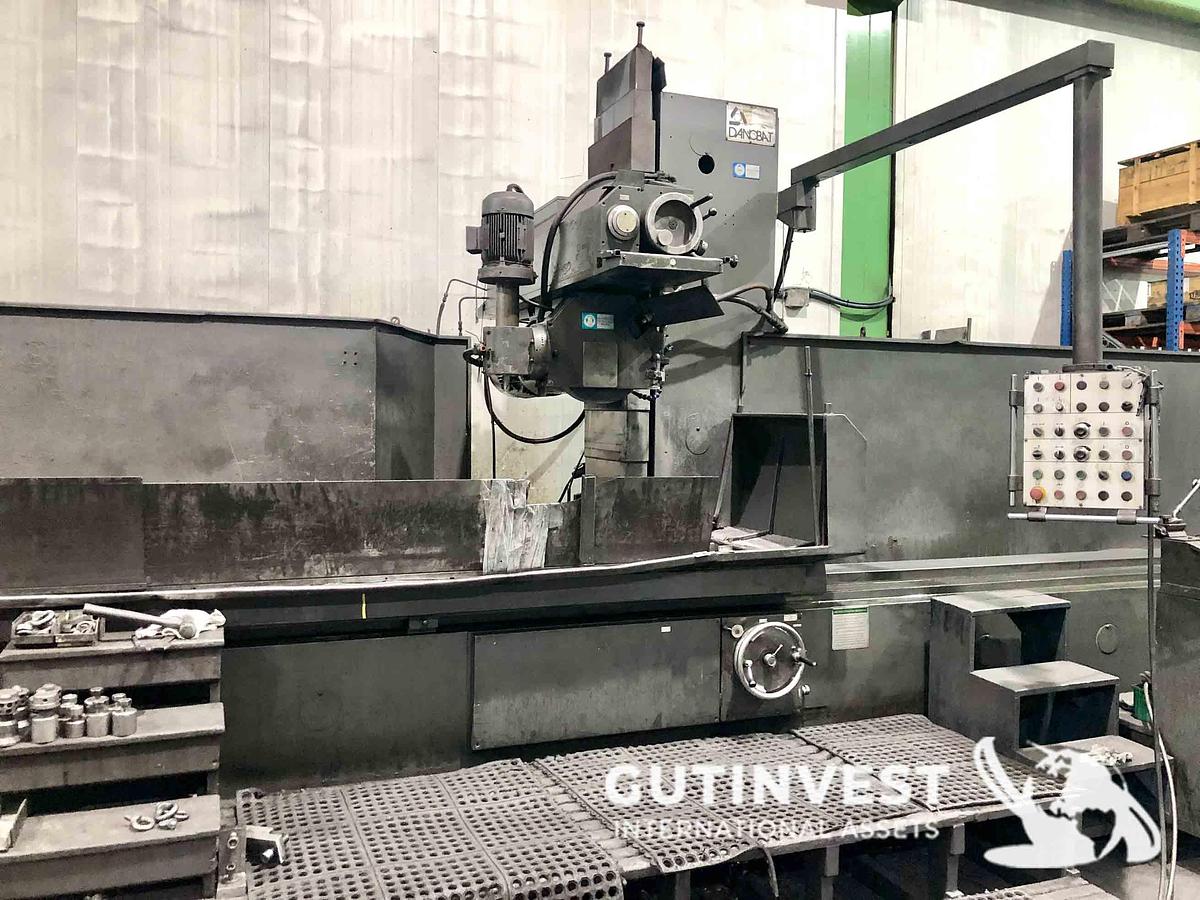

1 - Surface grinding machine

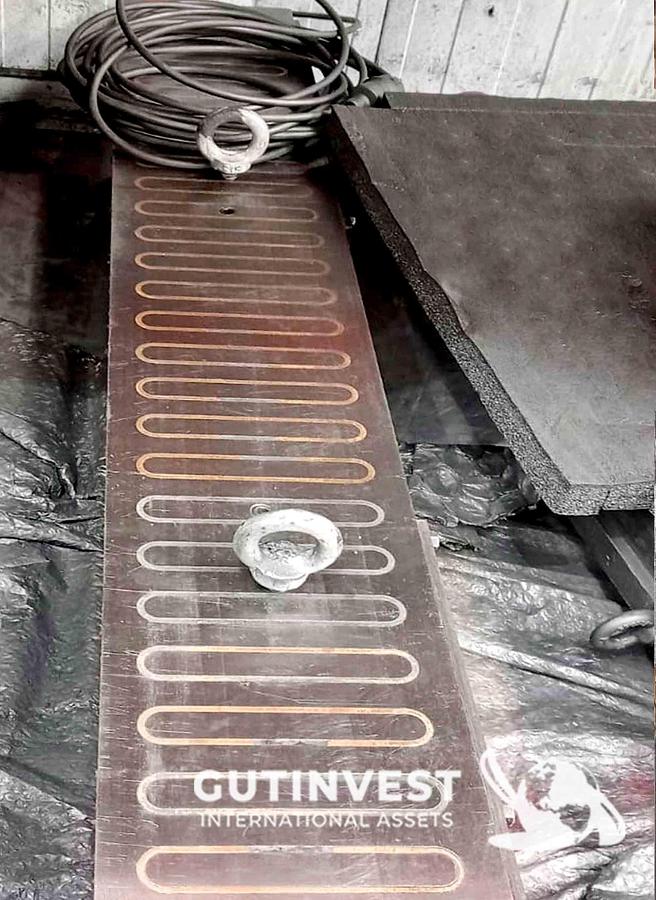

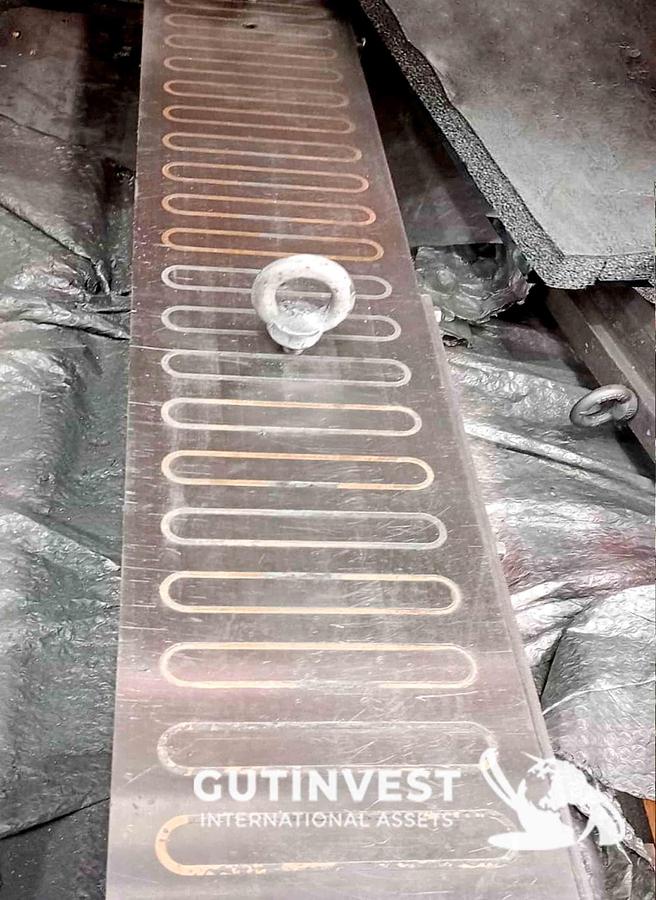

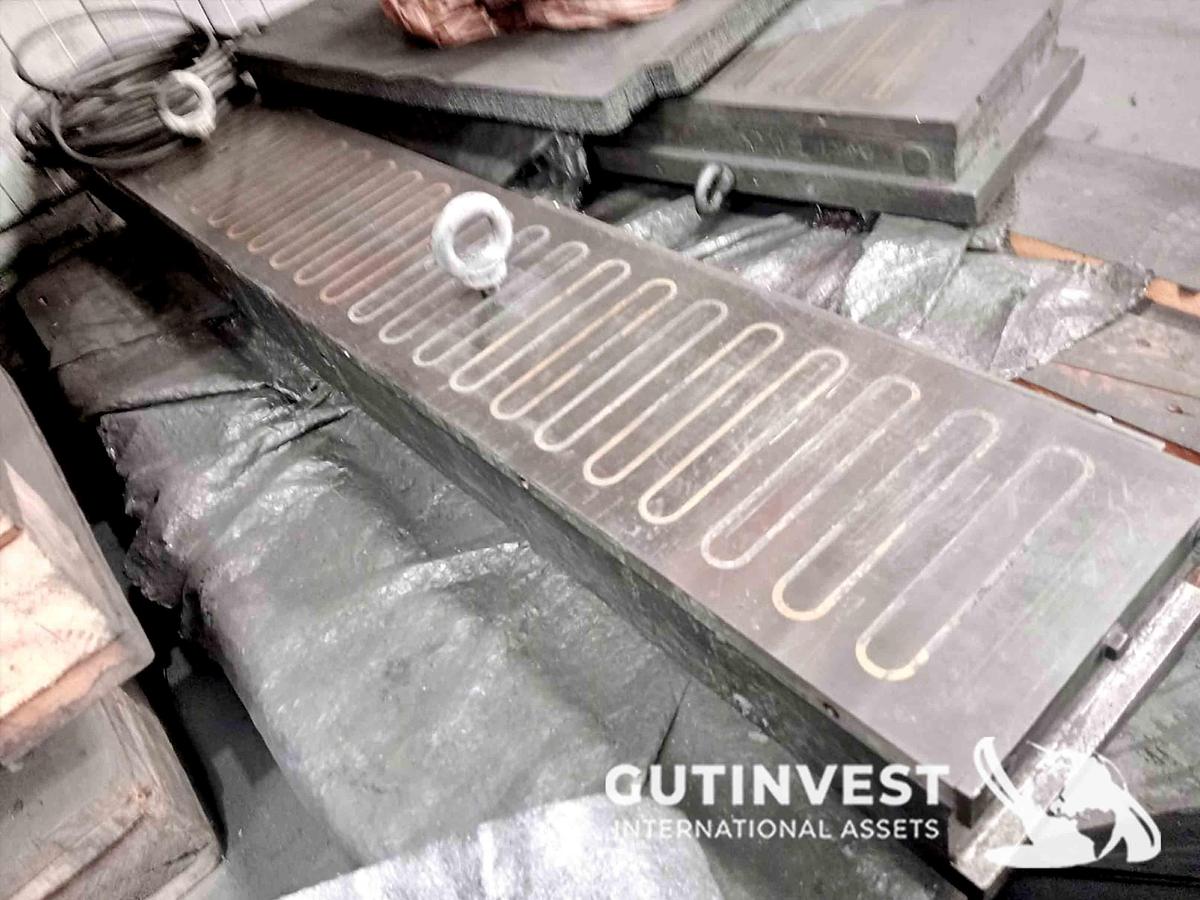

Surface grinding machine. Maximum rectifiable length: 3,200mm, maximum rectifiable width: (with 100mm wheel): 900mm, (with 50mm grinding wheel): 850mm, maximum rectifiable height: 600/1,000mm. Table: table usable surface: 3200/800mm, longitudinal course: 3,300mm. Grinding wheel: total transverse stroke: 800mm. Grinding wheel: Diameter x hole: 500/203mm, width: 50 (100)mm, wheel revolutions: 1,000rpm, cutting speed : 26m/sec. Power: 24kW. External dimensions of the machine: Length: 7000 mm, Height: 3000 mm, Width: 2800 mm. Approx. machine weight: 16.000Kg. It includes a magnetic table 1530 m long, 200 mm wide and 105 mm high.
