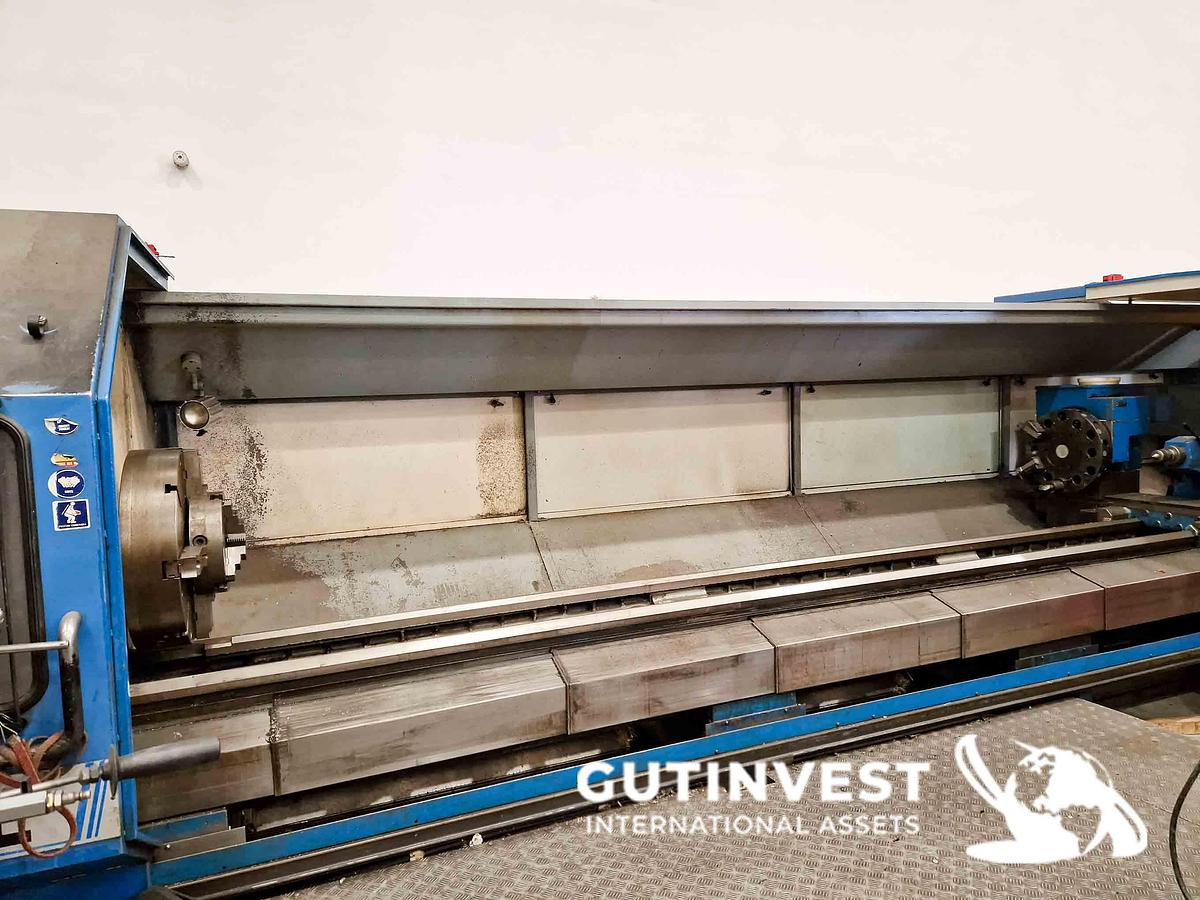

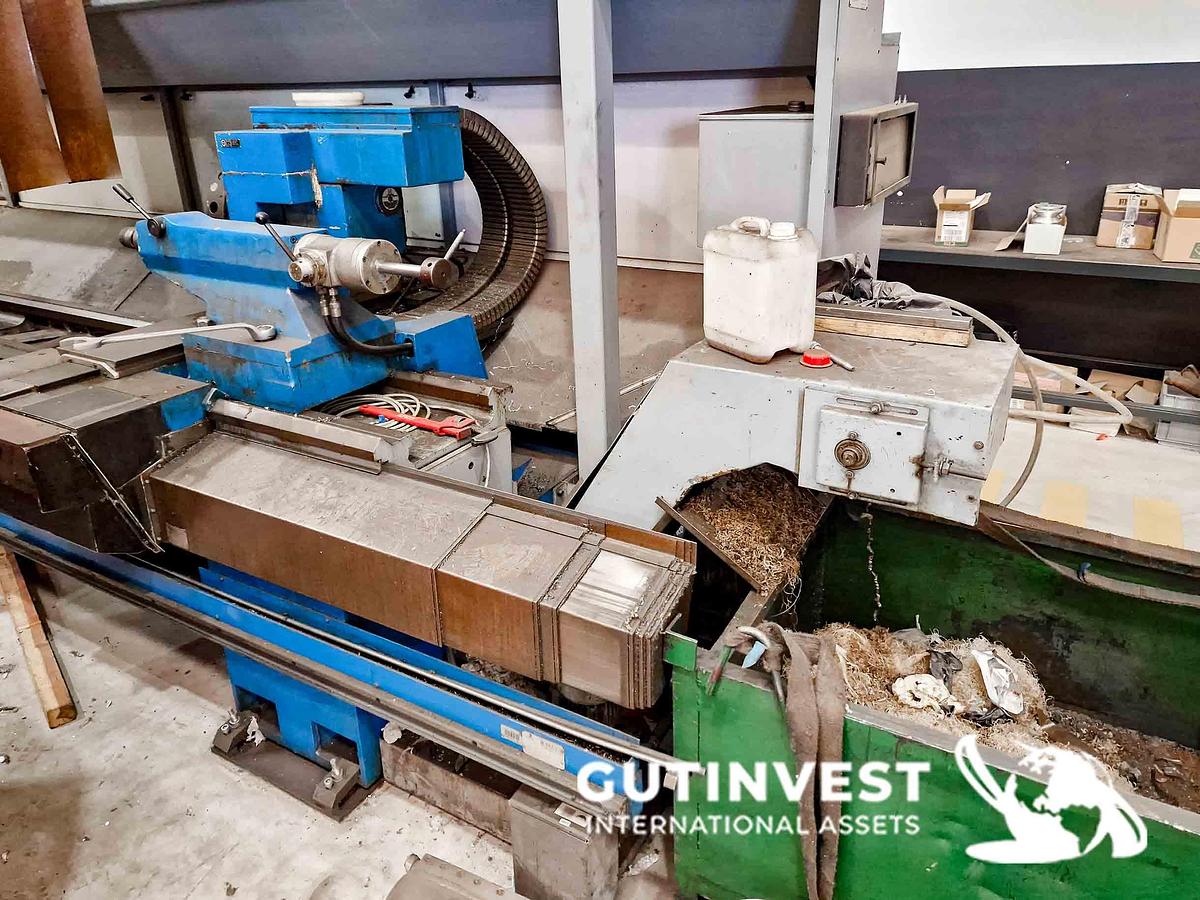

1 - CNC lathe - 4 meters

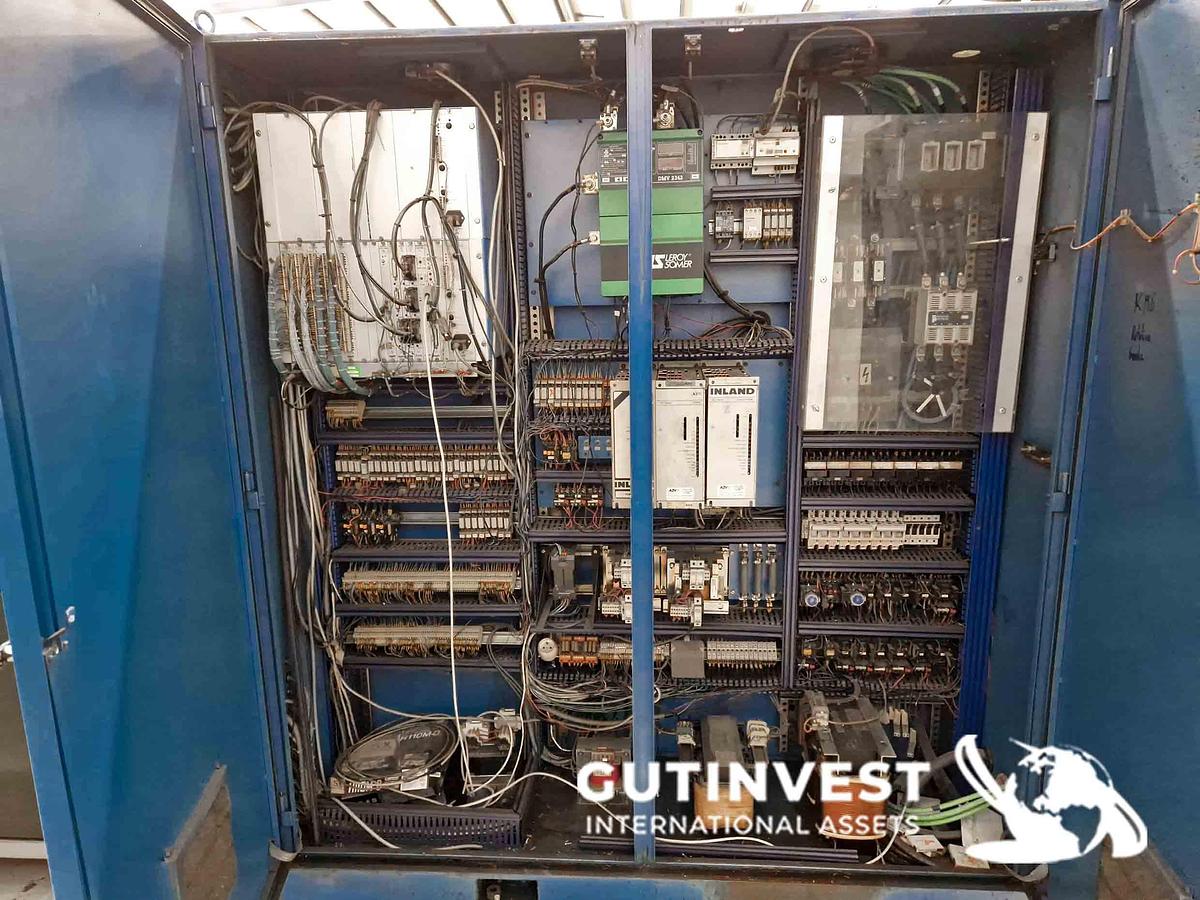

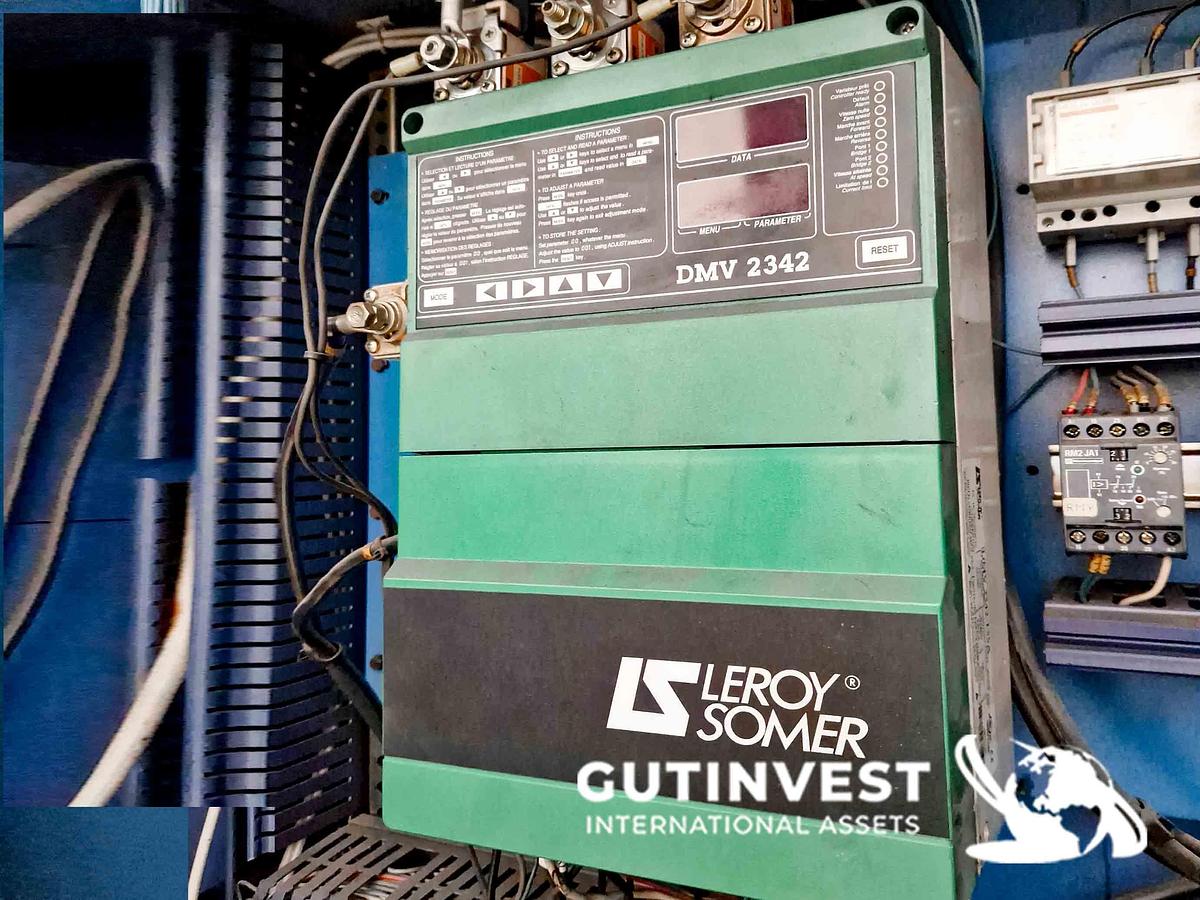

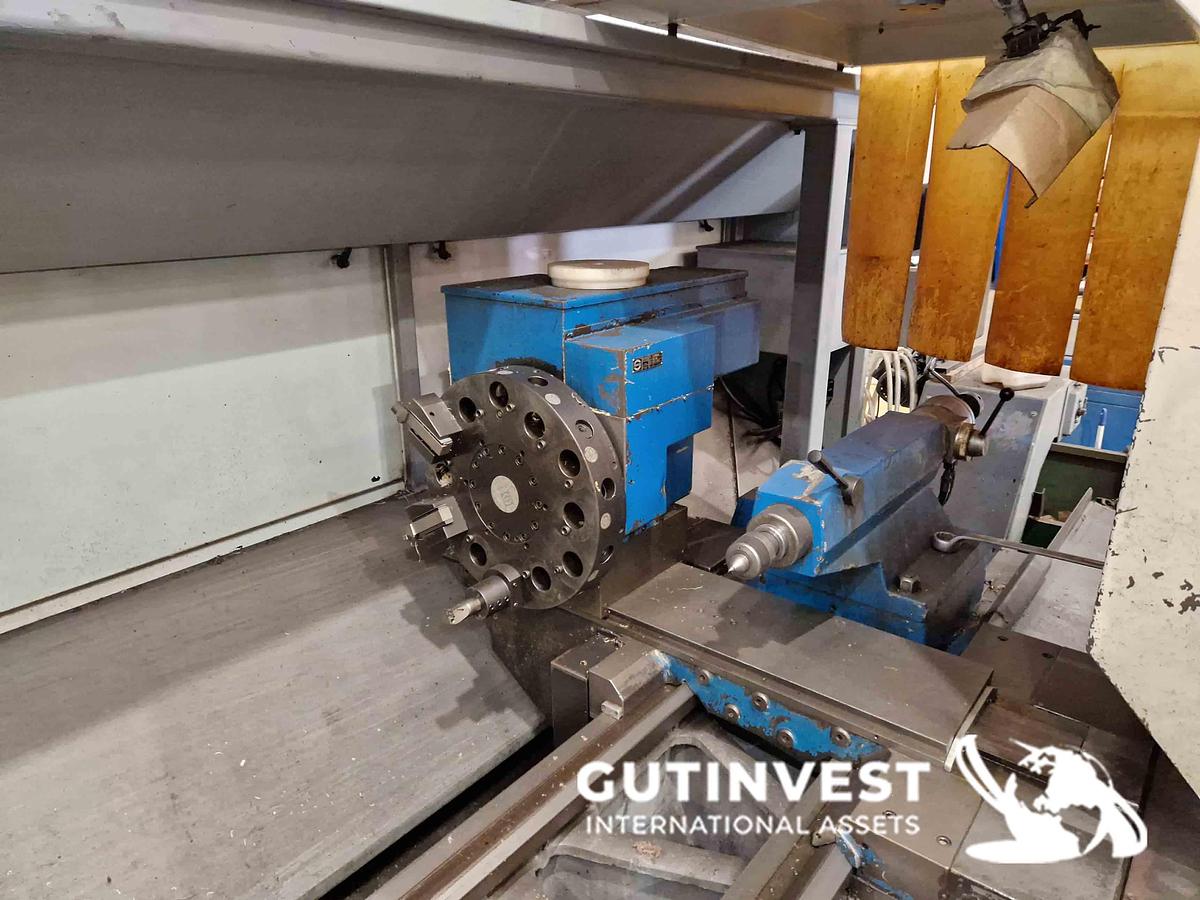

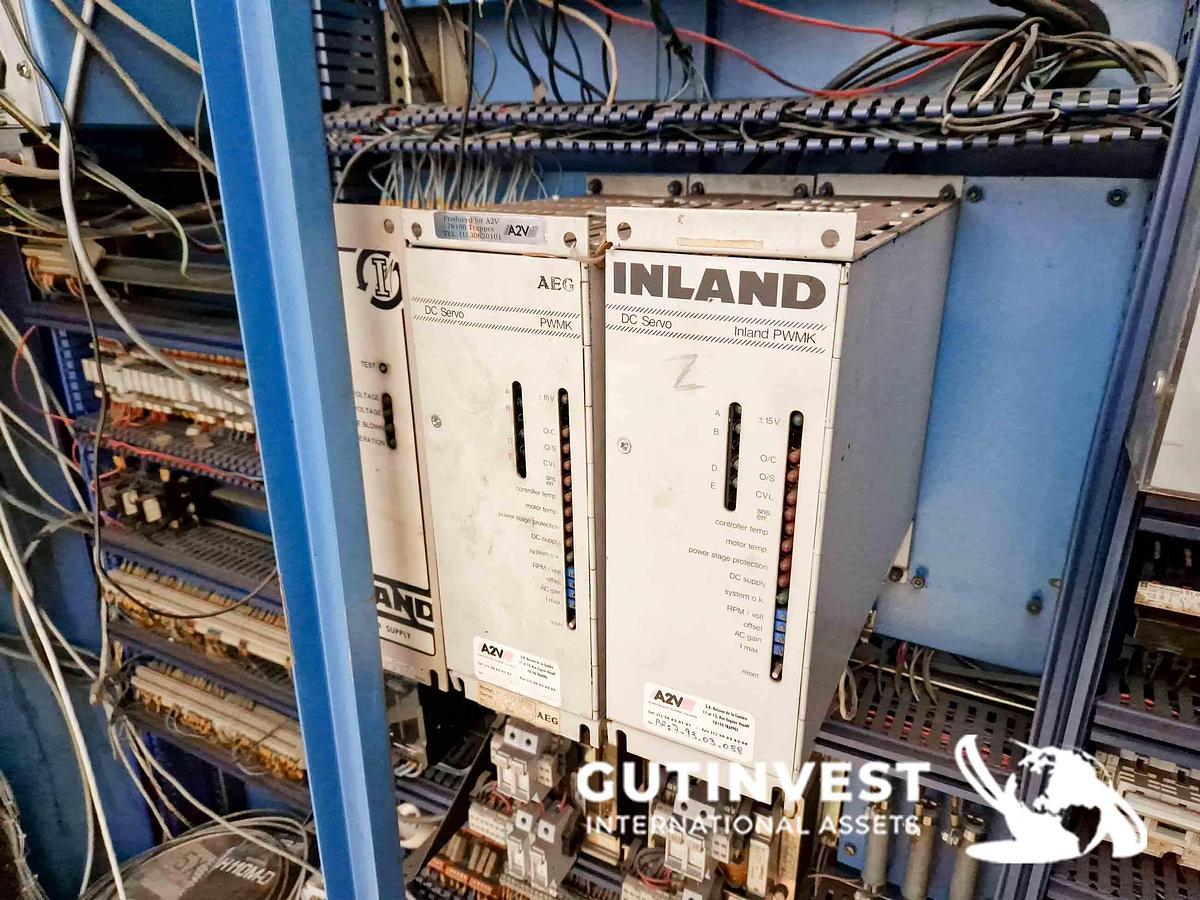

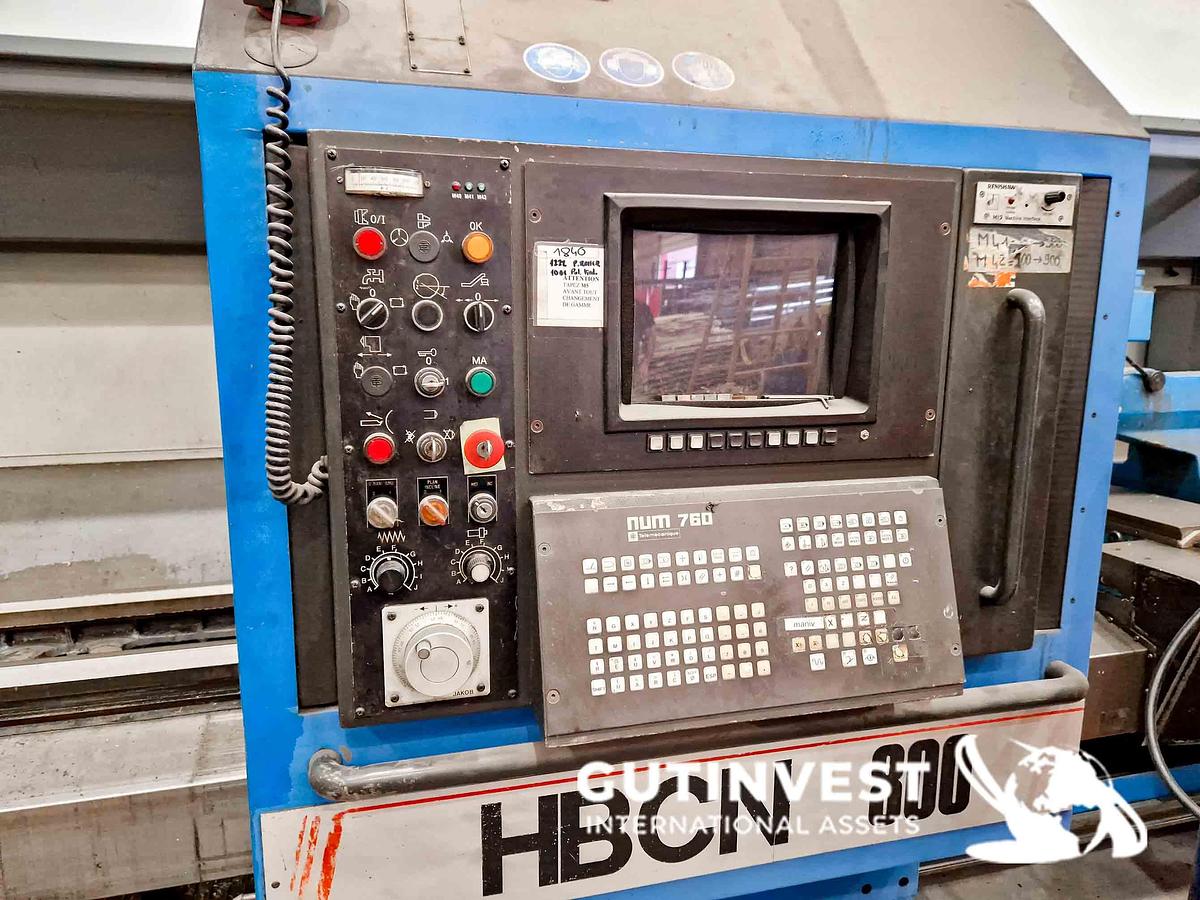

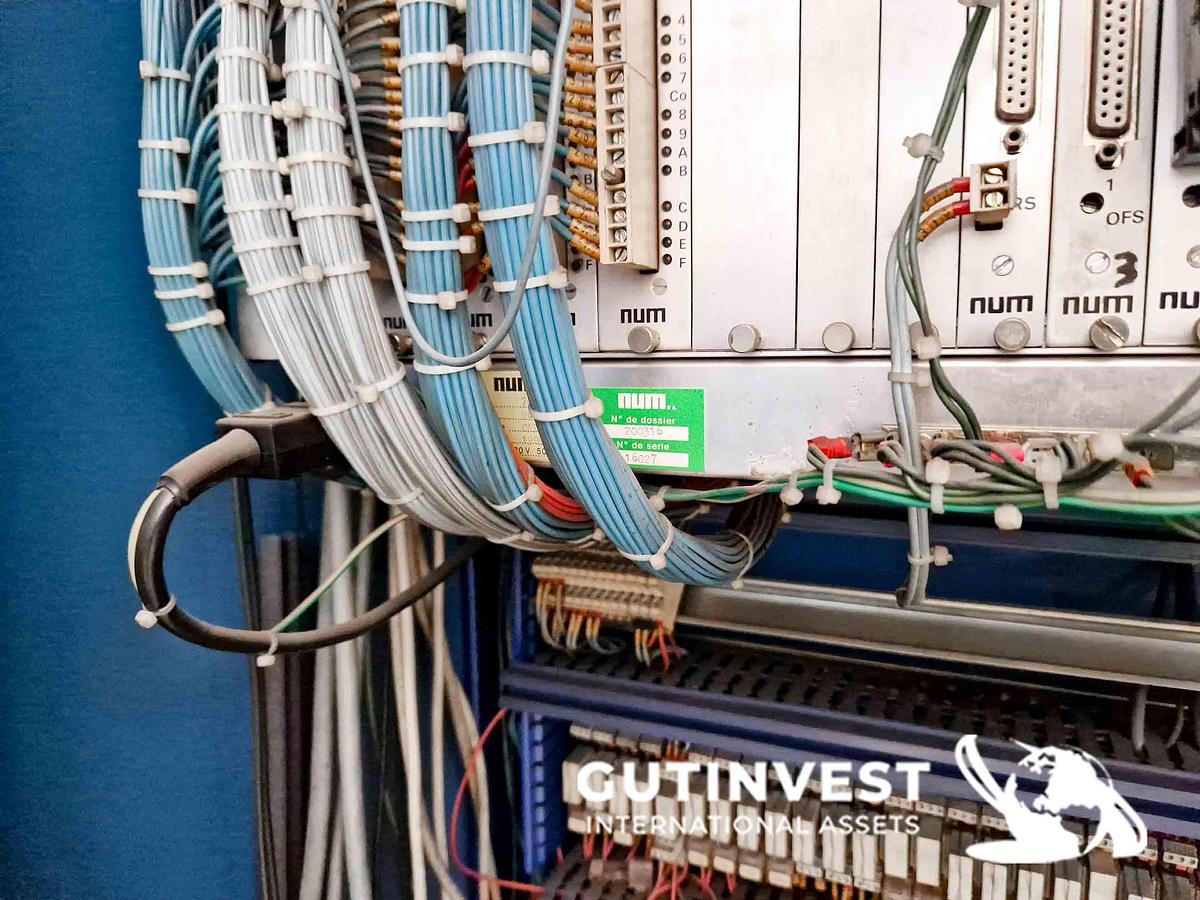

CNC lathe - 4 meters.  Max. turning length: 4200mm. Max. turning diameter: 710 mm. Max. diameter allowed on bed: 490mm. Length between centers: 4300mm. CNC Type: NUM. Number of tools on the turret: 12. Rotation speed: 900 rpm. Power of the spindle motor: 56kW (Theoretical) Repair pending: Observations: Mechanically the Z axis is not fine, it is not possible to turn a cylinder and leave it homogeneous in the measurement, the tool oscillates and varies the measurement by a few tenths. In addition, the Leroy Somer variator that appears in some photos is damaged, so the torque of the turntable cannot be controlled and the lathe loses power quickly. The electronics are the original, very old. It is possible to connect to the lathe by cable using RS-232 serial protocol.
