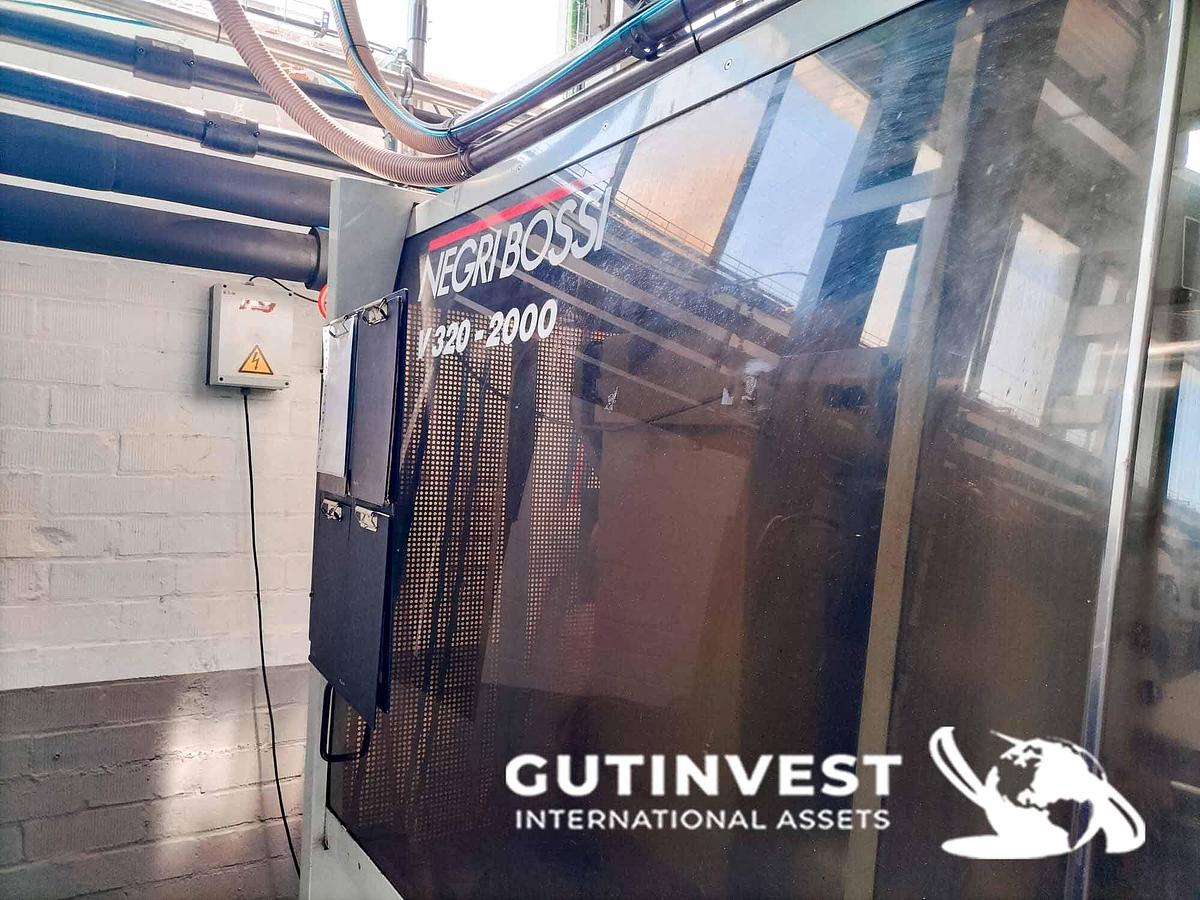

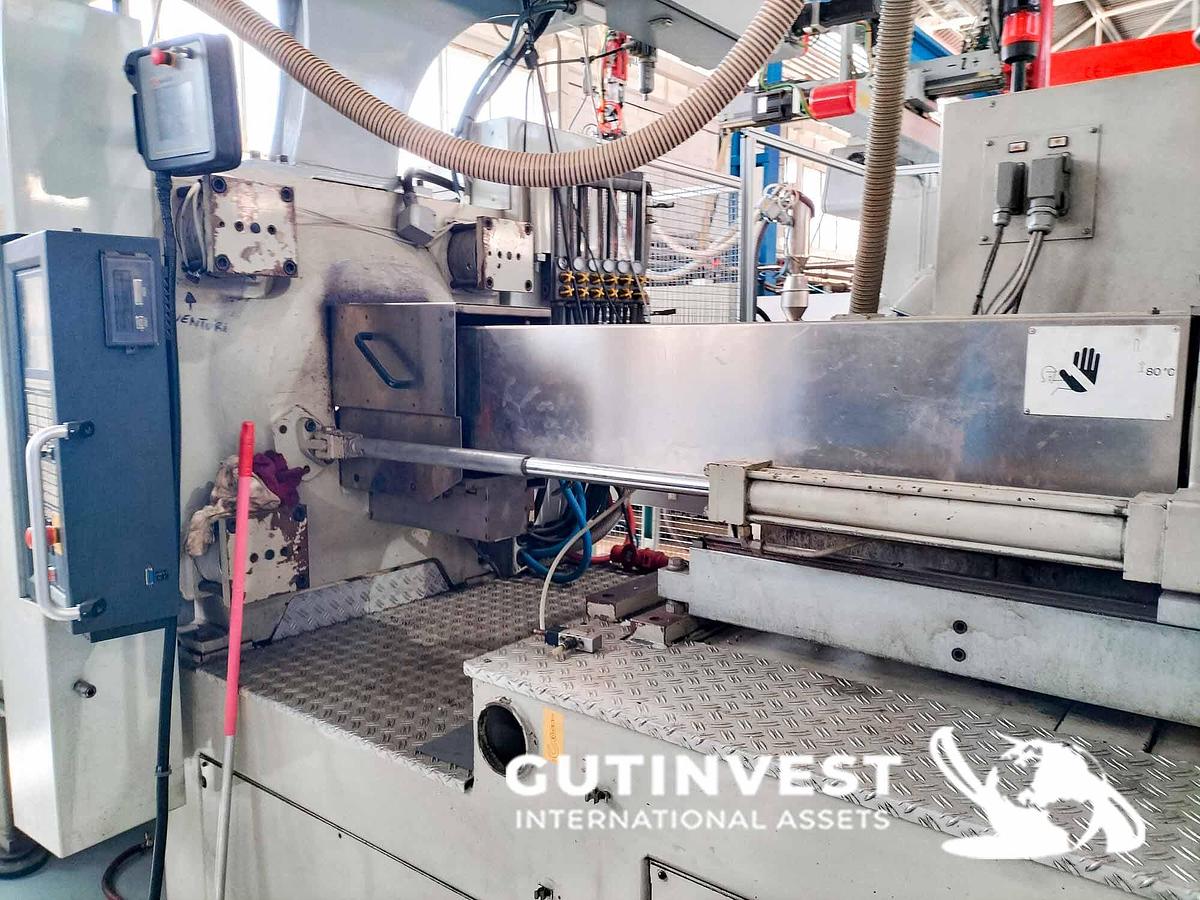

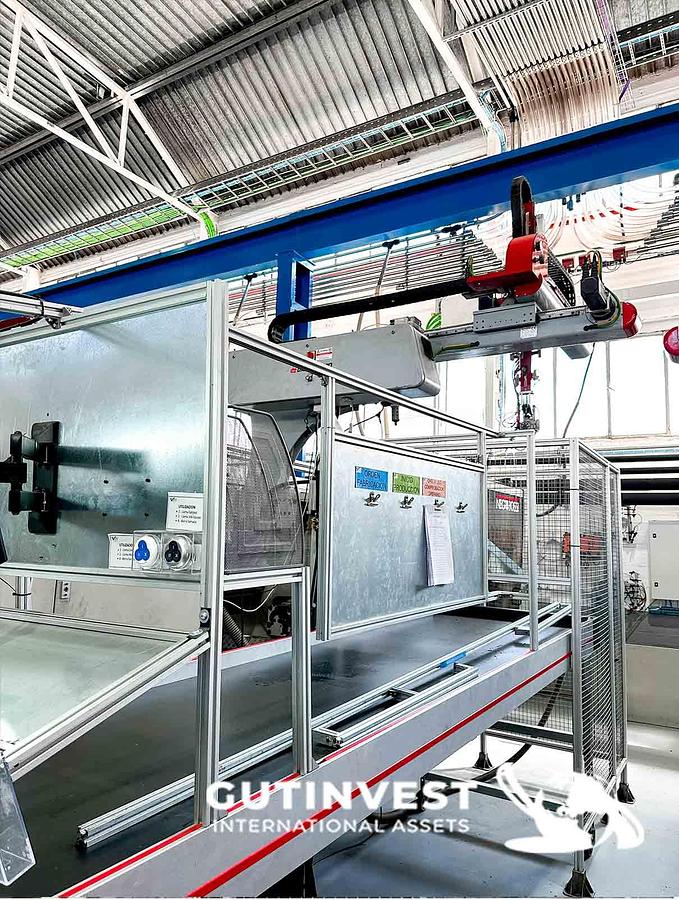

5 - Plastic injection molding machine with robot - 320Tn

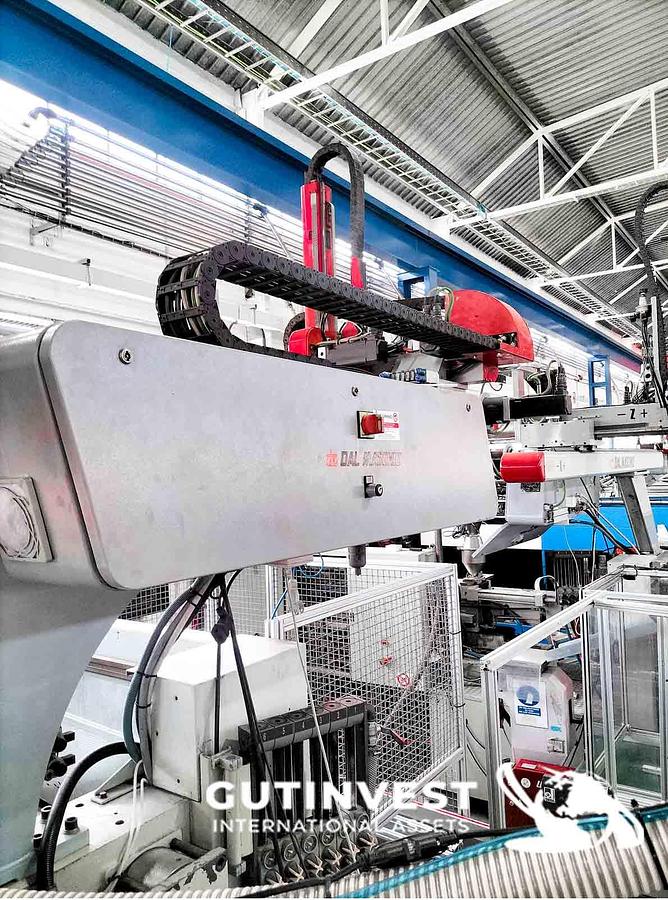

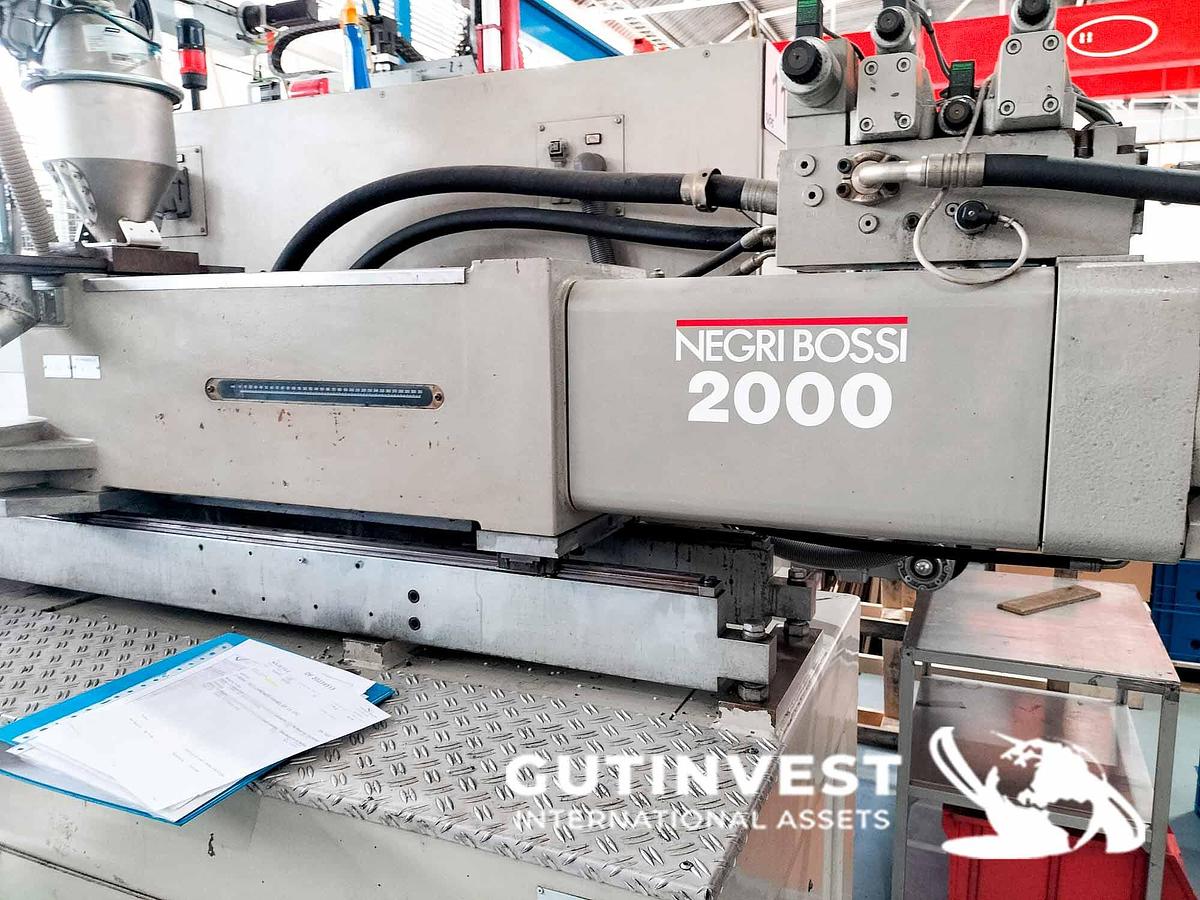

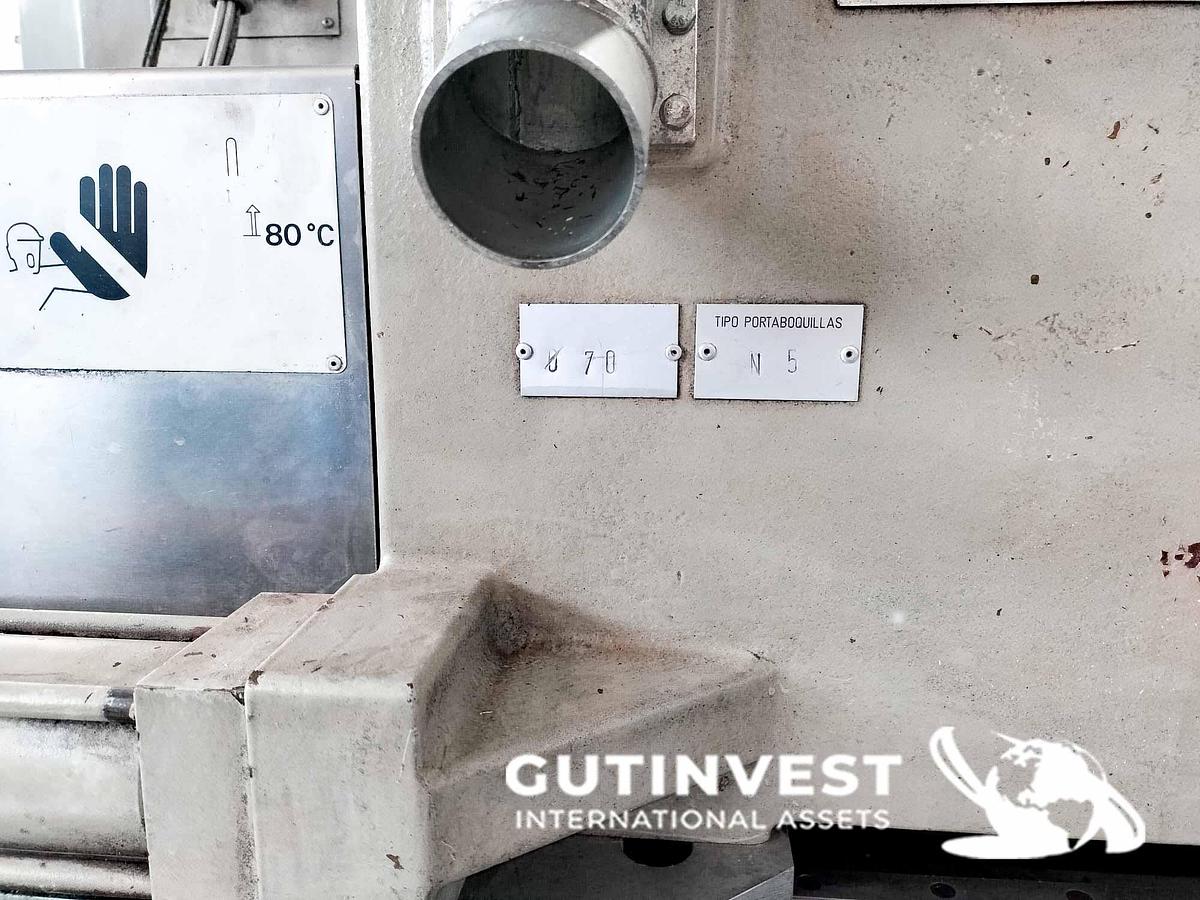

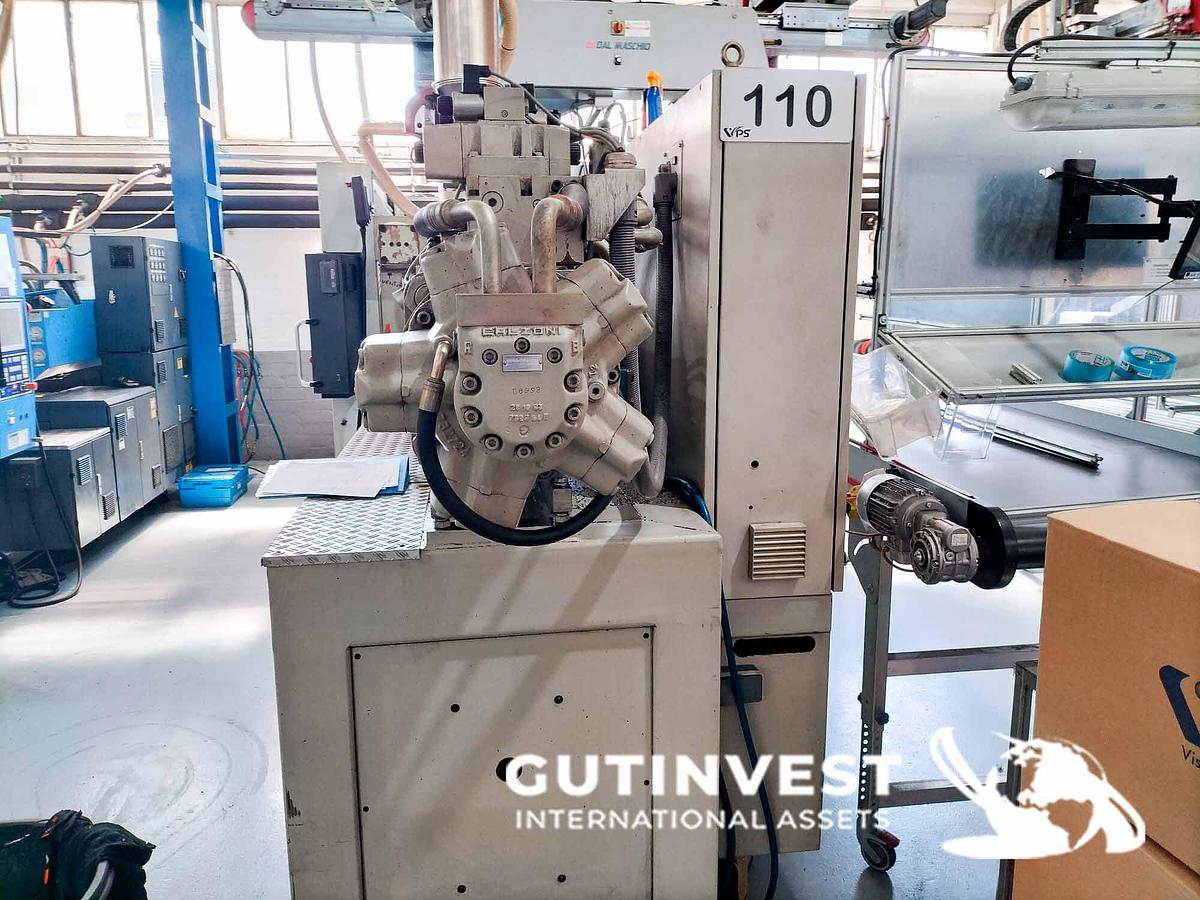

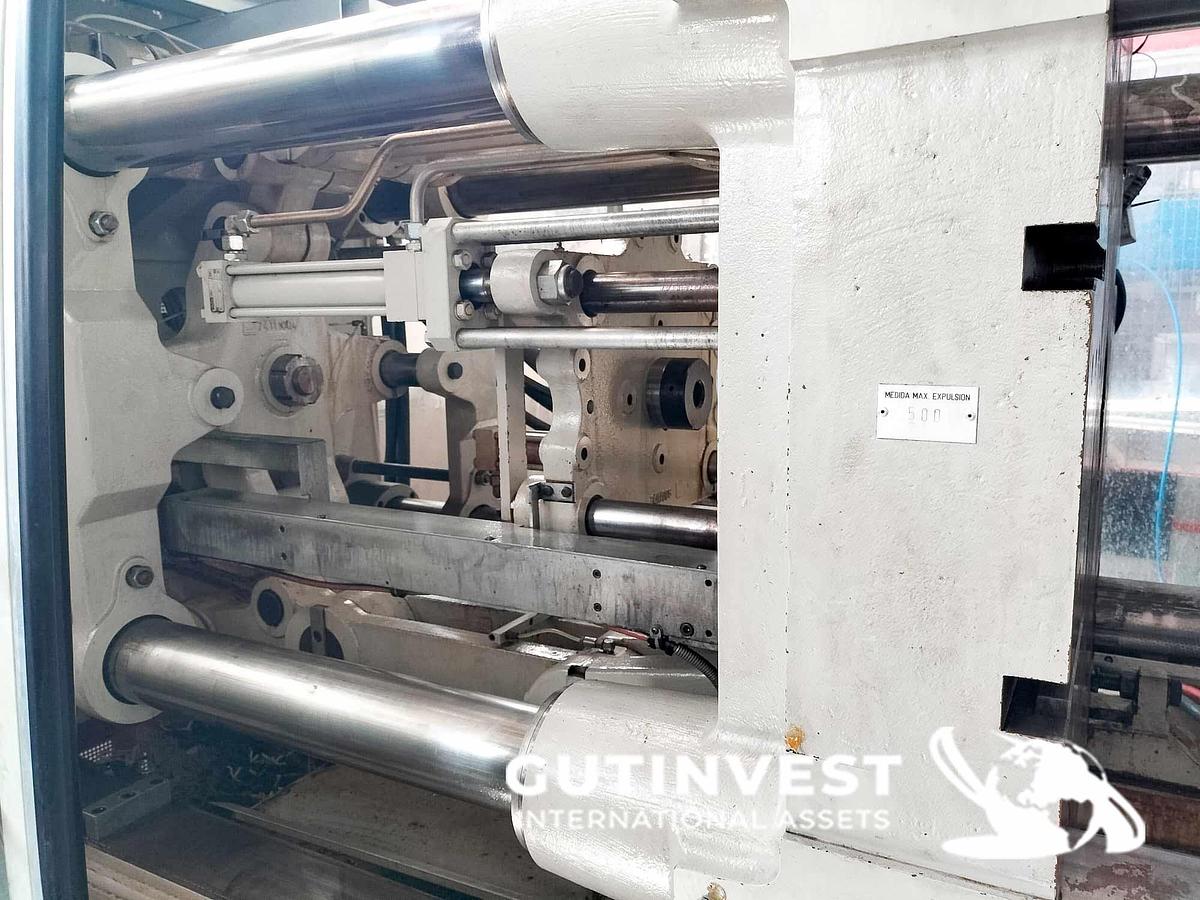

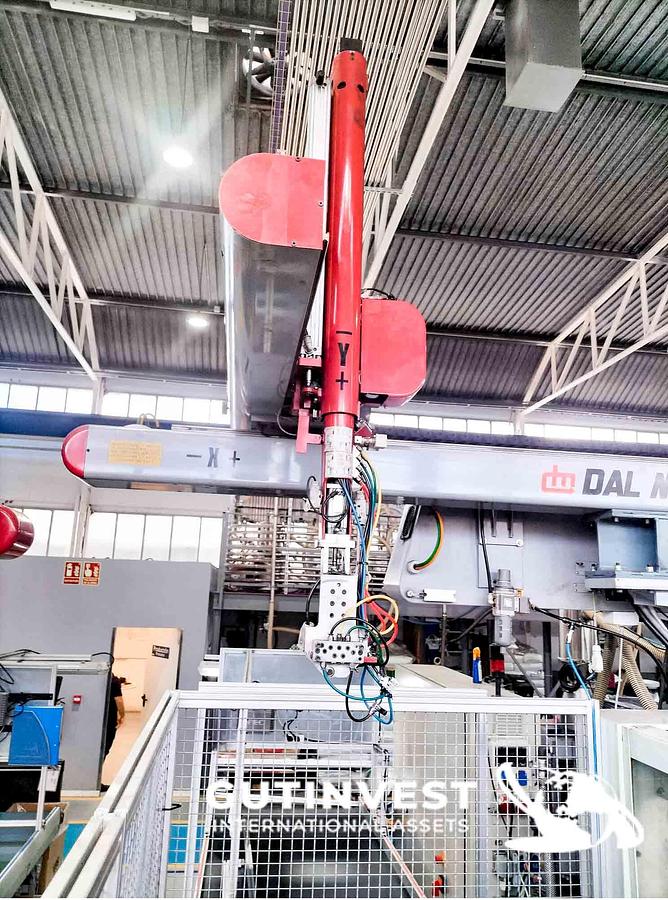

Plastic injector with robot. Clamping force: 320Tn, working hours: 72.000 hours, screw diameter: 70mm, mould opening stroke: 630mm, mould thickness: 250/700mm, surface dimensions HxV: 970x940mm, column passage HxV: 630x570mm, oil-hydraulic extractor force: 70Kn, oil-hydraulic extractor stroke: 225mm, blank cycles per minute:  35, Injector Rating: 2,000, Calculated Injection Volume: 1,150cc, Actual Injection Capacity (PS): 1,035cc, Injection Flow Rate: 340cc/s, Max. Pressure on Material: 1700bar, Screw Torque: 2000 Nm, Screw Rotation Speed: 250rpm, Plasticizing Capacity (PS): 70gr/sec, Cylinder Heating Zones: 5, Pump Motor Power: 37kW,  Total installed power: 65kW, Approx. machine dimensions: 7.550x1.800x2.240mm. Approx. machine weight: 12.200Kg. Includes robot "Dal Maschio" DMG04947 (2012).
