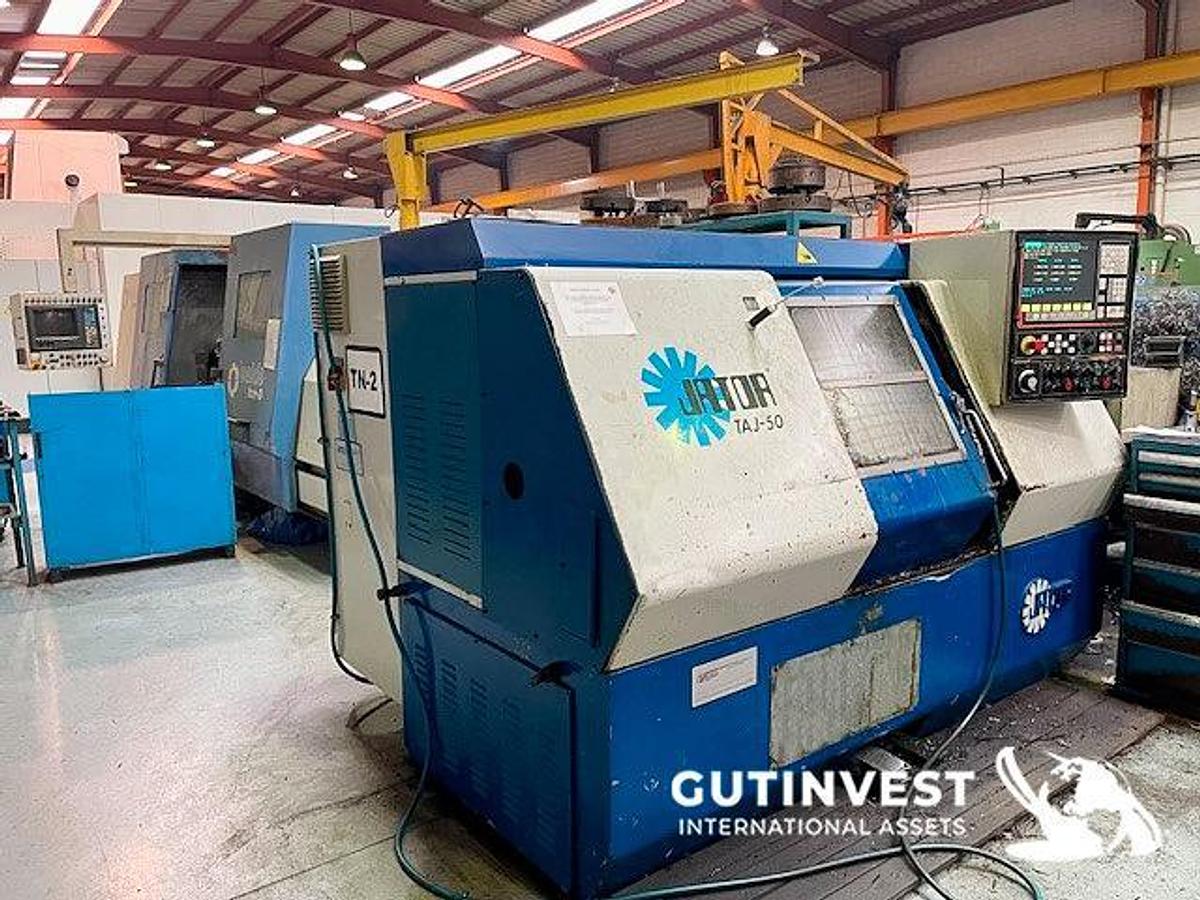

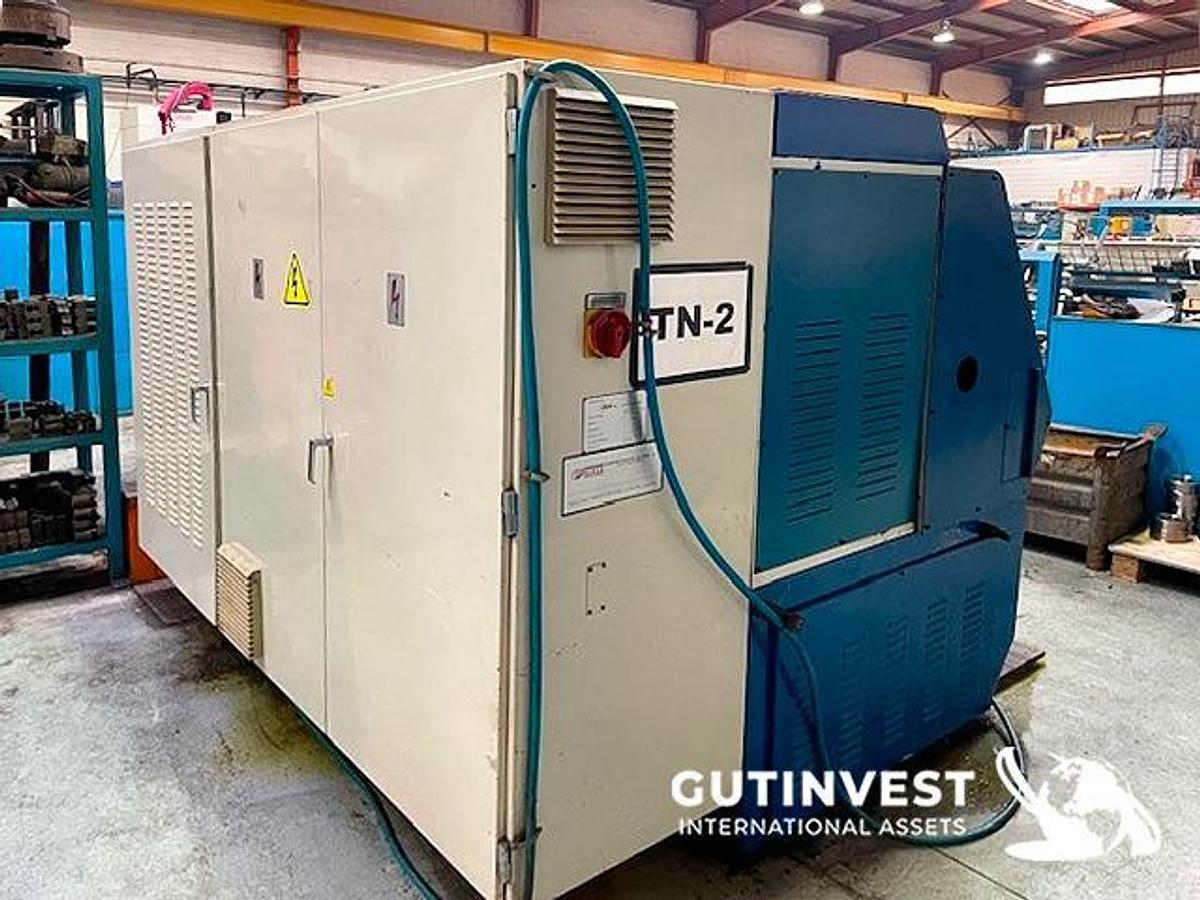

2 - CNC Lathe

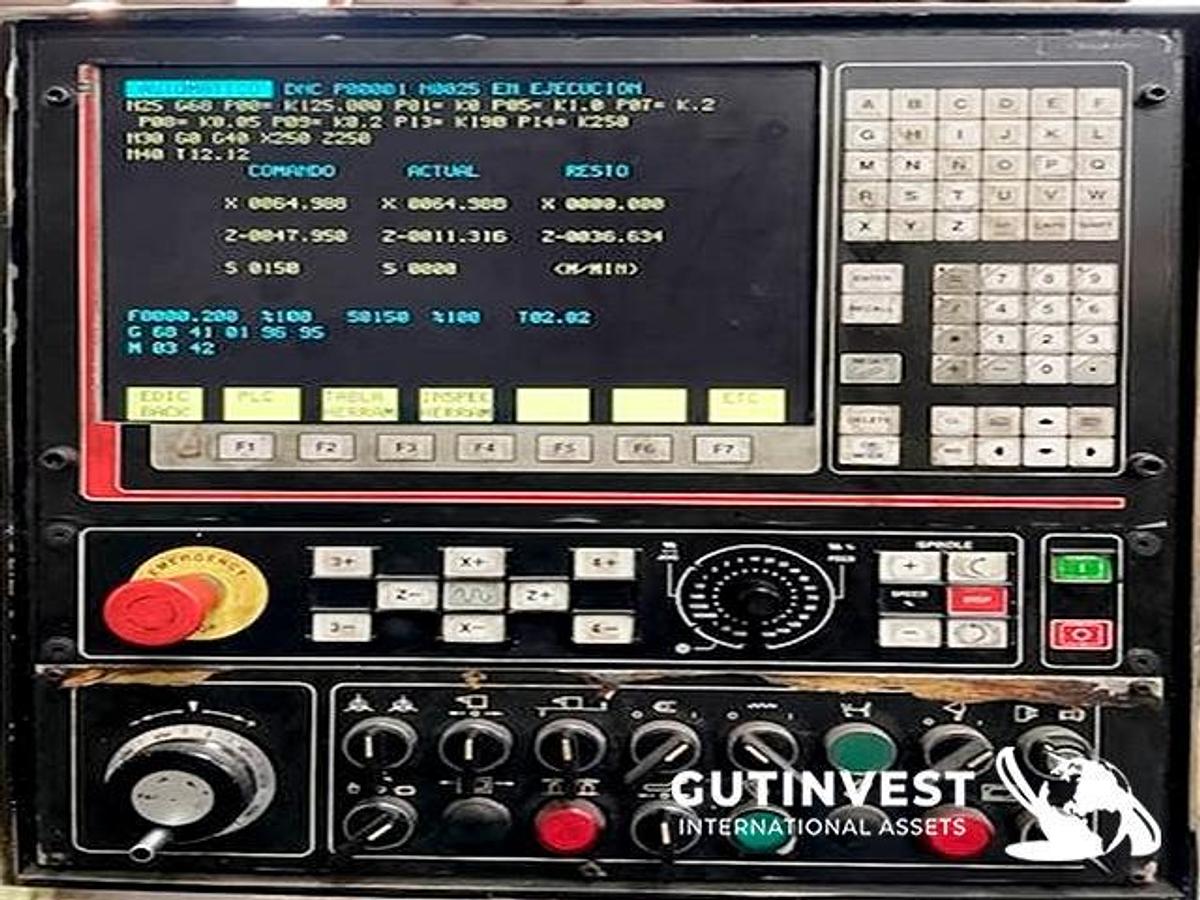

CNC Lathe. Bar capacity: 50mm, max. diameter on bed: 500mm, maximum diameter on transverse carriage: 320mm, transverse stroke (X-axis): 250mm, longitudinal course: 600mm. Spindle head: chainring diameter: 200mm, shaft diameter at the front support: 90mm. Main drive: 22kW, maximum speed: 3.000rpm, Fast feeds: X-axis: 12m/min, Z-axis: 15m/min, Tool turret: number of stations: 12, external tool sizes: 25x25mm, hole diameter: 40mm, Integral tailstock: Shank diameter: 90mm, rod course: 100mm. Machine dimensions without chip extractor: 2.500x1.900x1.700mm, Machine weight: 5.000Kg.Total power: 35kva, Voltage: 80V.50Hz. Control: Fagor. Includes chip extractor.
