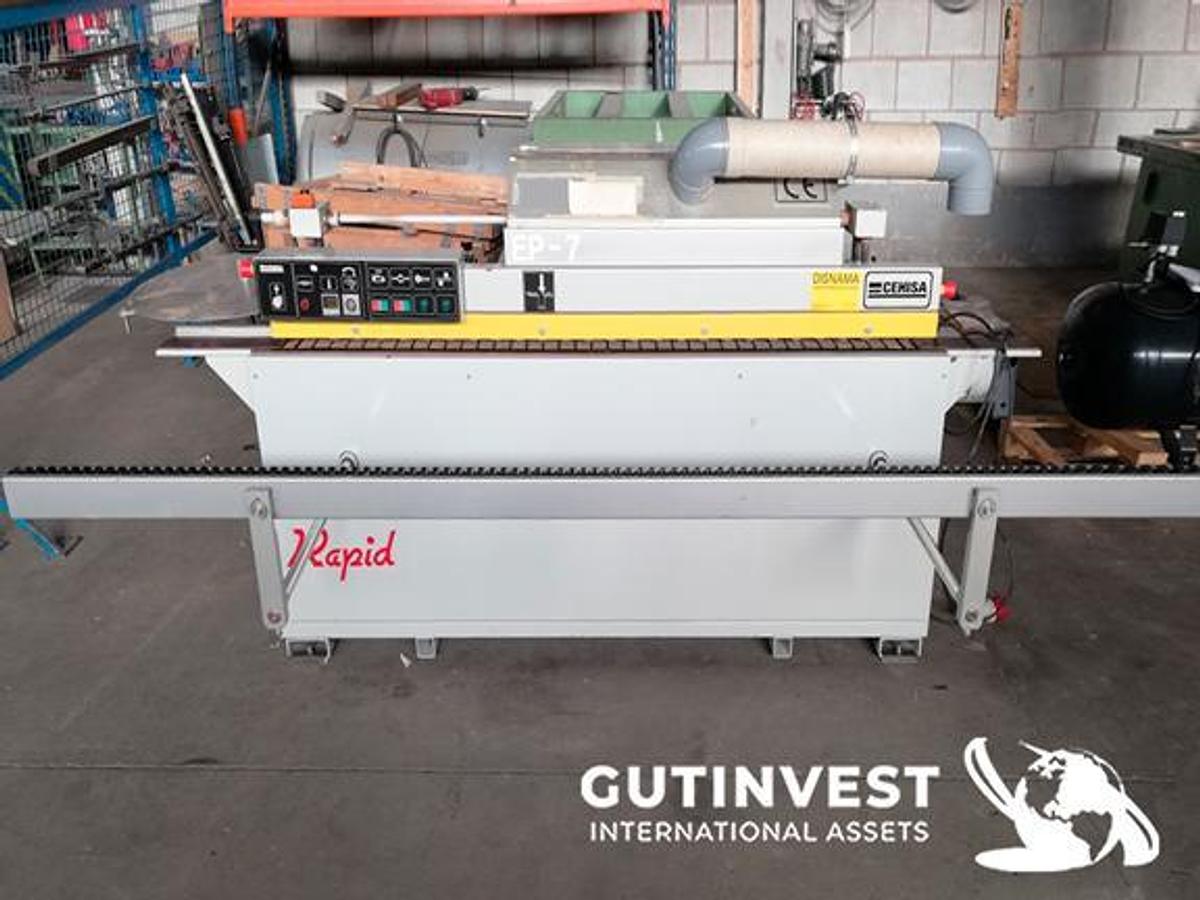

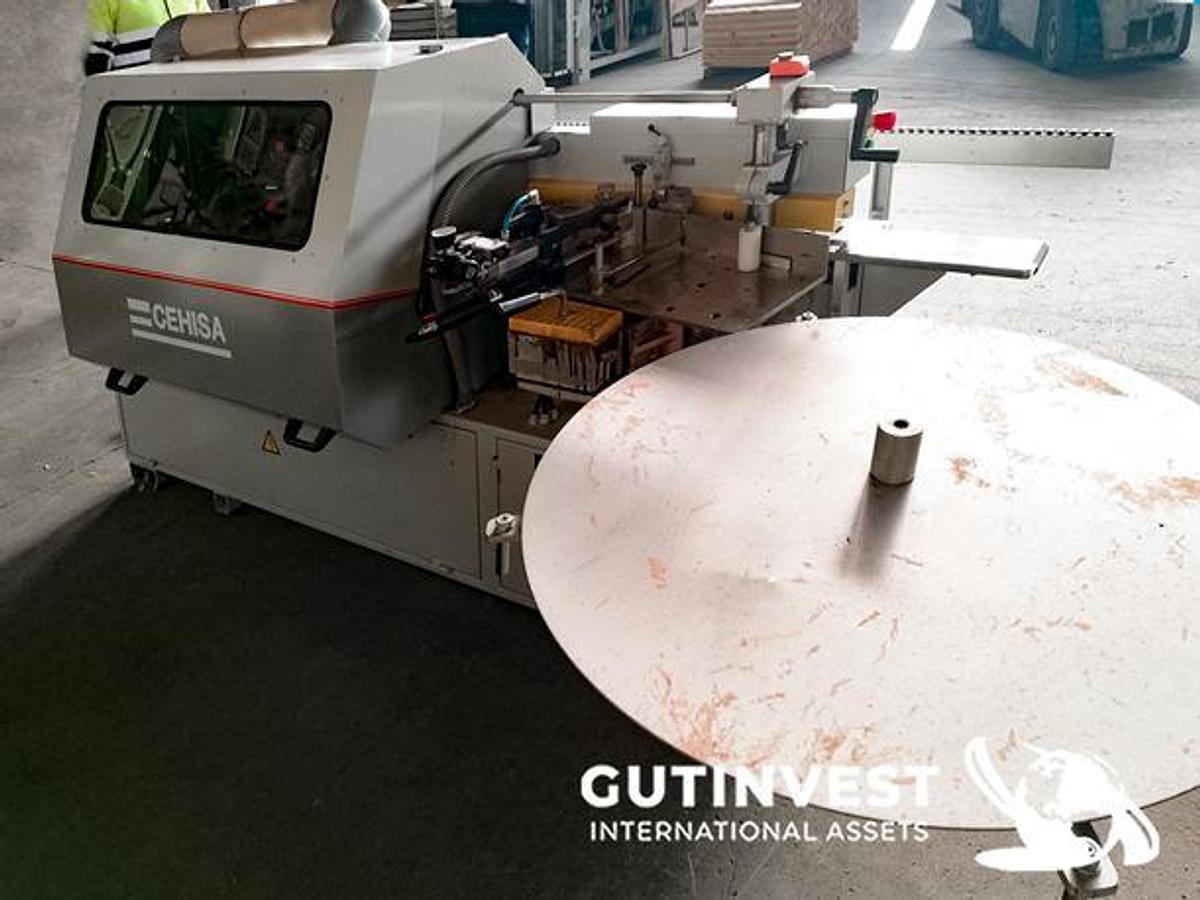

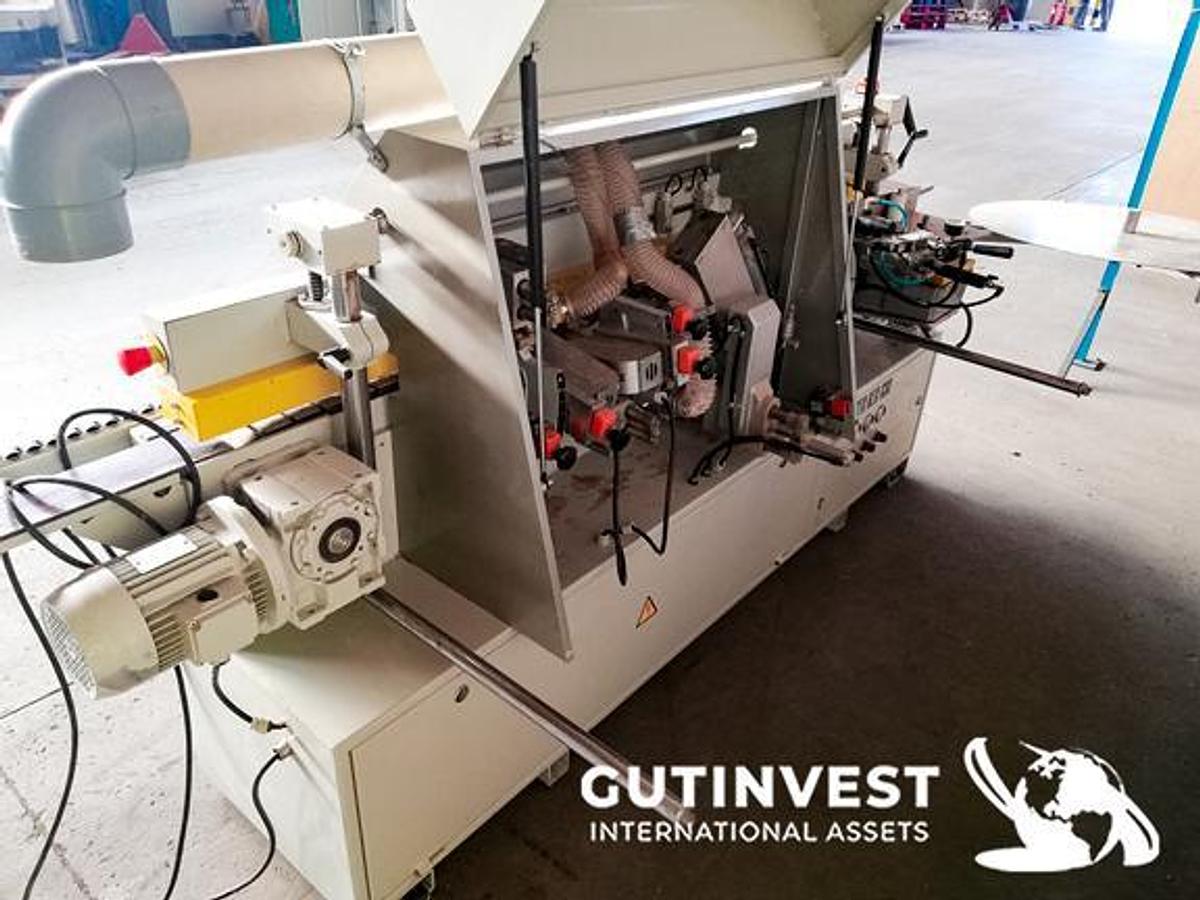

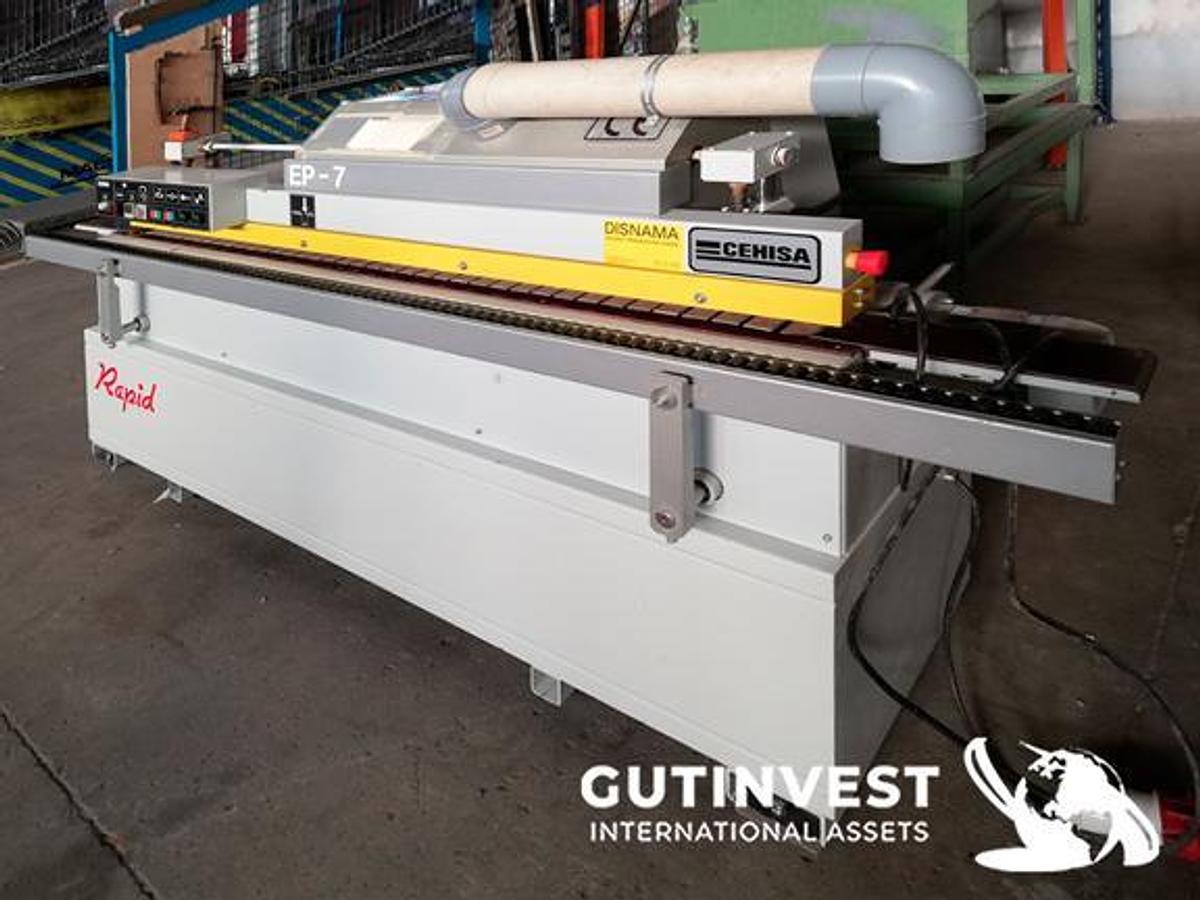

6 - Automatic edging machine - edge bander

Automatic edging machine - edge bander. Max length. And min. Tabletop: Unlimited - 120mm, max. width and min. Tabletop: unlimited - 75mm, max. thickness and min. Of the board: 60 - 8mm, sheet thickness: 0.4-5mm, feed speed: 10m/min, Installed power: 4kW. Equipped with a gluing, rehearsing and refining group. Single-carriage retester equipped with high-frequency motor, double shaft (for two saws). Trimmer composed of two tilting heads. Cut by interchangeable plate cutters. Electronic converter. Control of the work process by means of an automaton. Total fairing of the trimming and retesting groups. Voltage 380 V/ 50 Hz. Approximate machine dimensions: 2,610x1,800x1,250mm. Machine net weight: 750Kg.
