1 - Metal spectrometer

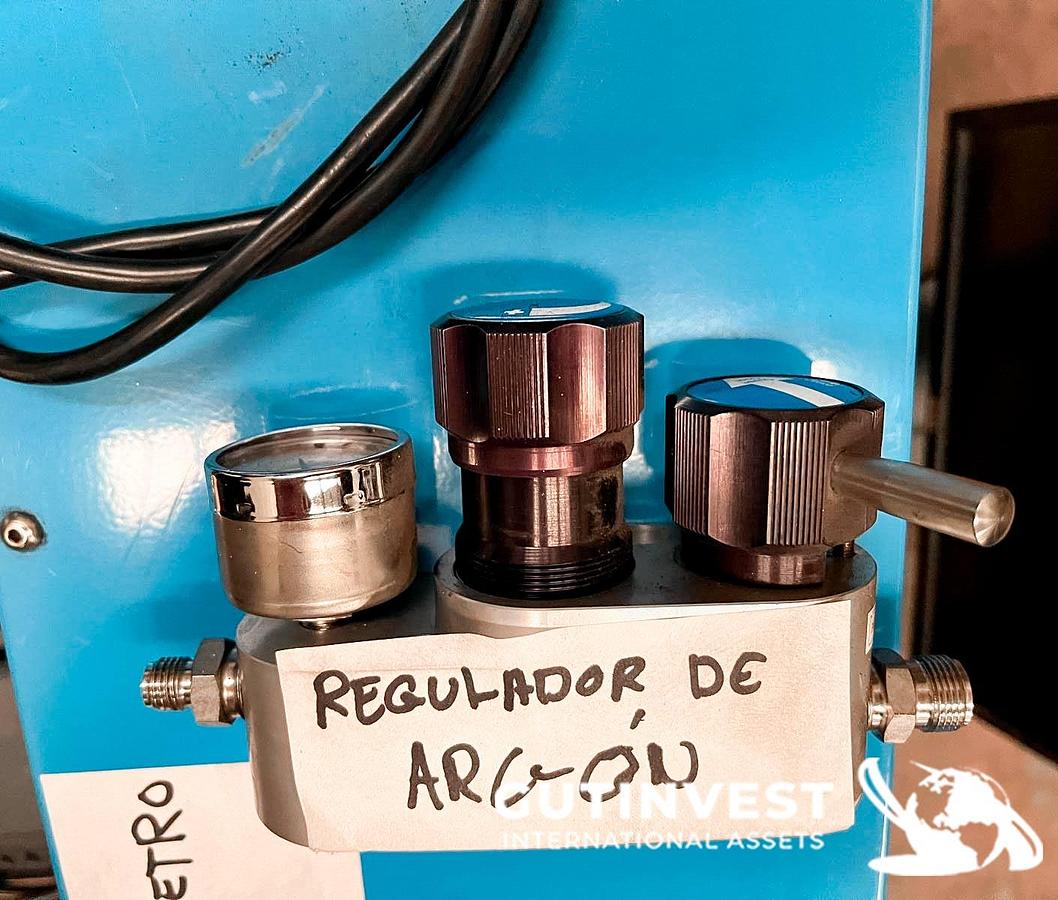

Metal spectrometer. Spectrometer: Spectrometer design: One-meter Paschen-Runge vacuum polychromator made of special cast iron and temperature controlled at ± 0.1° to 38° C. Maximum 60 channels. Primary slit width: 20 μm Secondary slit width: 20, 25, 37.5, 50, 75, 100 μm Photomultiplier tubes: Ø 28 mm, 10-stage side type, MgF2, UV glass, borosilicate glass, or synthetic silica windows. Type of grating: Spectrometer provided with one of the following gratings, suitably selected for the analytical task: 1080 gr/mm or 1667 gr/mm Resolution: Depends on the grating, the secondary slit and the spectral order Sample support: With autonomous cooling and recirculation system. Reddened argon table. Argon pulse regime after analysis to improve dust evacuation and instrument autonomy CCS and TRS: Controlled current source (CCS) and time-resolved spectroscopy (TRS) to expand the range of analysis capabilities Dimensions: 169 x 91 x 122 cm Weight: 540Kg
